Toyota Prius Prime(PHV)

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

12 part groups · 2 illustrations

Illustrations

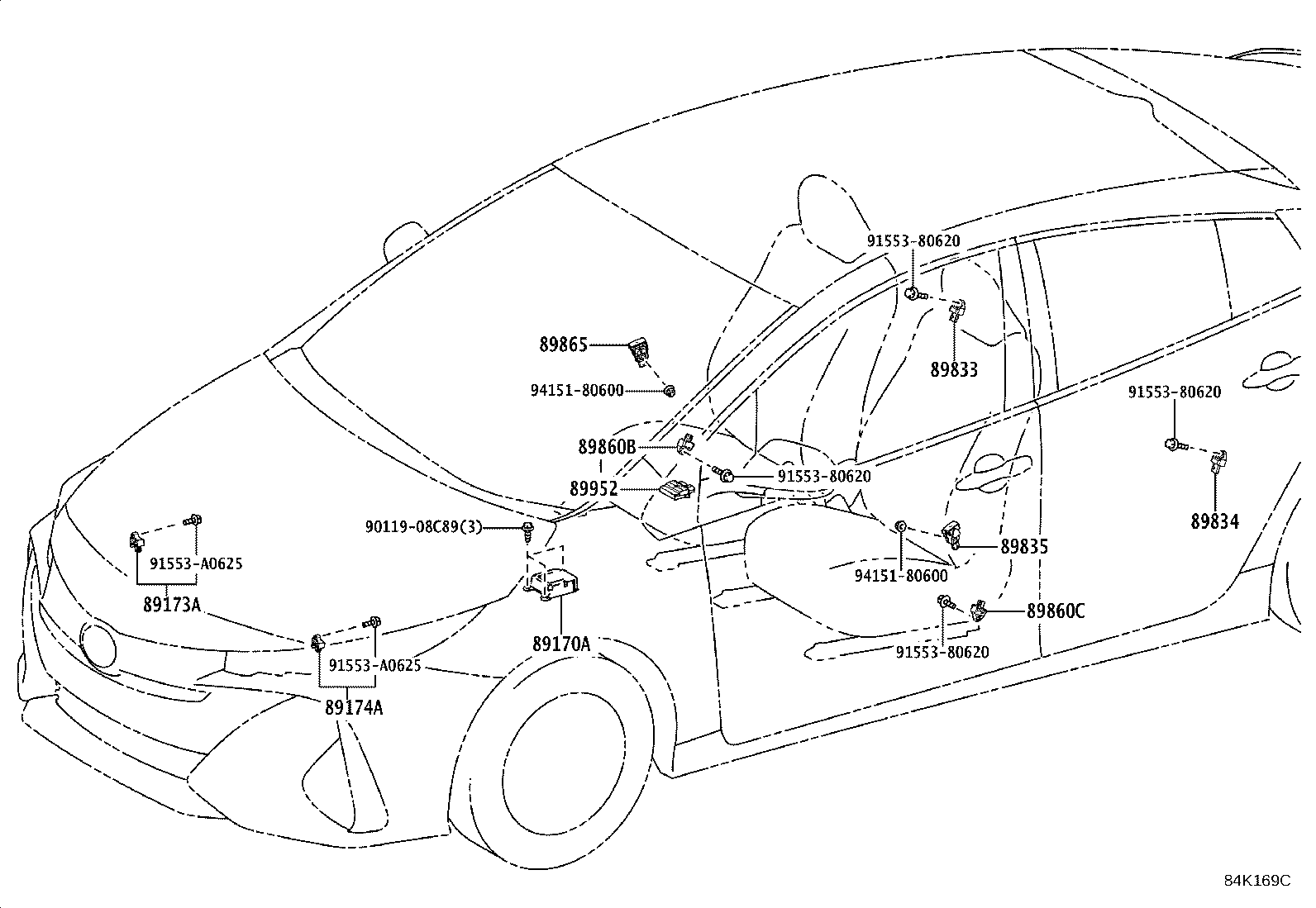

Figure 84H550B 84H550B 2016-09 → 2019-04 Figure 84K169C 84K169C 2019-05 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89835 Sensor, Door Side Airbag, LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89860B Sensor Assy, Side Airbag, RH, NO.2
89860C Sensor Assy, Side Airbag, LH, NO.2
89865 Sensor, Door Side Airbag, RH
89952 Computer, Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
