Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12
Navigation & Front Monitor Display
10 part groups · 3 illustrations
Part groups

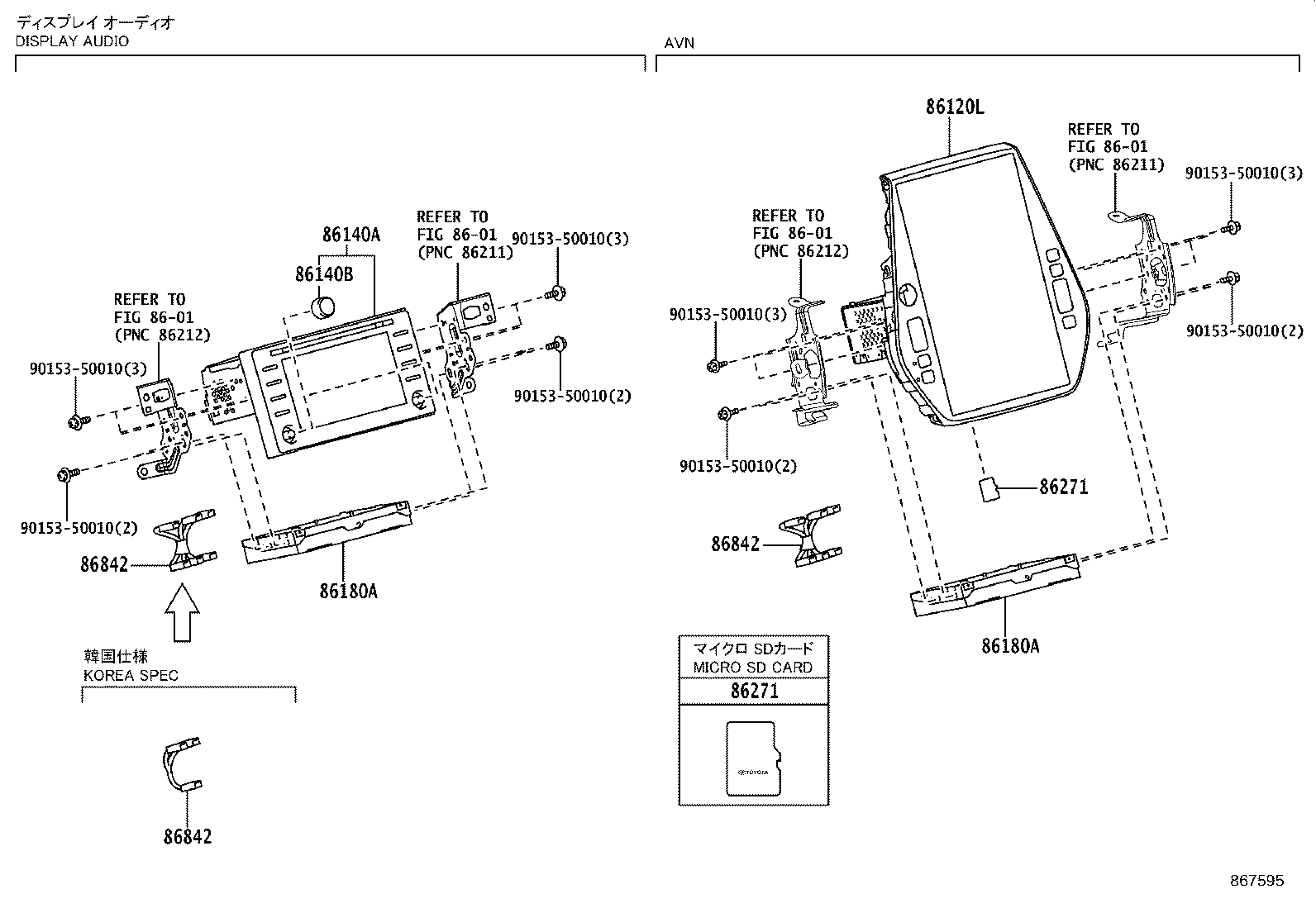

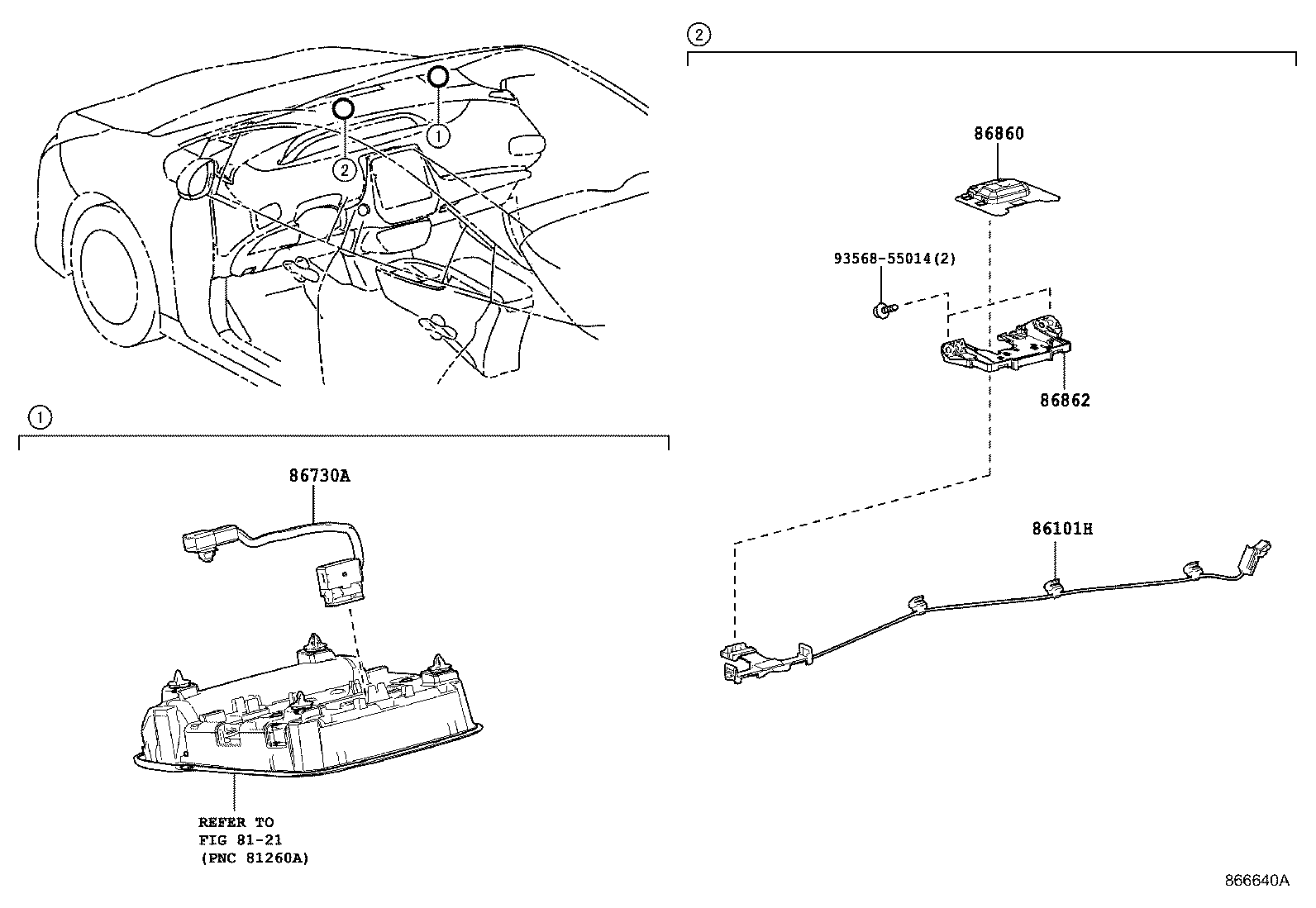

| PNC | Description |
|---|---|
| 86101H | Cord Sub-assy, Antenna |
| 86120L | Receiver Assy, Navigation |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86180A | Tuner Assy, Stereo Component |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
