Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12
Telephone & Mayday
7 part groups · 3 illustrations
Part groups

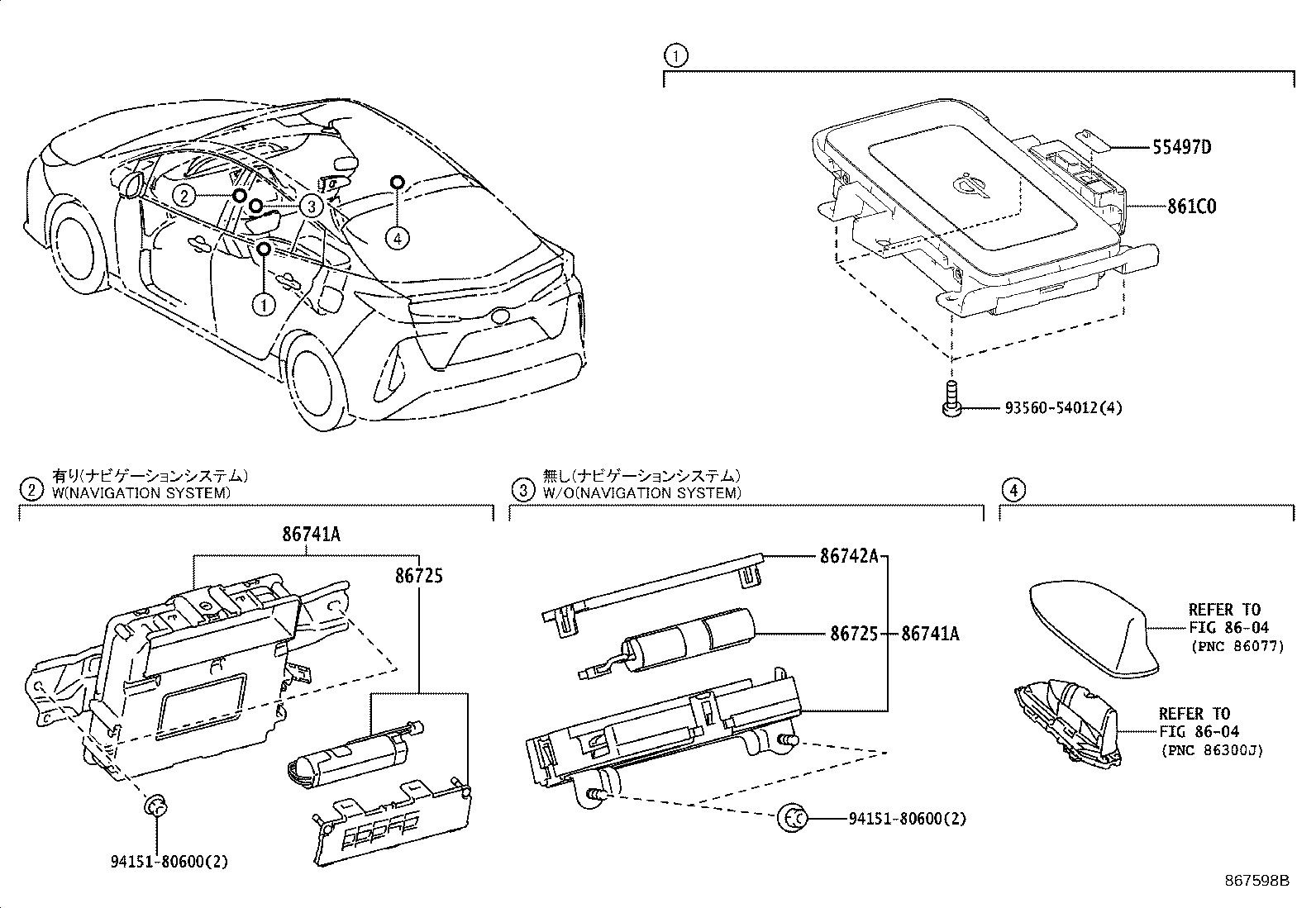

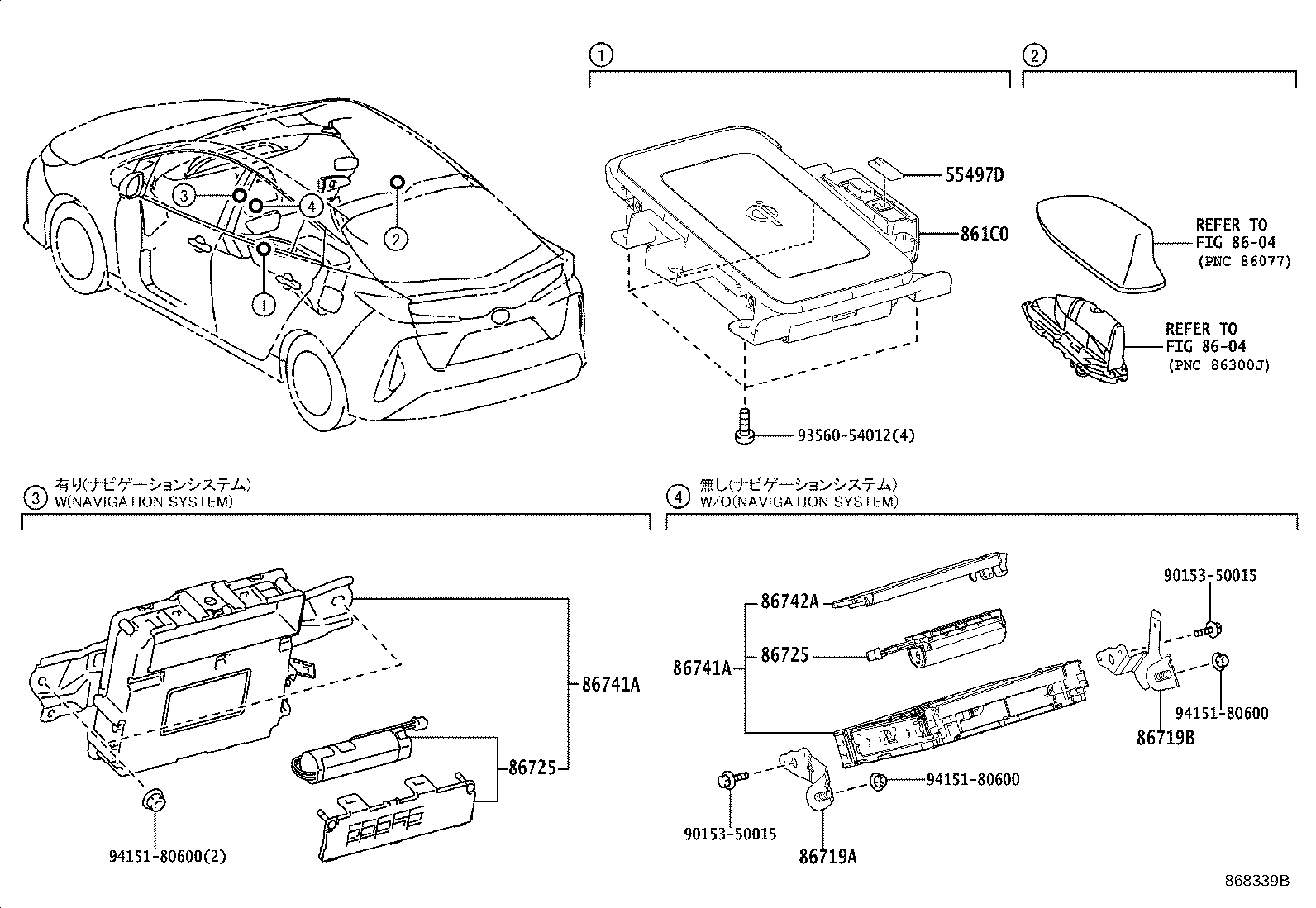

| PNC | Description |
|---|---|
| 55497D | Lens, Warning Lamp |
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86742A | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
