Heating & Air Conditioning - Water Piping

11 part groups · 3 illustrations

Illustrations

Figure 87G008A

87G008A 2016-09 → 2019-05

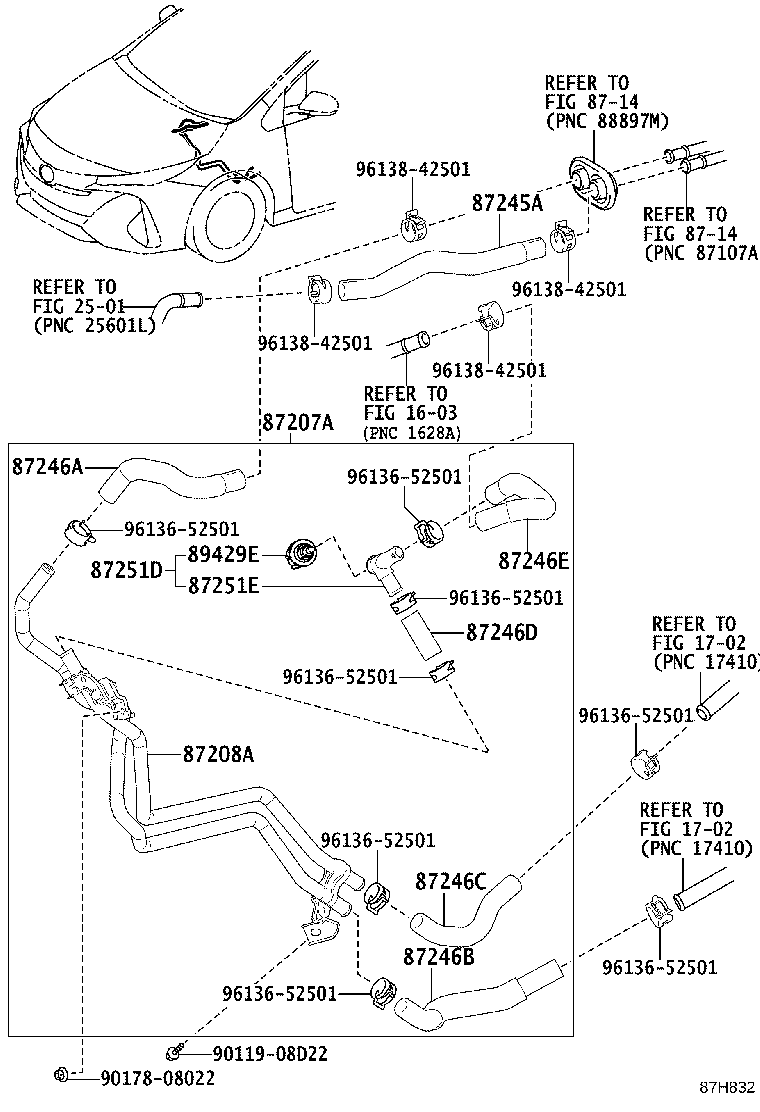

Figure 87H832

87H832 2019-05 → 2020-02

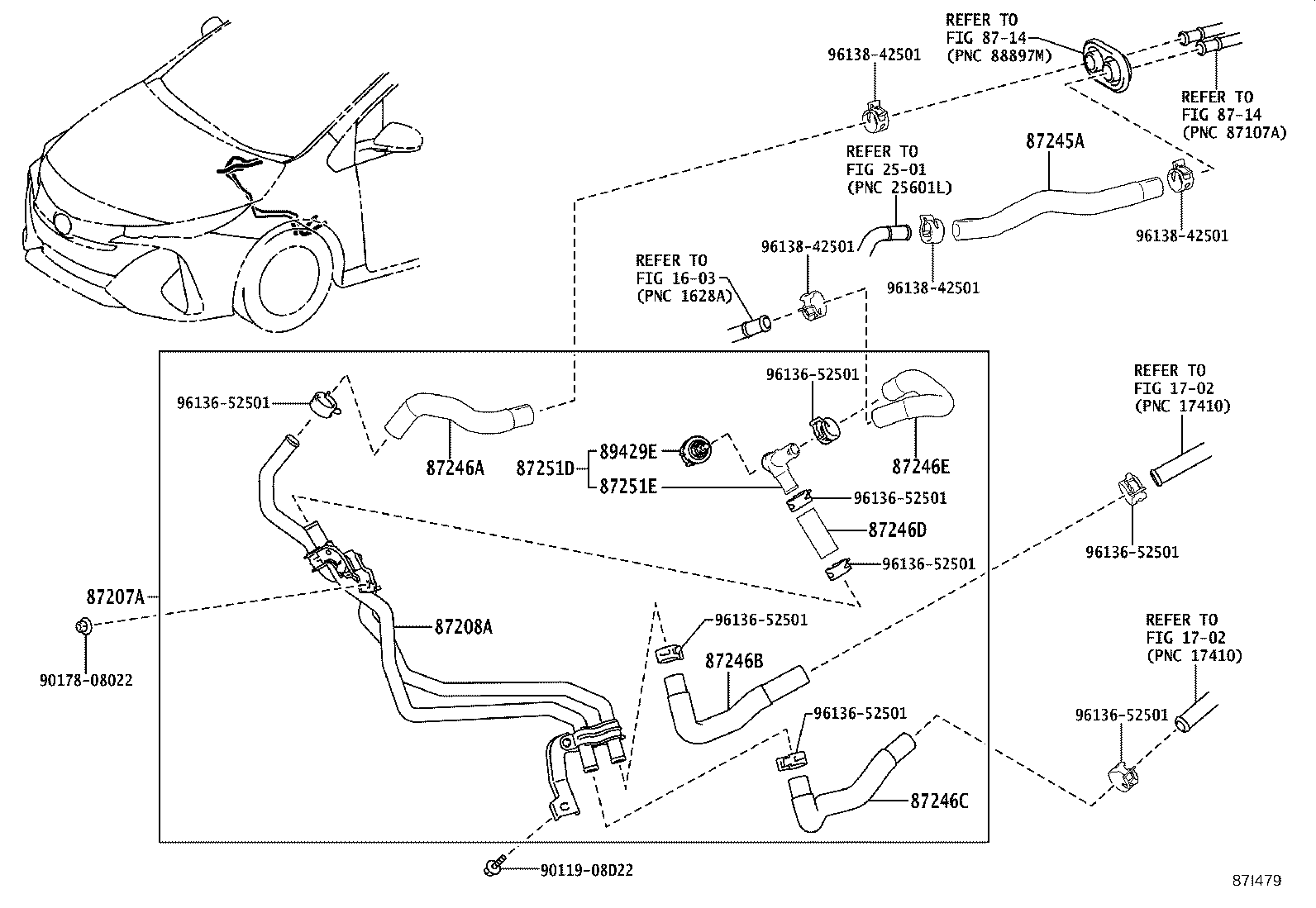

Figure 87I479

87I479 2020-02 → —

Part groups

PNC	Description
87207A	Pipe & Hose Sub-assy, Water A
87208A	Pipe Sub-assy, Heater Water, A
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87251D	Joint, Water, NO.1
87251E	Joint, Water, NO.2
89429E	Sensor, Water Temperature

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
