Toyota Prius V

2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 2 illustrations

Illustrations

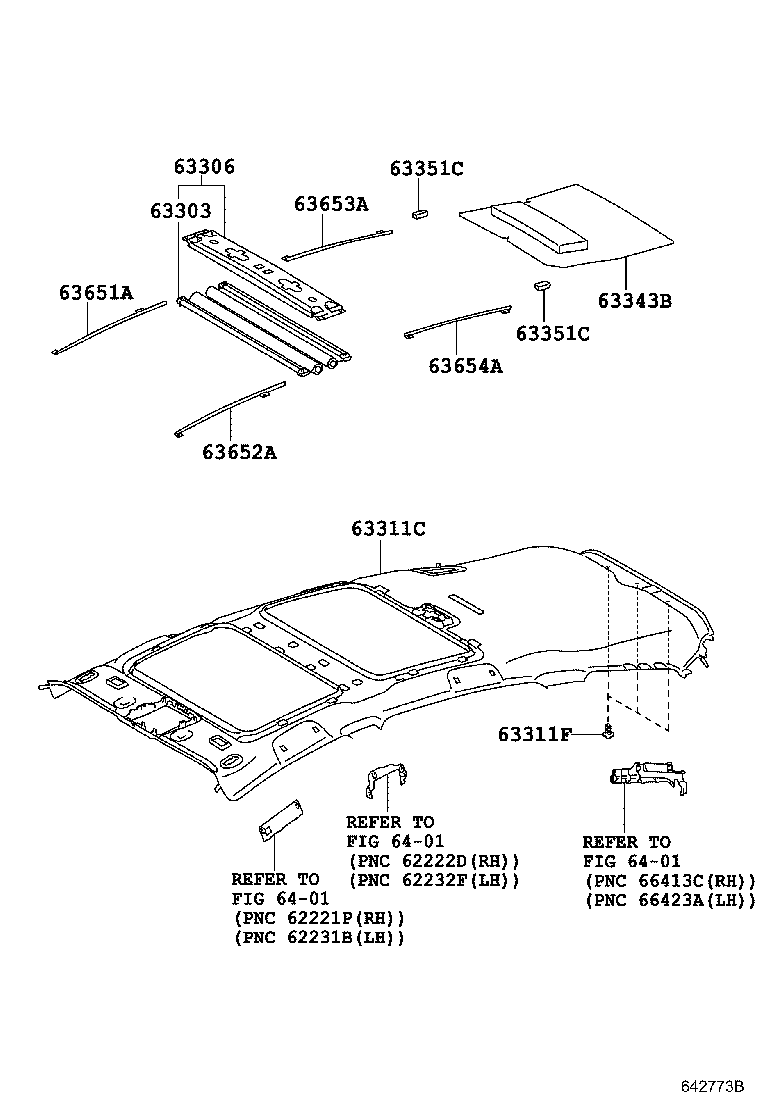

Figure 642772A 642772A 2011-09 → — Figure 642773B 642773B 2011-09 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63311C Headlining, Roof
63311F Clip, Roof Headlining, NO.1
63341D Pad, Roof Silencer, Front
63343B Pad, Roof Silencer, Rear
63345D Pad, Roof Silencer, Center
63351C Pad, Roof Headlining
63365A Plate, Roof Headlining Set
63366B Plate, Roof Headlining Set, LH
63651A Garnish, Sunshade, NO.1 RH
63652A Garnish, Sunshade, NO.1 LH
63653A Garnish, Sunshade, NO.2 RH
63654A Garnish, Sunshade, NO.2 LH
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
