Toyota Prius V

2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

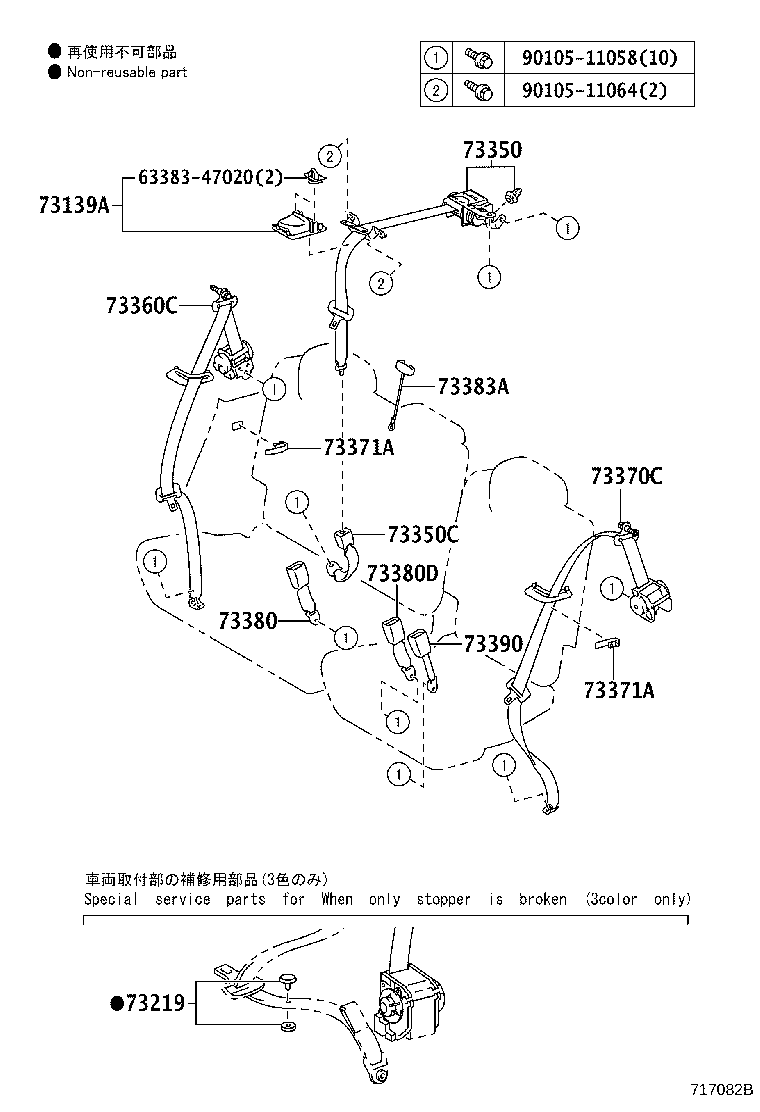

Figure 717081B 717081B 2011-09 → — Figure 717082B 717082B 2011-09 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73139A Cover, Seat Belt Anchor
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380D Belt Assy, Rear Seat, Inner
73383A Hook, RR Seat Belt
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
