Toyota Prius V

2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 3 illustrations

Illustrations

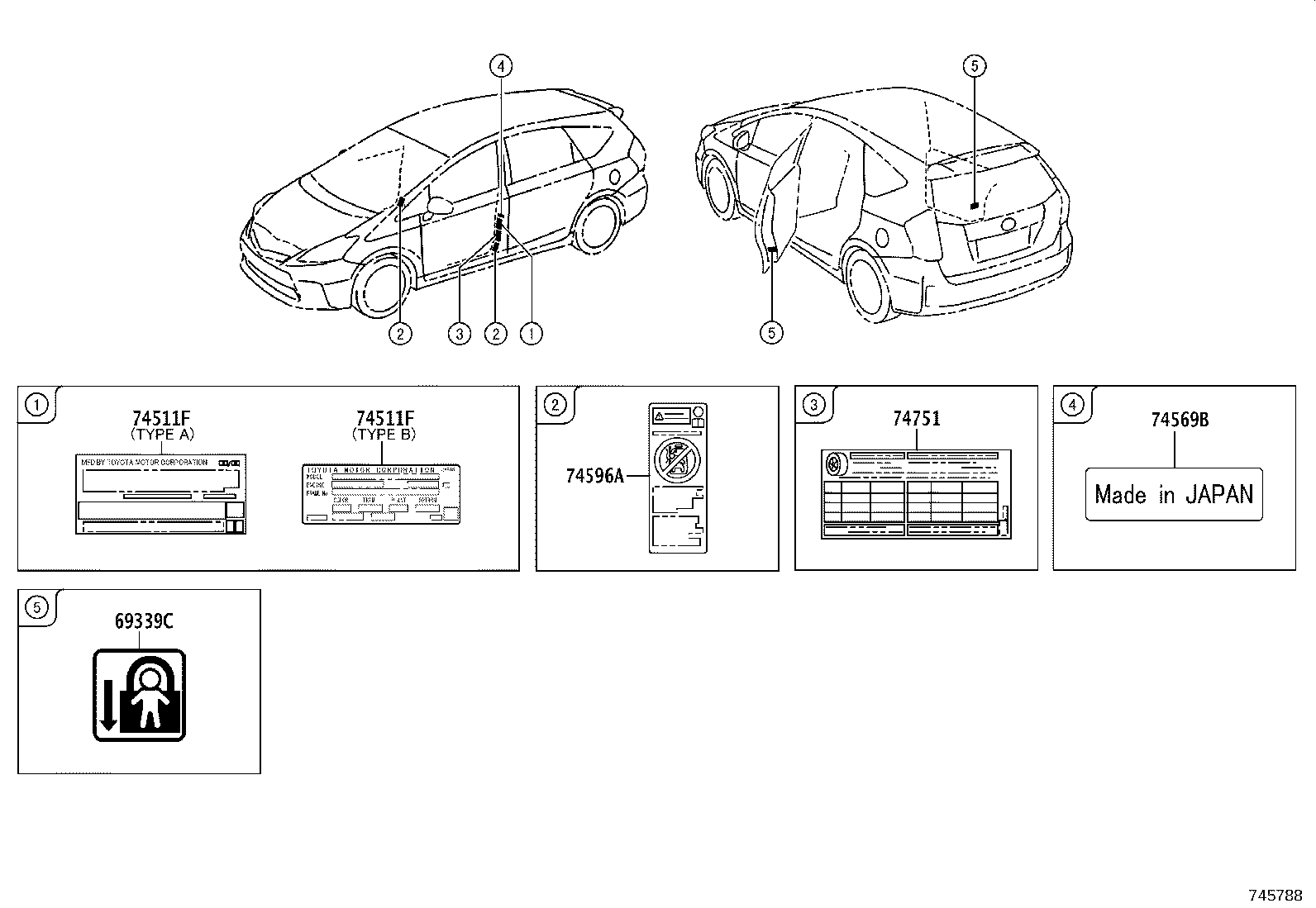

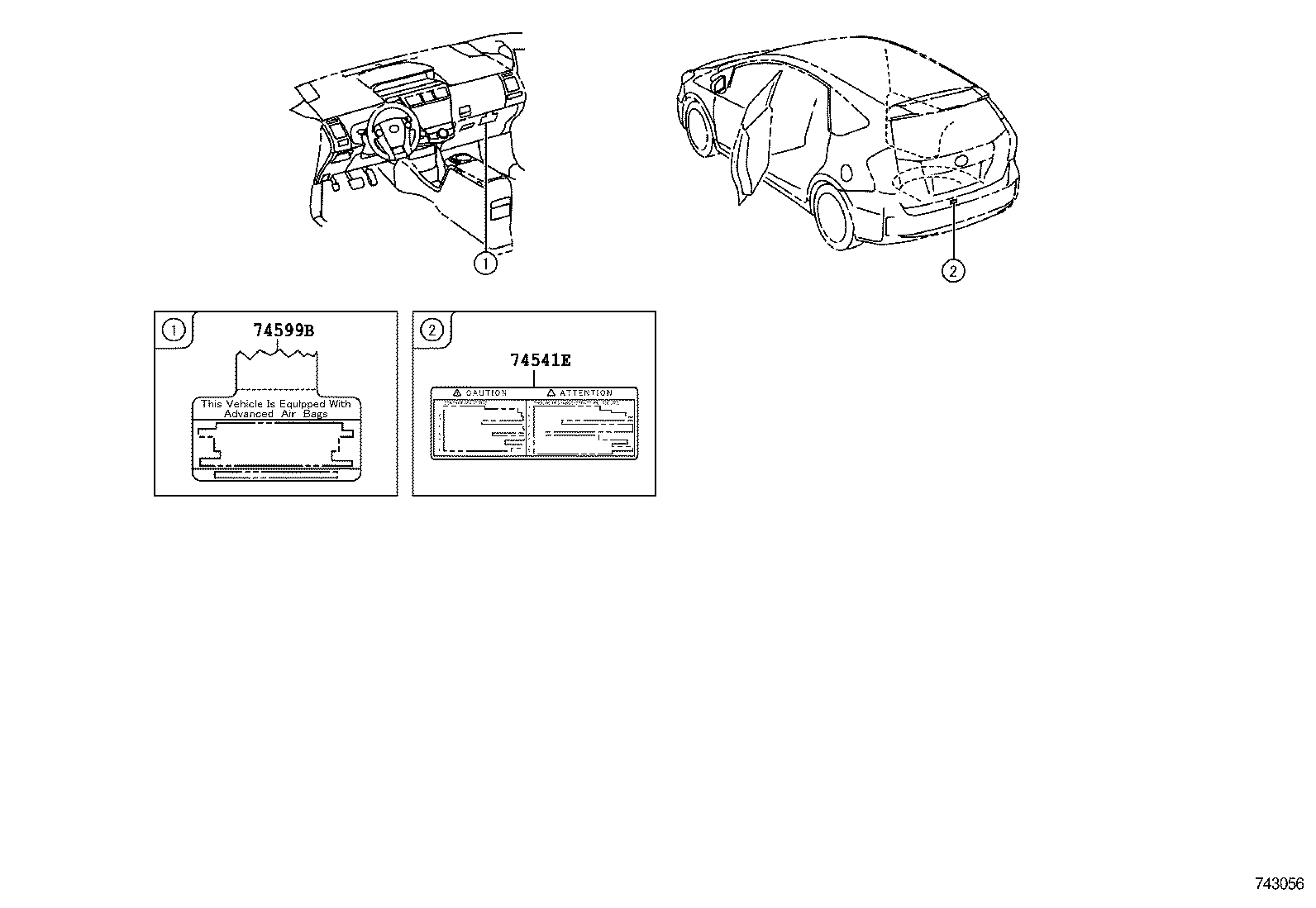

Figure 743055I 743055I 2011-09 → — Figure 745788 745788 2011-09 → — Figure 743056 743056 2011-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541E Plate, Compact Spare Tire Caution
74569B Label, Vehicle Information
74596A Label, Side Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
