Toyota Prius V
2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States
Supported model
Data version 2019-04

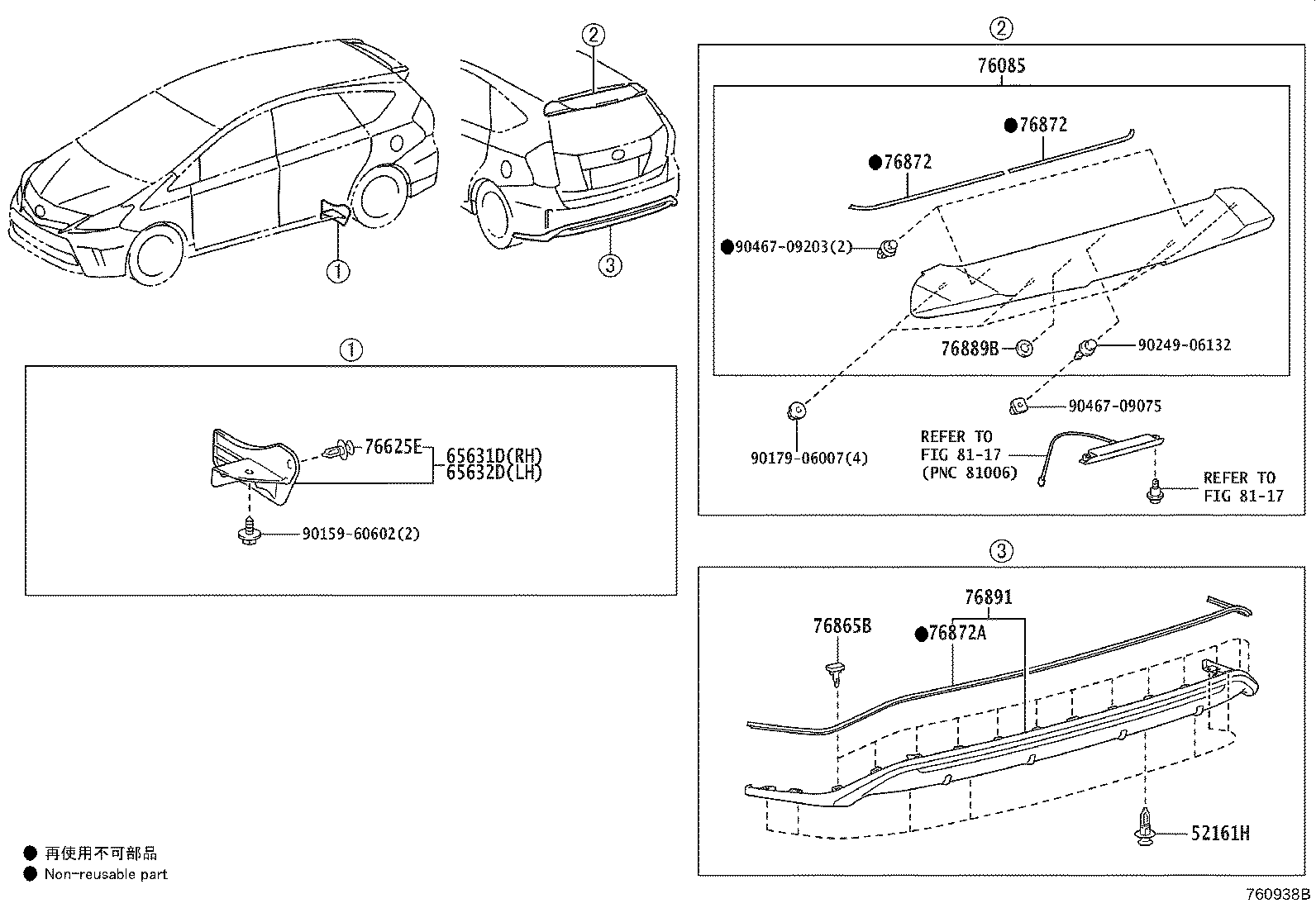

Mudguard & Spoiler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161H | Piece, Rear Bumper |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76625E | Clip |
| 76865B | Retainer, Rear Spoiler |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76891 | Spoiler, Rear NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
