Toyota Prius V
2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States
Supported model
Data version 2019-04

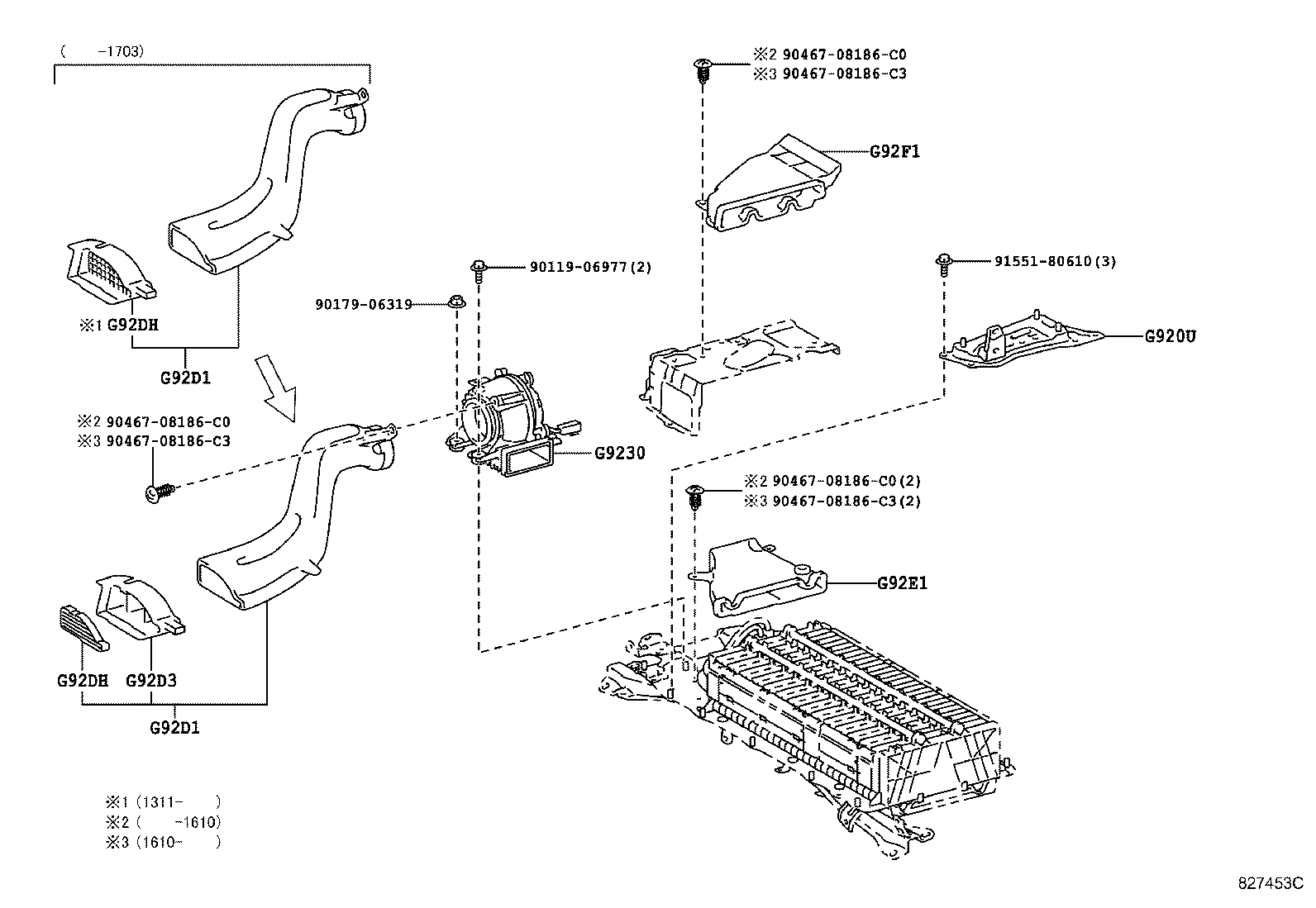

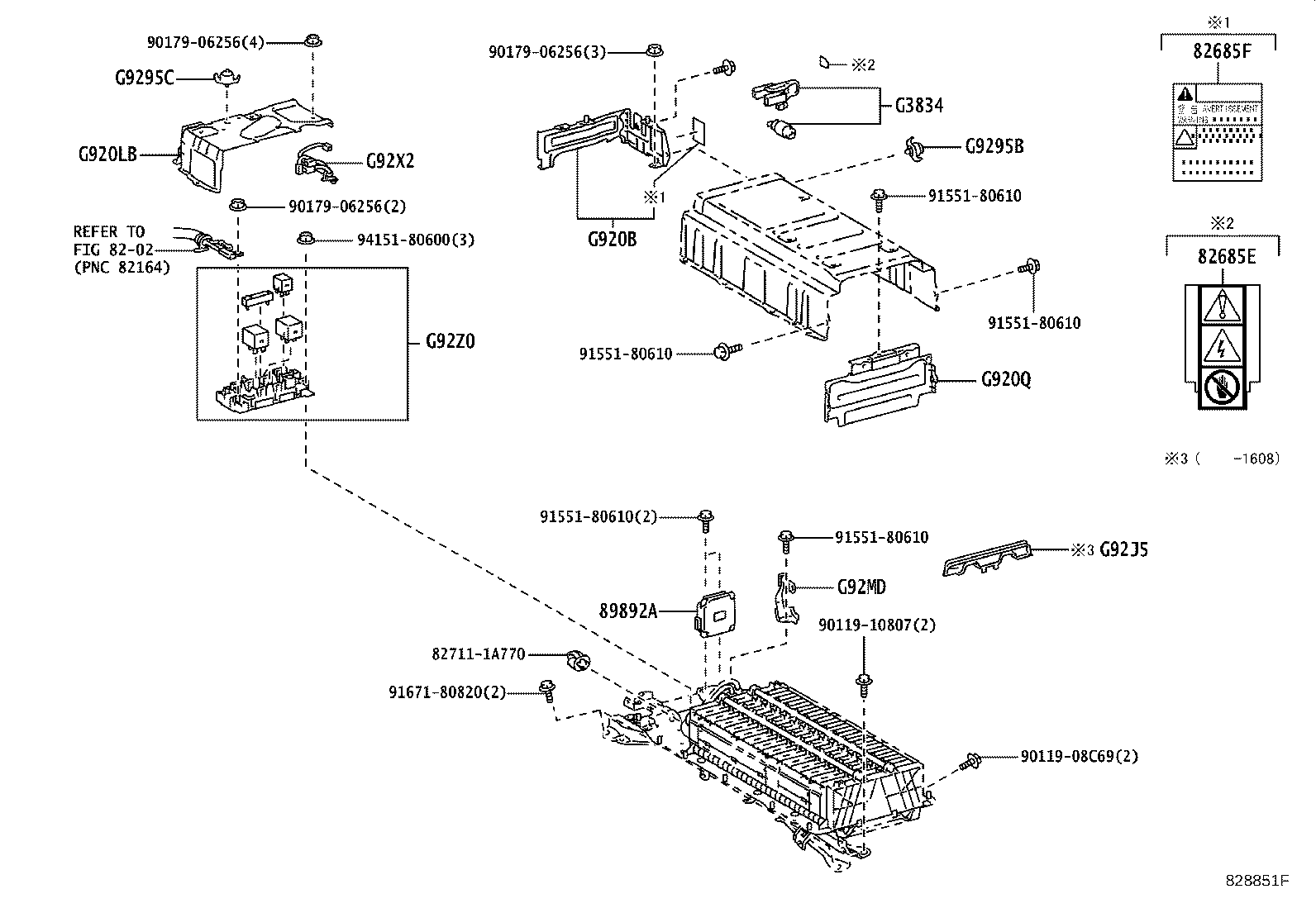

Battery & Battery Cable
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28885B | Hose, Battery |
| 28898 | Plate, Battery |
| 82675C | Terminal, Junction |
| 82685E | Plate, Service Plug Caution |
| 82685F | Main Battery Caution Plate, NO.1 |
| 82821K | Cover, Connector |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |
| G920B | Bracket Sub-assy, HV Battery Carrier, NO.1 |
| G920LB | Cover Sub-assy, Hybrid Battery, RH |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |
| G920U | Bracket Sub-assy, HV Battery Carrier, NO.4 |
| G9230 | Blower Assy, Battery Cooling |
| G9282 | Thermistor, Hybrid Battery |
| G9286 | Label, Hybrid Battery Caution, NO.2 |
| G9295B | Striker, Battery Cover Lock |
| G9295C | Striker, Battery Cover Lock, NO.2 |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D3 | Duct, Hybrid Battery Intake, NO.3 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92E1 | Duct, HV Battery Cover Intake, NO.1 |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92J5 | Packing, Hybrid Battery, NO.1 |
| G92MD | Bracket, HV Battery Upper Carrier, NO.7 |
| G92X2 | Wire, HV Battery Pack, NO.2 |
| G92Z0 | Block Assy, HV Battery Junction |

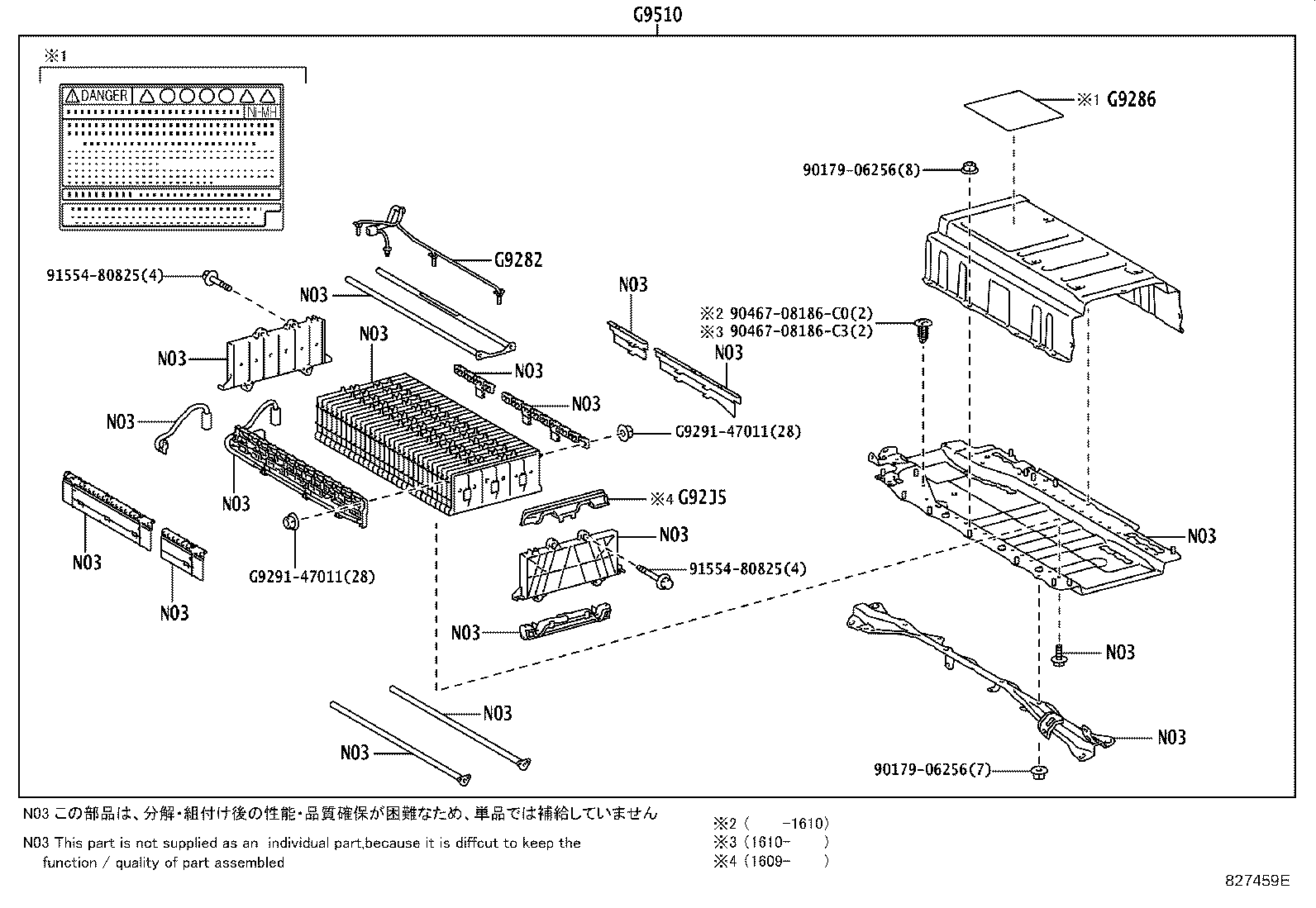

| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
