Toyota Prius V

2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 3 illustrations

Illustrations

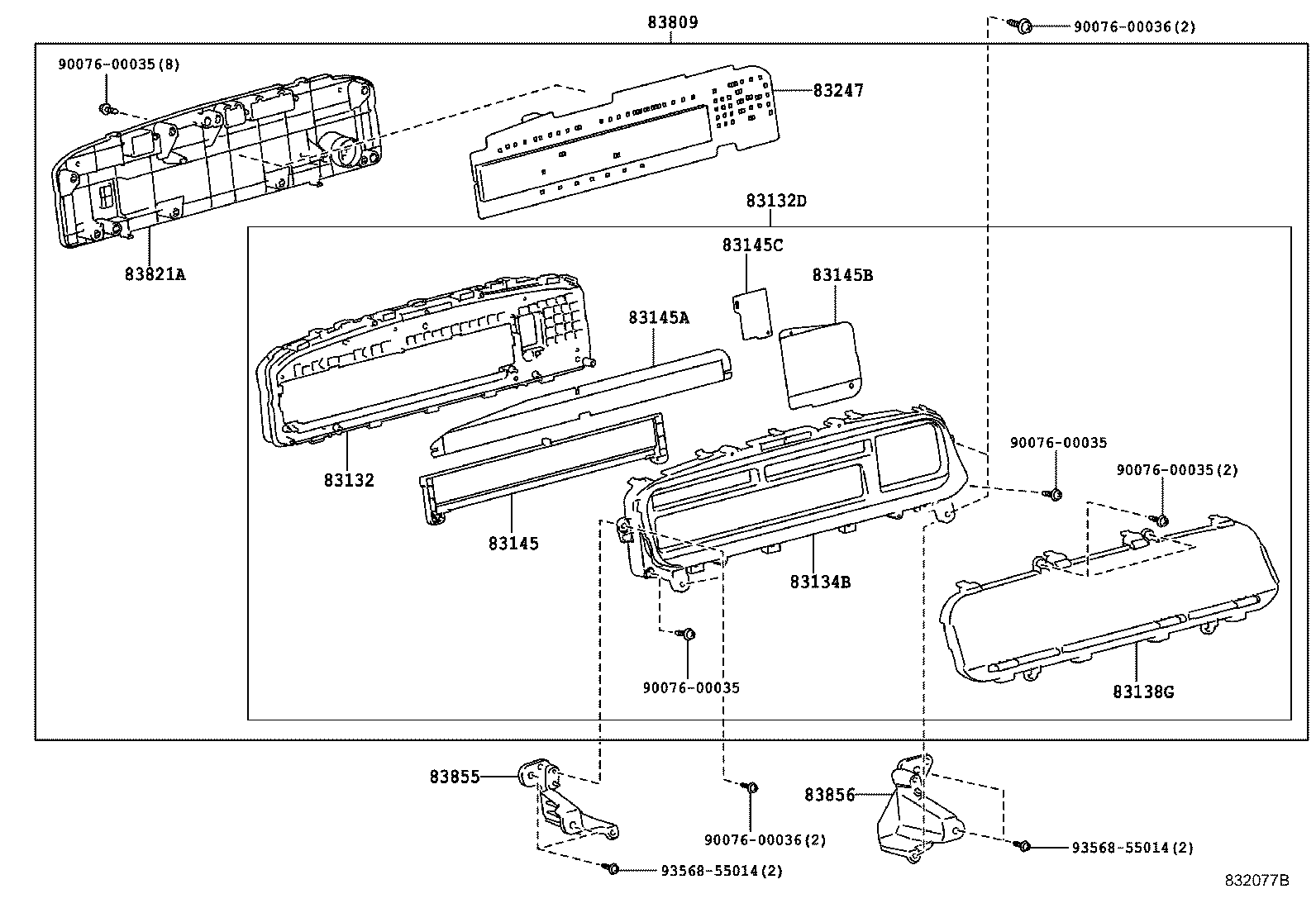

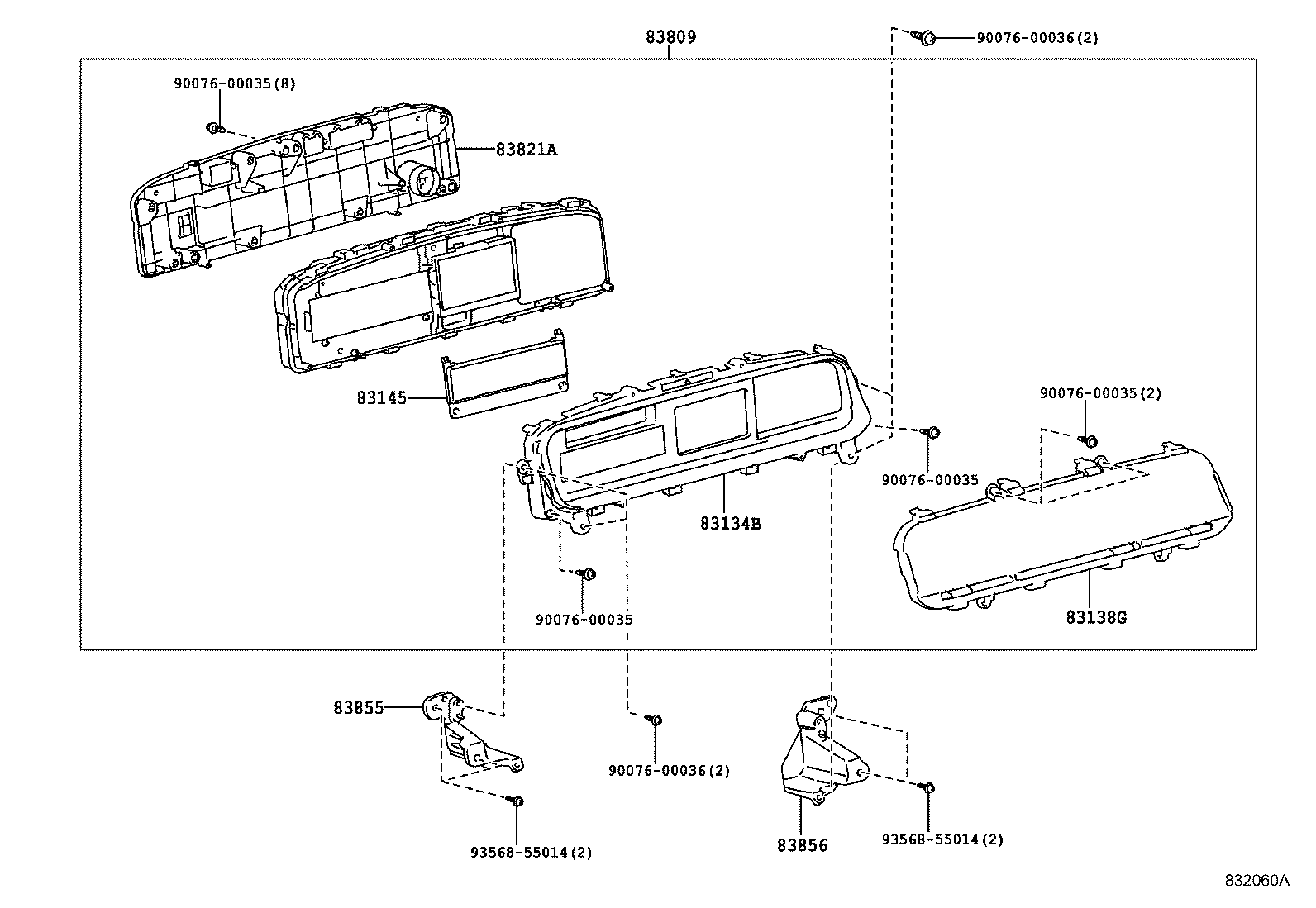

Figure 832058B 832058B 2011-09 → 2014-11 Figure 832060A 832060A 2014-11 → — Figure 832077B 832077B 2014-11 → —

Part groups

PNCDescription
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83134B Cover, Combination Meter, NO.2
83138G Glass, Combination Meter
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83247 Plate, Meter Circuit
83809 Meter Sub-assy, Combination
83821A Cover, Combination Meter, NO.1
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
