Toyota Prius V
2011-09 → 2018-11 · chassis ZVW41 · catalogue 225410 · United States
Supported model
Data version 2019-04

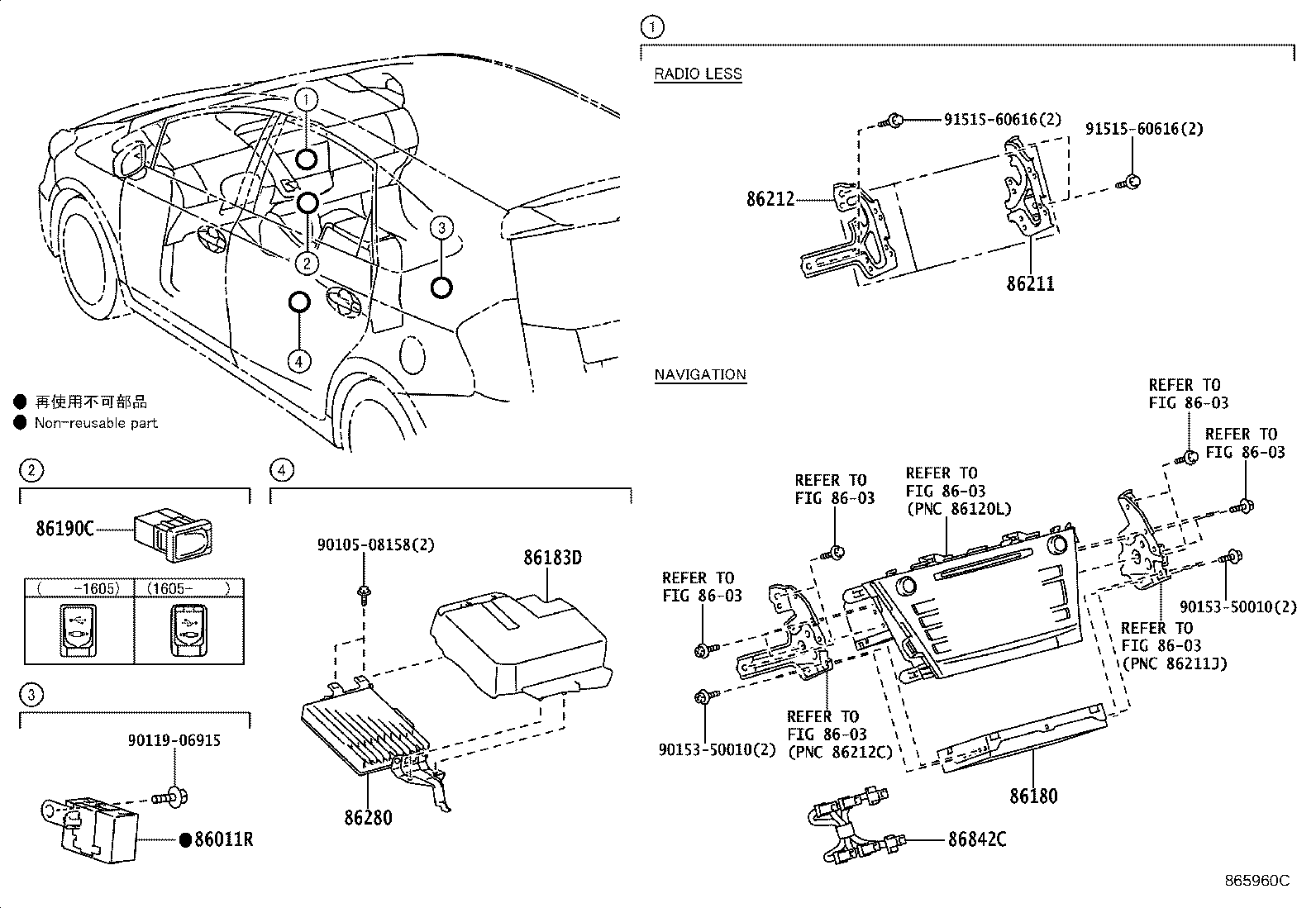

Radio Receiver & Amplifier & Condenser
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011R | Condenser, Radio Setting |
| 86180 | Tuner Assy, Stereo Component |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86842C | Wire, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
