Toyota Lexus CT200H

2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

29 part groups · 6 illustrations

Illustrations

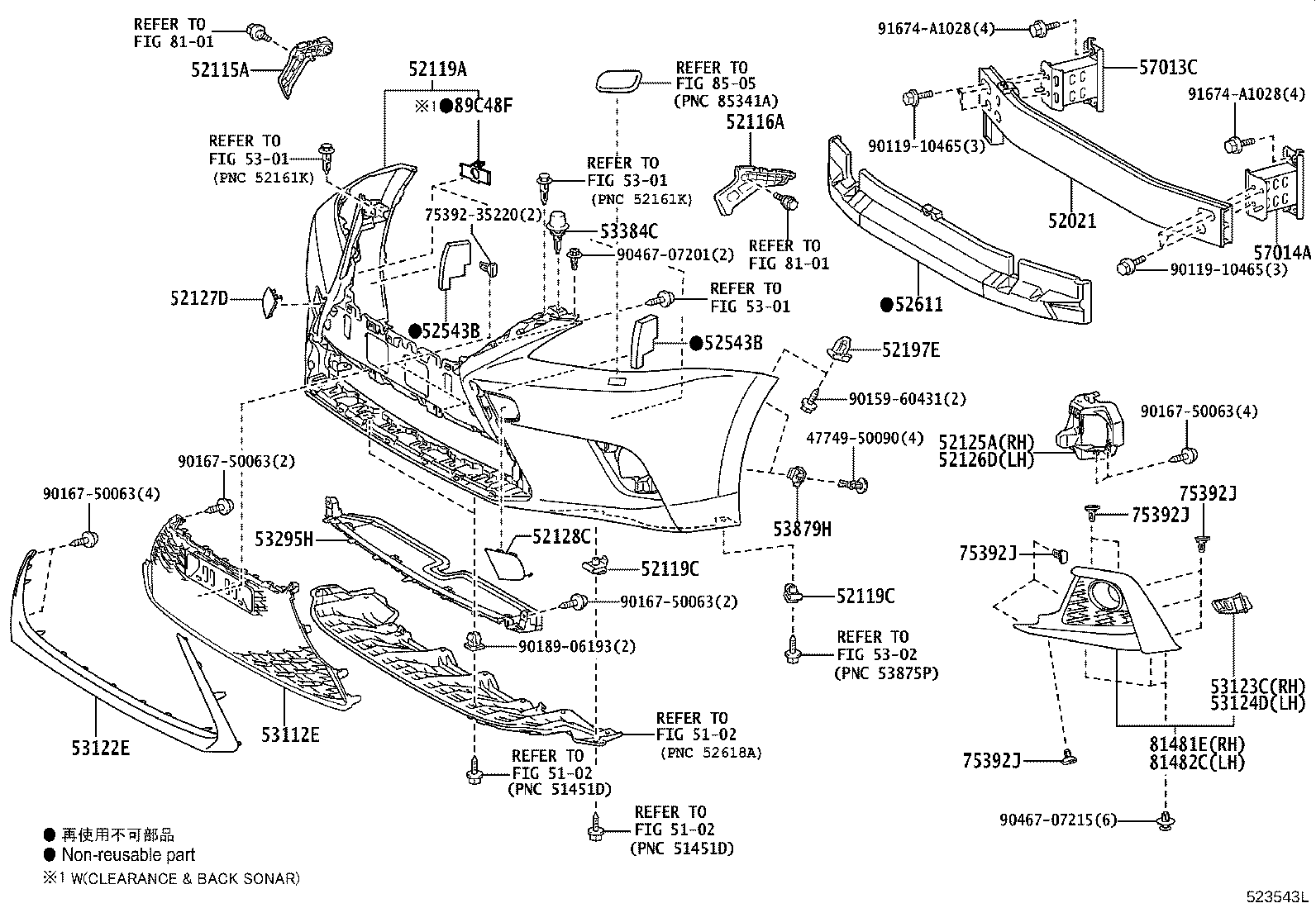

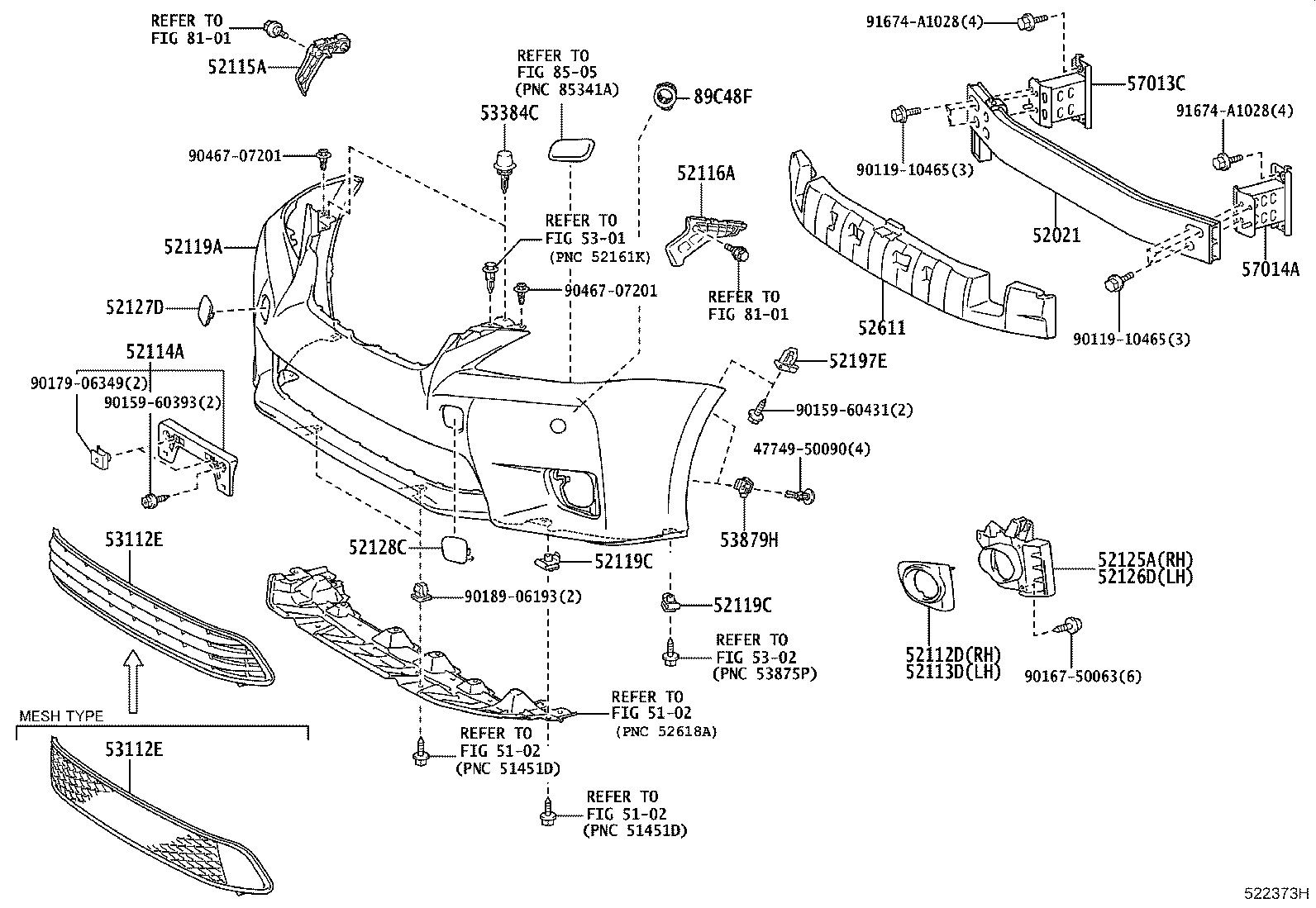

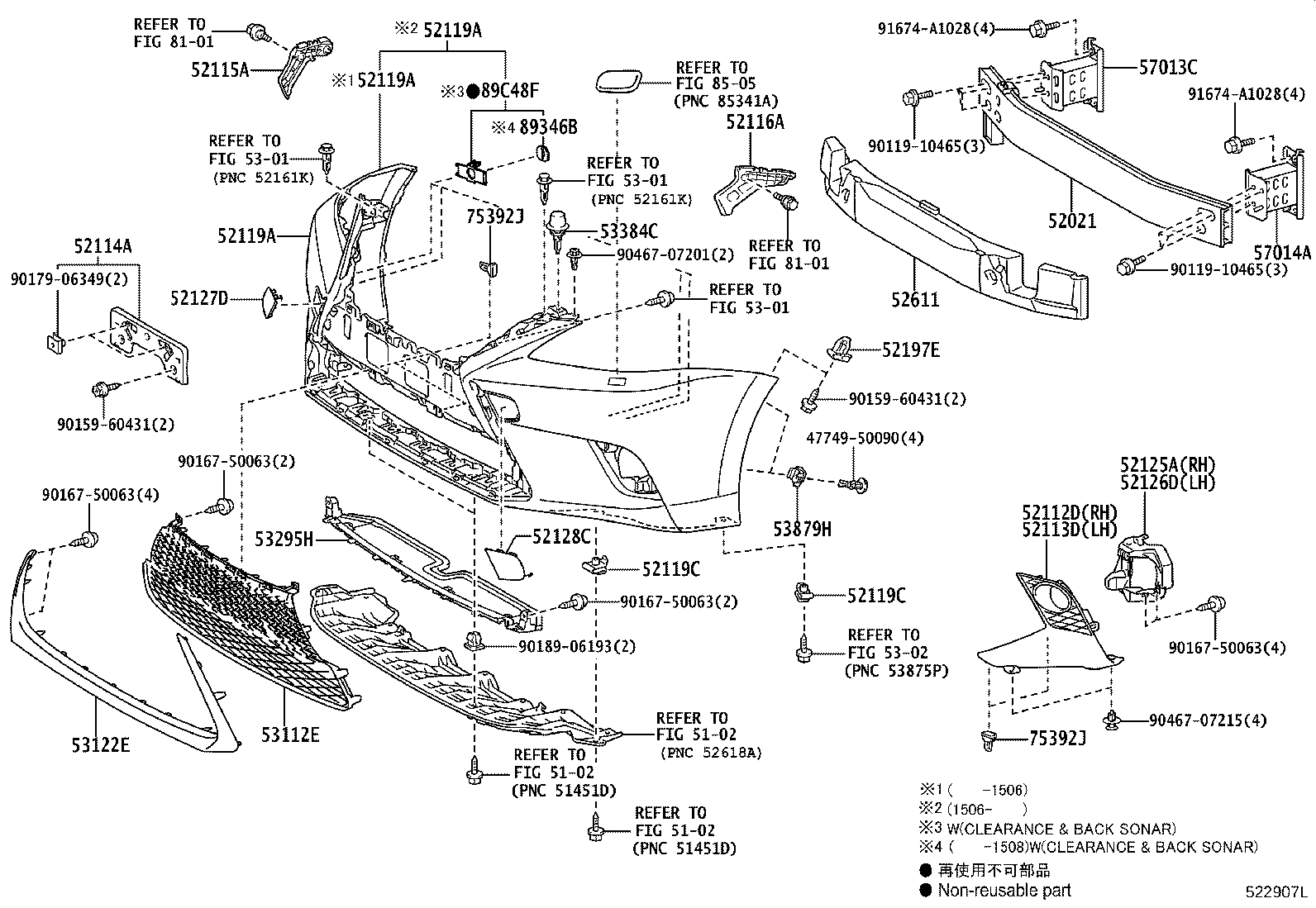

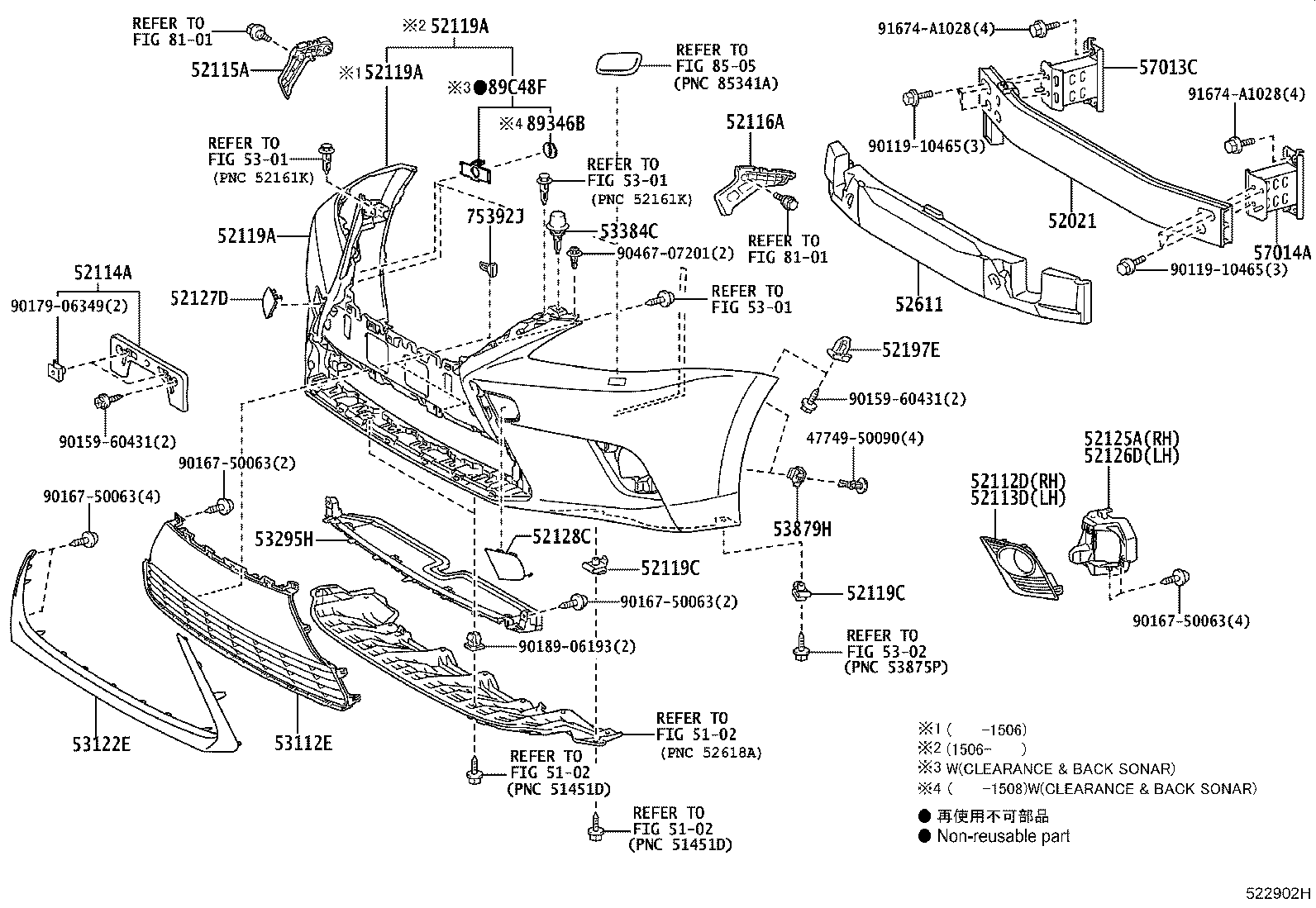

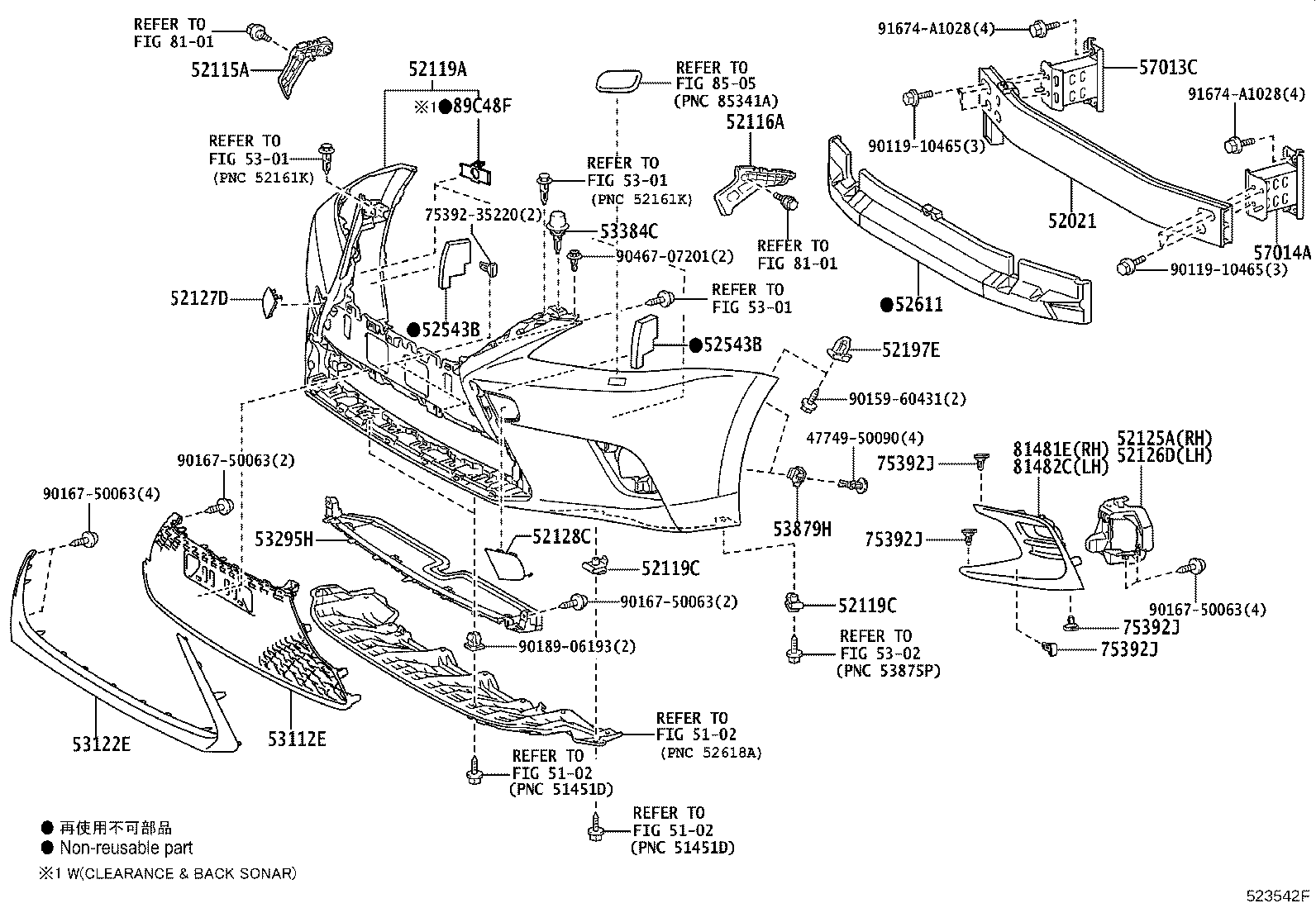

Figure 522357L 522357L 2010-12 → 2013-12 Figure 522373H 522373H 2010-12 → 2013-12 Figure 522902H 522902H 2013-12 → 2017-08 Figure 522907L 522907L 2013-12 → 2017-08 Figure 523542F 523542F 2017-08 → — Figure 523543L 523543L 2017-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52197E Bracket, Front Bumper Seal
52543B Seal, Front Bumper
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53122E Moulding, Radiator Grille, Lower
53123C Moulding, Radiator Grille, Lower RH
53124D Moulding, Radiator Grille, Lower LH
53295H Deflector, Radiator Lower Air
53384C Cushion, Hood, Center
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89346B Adjuster, Ultrasonic Sensor
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
