Toyota Lexus CT200H

2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

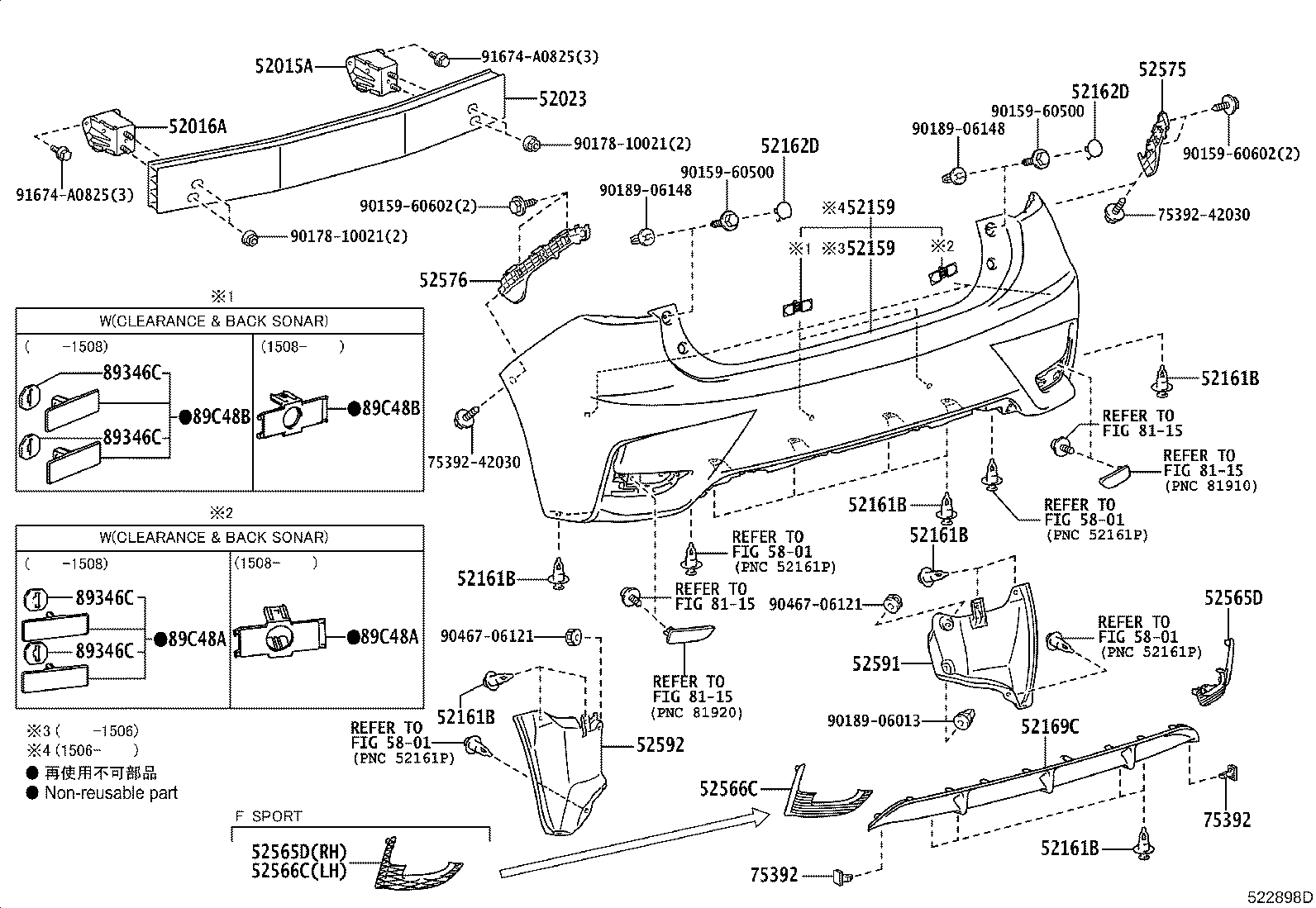

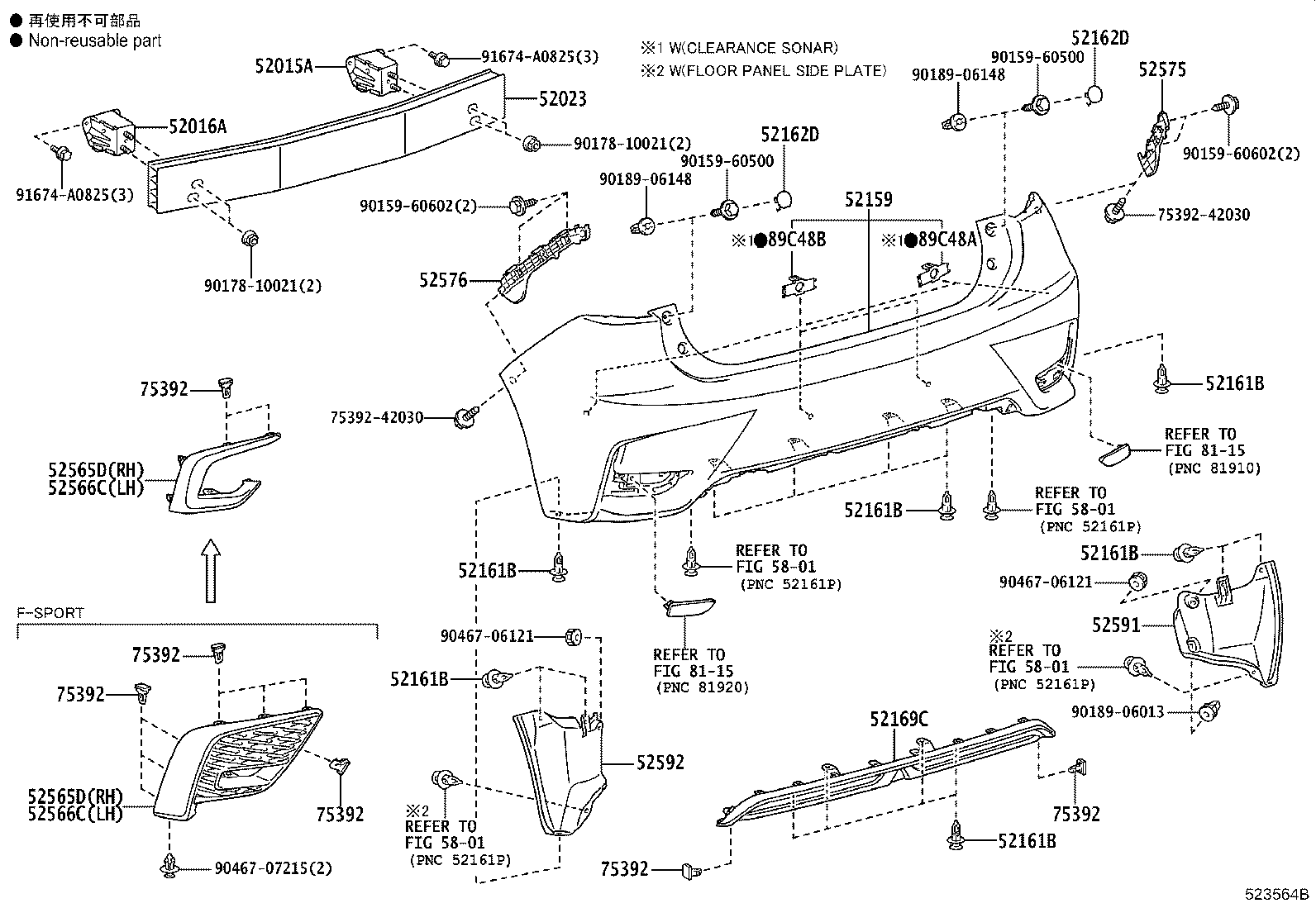

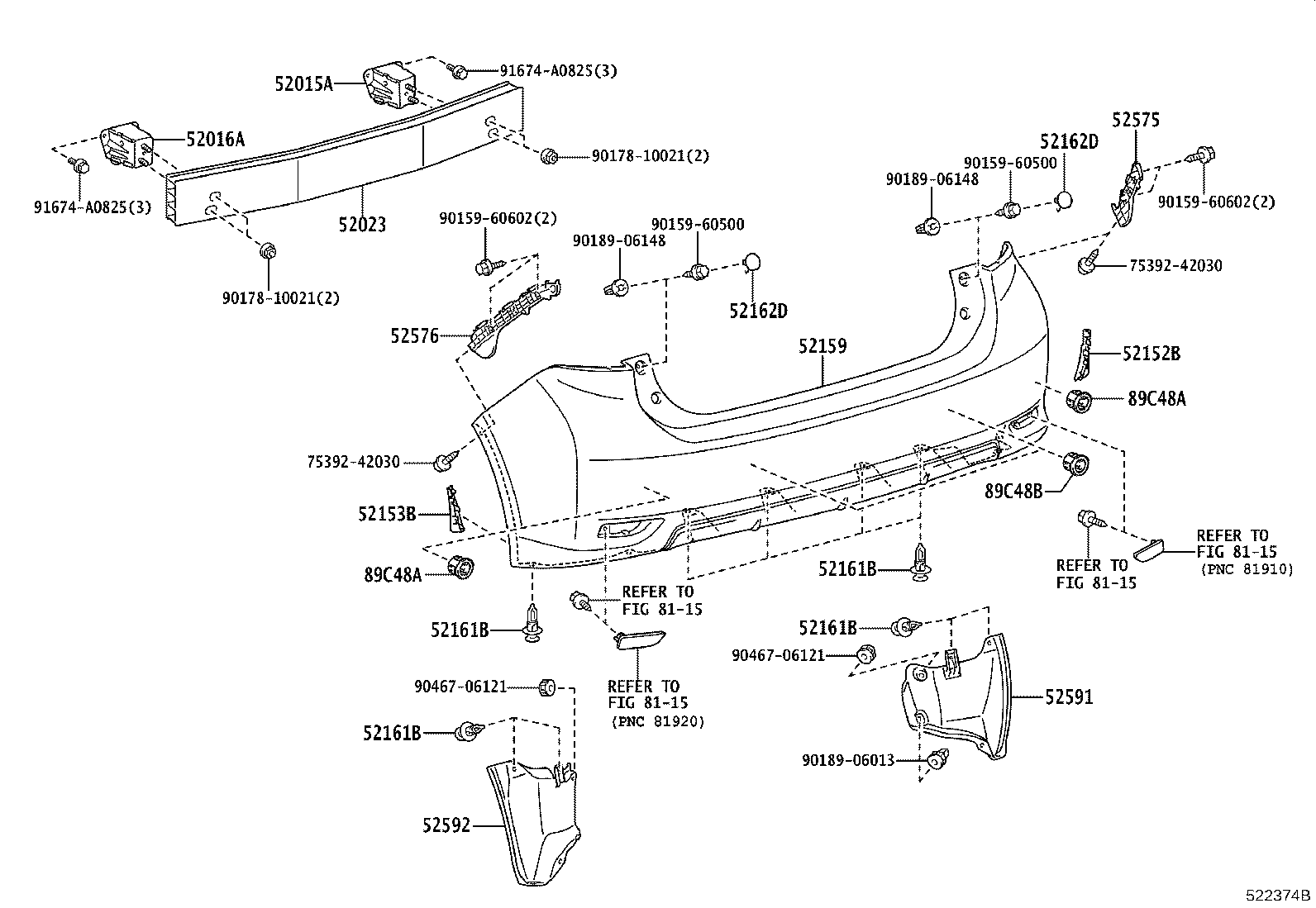

Figure 522360C 522360C 2010-12 → 2013-12 Figure 522374B 522374B 2010-12 → 2013-12 Figure 522898D 522898D 2013-12 → 2017-08 Figure 523564B 523564B 2017-08 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162D Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52565D Retainer, Rear Bumper, Lower RH
52566C Retainer, Rear Bumper, Lower LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
75392 Retainer, Outside Moulding
89346C Adjuster, Ultrasonic Sensor
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
