Toyota Lexus CT200H

2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 6 illustrations

Illustrations

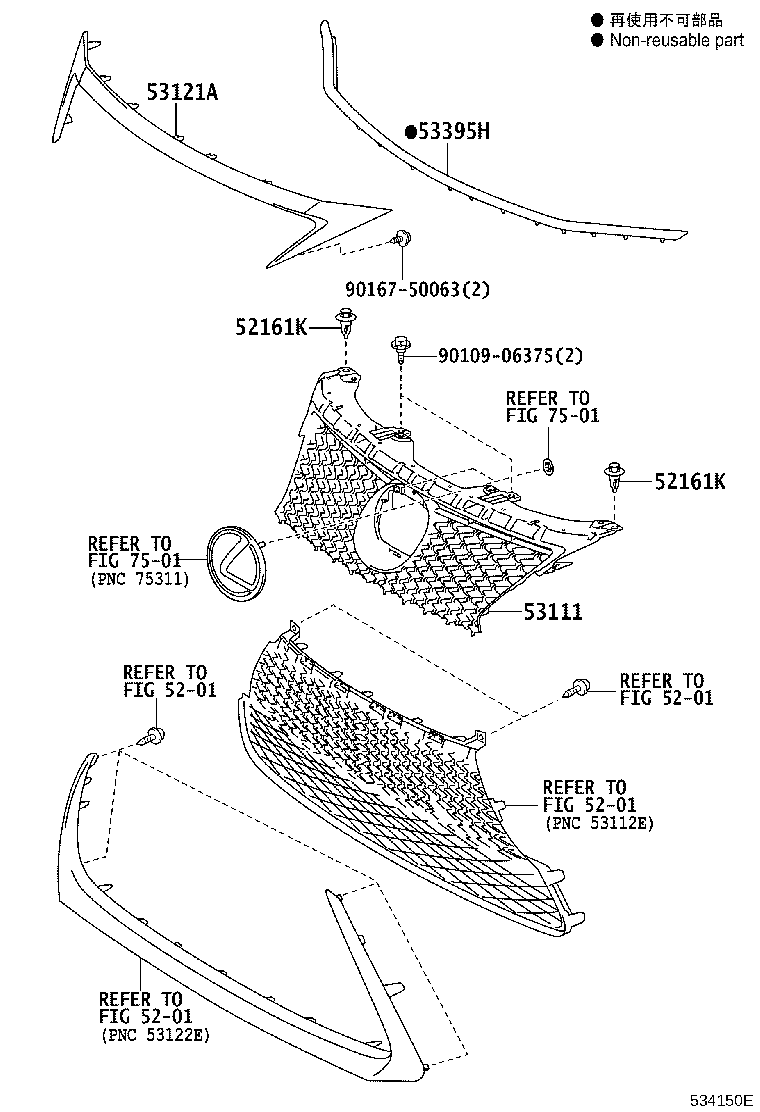

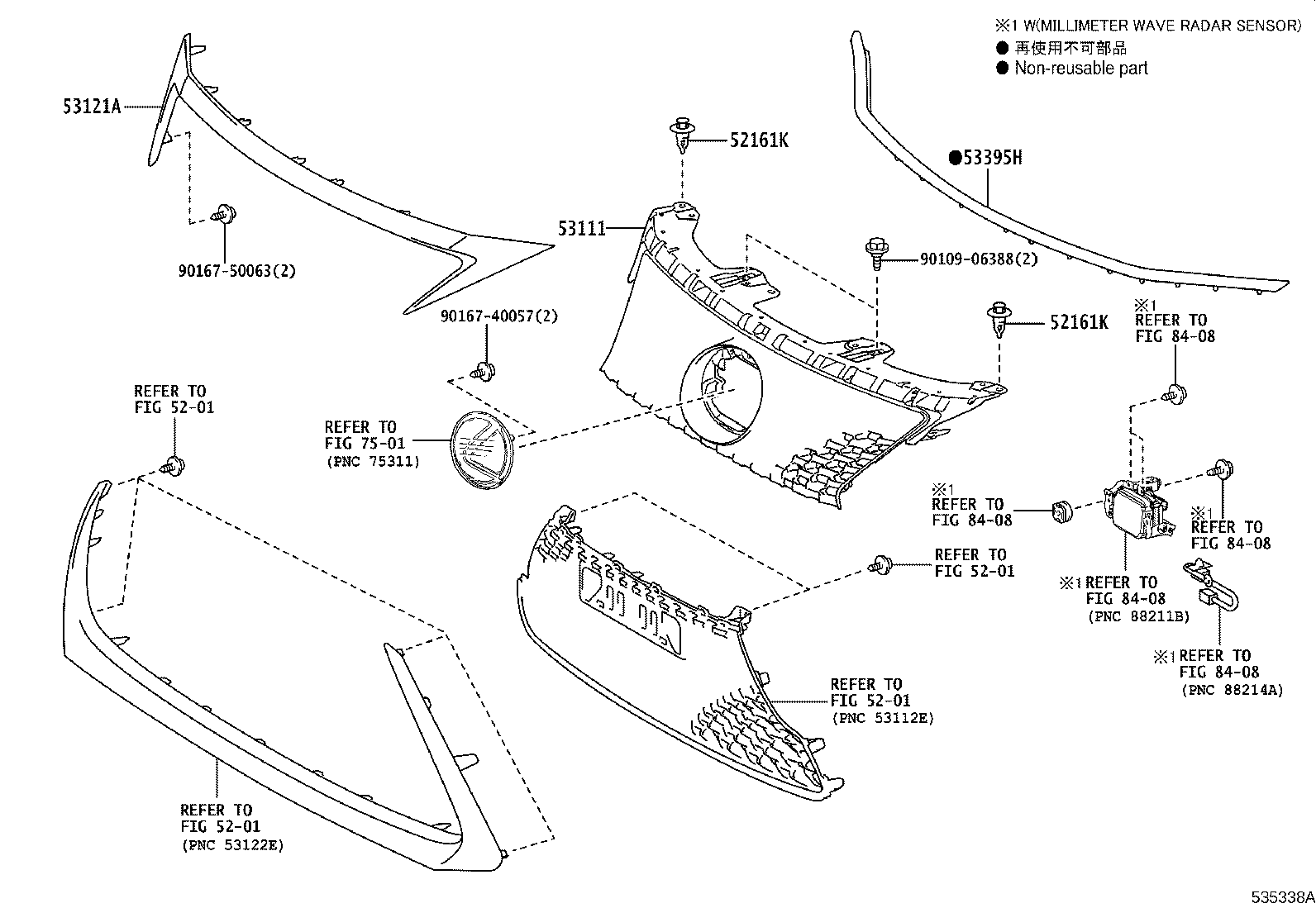

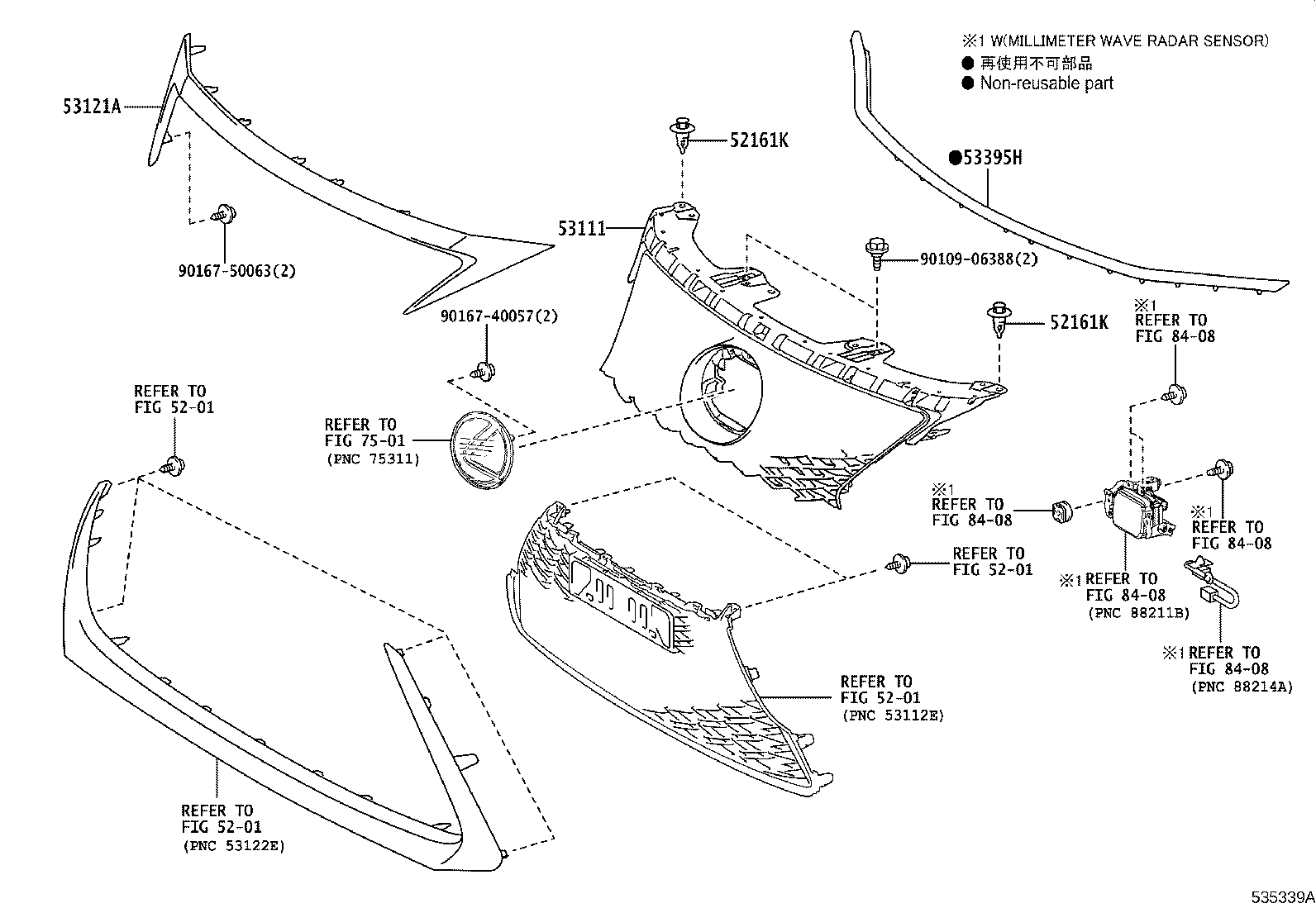

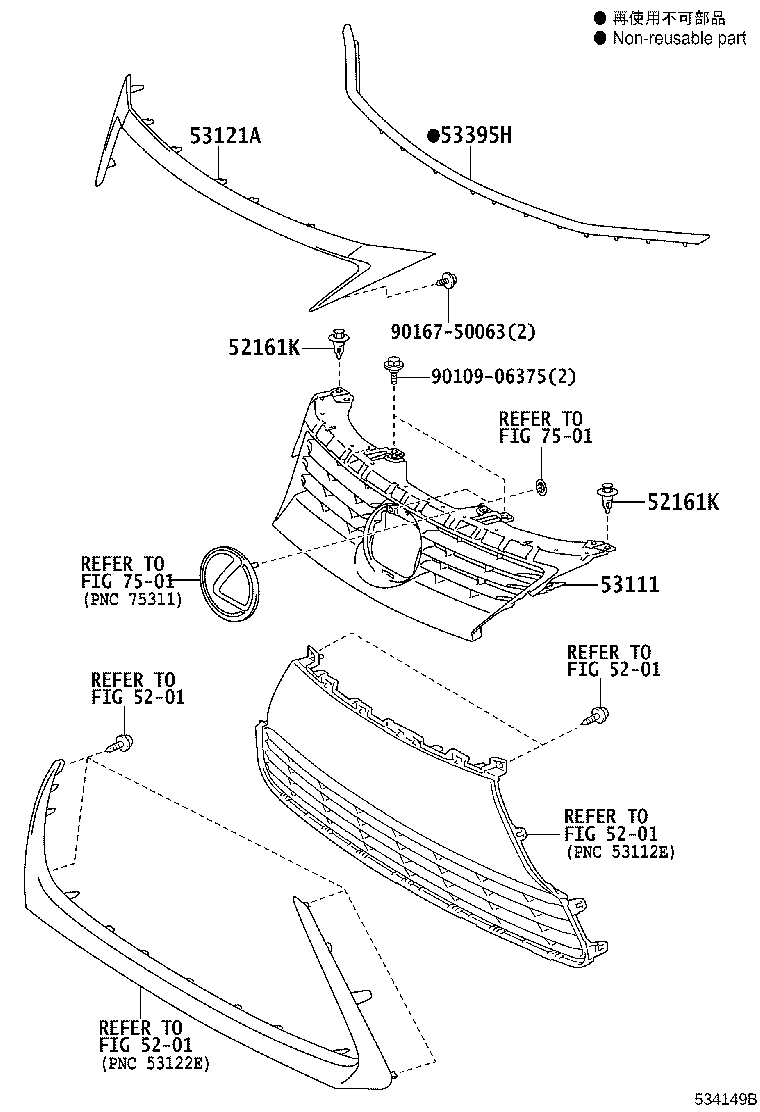

Figure 533357F 533357F 2010-12 → 2013-12 Figure 533358F 533358F 2010-12 → 2013-12 Figure 534149D 534149D 2013-12 → 2017-08 Figure 534150G 534150G 2013-12 → 2017-08 Figure 535338A 535338A 2017-08 → — Figure 535339A 535339A 2017-08 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53111 Grille, Radiator
53121A Moulding, Radiator Grille
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
