Toyota Lexus CT200H
2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States
Supported model
Data version 2023-12

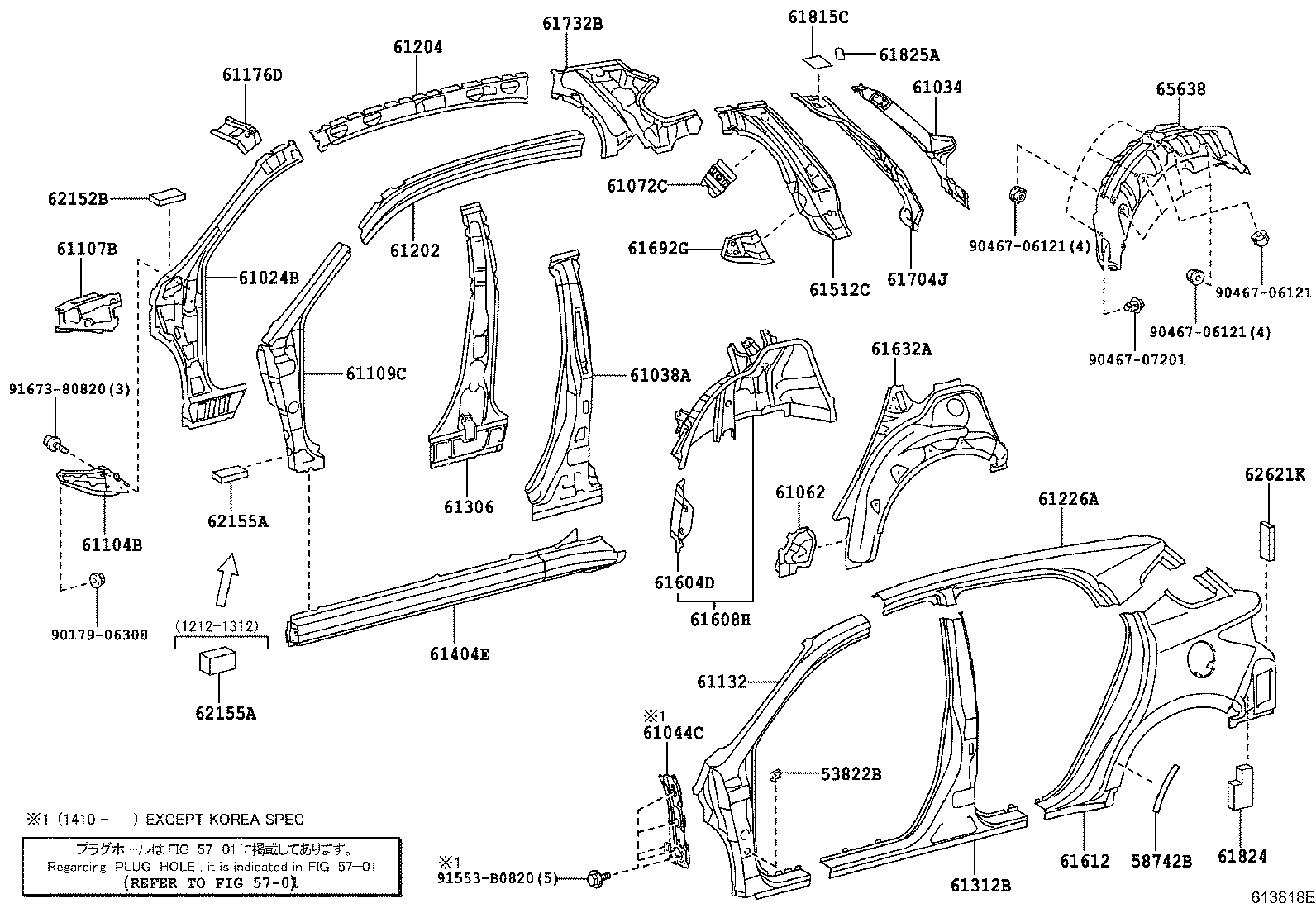

Side Member
62 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53821B | Bracket, Front Fender, Rear RH |
| 53822B | Bracket, Front Fender, Rear LH |
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61033A | Reinforce Sub-assy, Back Door Opening Side |
| 61034 | Reinforce Sub-assy, Back Door Opening Side, LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61044C | Extension Sub-assy, Front Body Pillar, Outer LH |
| 61061 | Reinforcement Sub-assy, Wheel House, RH |
| 61062 | Reinforcement Sub-assy, Wheel House, LH |
| 61071C | Reinforcement Sub-assy, Seat Belt Ancer, Upper RH |
| 61072C | Reinforcement Sub-assy, Seat Belt Ancer, Upper LH |
| 61103A | Reinforcement Sub-assy, Cowl Side, RH |
| 61104B | Reinforcement Sub-assy, Cowl Side, LH |
| 61106A | Reinforce Sub-assy, Front Body Pillar, Upper RH |
| 61107B | Reinforce Sub-assy, Front Body Pillar, Upper LH |
| 61108D | Reinforcement Sub-assy, Front Pillar, Lower RH |
| 61109C | Reinforcement Sub-assy, Front Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61175B | Reinforce, Front Body Pillar, Upper Out NO.2 RH |
| 61176D | Reinforce, Front Body Pillar, Upper Out NO.2 LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61225A | Rail, Roof Side Outer Upper NO.1, RH |
| 61226A | Rail, Roof Side Outer Upper NO.1, LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61512C | Reinforcement, Quarter Lock Pillar, LH |
| 61603C | Panel Sub-assy, Quarter Wheel House, RH |
| 61604D | Panel Sub-assy, Quarter Wheel House, LH |
| 61607H | Panel Sub-assy, Quarter Wheel House, Inner RH |
| 61608H | Panel Sub-assy, Quarter Wheel House, Inner LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61691D | Reinforce, Rear Seat Back Lock Striker, RH |
| 61692G | Reinforce, Rear Seatback Lock Striker, LH |
| 61703H | Reinforcement Sub-assy, Roof Side, Inner RH |
| 61704J | Reinforcement Sub-assy, Roof Side, Inner LH |
| 61717A | Reinforcement, Quarter Panel Extension, RH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61815C | Cover, Roof Side, Inner Upper |
| 61824 | Plate, Noise Control, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 62152B | Pad, Cowl Side Silencer, NO.2 |
| 62155A | Pad, Cowl Side Lower Silencer |
| 62621K | Pad, Quarter Wheel House, Inner |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
