Toyota Lexus CT200H

2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 3 illustrations

Illustrations

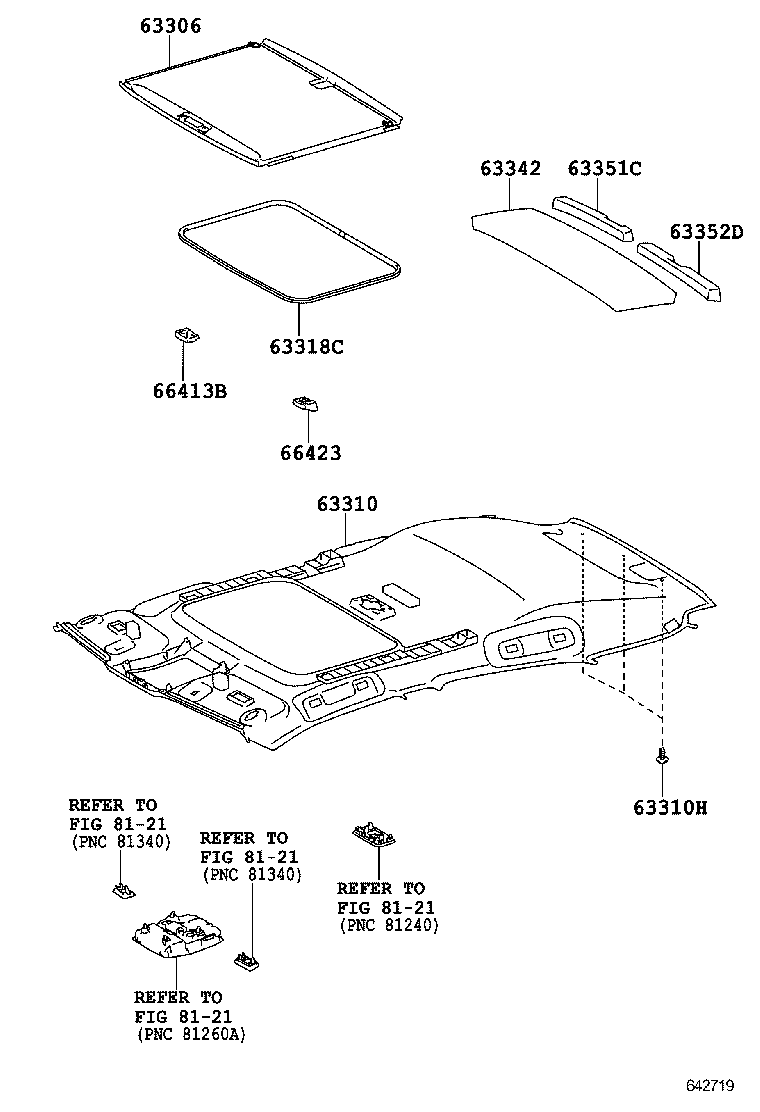

Figure 642718 642718 2010-12 → 2017-08 Figure 644029 644029 2017-08 → — Figure 642719 642719 2010-12 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351C Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63367B Plate, Roof Headlining Set, NO.2 RH
63368B Plate, Roof Headlining Set, NO.2 LH
66413B Spacer, Side Rail, Front RH
66423 Spacer, Side Rail, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
