Toyota Lexus CT200H

2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

10 part groups · 2 illustrations

Illustrations

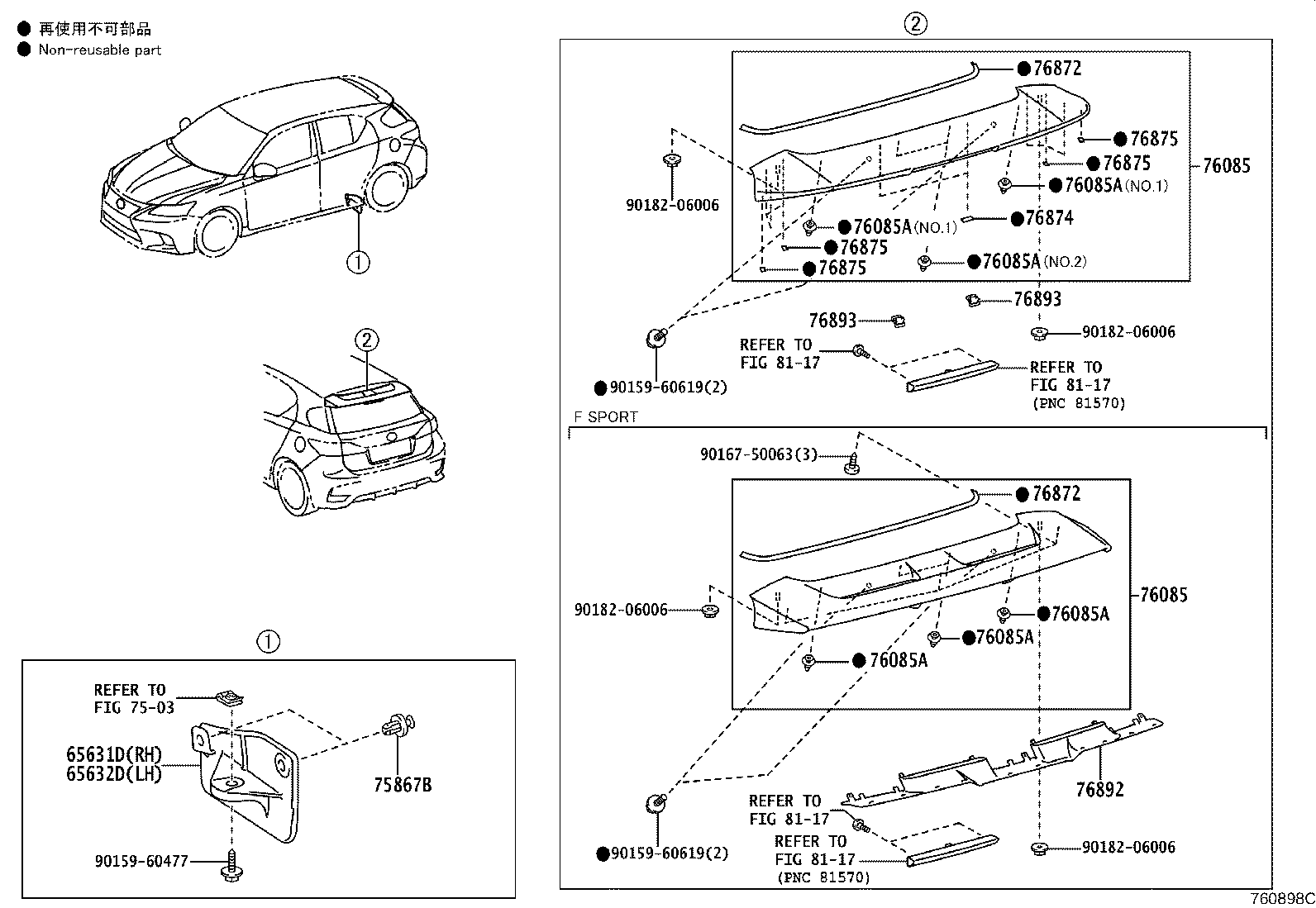

Figure 760778C 760778C 2010-12 → 2013-12 Figure 760898C 760898C 2013-12 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75867B Clip, Rocker Panel Moulding
76085 Spoiler Sub-assy, Rear
76085A Cap(FOR REAR SPOILER)
76872 Protector, Rear Spoiler, NO.1
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76892 Spoiler, Rear NO.2
76893 Cover, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
