Toyota Lexus CT200H

2010-12 → 2021-08 · chassis ZWA10 · catalogue 232410 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

13 part groups · 2 illustrations

Illustrations

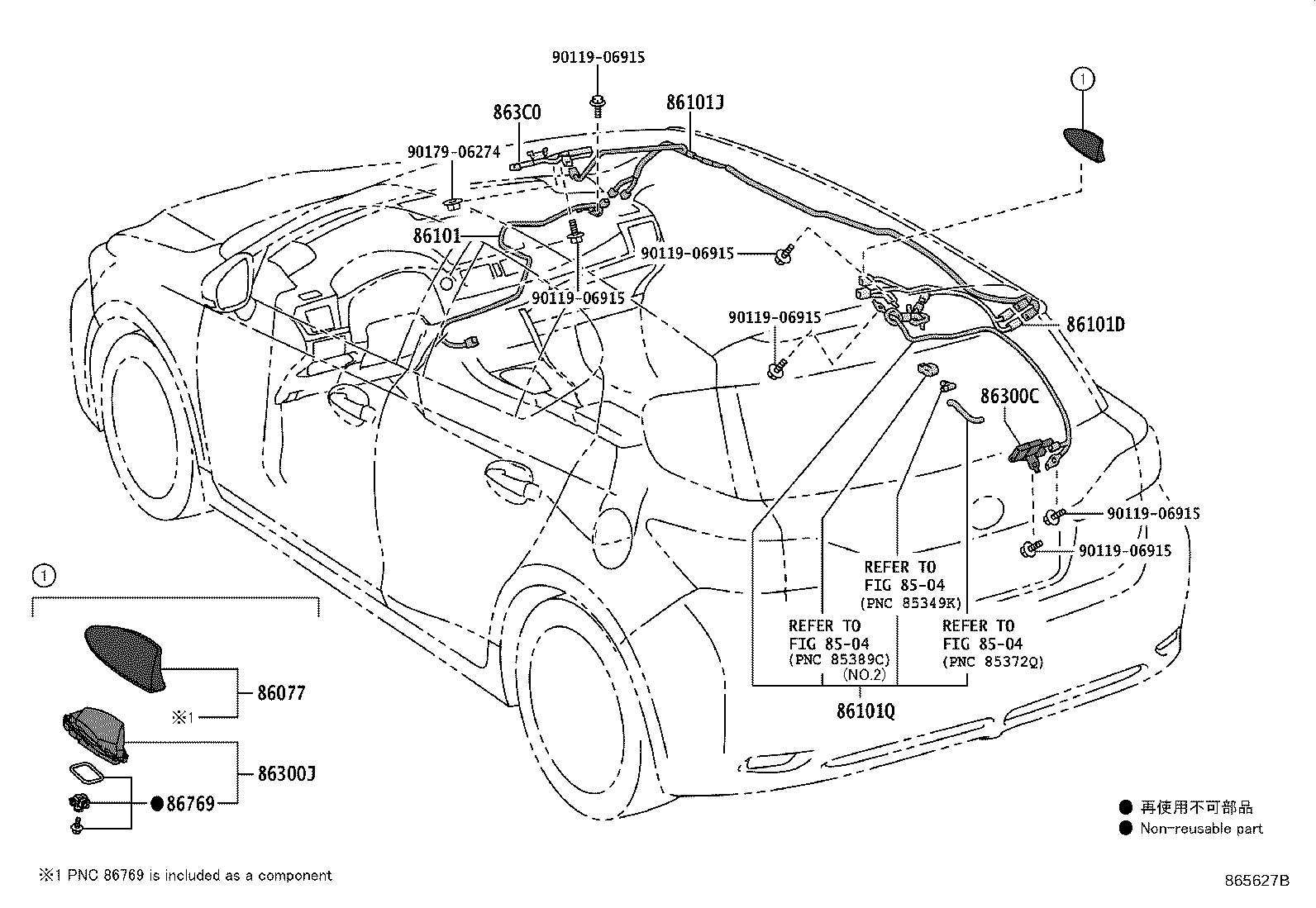

Figure 864449D 864449D 2010-12 → 2013-12 Figure 865627B 865627B 2013-12 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101T Cord Sub-assy, Antenna
86203V Wire Sub Assy, Radio
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
863C0 Antenna Assy, Digital Audio Broadcasting
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
