Toyota Lexus IS300
2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States
Discontinued model
Data version 2006-02
Transaxle OR Transmission Assy & Gasket Kit (ATM)
4 part groups · 2 illustrations
Part groups

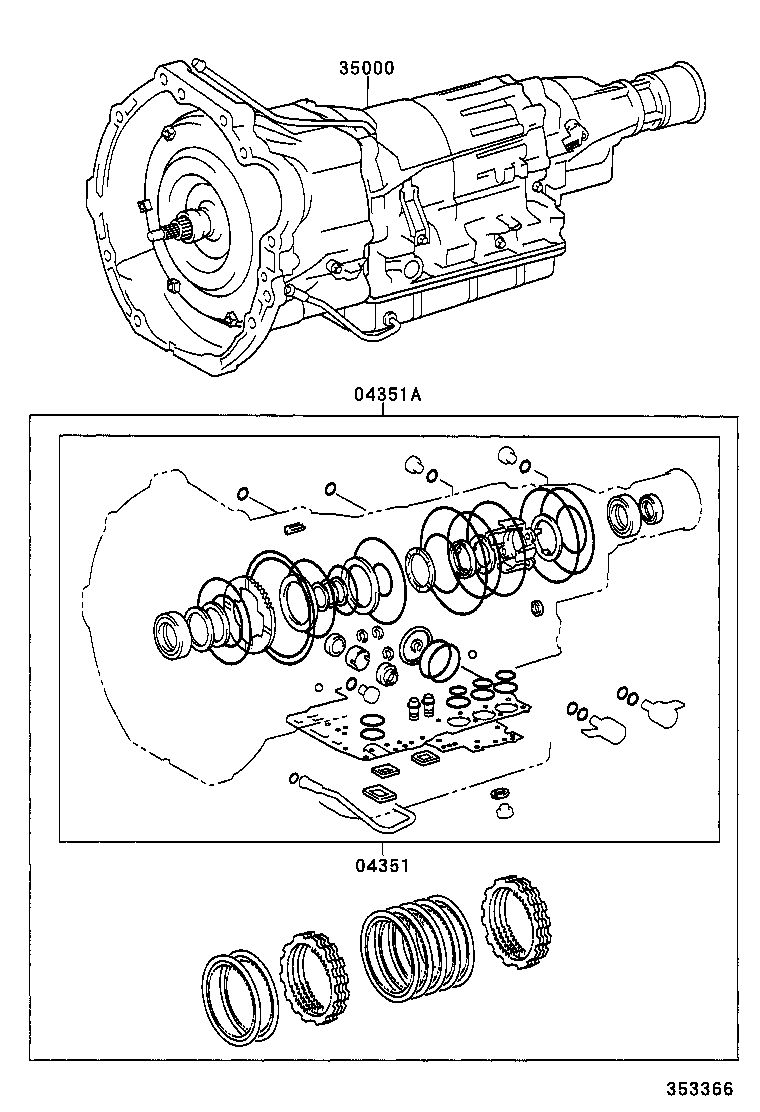

| PNC | Description |
|---|---|
| 04351 | Gasket Kit, Automatic Transmission Overhaul |
| 04351A | Gasket Kit, Transaxle Overhaul(ATM) |
| 04352A | Kit, Transaxle Overhaul(ATM) |
| 35000 | Transmission Assy, Automatic |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
