Toyota Lexus IS300
2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States
Discontinued model
Data version 2006-02

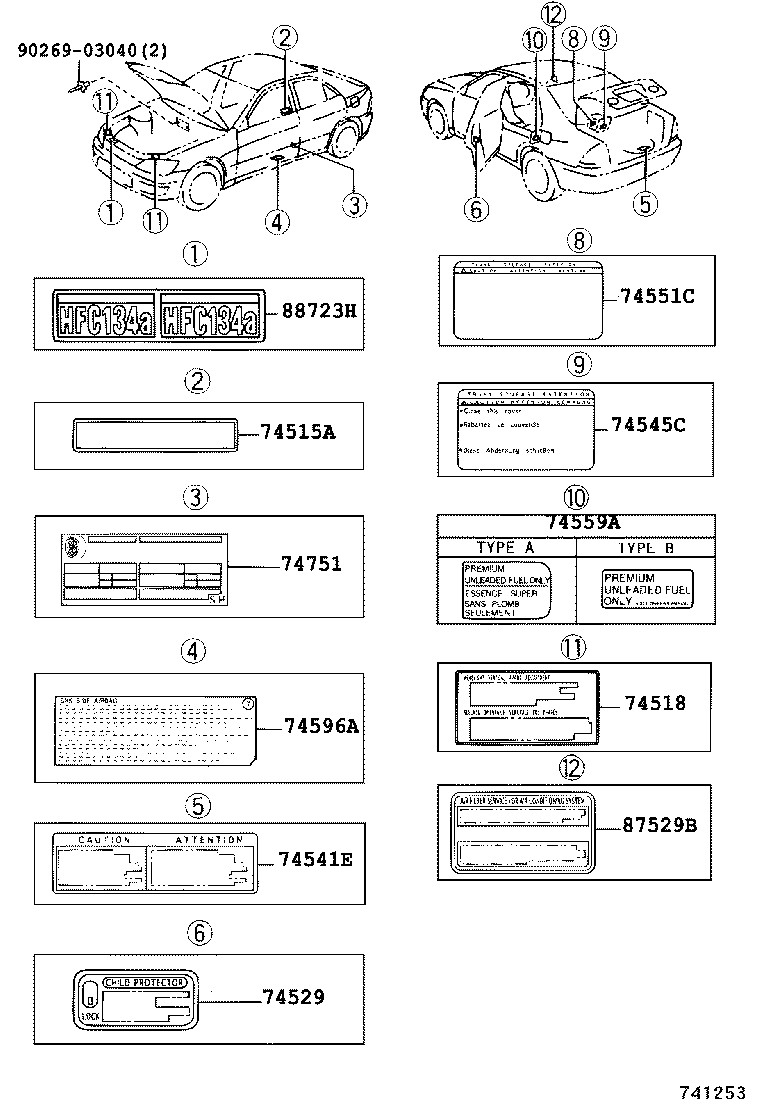

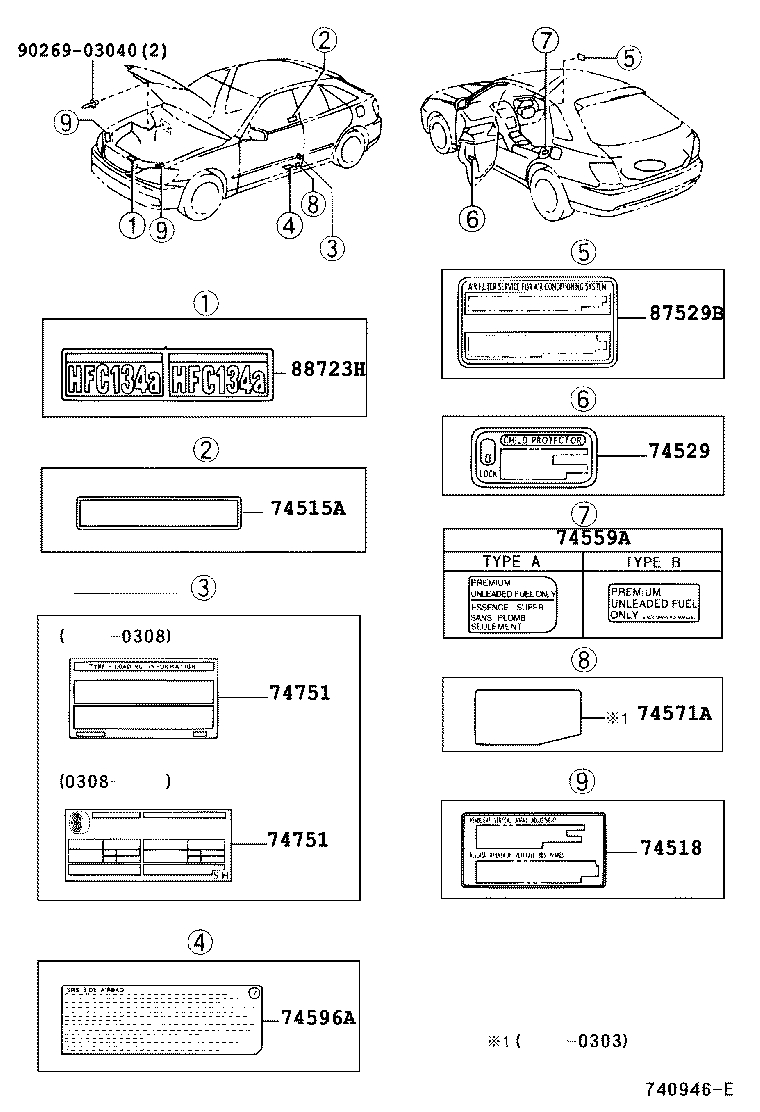

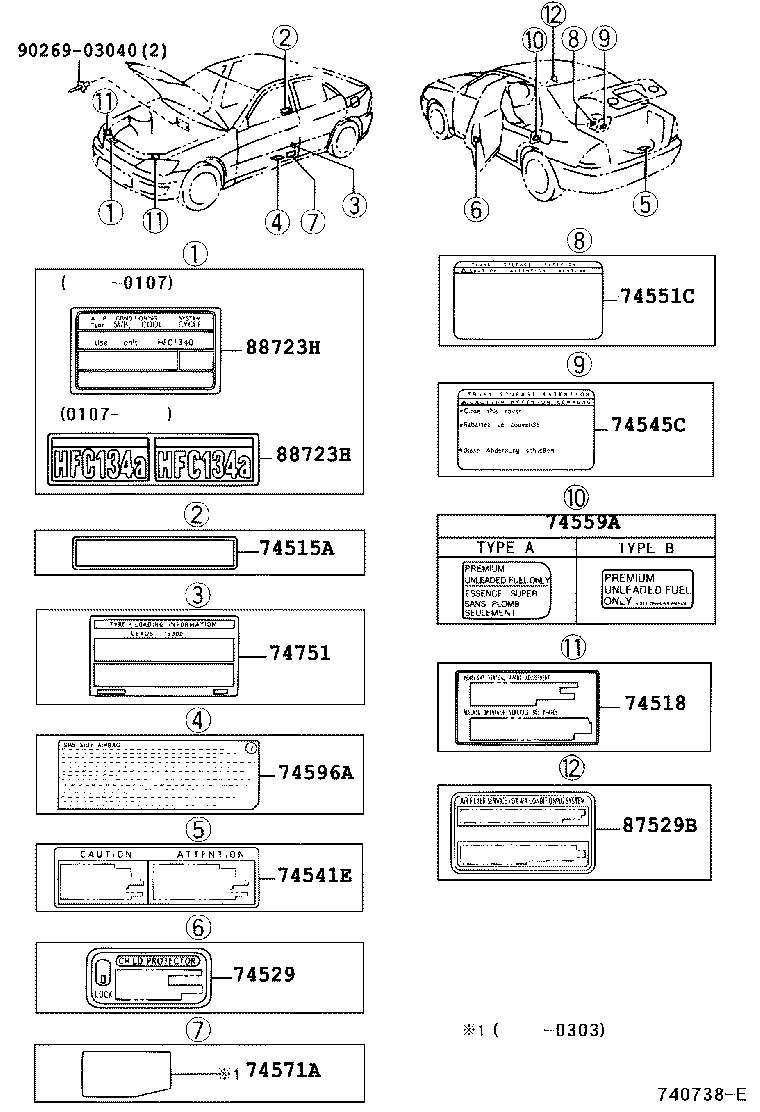

Caution Plate (EXTERIOR & INTERIOR)
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11277A | Plate, Engine Specification, NO.2 |
| 11289B | Label, Spark Plug Notice |
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 11296D | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 17792C | Label, Engine Vacuum Hose Information |
| 74515A | Plate, Theft Warning |
| 74518 | Plate, Maintenance Caution |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74545C | Label, Luggage Door |
| 74551C | Plate, Rear Seat Protector Caution |
| 74559A | Plate, Fuel Caution |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 87529B | Label, A/C Filter Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
