Toyota Lexus IS300
2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States
Discontinued model
Data version 2006-02
Wiring & Clamp
34 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|

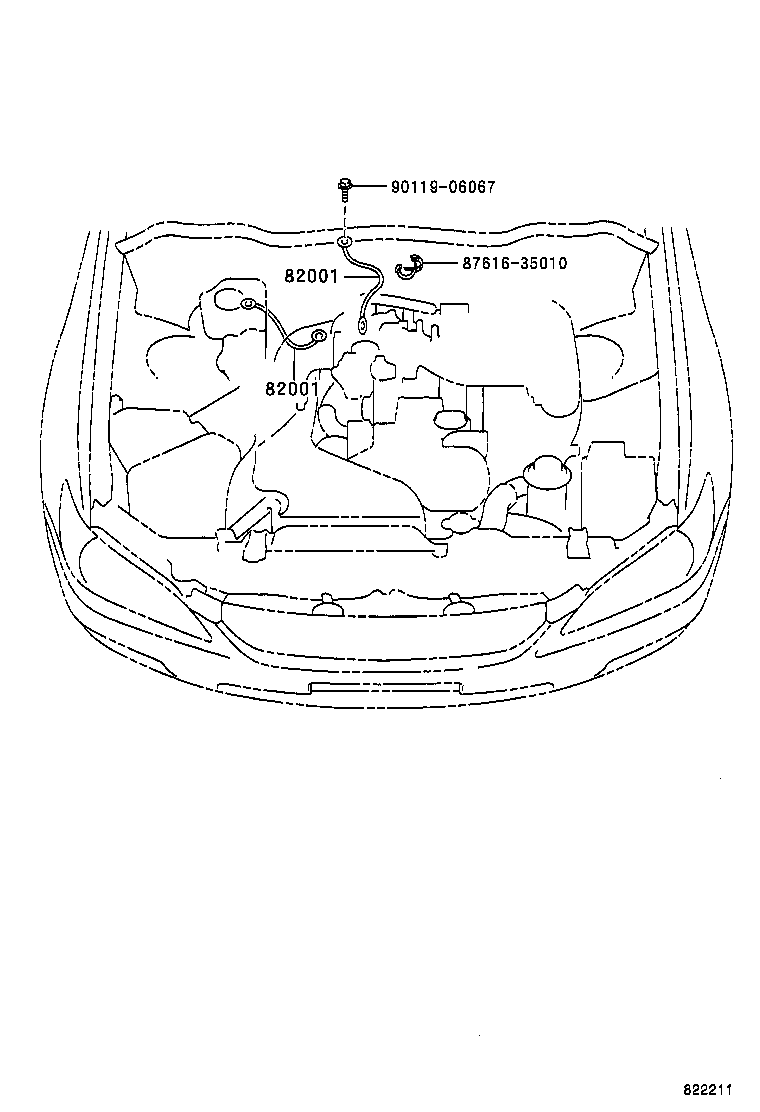

| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |

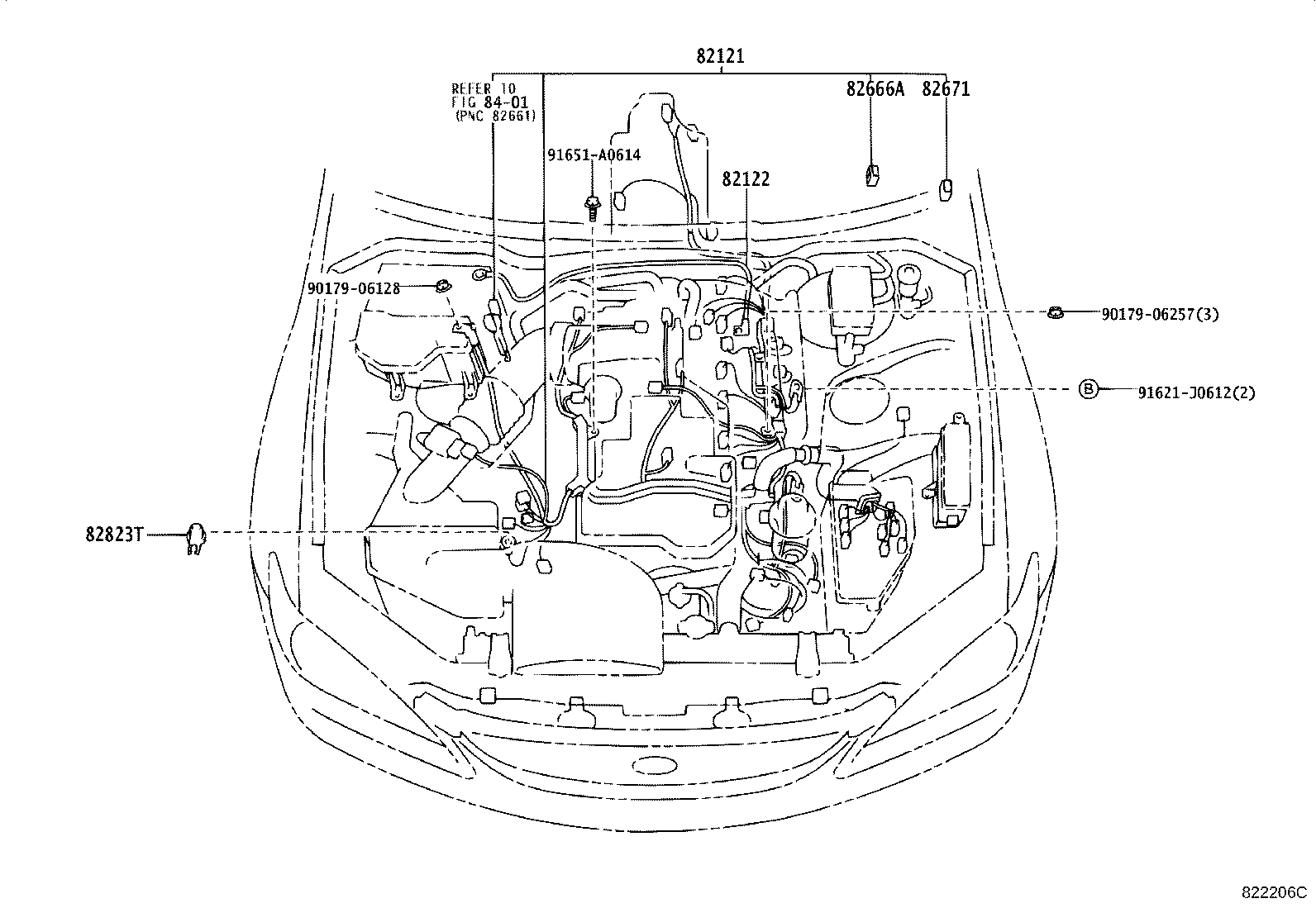

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |

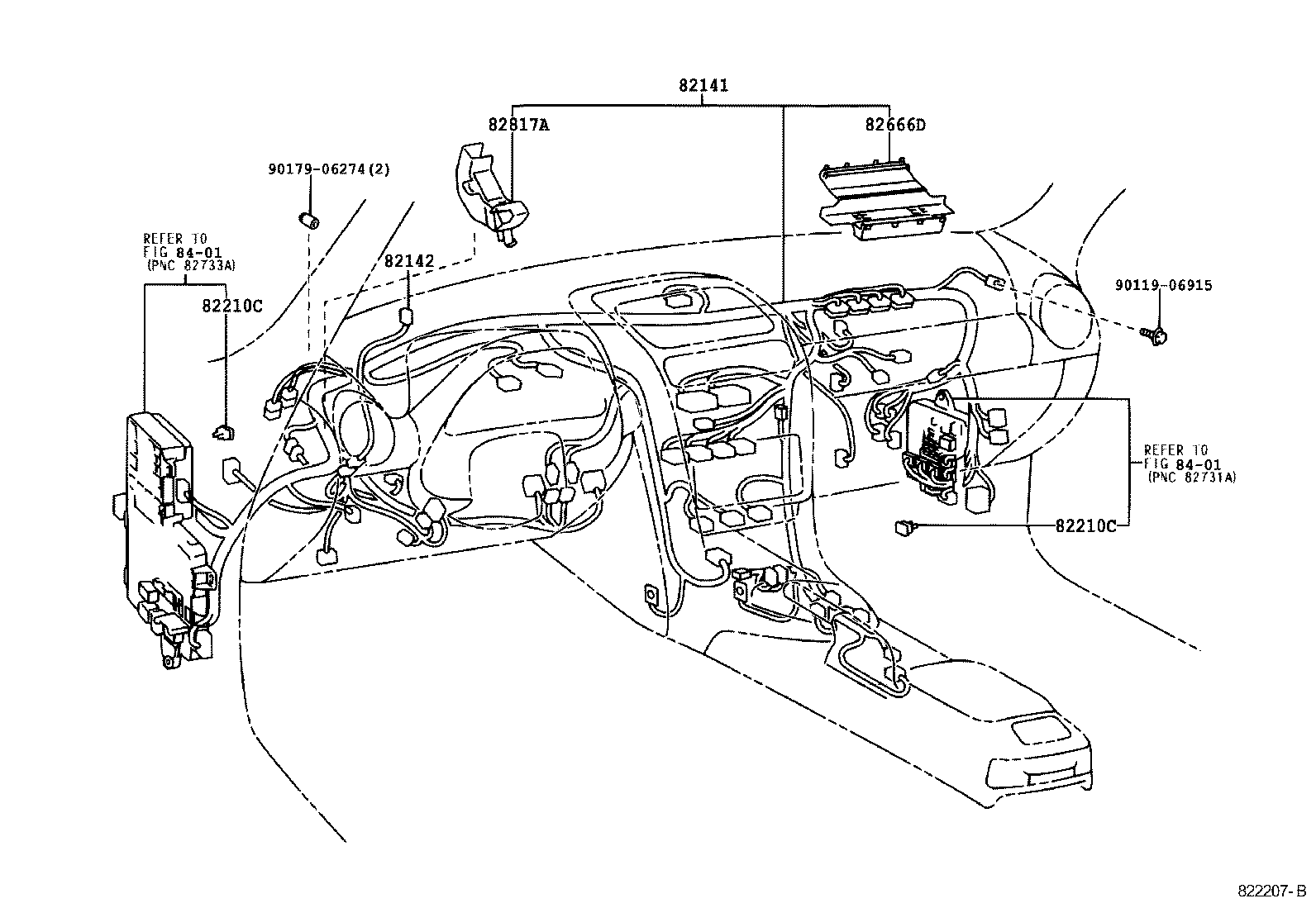

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

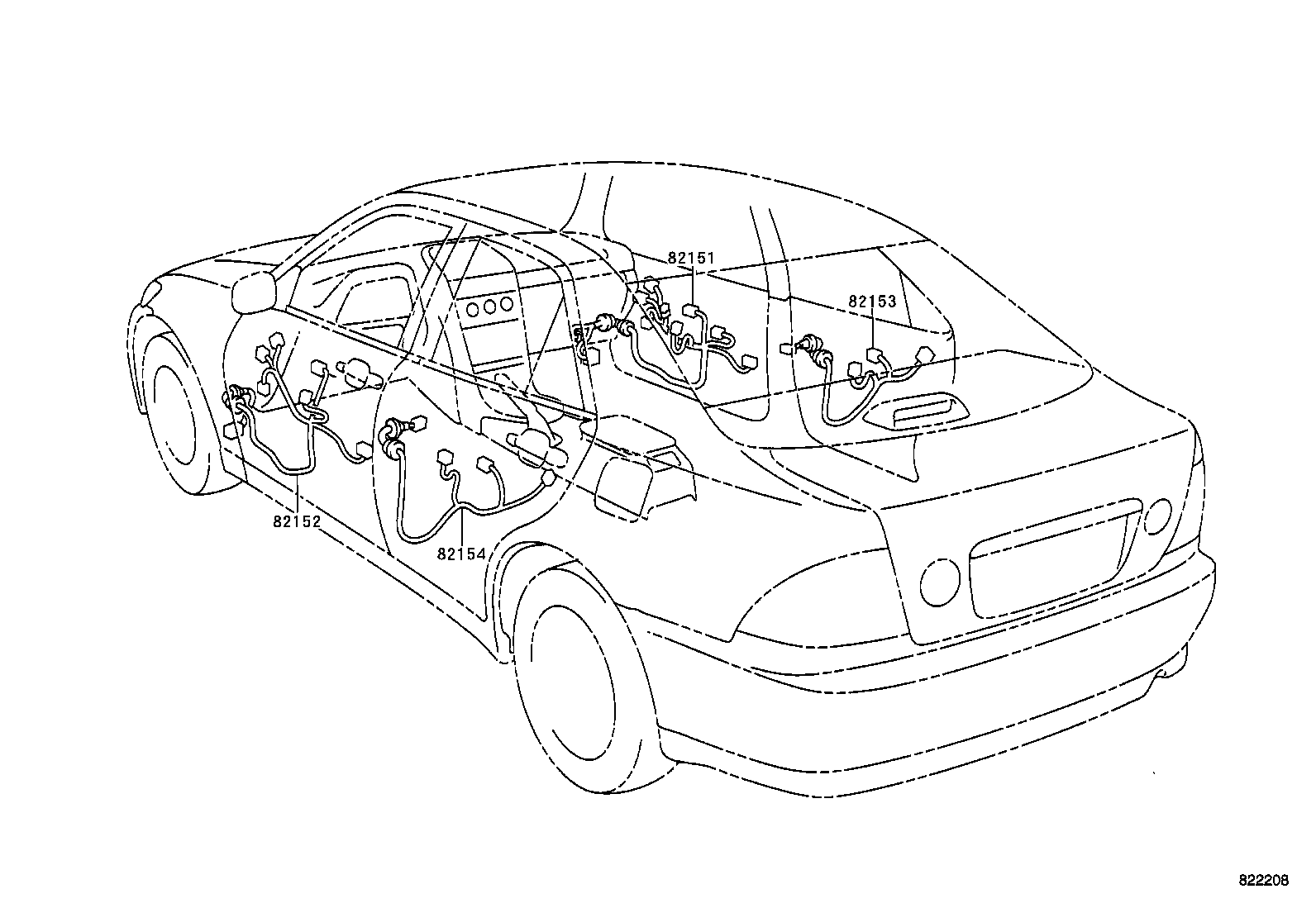

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82210C | Fusible Link |
| 82219A | Wire, Sensor |
| 82345 | Diode |
| 82521A | Wire, Vanity Lamp |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82671 | Block, Junction |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
