Toyota Lexus IS300
2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States
Discontinued model
Data version 2006-02
Abs & Vsc

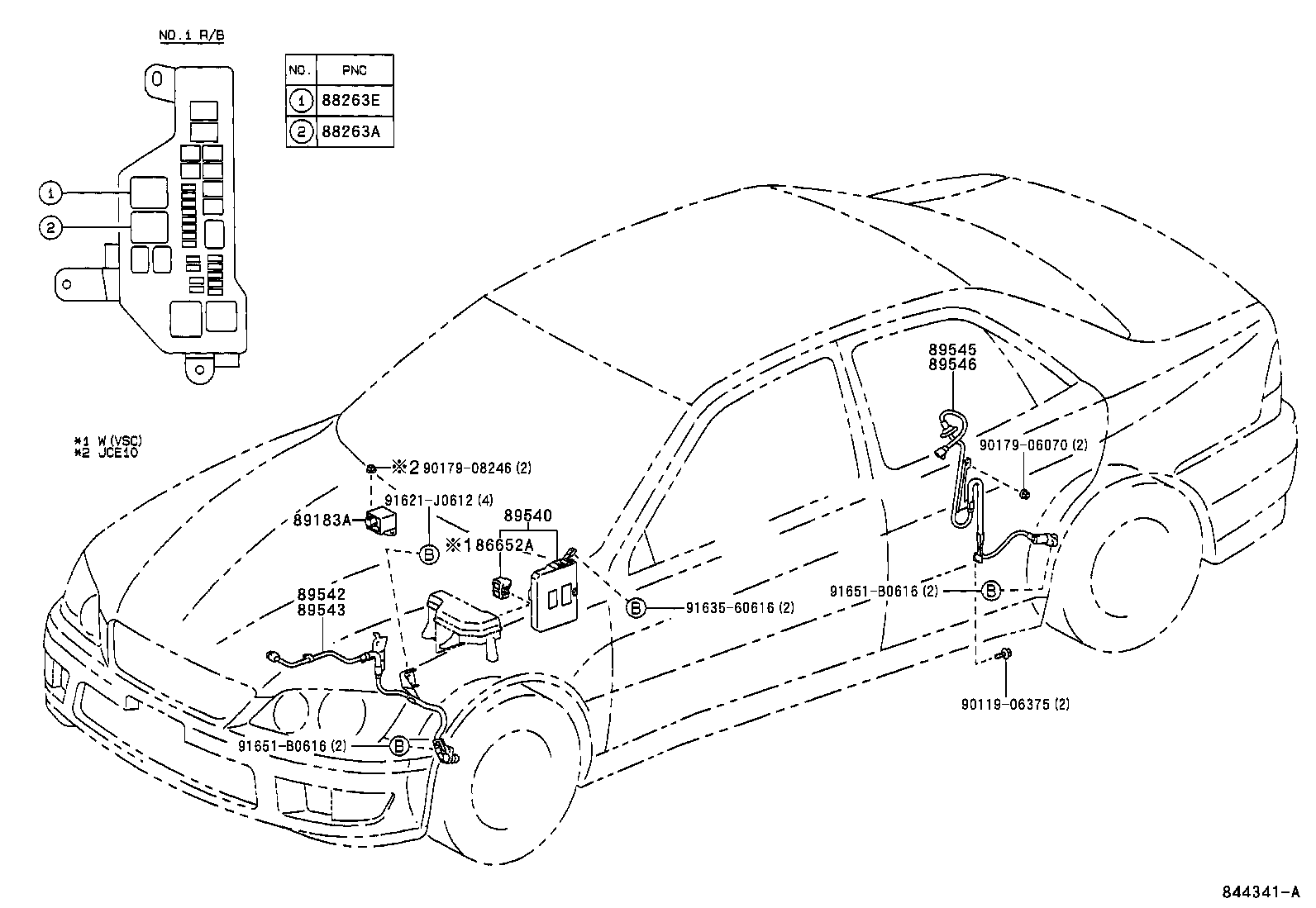

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89183A | Sensor, Yawrate |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
