Toyota Lexus IS300

2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Height Control

3 part groups · 2 illustrations

Illustrations

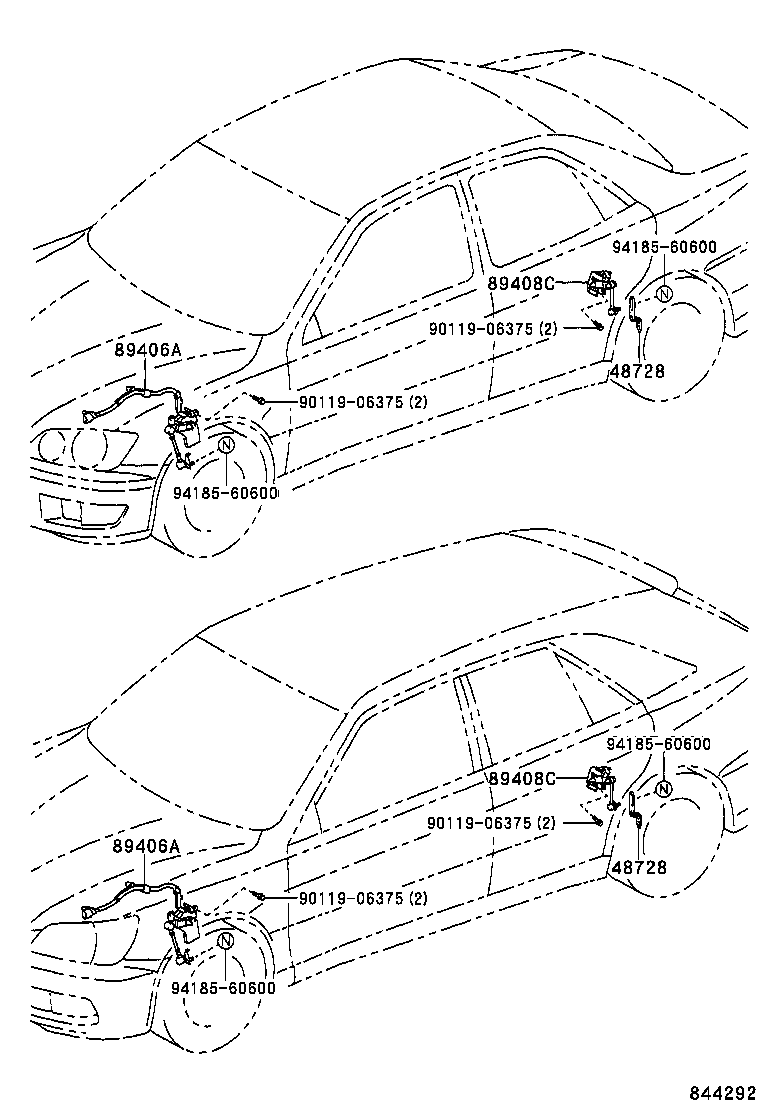

Figure 843367 843367 2000-05 → 2001-07 Figure 844292 844292 2001-07 → —

Part groups

PNCDescription
48728 Bracket, Load Sensing Valve Sensor
89406A Sensor Sub-assy, Height Control, Front LH
89408C Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
