Toyota Lexus IS300
2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States
Discontinued model
Data version 2006-02
Anti-theft Device

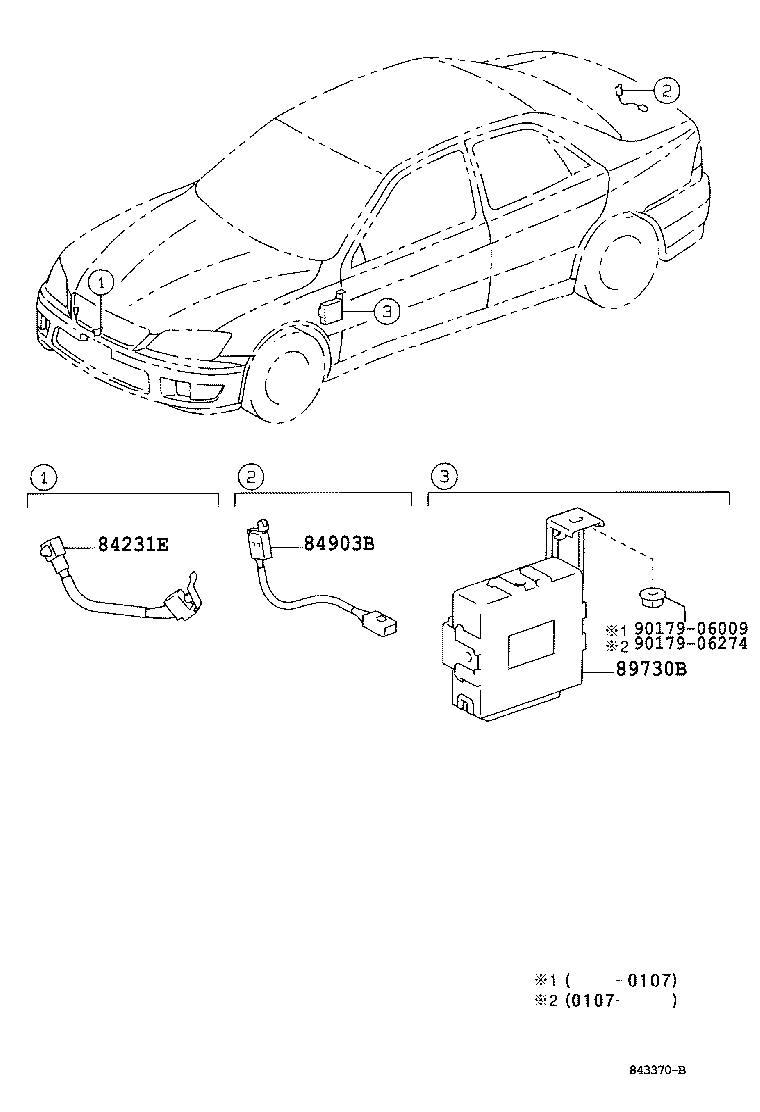

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84231E | Switch, Courtesy(FOR SECURITY) |
| 84903B | Switch Sub-assy, Door Unlock |
| 89730B | Computer Assy, Theft Warning |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89786 | Transmitter, Transponder Key Sub |
| 89786A | Transmitter, Transponder Cut Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
