Toyota Lexus IS300

2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

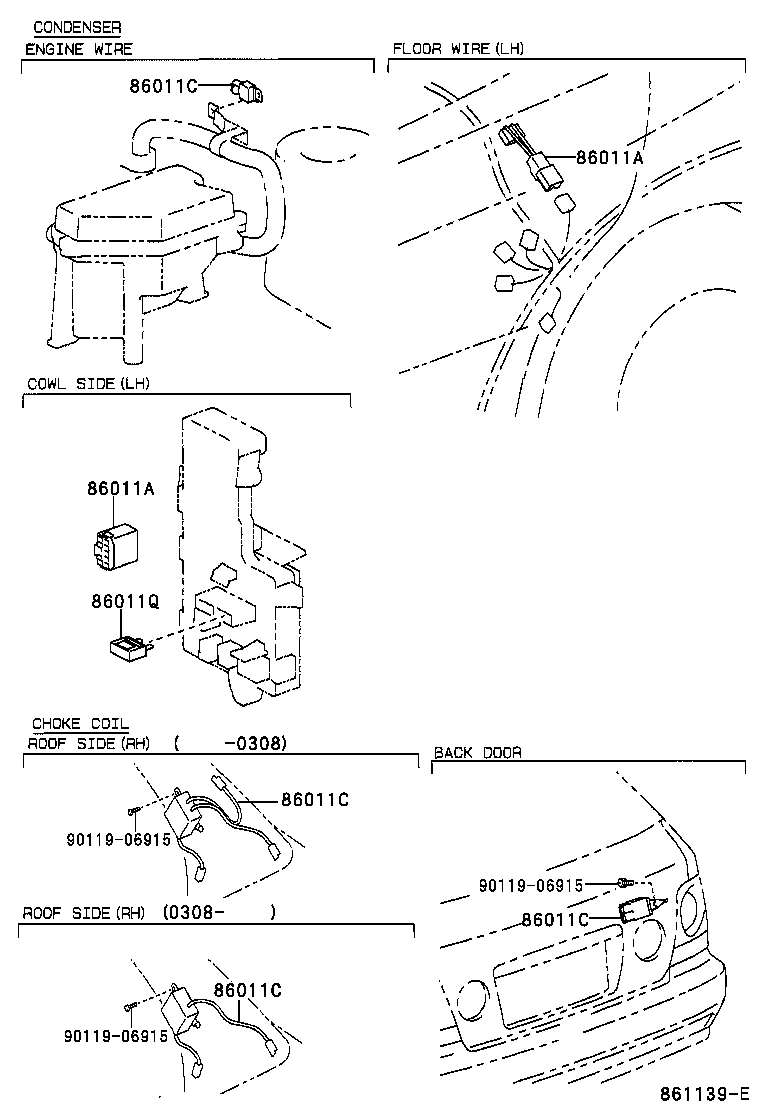

Figure 861138F 861138F 2000-05 → — Figure 861455A 861455A 2000-05 → — Figure 861139E 861139E 2000-05 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
