Toyota Lexus IS300

2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 3 illustrations

Illustrations

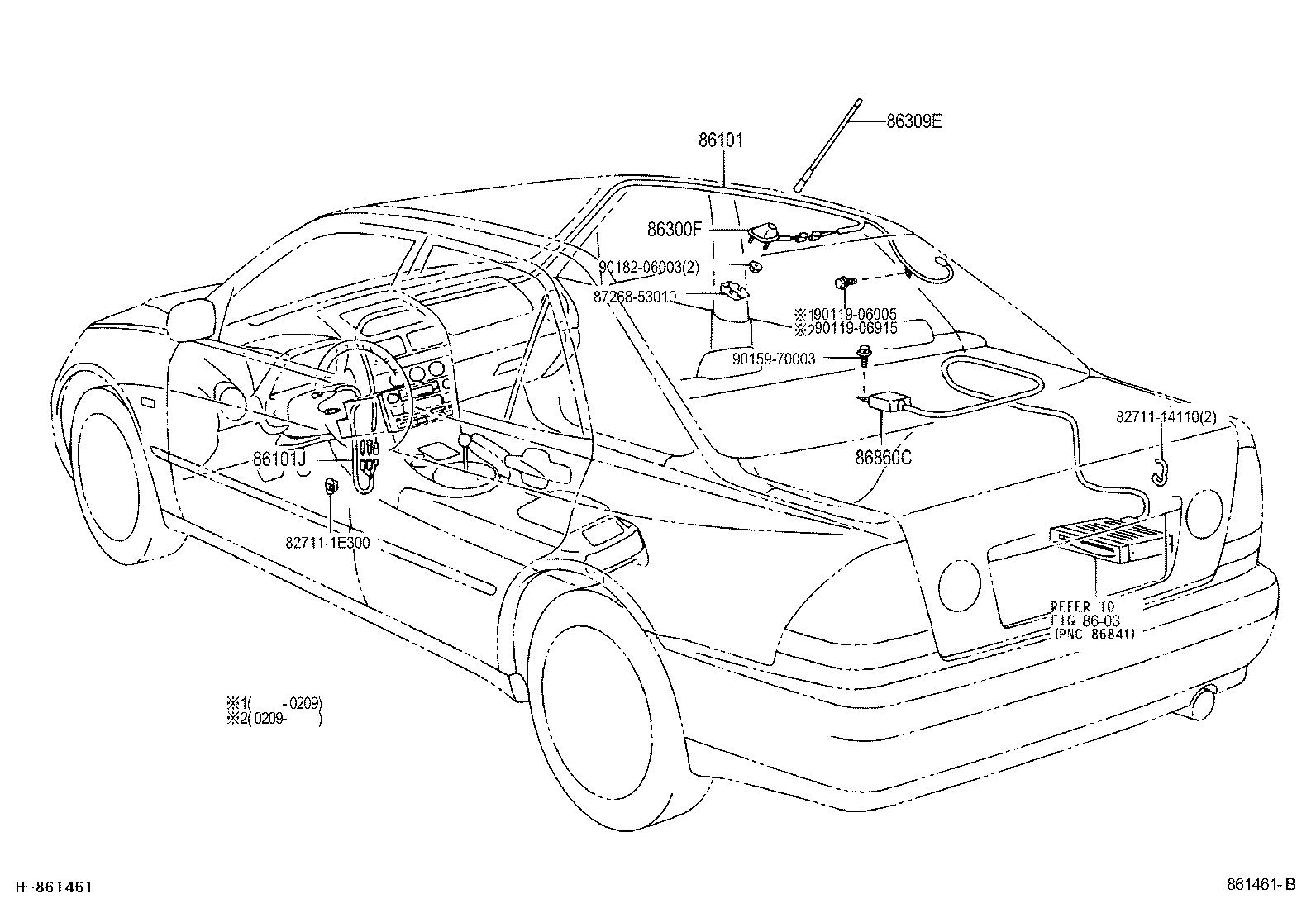

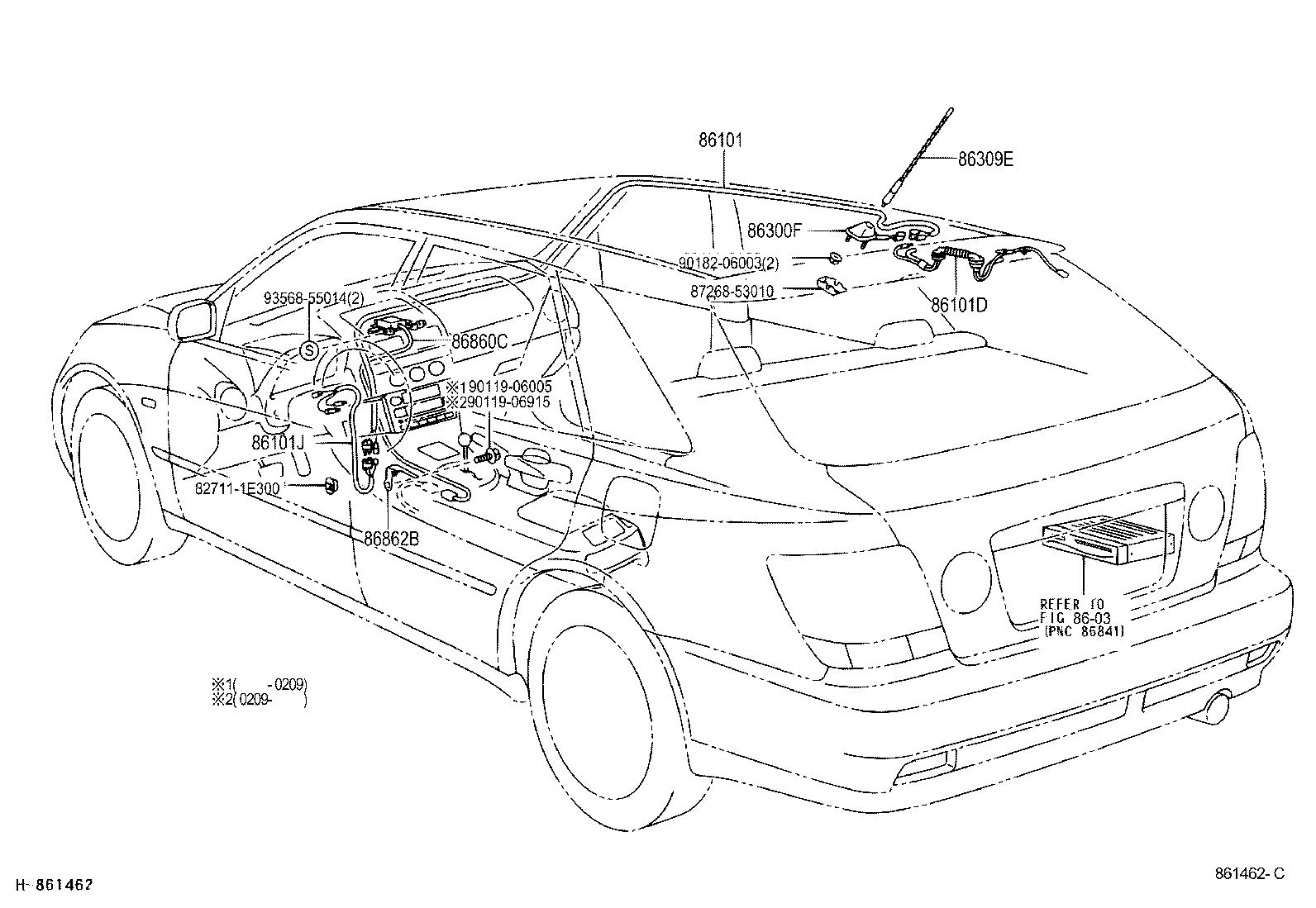

Figure 861136A 861136A 2000-05 → 2001-07 Figure 861461B 861461B 2001-07 → — Figure 861462C 861462C 2001-07 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86300F Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
86309E Pole Sub-assy, Roof Antenna
86860C Antenna Assy, Navigation
86862B Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
