Toyota Lexus IS300

2000-05 → 2005-07 · chassis JCE10 · catalogue 242410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

13 part groups · 3 illustrations

Illustrations

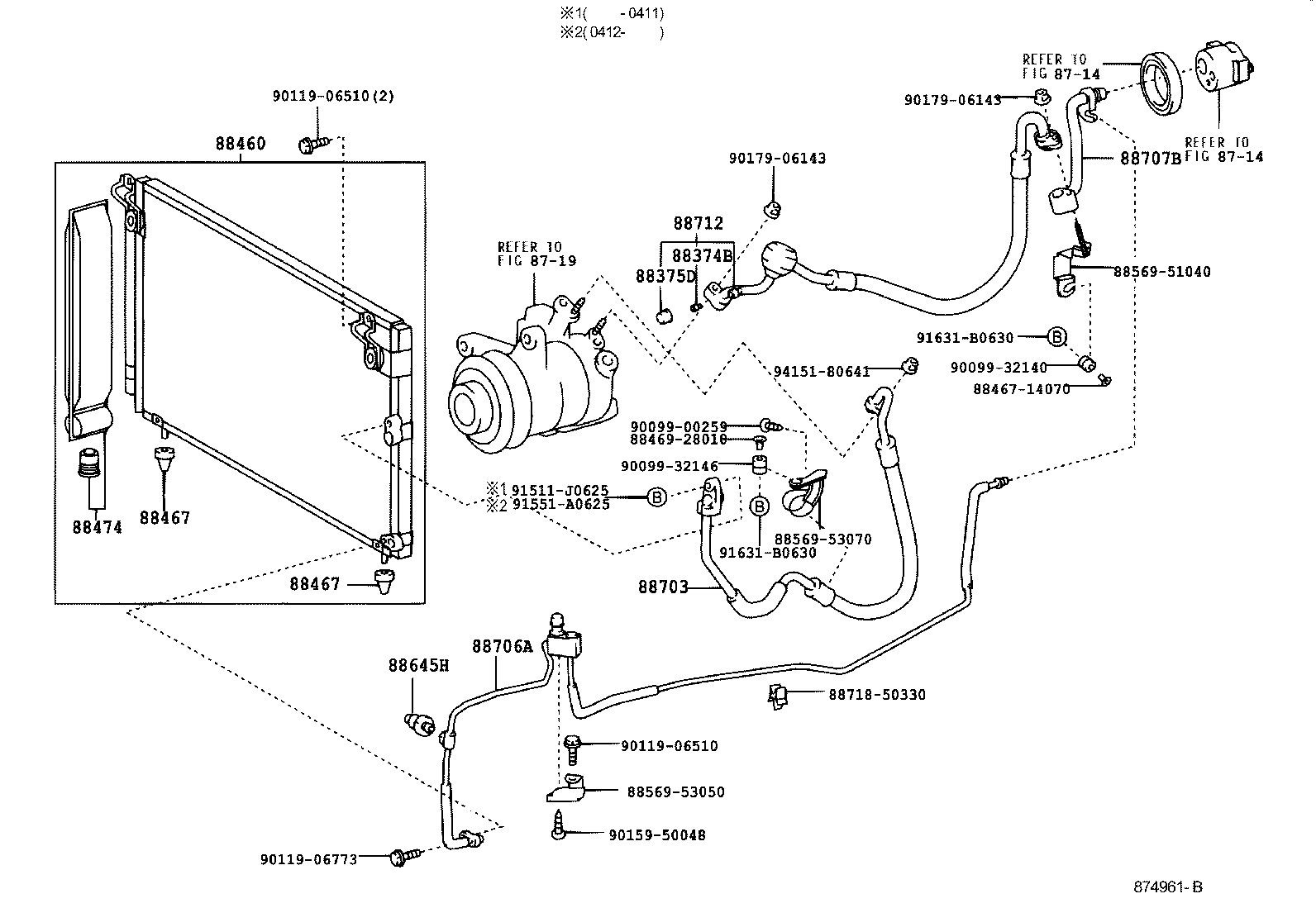

Figure 874102C 874102C 2000-05 → 2001-07 Figure 874961B 874961B 2001-07 → — Figure 872954 872954 2000-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
