Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242420 · United States

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 2 illustrations

Illustrations

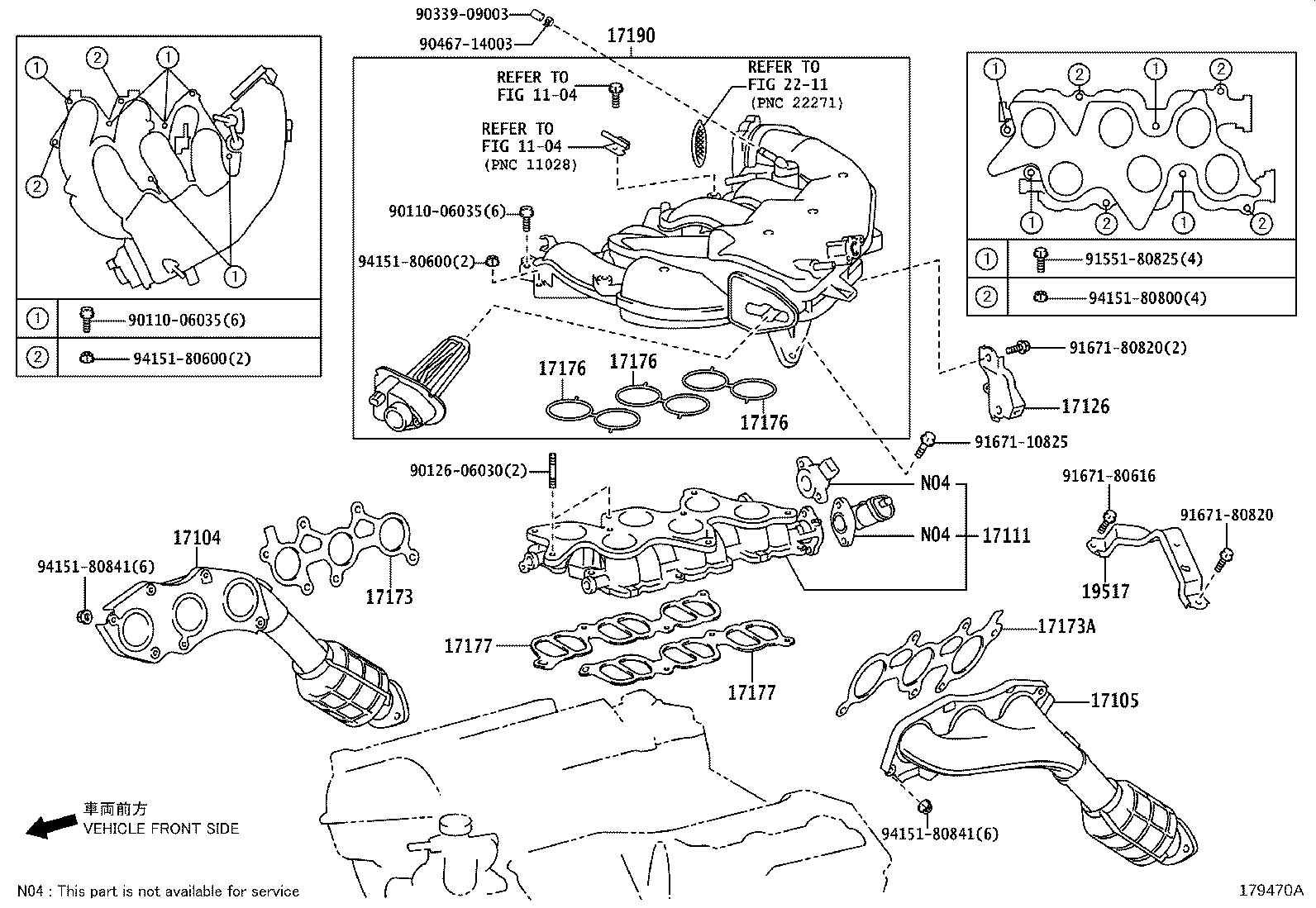

Figure 17A101 17A101 2005-08 → — Figure 179470A 179470A 2005-08 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17126 Stay, Surge Tank, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
17190B Bracket, Intake Air Surge Tank, NO.2
19517 Bracket, Ignition Coil Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
