Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242420 · United States

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

4 part groups · 3 illustrations

Illustrations

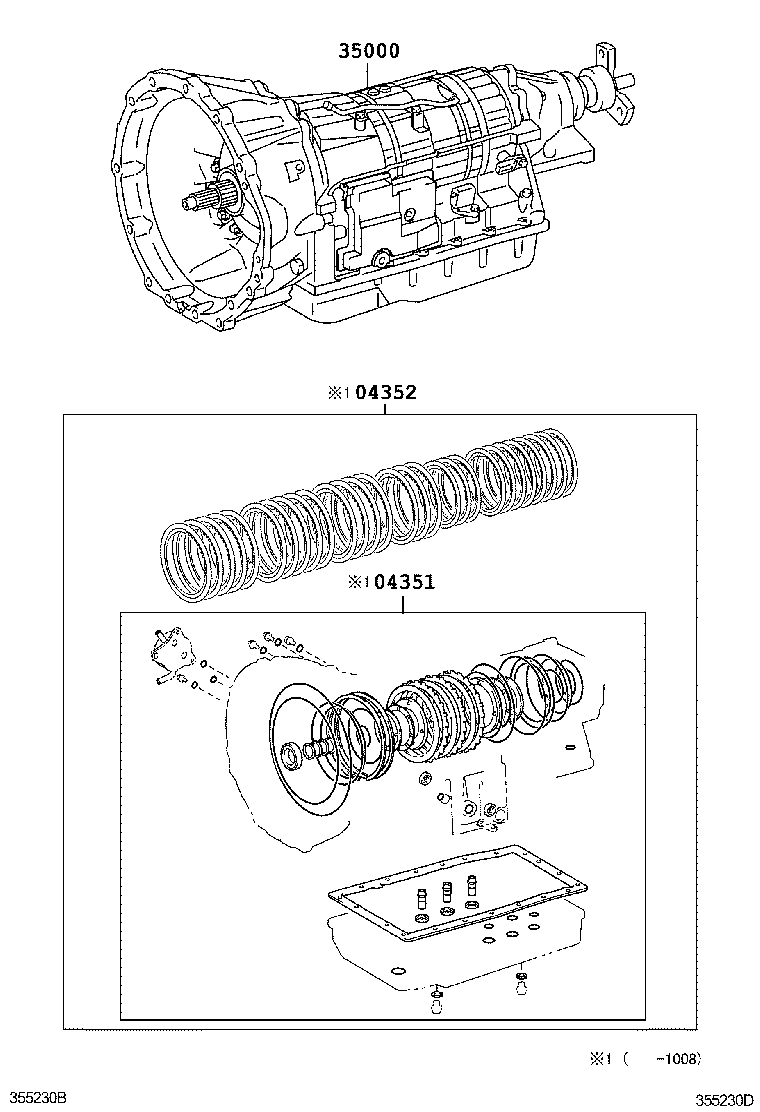

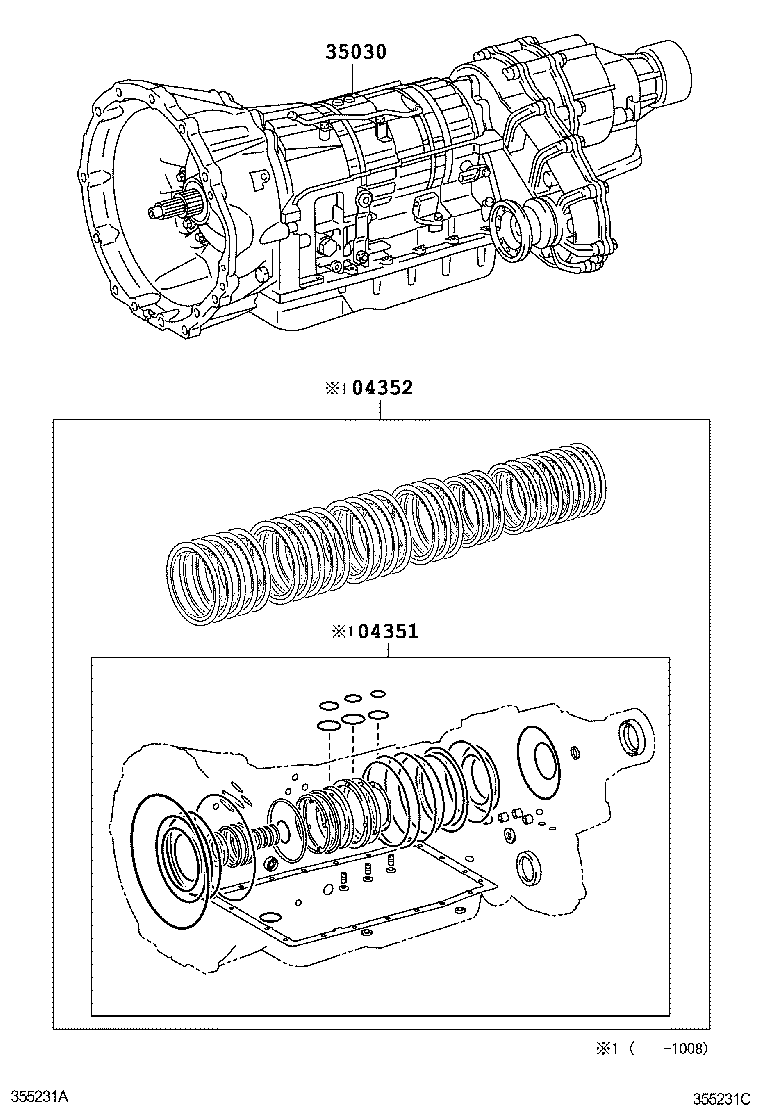

Figure 355229C 355229C 2005-08 → — Figure 355230D 355230D 2005-08 → — Figure 355231C 355231C 2005-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
04352 Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
35030 Transmission Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
