Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242420 · United States

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 2 illustrations

Illustrations

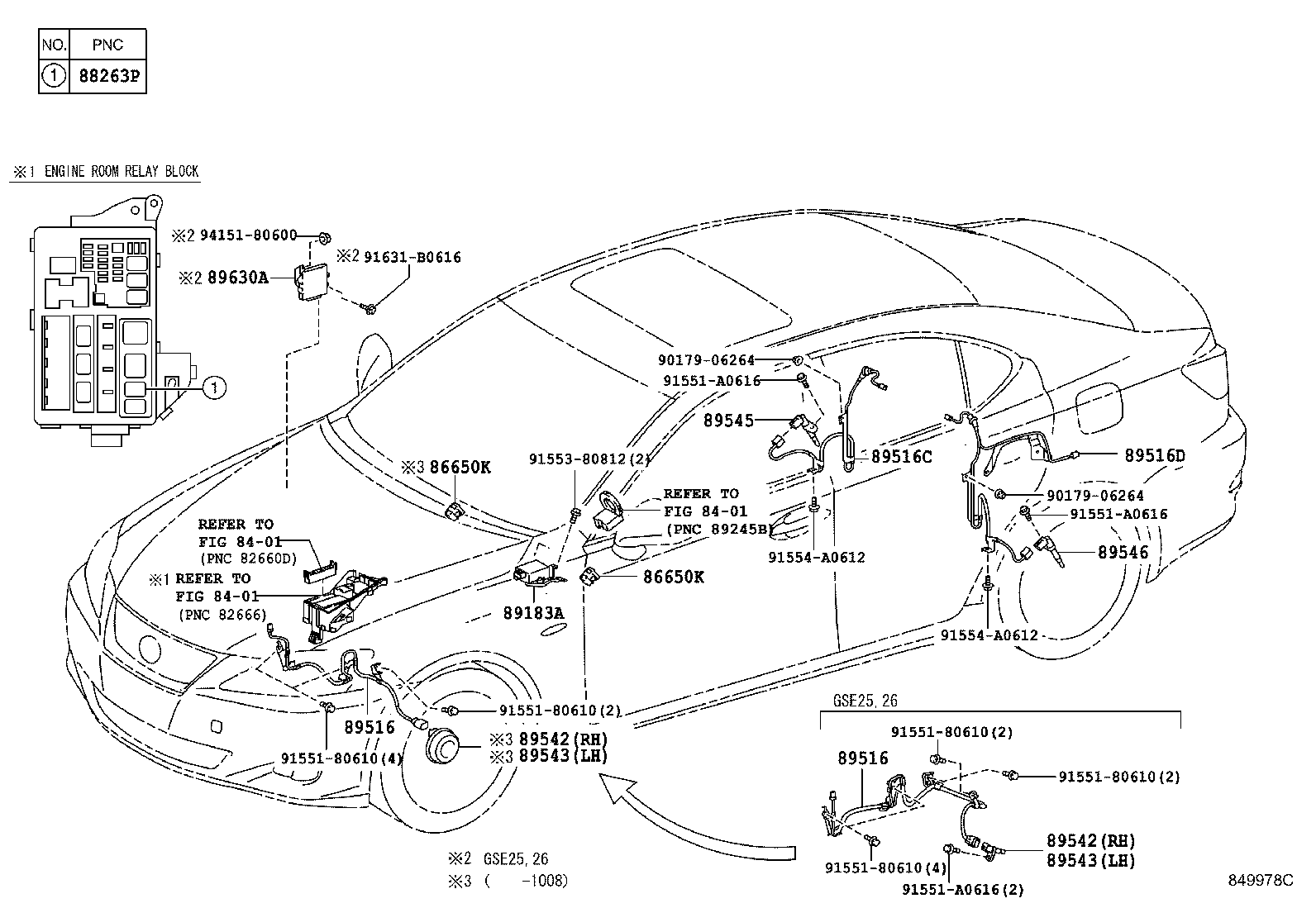

Figure 847151I 847151I 2005-08 → 2008-08 Figure 849978C 849978C 2008-08 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
88263P Relay, Stop Lamp Control
89183A Sensor, Yawrate
89516 Wire, Skid Control Sensor
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
