Toyota Lexus IS250/350
2005-08 → 2013-04 · chassis GSE2# · catalogue 242420 · United States
Supported model
Data version 2013-10

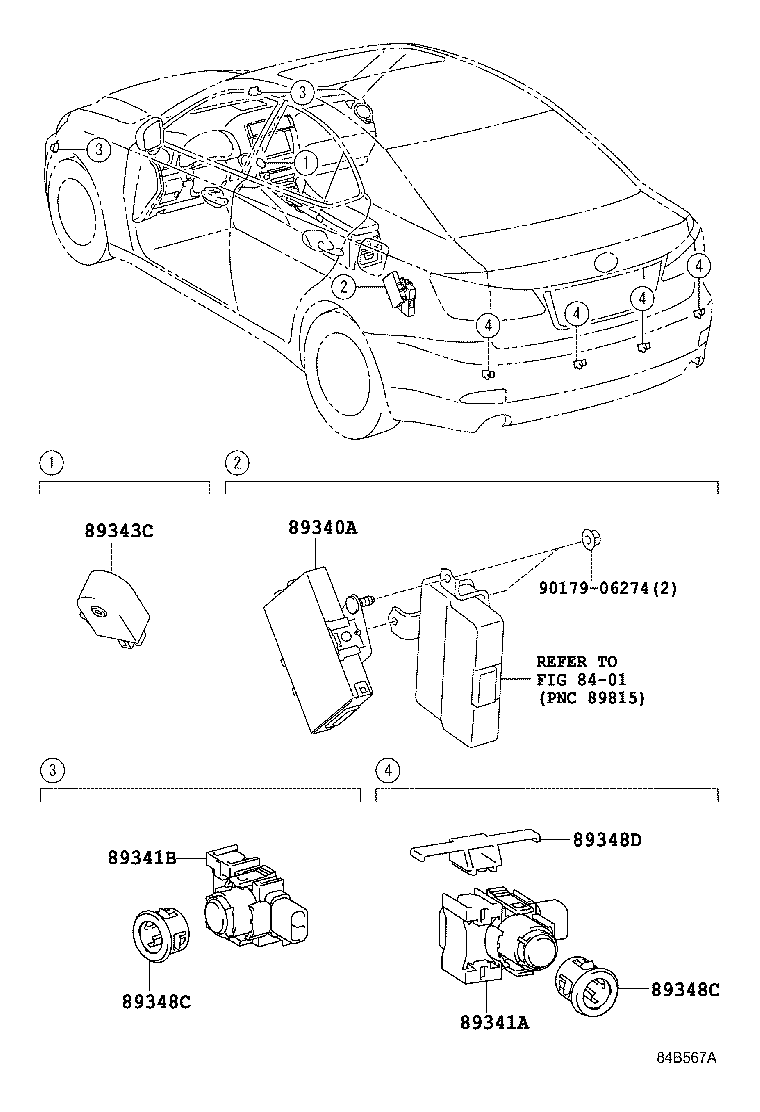

Clearance & Back Sonar
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348C | Retainer, Ultrasonic Sensor, NO.3 |
| 89348D | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
