Toyota Lexus IS250/350
2005-08 → 2013-04 · chassis GSE2# · catalogue 242420 · United States
Supported model
Data version 2013-10

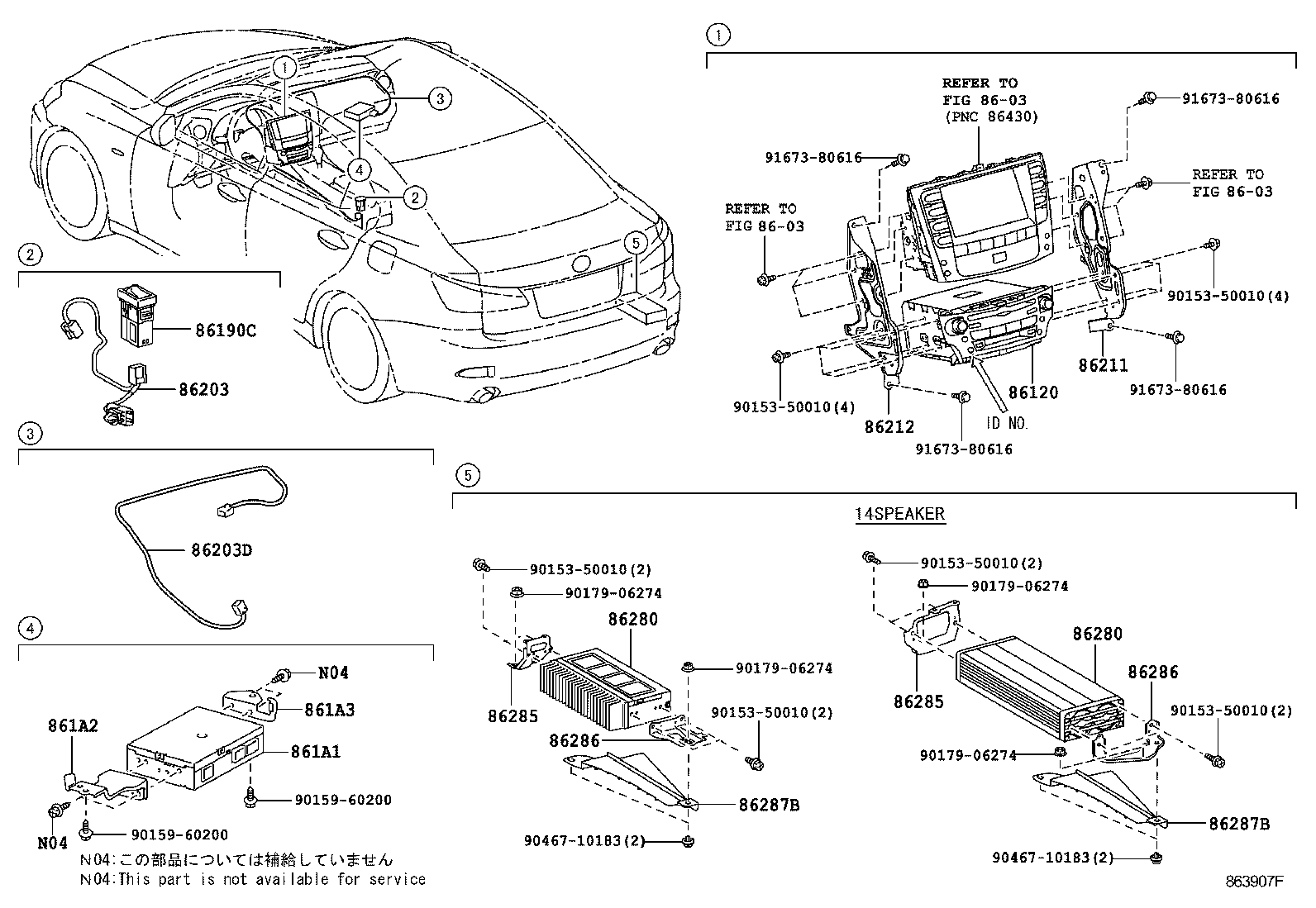

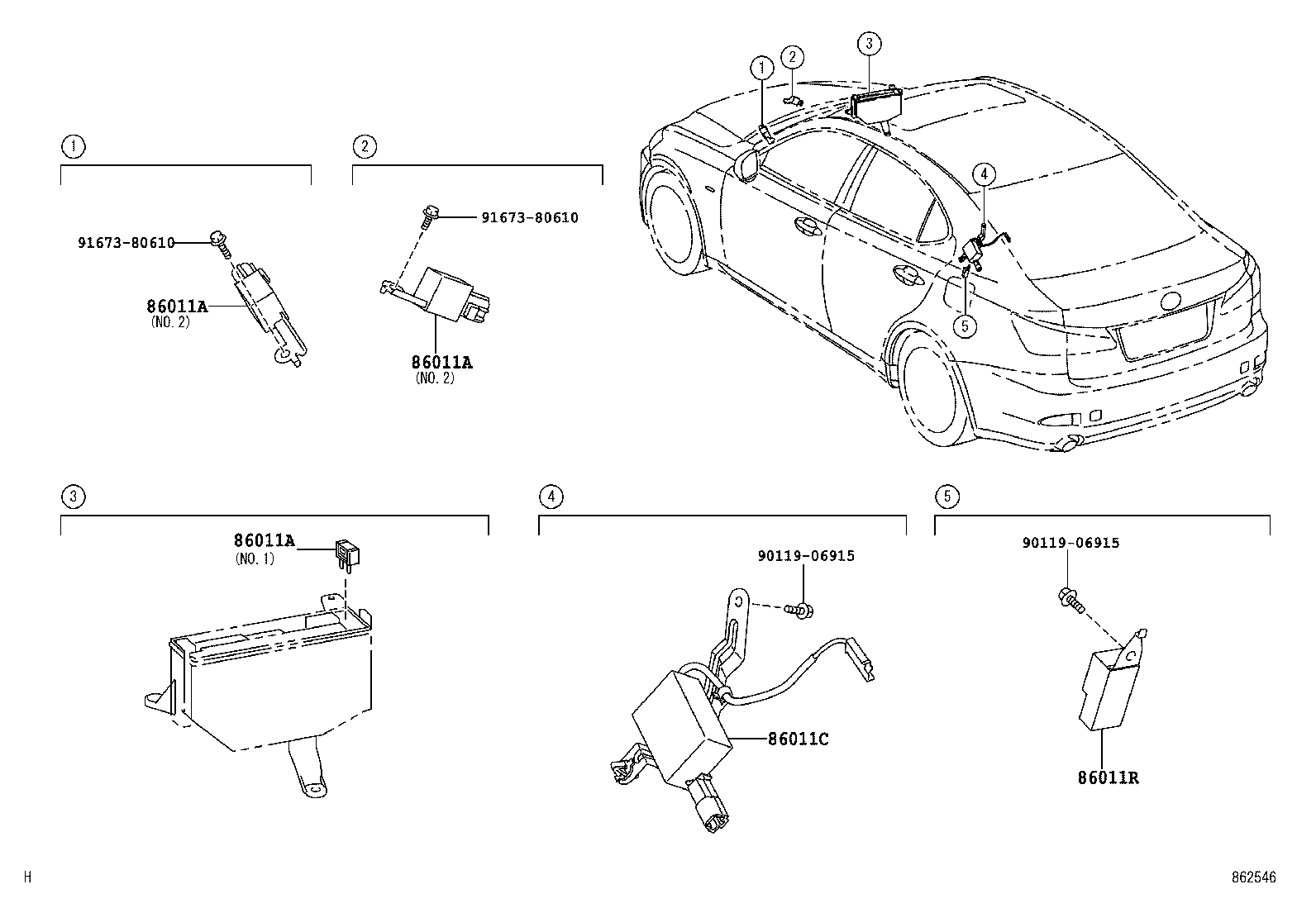

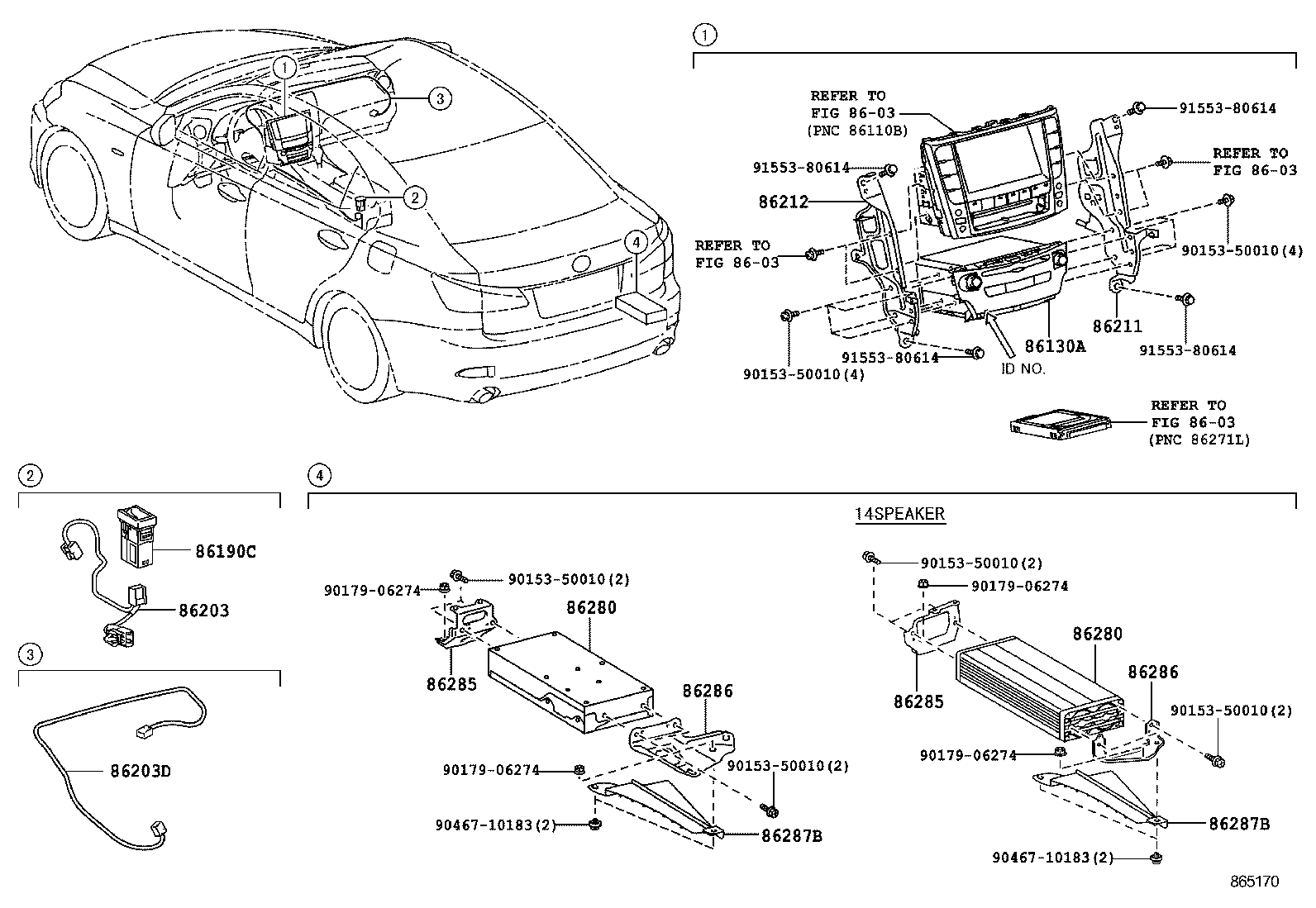

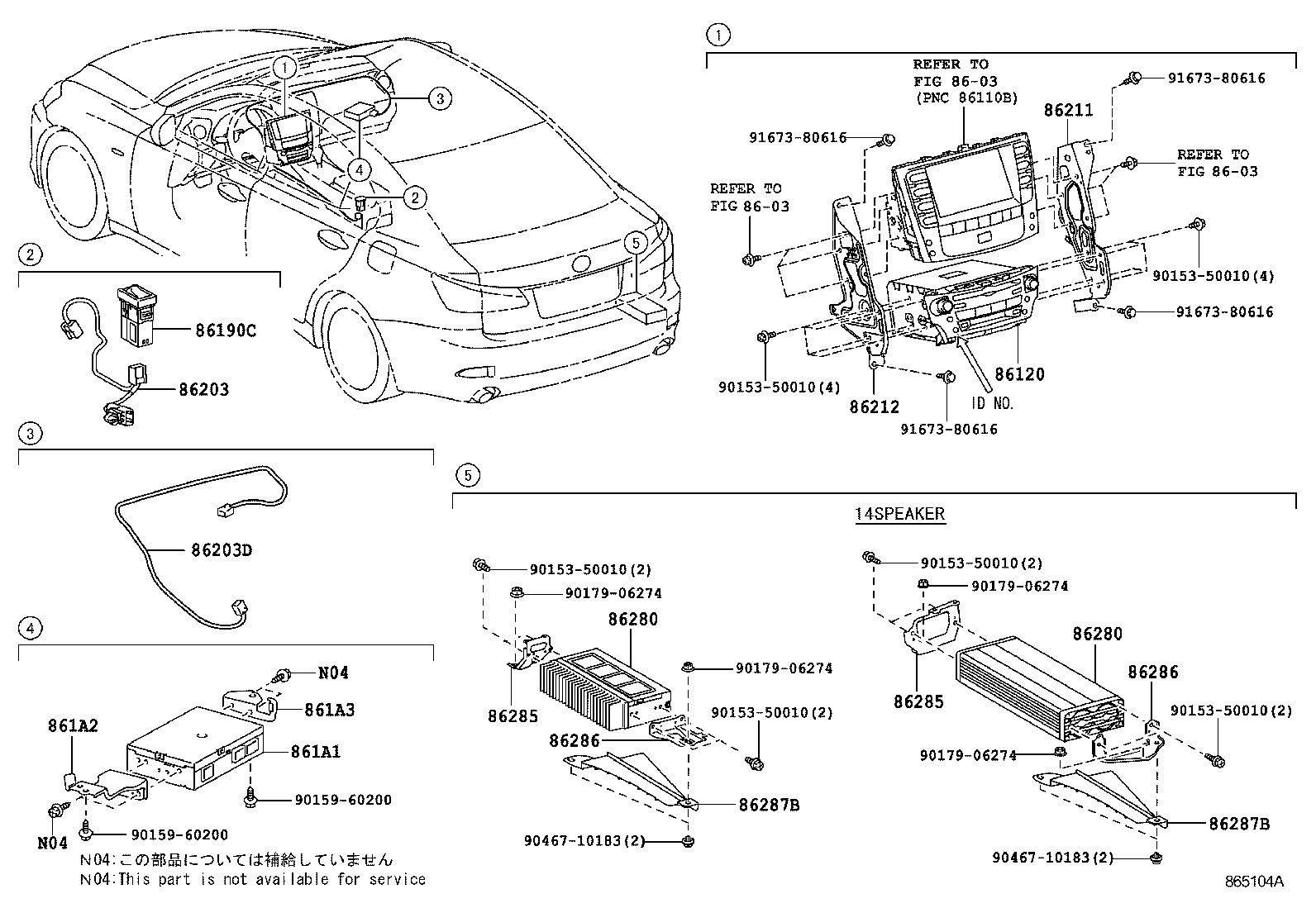

Radio Receiver & Amplifier & Condenser
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86011R | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86130A | Receiver Assy, Multi-media Module |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 861A1 | Computer, Multi-media Interface |
| 861A2 | Bracket, Multi-media Interface, NO.1 |
| 861A3 | Bracket, Multi-media Interface, NO.2 |
| 86203 | Wire, Radio |
| 86203D | Wire, Stereo Component, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86287B | Cover, Amplifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
