Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

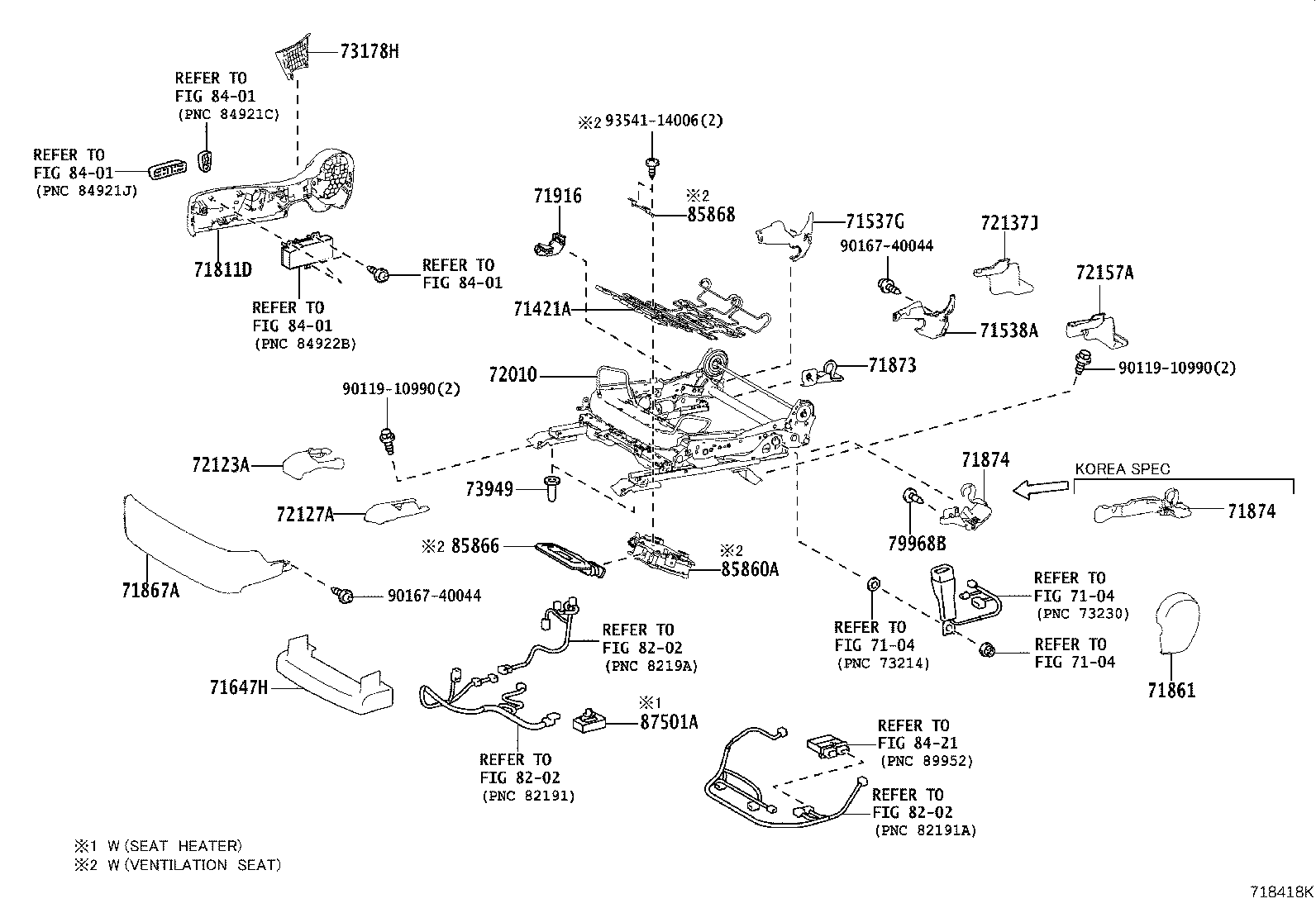

Exploded illustration 718418K 8202 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 71916 — COVER, SEAT BELT HOLE, RH (5 parts) 71537G — PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) (7 parts) 71538A — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) (17 parts) 9011910990 — not listed in this catalogue 9011910990 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (10 parts) 73178H — CAP, SEAT BELT ANCHOR COVER, RH (7 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (10 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (10 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (73 parts) 71421A — SPRING, FRONT SEAT CUSHION (5 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (20 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (15 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (15 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (5 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 73949 — CAP (6 parts) 85860A — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH (46 parts) 85868 — BRACKET, SEAT CUSHION CLIMATE CONTROL, RH (46 parts) 85866 — DUCT, SEAT CUSHION CLIMATE CONTROL, RH (46 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (7 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (7 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (7 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (7 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9354114006 — not listed in this catalogue 8421 — not listed in this catalogue 8202 — not listed in this catalogue 79968B — CLIP (5 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71647H — PROTECTOR, FRONT SEAT CUSHION EDGE (3 parts)
718418K · 23 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
364 parts on this figure
Part number Description Fitment Price
71421A — Spring, Front Seat Cushion
71051-53060 Spring, Front Seat Cushion
2013-04 → 2015-08 ended
GSE3# —
71051-53060 Spring, Front Seat Cushion
2015-08 → 2016-10 ended
ASE30,GSE3# —
71051-53060 Spring, Front Seat Cushion
2016-10 → 2020-09 ended
ASE30,GSE3# —
71051-53060 Spring, Front Seat Cushion
2020-09 → 2021-10 ended
ASE30,GSE3# —
71051-53060 Spring, Front Seat Cushion
2021-11 → —
ASE30,GSE3#,USE30 —
71537G — Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2013-04 → 2015-08 ended
GSE3# —
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2015-08 → 2016-10 ended
ASE30,GSE3# —
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2016-10 → 2020-09 ended
ASE30,GSE3# —
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2020-09 → 2021-10 ended
ASE30,GSE37 —
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2020-09 → 2021-10 ended
GSE31,36 —
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2021-11 → —
ASE30,GSE3# —
71537-47010-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2021-11 → —
USE30 —
71538A — Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-04 → 2015-08 ended
GSE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-04 → 2015-08 ended
GSE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-04 → 2015-08 ended
GSE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-04 → 2015-08 ended
GSE30 —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-04 → 2015-08 ended
GSE3# —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-08 → 2016-10 ended
ASE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-08 → 2016-10 ended
ASE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-08 → 2016-10 ended
ASE30 —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-08 → 2016-10 ended
ASE30,GSE3# —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-10 → 2020-09 ended
ASE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-10 → 2020-09 ended
ASE30 —
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-10 → 2020-09 ended
ASE30 —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-10 → 2020-09 ended
ASE30,GSE3# —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2020-09 → 2021-10 ended
ASE30,GSE37 —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2020-09 → 2021-10 ended
GSE31,36 —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2021-11 → —
ASE30,GSE3# —
71538-53010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2021-11 → —
USE30 —
71647H — Protector, Front Seat Cushion Edge
71587-24130 Protector, Front Seat Cushion Edge
2016-10 → 2020-09 ended
ASE30,GSE3# —
71587-24130 Protector, Front Seat Cushion Edge
2020-09 → 2021-10 ended
ASE30,GSE3# —
71587-24130 Protector, Front Seat Cushion Edge
2021-11 → —
ASE30,GSE3#,USE30 —
71811D — Shield, Front Seat Cushion, RH
71811-53090-C0 note Shield, Front Seat Cushion, RH
2013-04 → 2015-08 ended
GSE3# —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2020-09 ended
ASE30 —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2020-09 ended
ASE30 —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2020-09 ended
ASE30 —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2020-09 → 2021-10 ended
GSE31,36 —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2021-11 → —
ASE30,GSE3# —
71811-53090-C0 note Shield, Front Seat Cushion, RH
2021-11 → —
USE30 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2013-04 → 2015-08 ended
GSE3# —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2020-09 ended
ASE30 —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2020-09 ended
ASE30 —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2020-09 ended
ASE30 —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2020-09 → 2021-10 ended
GSE31,36 —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2021-11 → —
ASE30,GSE3# —
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2021-11 → —
USE30 —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2013-04 → 2015-08 ended
GSE3# —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2016-10 → 2020-09 ended
ASE30 —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2016-10 → 2020-09 ended
ASE30 —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2016-10 → 2020-09 ended
ASE30 —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2020-09 → 2021-10 ended
GSE31,36 —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2021-11 → —
ASE30,GSE3# —
71867-53030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2021-11 → —
USE30 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-53070 Shield, Front Seat Cushion, Lower RH
2013-04 → 2015-08 ended
GSE3# —
71873-53070 Shield, Front Seat Cushion, Lower RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
71873-53070 Shield, Front Seat Cushion, Lower RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
71873-53070 Shield, Front Seat Cushion, Lower RH
2020-09 → 2021-10 ended
ASE30,GSE3# —
71873-53070 Shield, Front Seat Cushion, Lower RH
2021-11 → —
ASE30,GSE3#,USE30 —
71874 — Shield, Front Seat Cushion, Lower LH
71874-33110 note Shield, Front Seat Cushion, Lower LH
2013-04 → 2015-08 ended
GSE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2013-04 → 2015-08 ended
GSE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2013-04 → 2015-08 ended
GSE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2013-04 → 2015-08 ended
GSE30 —
71874-53060 Shield, Front Seat Cushion, Lower LH
2013-04 → 2015-08 ended
GSE3# —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2015-08 → 2016-10 ended
ASE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2015-08 → 2016-10 ended
ASE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2015-08 → 2016-10 ended
ASE30 —
71874-53060 Shield, Front Seat Cushion, Lower LH
2015-08 → 2016-10 ended
ASE30,GSE3# —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2016-10 → 2020-09 ended
ASE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2016-10 → 2020-09 ended
ASE30 —
71874-33110 note Shield, Front Seat Cushion, Lower LH
2016-10 → 2020-09 ended
ASE30 —
71874-53060 Shield, Front Seat Cushion, Lower LH
2016-10 → 2020-09 ended
ASE30,GSE3# —
71874-53060 Shield, Front Seat Cushion, Lower LH
2020-09 → 2021-10 ended
ASE30,GSE3# —
71874-53060 Shield, Front Seat Cushion, Lower LH
2021-11 → —
ASE30,GSE3#,USE30 —
71916 — Cover, Seat Belt Hole, RH
73173-53030 Cover, Seat Belt Hole, RH
2013-04 → 2015-08 ended
GSE3# —
73173-53030 Cover, Seat Belt Hole, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
73173-53030 Cover, Seat Belt Hole, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
73173-53030 Cover, Seat Belt Hole, RH
2020-09 → 2021-10 ended
ASE30,GSE3# —
73173-53030 Cover, Seat Belt Hole, RH
2021-11 → —
ASE30,GSE3#,USE30 —
72010 — Adjuster Assy, Front Seat, RH
72010-53250 note Adjuster Assy, Front Seat, RH
2013-04 → 2013-08 ended
GSE30 —
72010-53250 note Adjuster Assy, Front Seat, RH
2013-04 → 2013-08 ended
GSE30 —
72010-53250 note Adjuster Assy, Front Seat, RH
2013-04 → 2013-08 ended
GSE30 —
72010-53250 note Adjuster Assy, Front Seat, RH
2013-04 → 2013-08 ended
GSE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2013-08 → 2015-08 ended
GSE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2013-08 → 2015-08 ended
GSE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2013-08 → 2015-08 ended
GSE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2013-08 → 2015-08 ended
GSE30 —
72010-53260 Adjuster Assy, Front Seat, RH
2013-04 → 2013-08 ended
GSE3# —
72010-53261 Adjuster Assy, Front Seat, RH
2013-08 → 2015-08 ended
GSE3# —
72010-53251 note Adjuster Assy, Front Seat, RH
2015-08 → 2016-10 ended
ASE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2015-08 → 2016-10 ended
ASE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2015-08 → 2016-10 ended
ASE30 —
72010-53261 Adjuster Assy, Front Seat, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
72010-53251 note Adjuster Assy, Front Seat, RH
2016-10 → 2020-09 ended
ASE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2016-10 → 2020-09 ended
ASE30 —
72010-53251 note Adjuster Assy, Front Seat, RH
2016-10 → 2020-09 ended
ASE30 —
72010-53261 Adjuster Assy, Front Seat, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
72010-53261 Adjuster Assy, Front Seat, RH
2020-09 → 2021-10 ended
ASE30,GSE3# —
72010-53261 Adjuster Assy, Front Seat, RH
2021-11 → —
ASE30,GSE3#,USE30 —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2013-04 → 2015-08 ended
GSE3# —
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-09 → 2021-10 ended
GSE31,36 —
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2021-11 → —
ASE30,GSE3# —
72123-53050-C0 note Cover, Seat Track Bracket, Outer Front RH
2021-11 → —
USE30 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2013-04 → 2015-08 ended
GSE3# —
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-09 → 2021-10 ended
GSE31,36 —
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2021-11 → —
ASE30,GSE3# —
72127-53050-C0 note Cover, Seat Track Bracket, Inner Front RH
2021-11 → —
USE30 —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2013-04 → 2015-08 ended
GSE3# —
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2015-08 → 2016-10 ended
ASE30,GSE3# —
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2016-10 → 2020-09 ended
ASE30,GSE3# —
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2020-09 → 2021-10 ended
ASE30,GSE37 —
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2020-09 → 2021-10 ended
GSE31,36 —
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2021-11 → —
ASE30,GSE3# —
72137-53050-C0 note Cover, Front Seat Track, RH Rear Outer
2021-11 → —
USE30 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2013-04 → 2015-08 ended
GSE3# —
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2020-09 → 2021-10 ended
GSE31,36 —
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2021-11 → —
ASE30,GSE3# —
72157-53070-C0 note Cover, Seat Track Bracket, Inner RH
2021-11 → —
USE30 —
73178H — Cap, Seat Belt Anchor Cover, RH
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2013-04 → 2015-08 ended
GSE3# —
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2020-09 → 2021-10 ended
GSE31,36 —
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2021-11 → —
ASE30,GSE3# —
73178-53010-C0 note Cap, Seat Belt Anchor Cover, RH
2021-11 → —
USE30 —
73949 — Cap
71848-33010 Cap
2013-04 → 2014-06 ended
GSE3# —
71848-76010 Cap
2014-07 → 2015-08 ended
GSE3# —
71848-76010 Cap
2015-08 → 2016-10 ended
ASE30,GSE3# —
71848-76010 Cap
2016-10 → 2020-09 ended
ASE30,GSE3# —
71848-76010 Cap
2020-09 → 2021-10 ended
ASE30,GSE3# —
71848-76010 Cap
2021-11 → —
ASE30,GSE3#,USE30 —
79968B — Clip
90467-07215 note Clip
2024-11 → —
USE30 —
90467-07215 Clip
2023-06 → —
ASE30,GSE3#,USE30 —
90467-08186-C3 note Clip
2021-11 → 2022-09 ended
USE30 —
90467-08186-C3 note Clip
2024-11 → —
USE30 —
90467-08186-C3 note Clip
2021-11 → 2023-06 ended
ASE30,GSE3#,USE30 —
85860A — Blower Assy, Seat Cushion Climate Control, RH
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2014-07 → 2015-08 ended
GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2014-10 → 2015-08 ended
GSE30,35 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30,GSE36,37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30,GSE36,37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30,GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
ASE30,GSE3# —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
ASE30,GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85860-33020 Blower Assy, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
GSE31,36 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2021-11 → 2024-11 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2021-11 → 2024-11 ended
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2021-11 → 2025-06 ended
GSE37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2021-11 → 2025-06 ended
GSE37 —
85860-33020 Blower Assy, Seat Cushion Climate Control, RH
2021-11 → —
GSE31,36,USE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2021-11 → —
ASE30,GSE37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2021-11 → —
ASE30,GSE37 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2024-11 → —
ASE30 —
85860-33020 note Blower Assy, Seat Cushion Climate Control, RH
2024-11 → —
ASE30 —
85866 — Duct, Seat Cushion Climate Control, RH
85866-33010 note Duct, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2014-10 → 2015-08 ended
GSE30,35 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2014-07 → 2015-08 ended
GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30,GSE36,37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30,GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30,GSE36,37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
ASE30,GSE3# —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
ASE30,GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85866-33010 Duct, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
GSE31,36 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2021-11 → 2024-11 ended
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2024-11 → —
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2024-11 → —
ASE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2021-11 → —
ASE30,GSE37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2021-11 → —
ASE30,GSE37 —
85866-33010 Duct, Seat Cushion Climate Control, RH
2021-11 → —
GSE31,36,USE30 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2021-11 → 2025-06 ended
GSE37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2021-11 → 2025-06 ended
GSE37 —
85866-33010 note Duct, Seat Cushion Climate Control, RH
2021-11 → 2024-11 ended
ASE30 —
85868 — Bracket, Seat Cushion Climate Control, RH
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2014-10 → 2015-08 ended
GSE30,35 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2014-07 → 2015-08 ended
GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2013-04 → 2015-08 ended
GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30,GSE36,37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30,GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2017-10 → 2020-09 ended
GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30,GSE36,37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30,GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
ASE30,GSE3# —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
ASE30,GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2017-10 ended
GSE31 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2016-10 → 2020-09 ended
ASE30 —
85868-33010 Bracket, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
GSE31,36 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2021-11 → 2024-11 ended
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2024-11 → —
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2024-11 → —
ASE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2021-11 → —
ASE30,GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2021-11 → —
ASE30,GSE37 —
85868-33010 Bracket, Seat Cushion Climate Control, RH
2021-11 → —
GSE31,36,USE30 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2021-11 → 2025-06 ended
GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2021-11 → 2025-06 ended
GSE37 —
85868-33010 note Bracket, Seat Cushion Climate Control, RH
2021-11 → 2024-11 ended
ASE30 —
87501A — Control Sub-assy, Seat Heater, RH
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2014-10 → 2015-08 ended
GSE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30,31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30,31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30,31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30 —
87501-53010 Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE35,36 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30,31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2013-04 → 2015-08 ended
GSE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
ASE30,GSE31 —
87501-53010 Control Sub-assy, Seat Heater, RH
2015-08 → 2016-10 ended
GSE36,37 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2017-10 → 2018-08 ended
GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2017-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2017-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2017-10 → 2018-08 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2017-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2017-10 → 2018-08 ended
GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2017-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2017-10 ended
GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2017-10 ended
GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2017-10 ended
ASE30,GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2017-10 ended
GSE31 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2017-10 ended
GSE31 —
87501-53010 Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
GSE36,37 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53010 note Control Sub-assy, Seat Heater, RH
2016-10 → 2018-08 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
GSE31 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30,GSE31 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
GSE31 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30 —
87501-53030 Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
GSE36,37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2018-09 → 2020-09 ended
ASE30,GSE31 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2020-09 → 2021-10 ended
ASE30,GSE37 —
87501-53030 Control Sub-assy, Seat Heater, RH
2020-09 → 2021-10 ended
GSE31,36 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → 2024-11 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → 2024-11 ended
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → 2025-06 ended
GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → 2025-06 ended
GSE37 —
87501-53030 Control Sub-assy, Seat Heater, RH
2021-11 → —
GSE31,36,USE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → —
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → —
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2021-11 → —
ASE30,GSE37 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2024-11 → —
ASE30 —
87501-53030 note Control Sub-assy, Seat Heater, RH
2024-11 → —
ASE30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
