Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

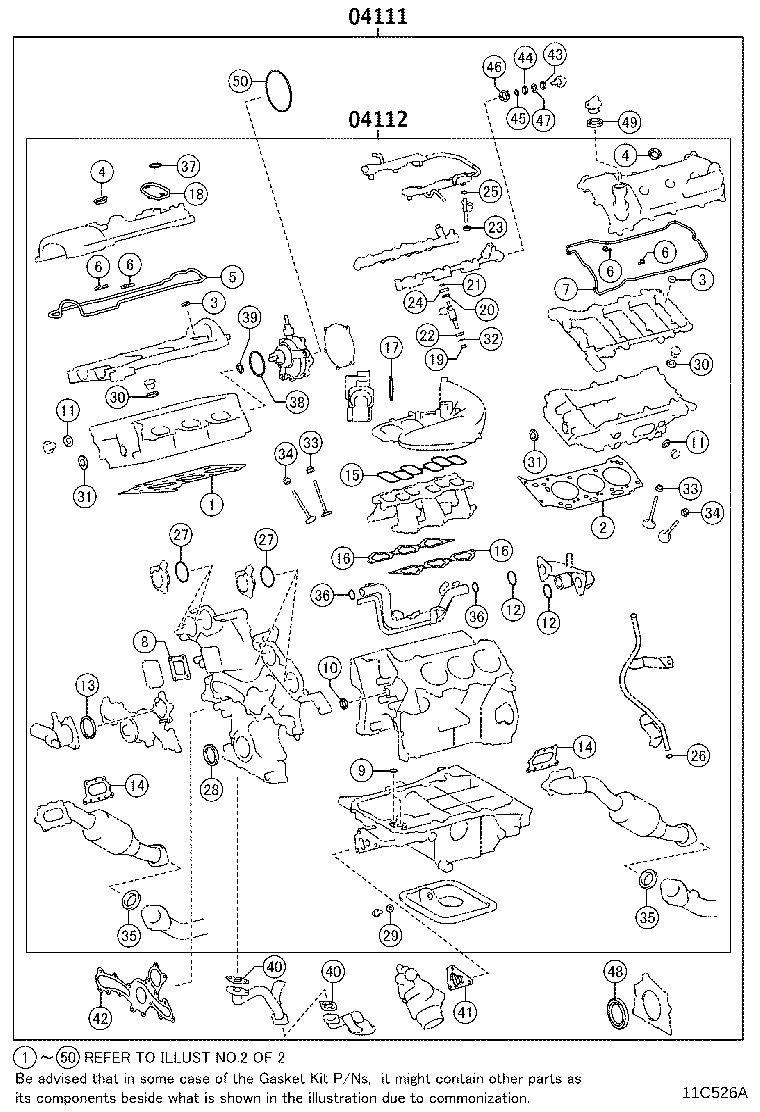

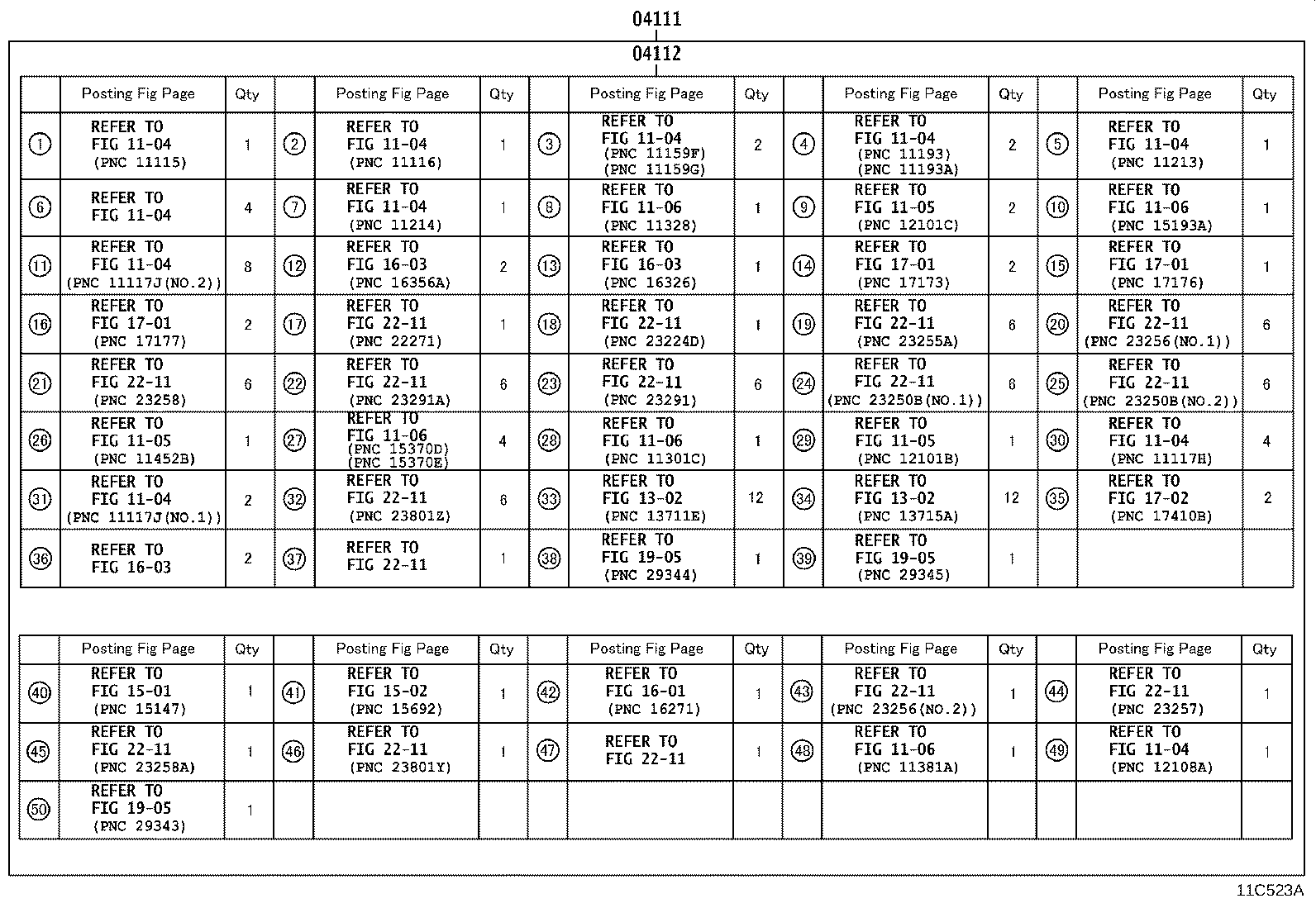

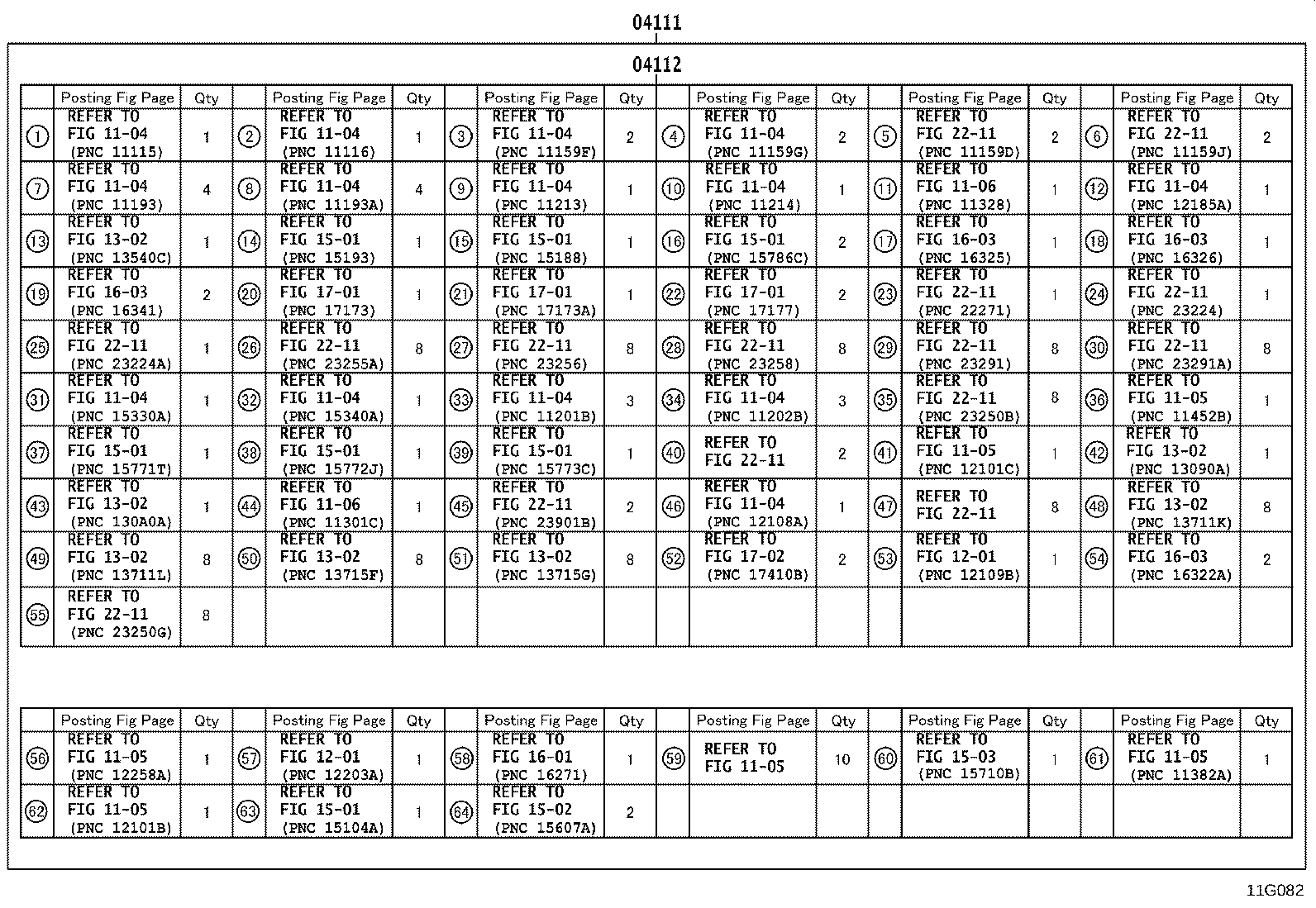

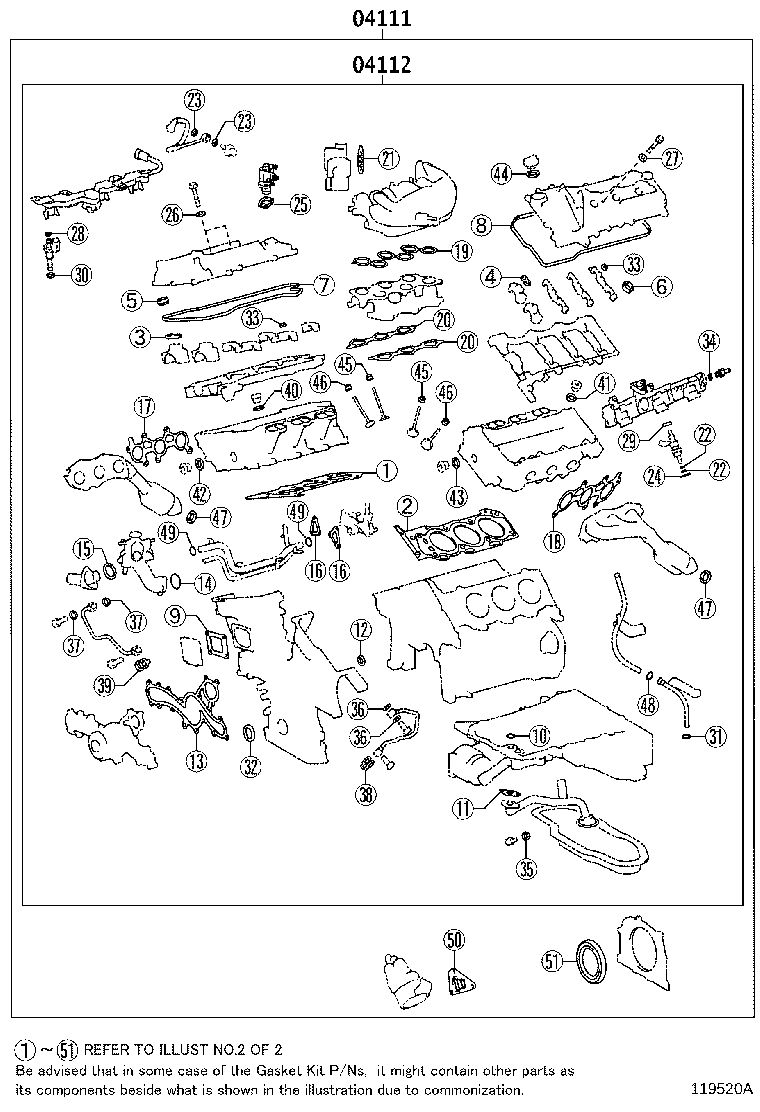

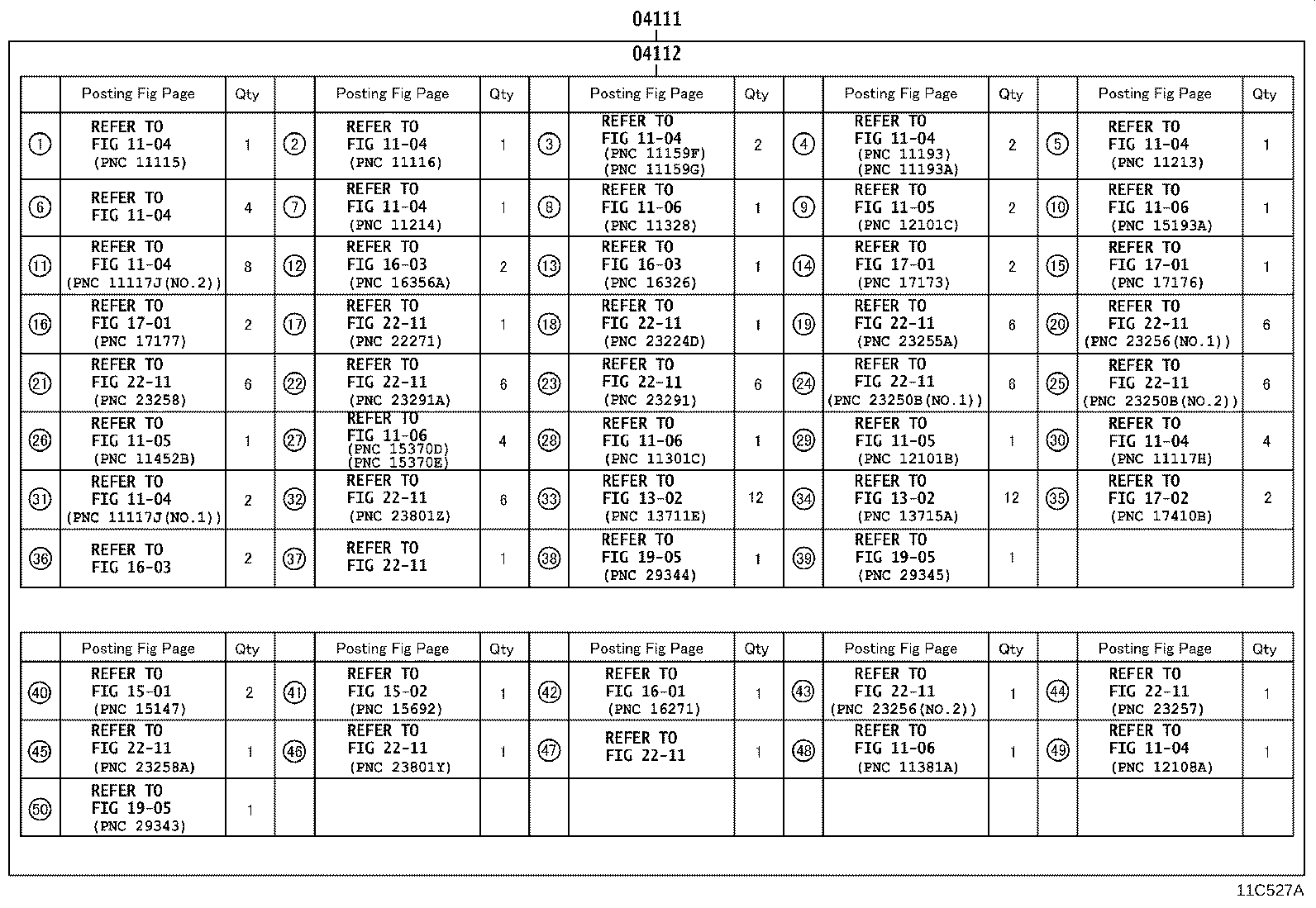

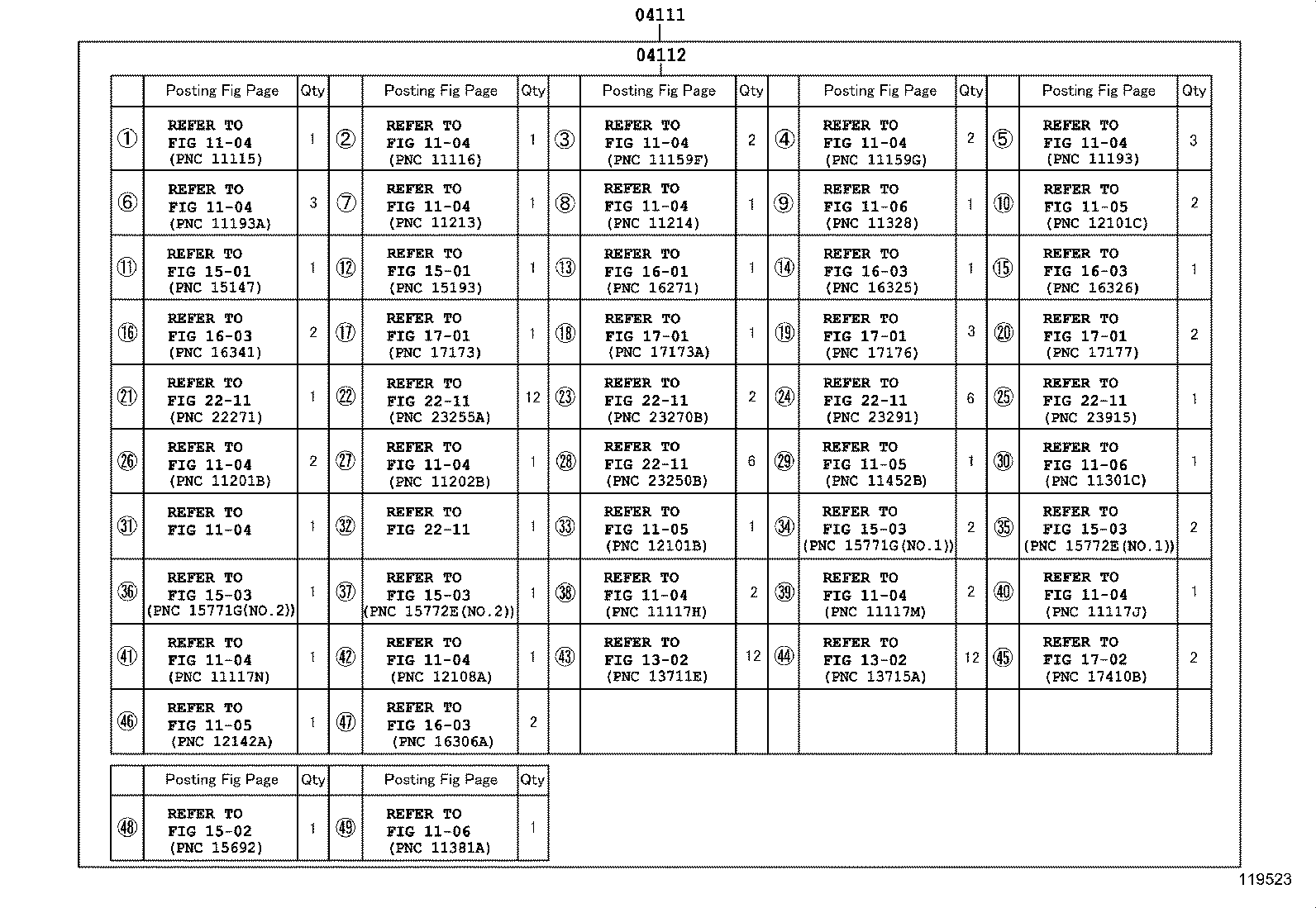

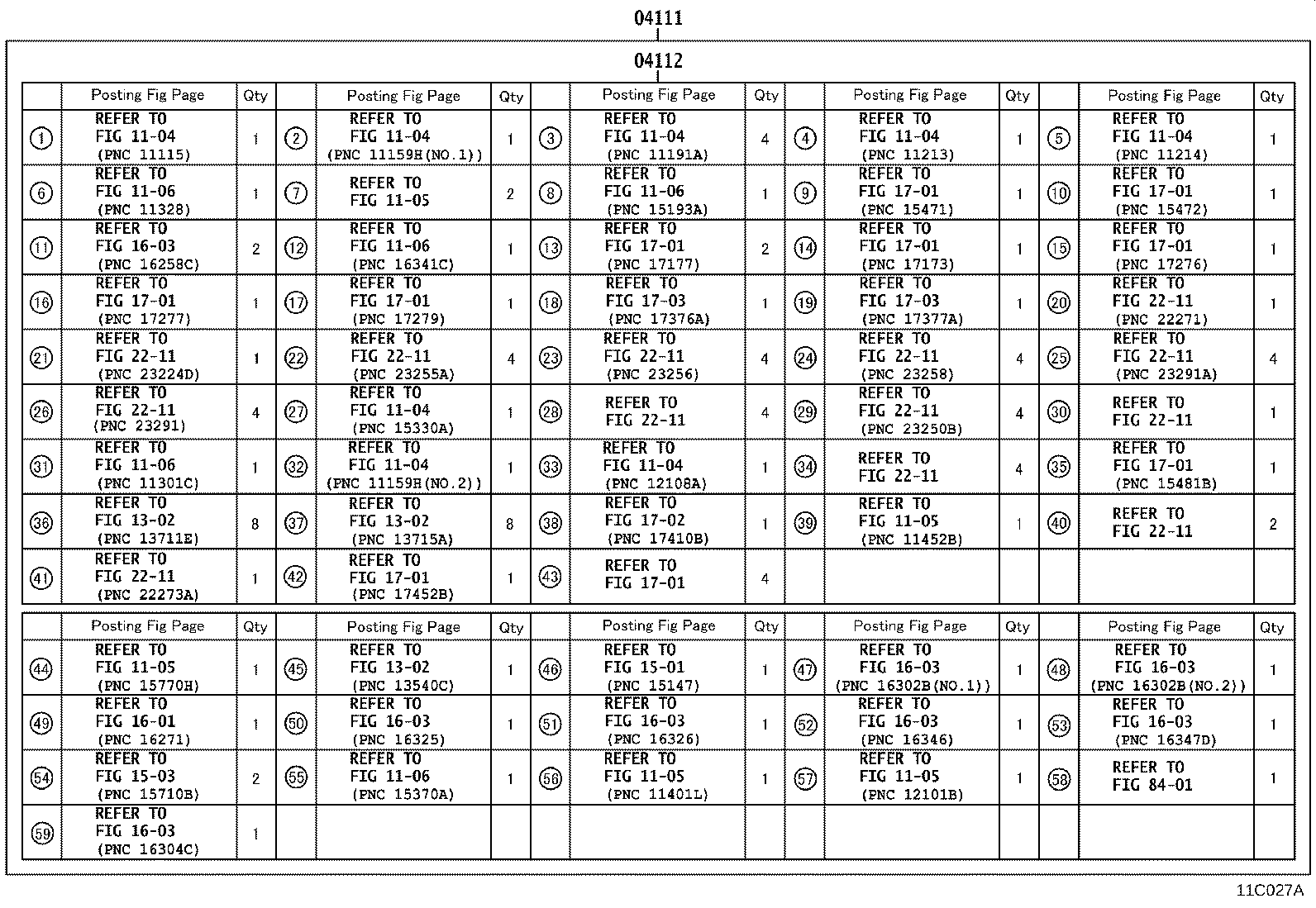

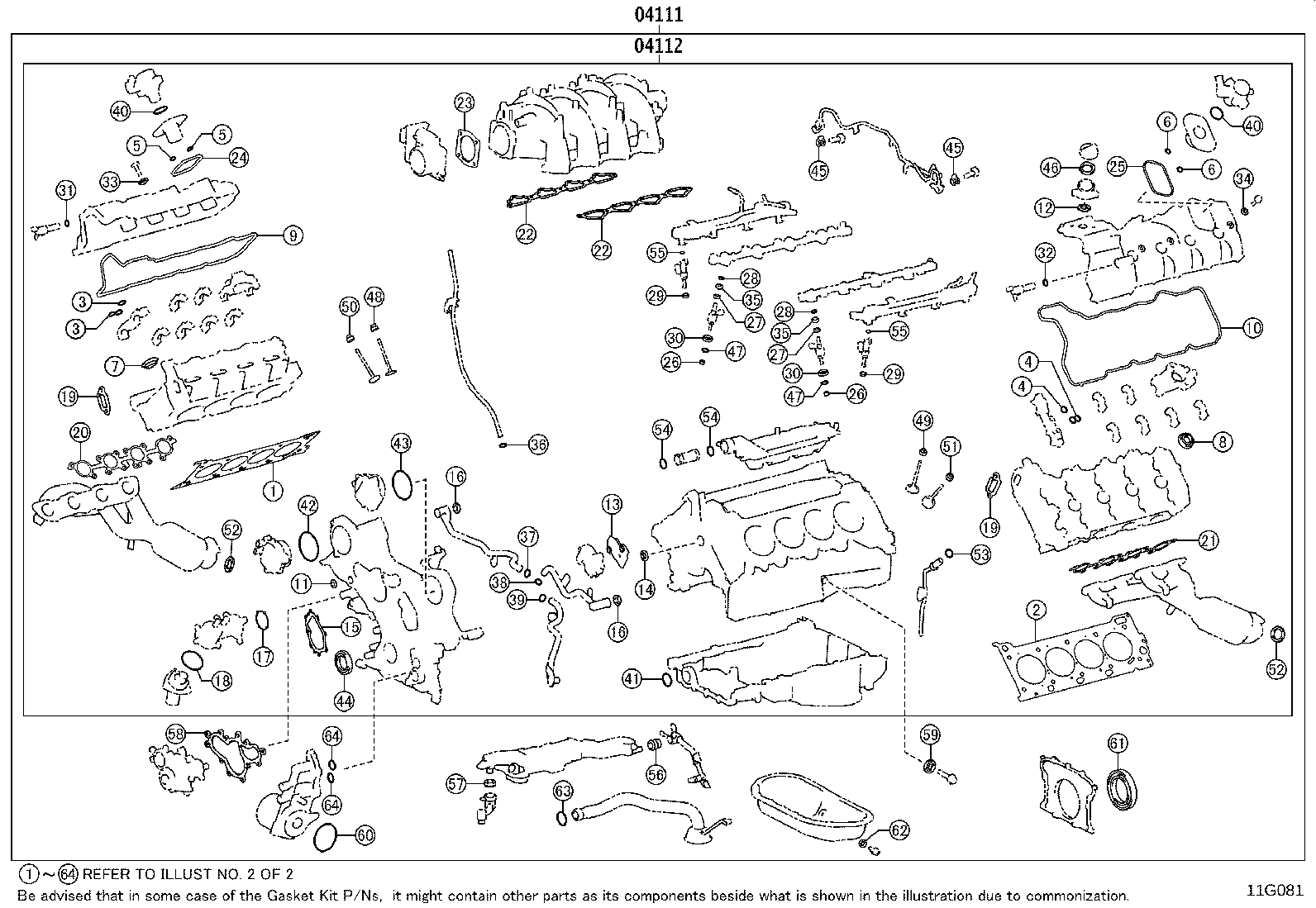

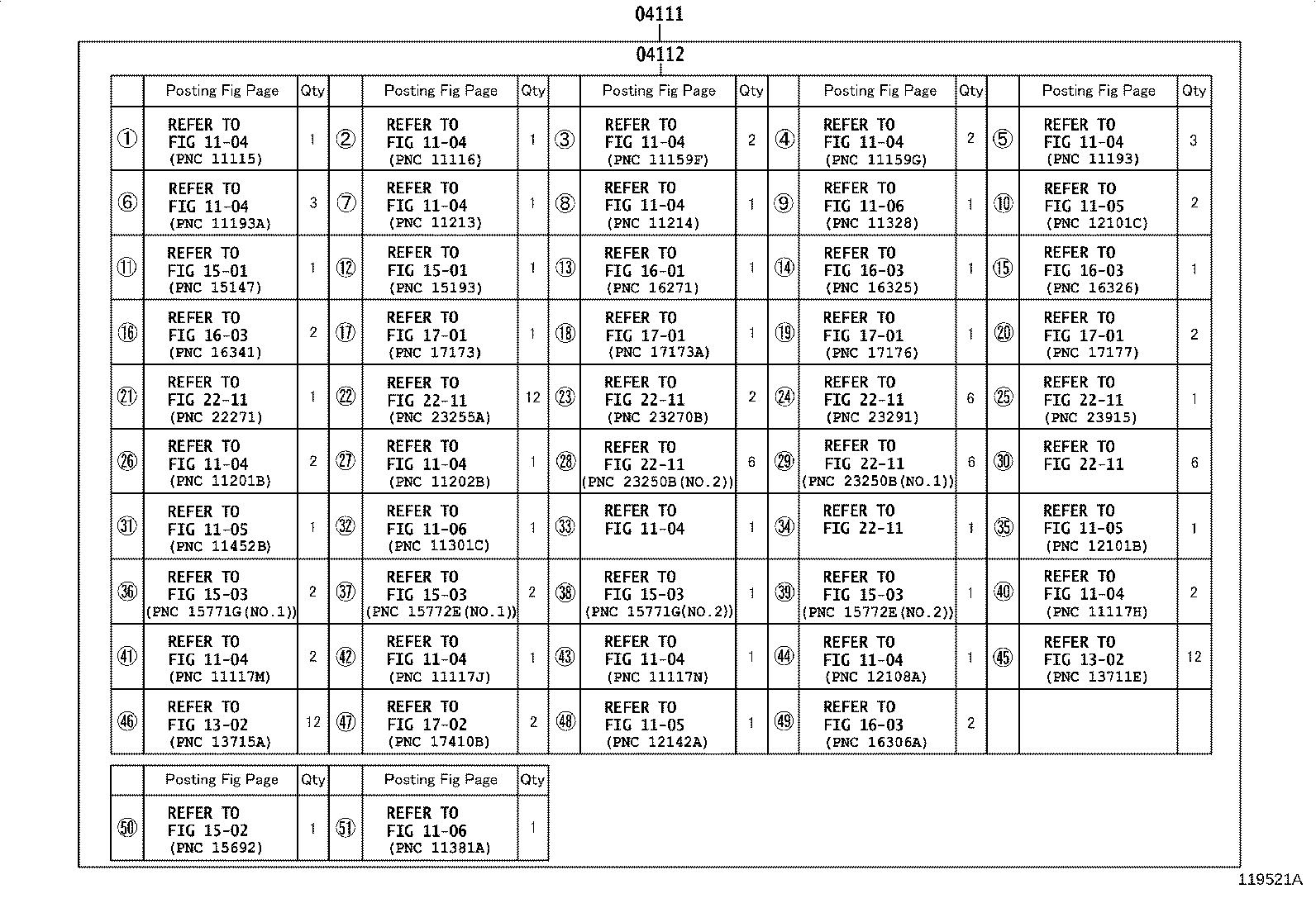

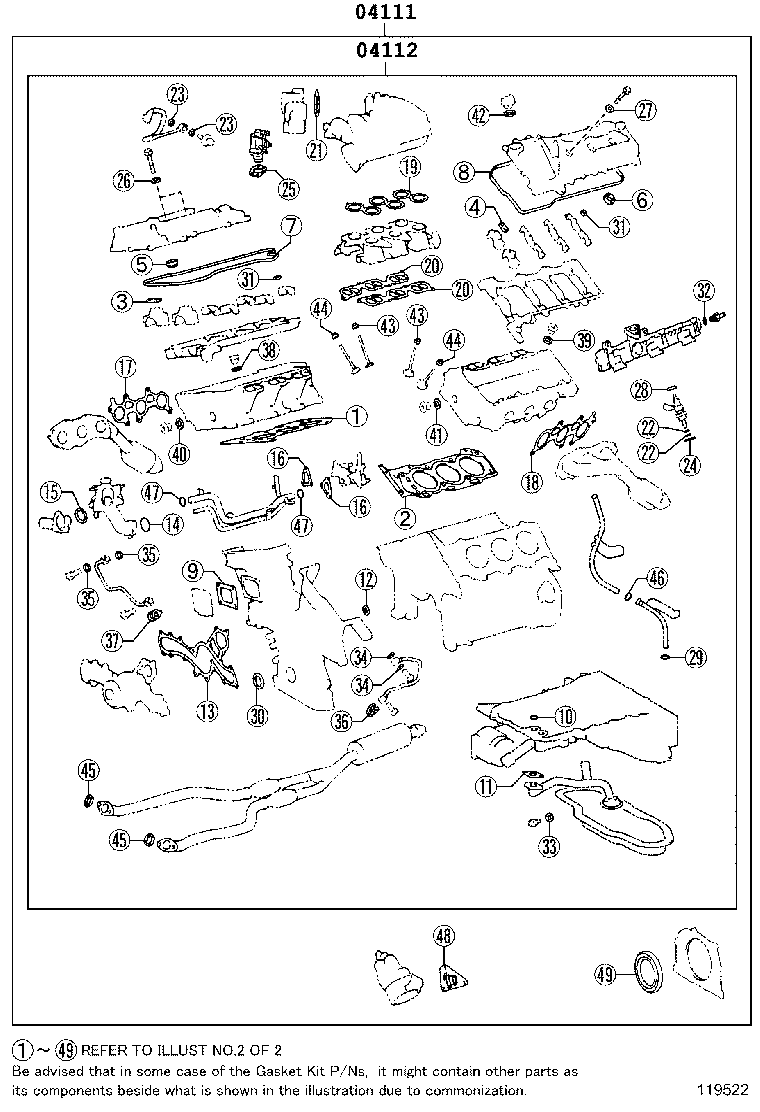

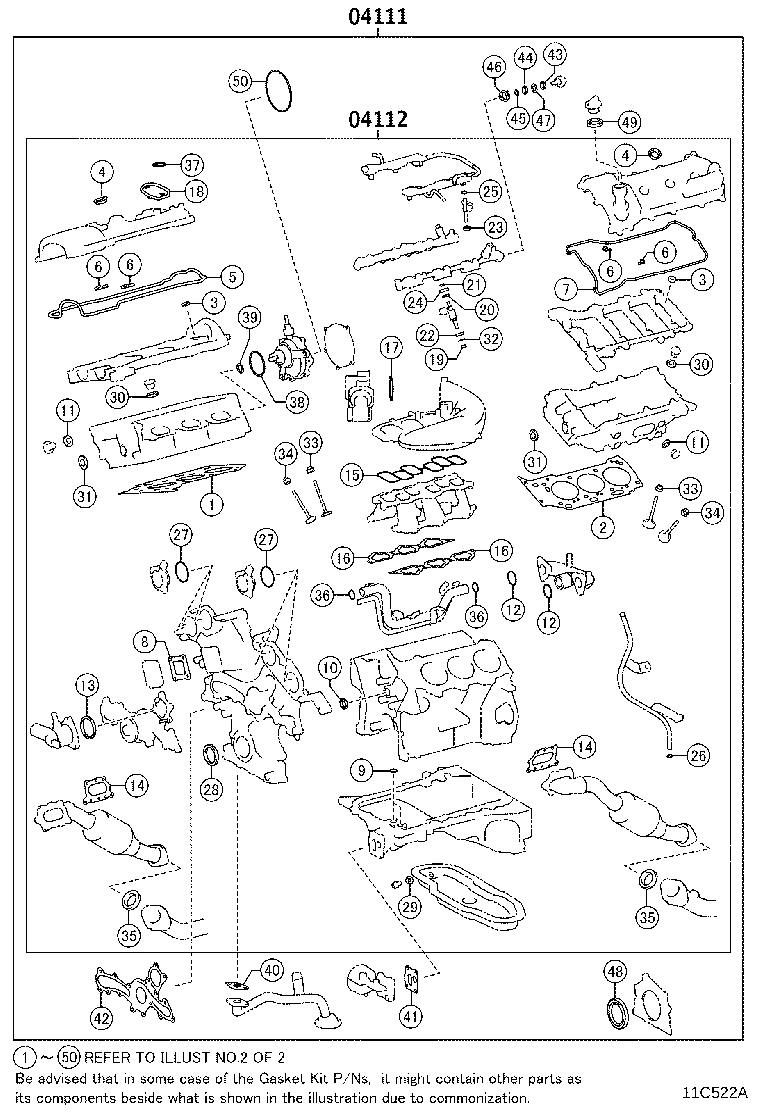

Figure 11C026 11C026 2015-08 → — Figure 11C027A 11C027A 2015-08 → — Figure 119520A 119520A 2013-04 → 2017-10 Figure 119521A 119521A 2013-04 → 2017-10 Figure 119522 119522 2013-04 → 2017-10 Figure 119523 119523 2013-04 → 2017-10 Figure 11C522A 11C522A 2017-10 → — Figure 11C523A 11C523A 2017-10 → — Figure 11C526A 11C526A 2017-10 → — Figure 11C527A 11C527A 2017-10 → — Figure 11G081 11G081 2021-11 → — Figure 11G082 11G082 2021-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
