Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 5 illustrations

Illustrations

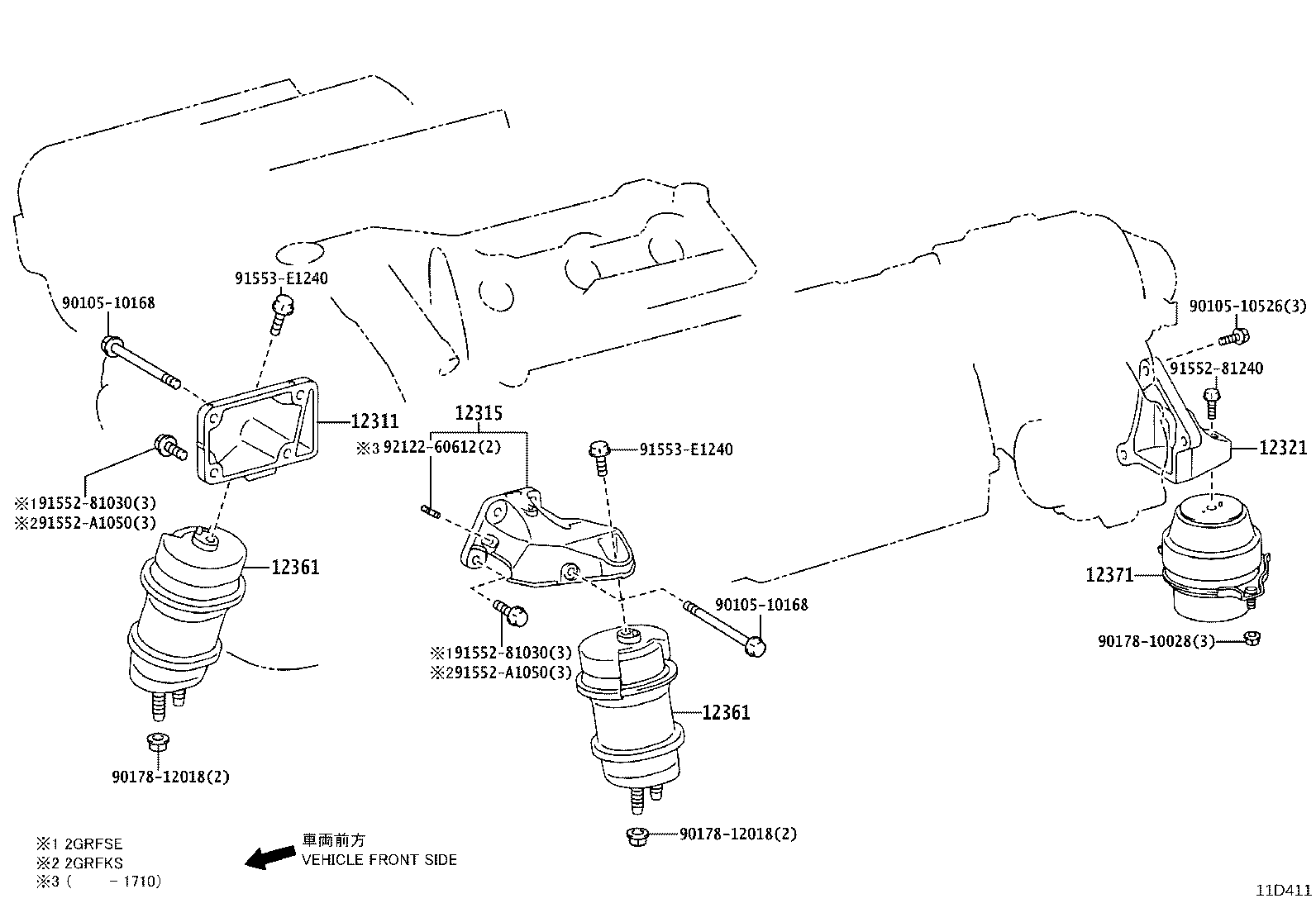

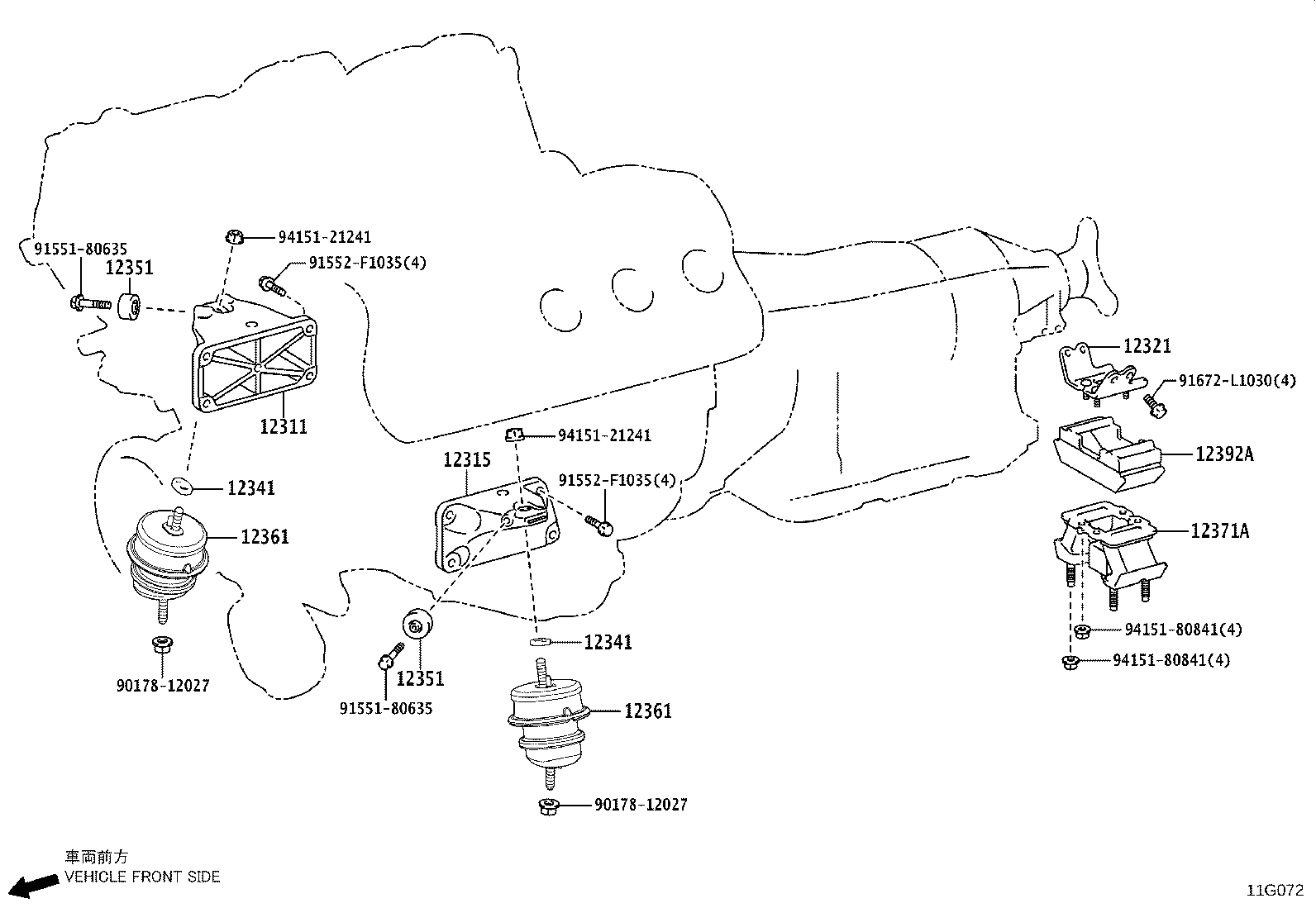

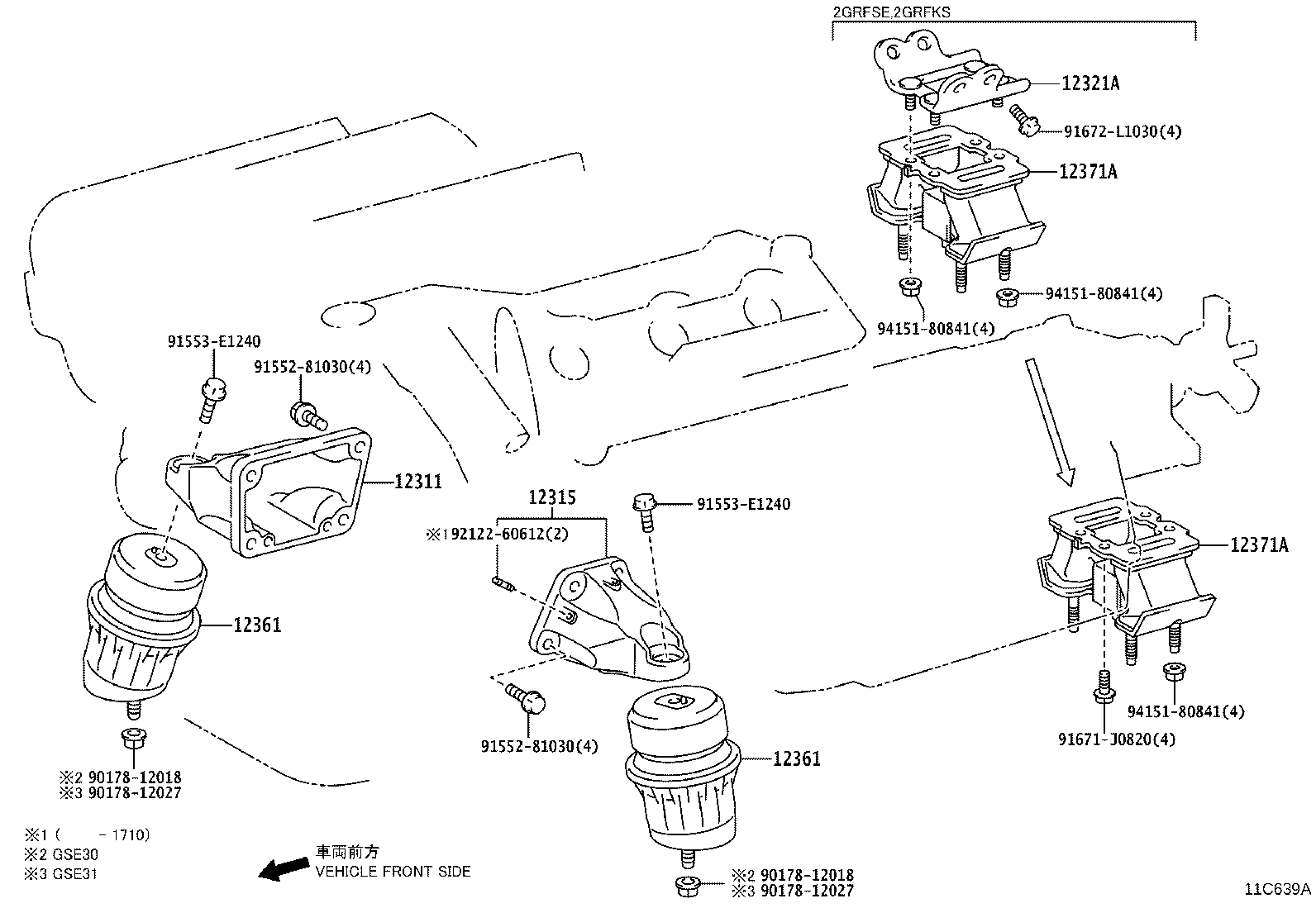

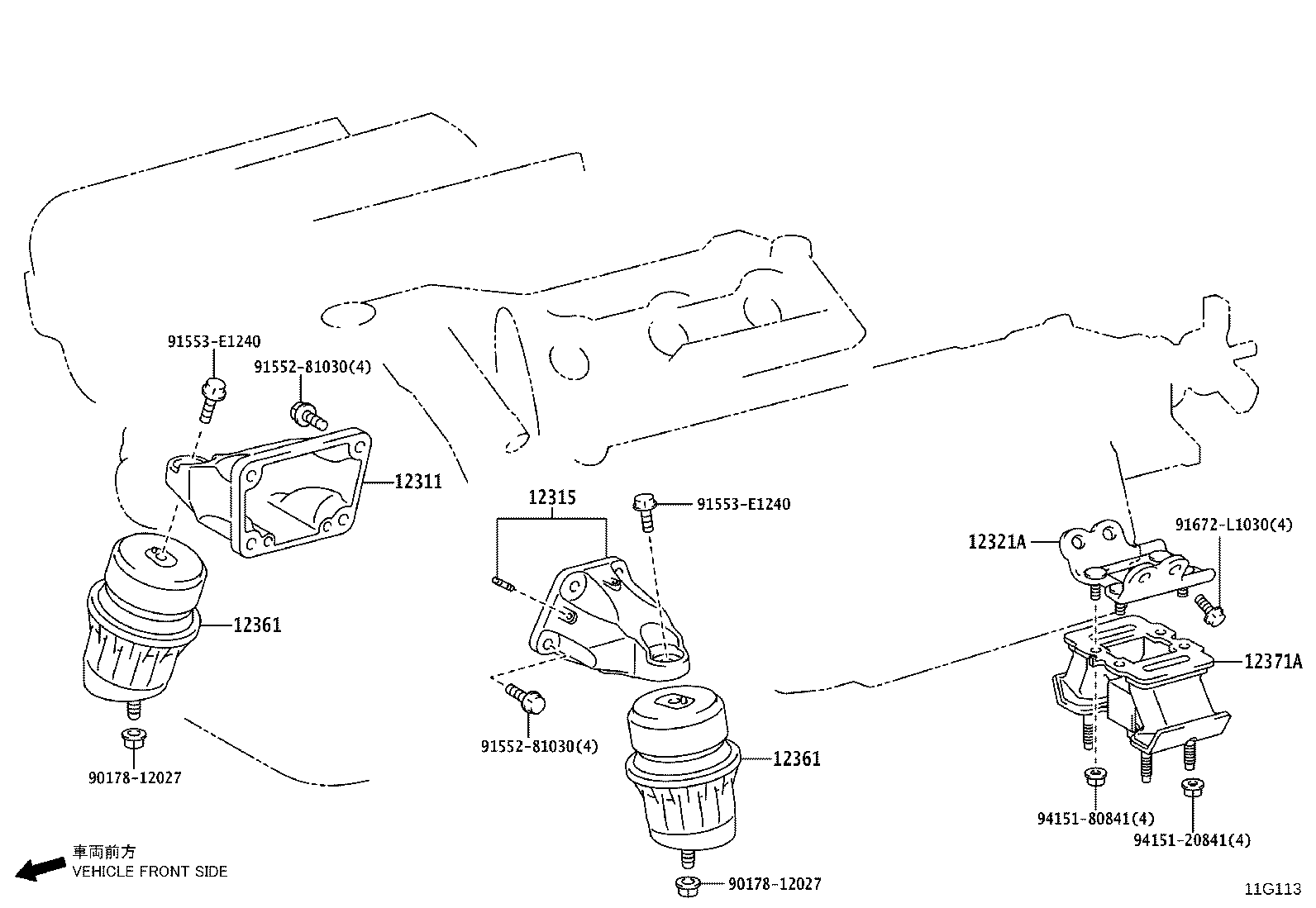

Figure 11F316B 11F316B 2015-08 → — Figure 11C639A 11C639A 2013-04 → 2021-09 Figure 11G113 11G113 2021-09 → — Figure 11D411 11D411 2013-04 → — Figure 11G072 11G072 2021-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
12392 Insulator, Engine Mounting Heat, Front LH
12392A Insulator, Engine Mounting Heat, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
