Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

21 part groups · 6 illustrations

Illustrations

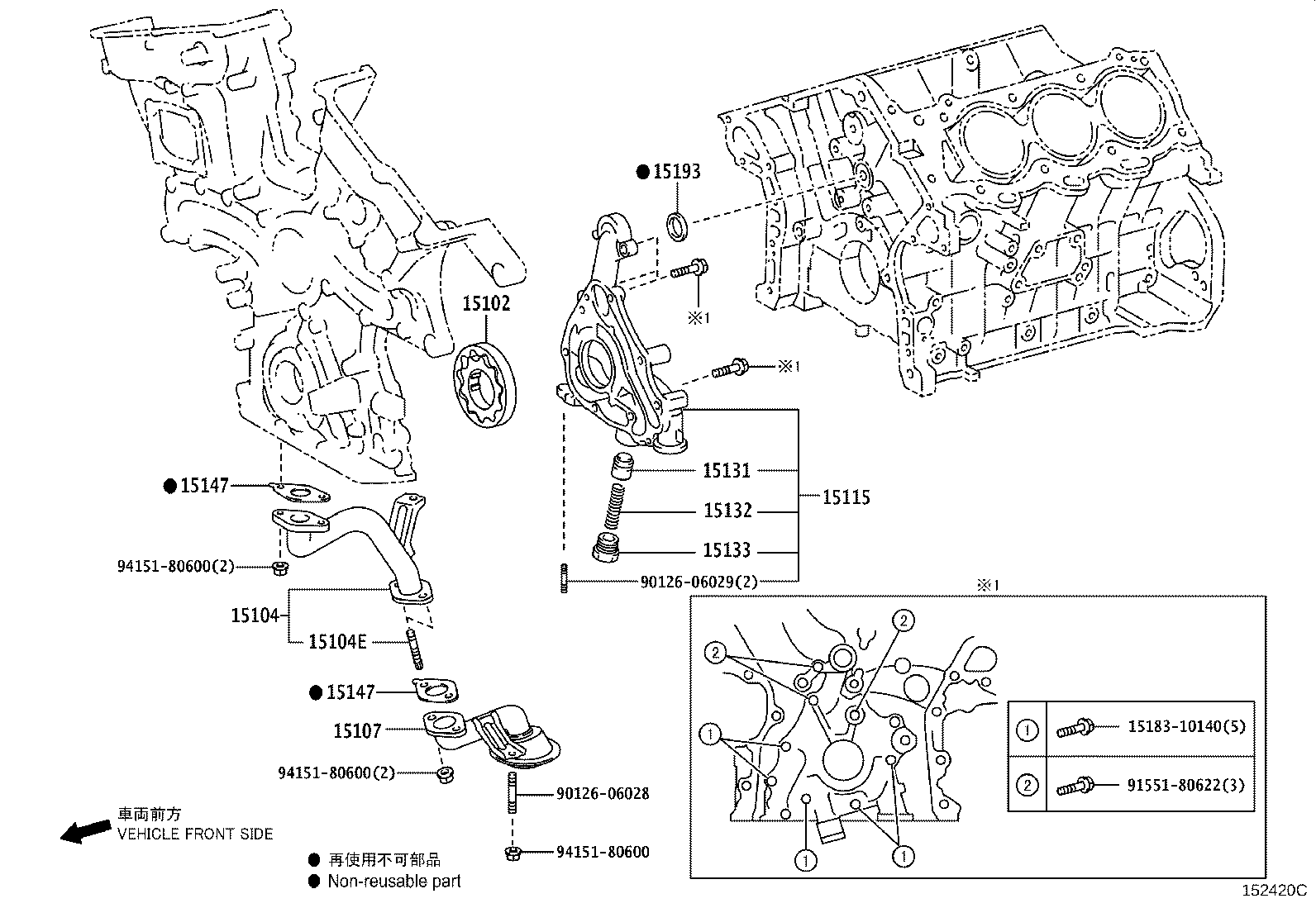

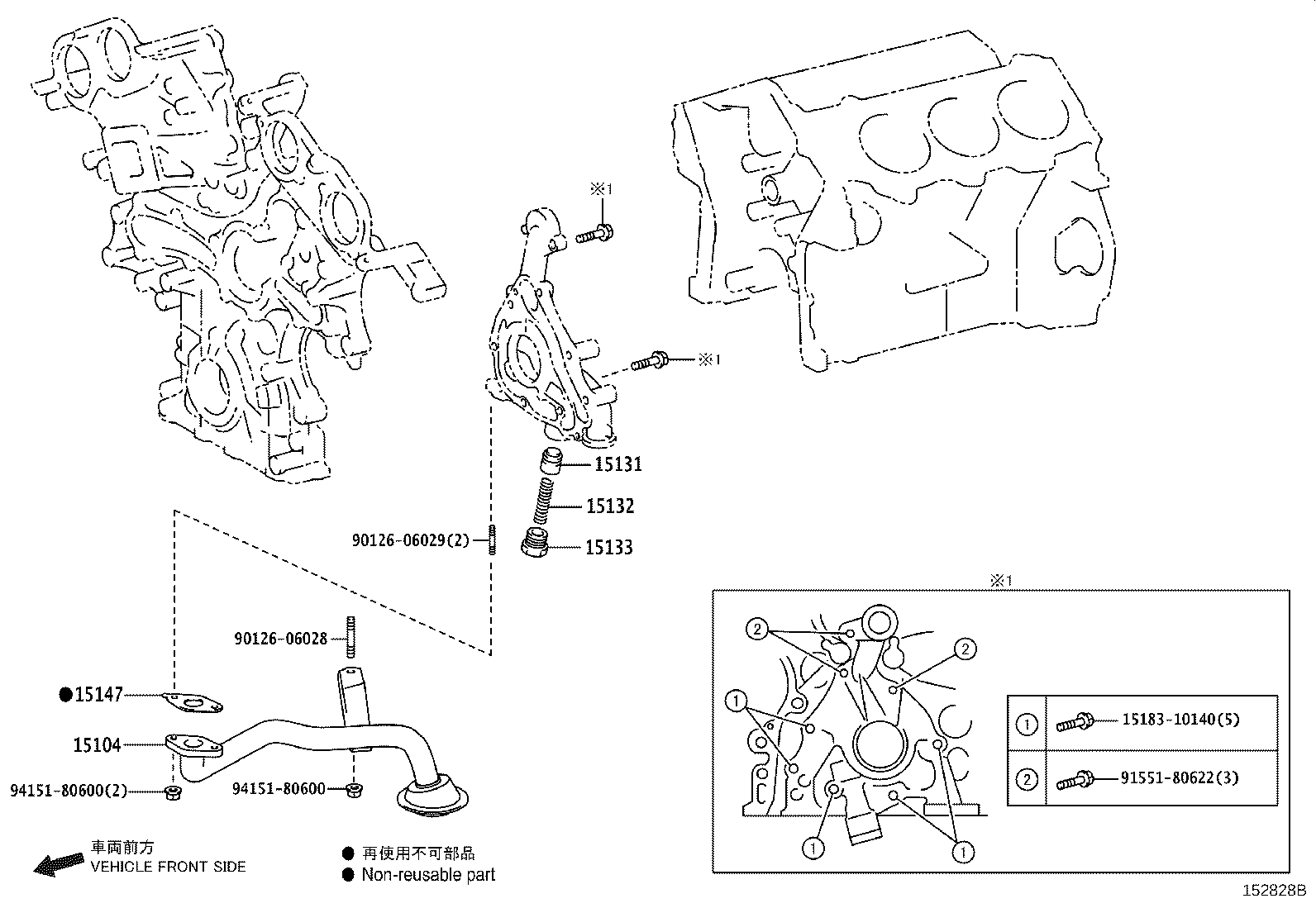

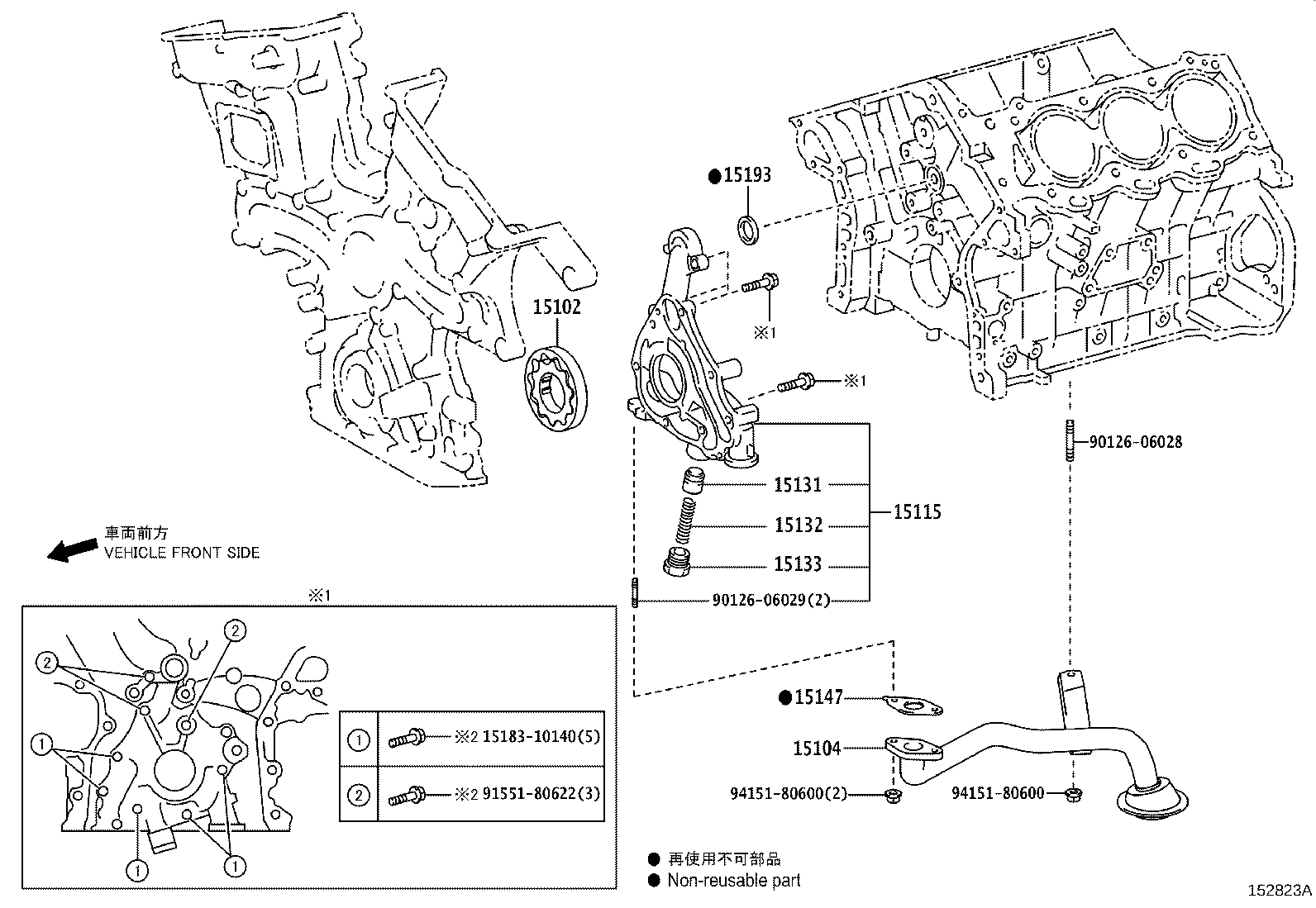

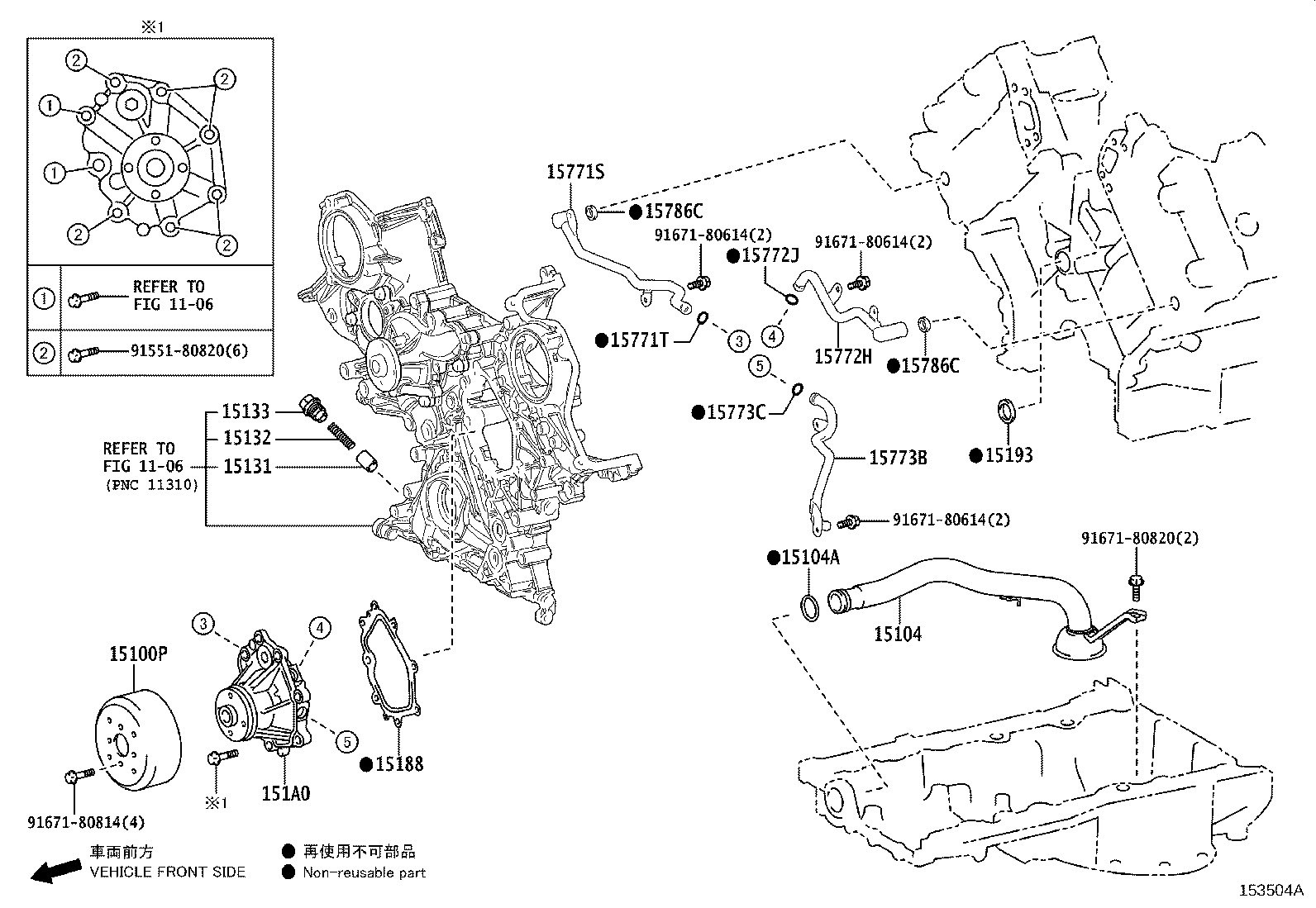

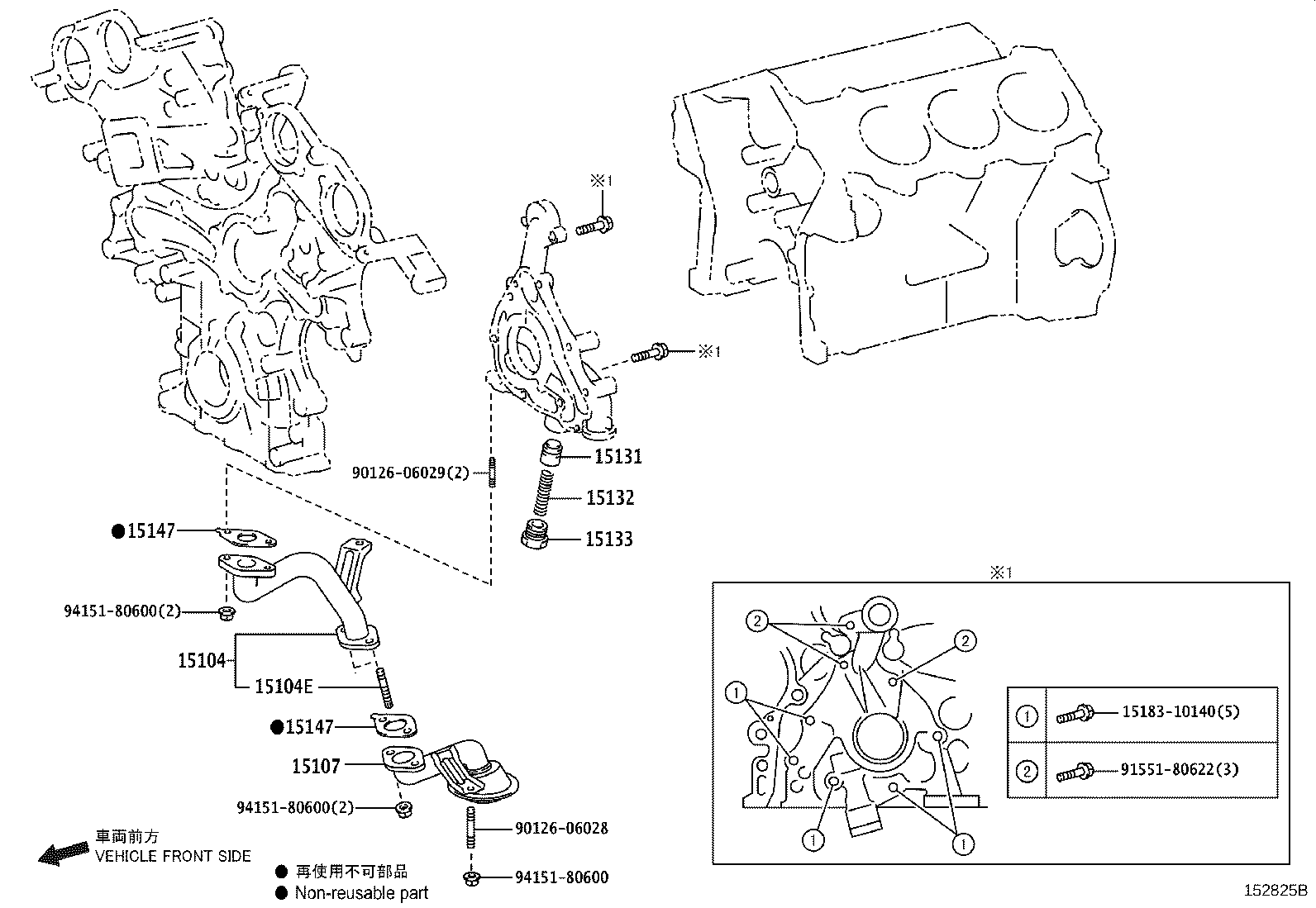

Figure 152062B 152062B 2015-08 → — Figure 152823A 152823A 2013-04 → 2017-10 Figure 152828B 152828B 2017-10 → — Figure 152420C 152420C 2013-04 → 2017-10 Figure 152825B 152825B 2017-10 → — Figure 153504A 153504A 2021-11 → —

Part groups

PNCDescription
15100P Pulley, Oil Pump Drive Shaft
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15107 Pipe Sub-assy, Oil W/Strainer
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15188 Gasket, Oil Pump
15193 Gasket, Oil Pump
151A0 Pump Assy, Scavenging
15771S Pipe, Oil, NO.1
15771T Ring, O(FOR OIL PIPE NO.1)
15772H Pipe, Oil, NO.2
15772J Ring, O(FOR OIL PIPE NO.2)
15773B Pipe, Oil, NO.3
15773C Ring, O(FOR OIL PIPE NO.3)
15786C Seal, Oil Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
