Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

15 part groups · 4 illustrations

Illustrations

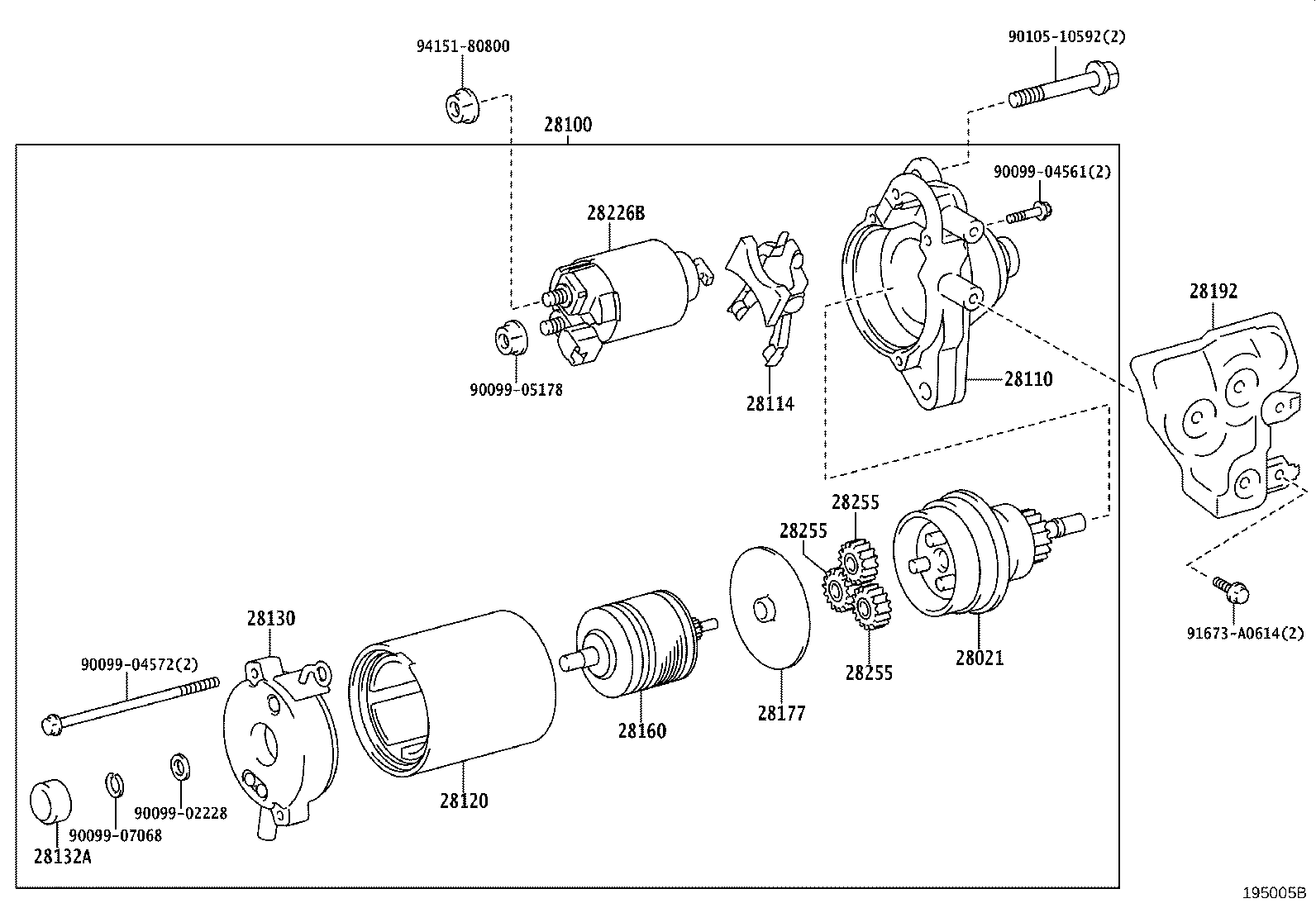

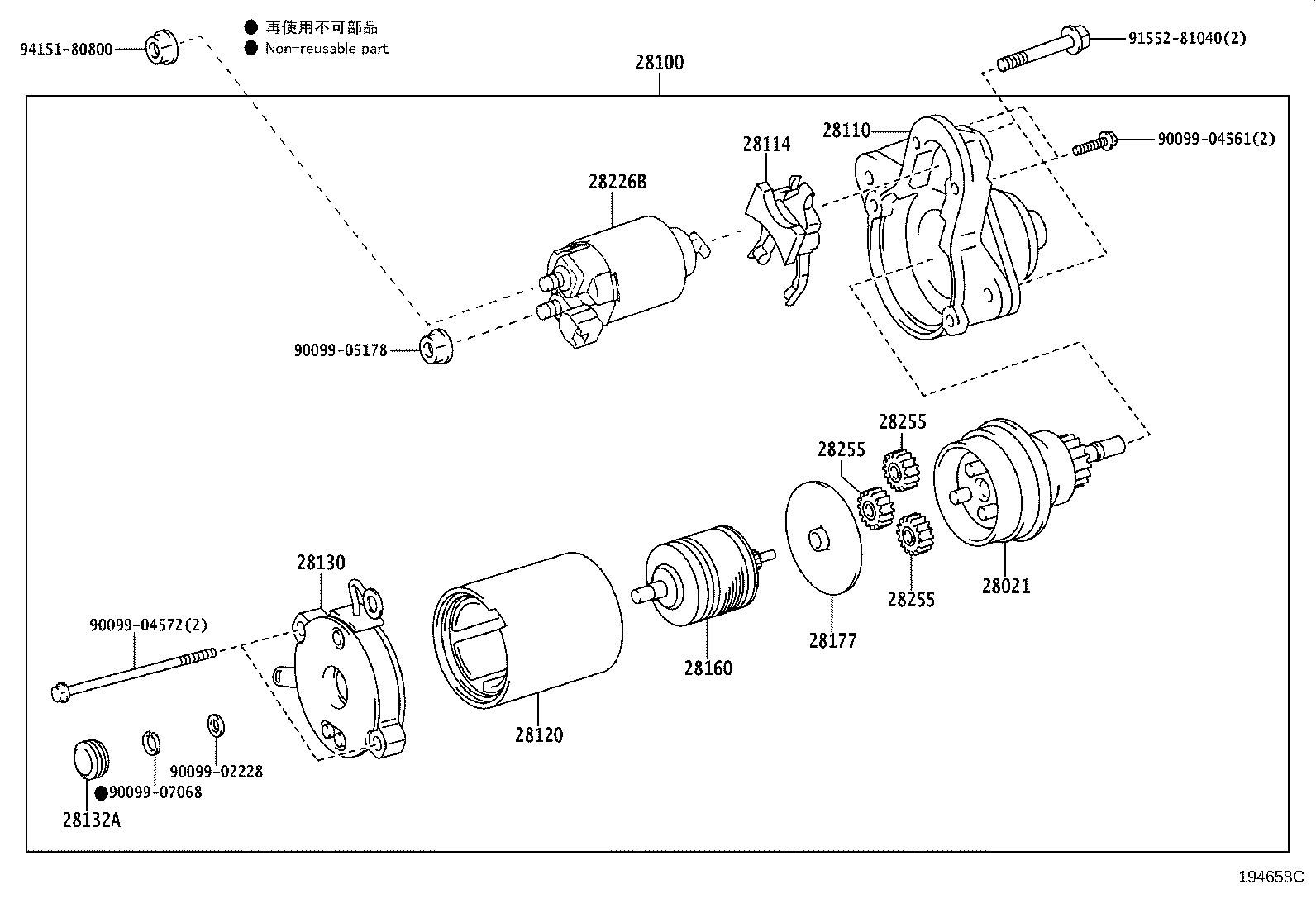

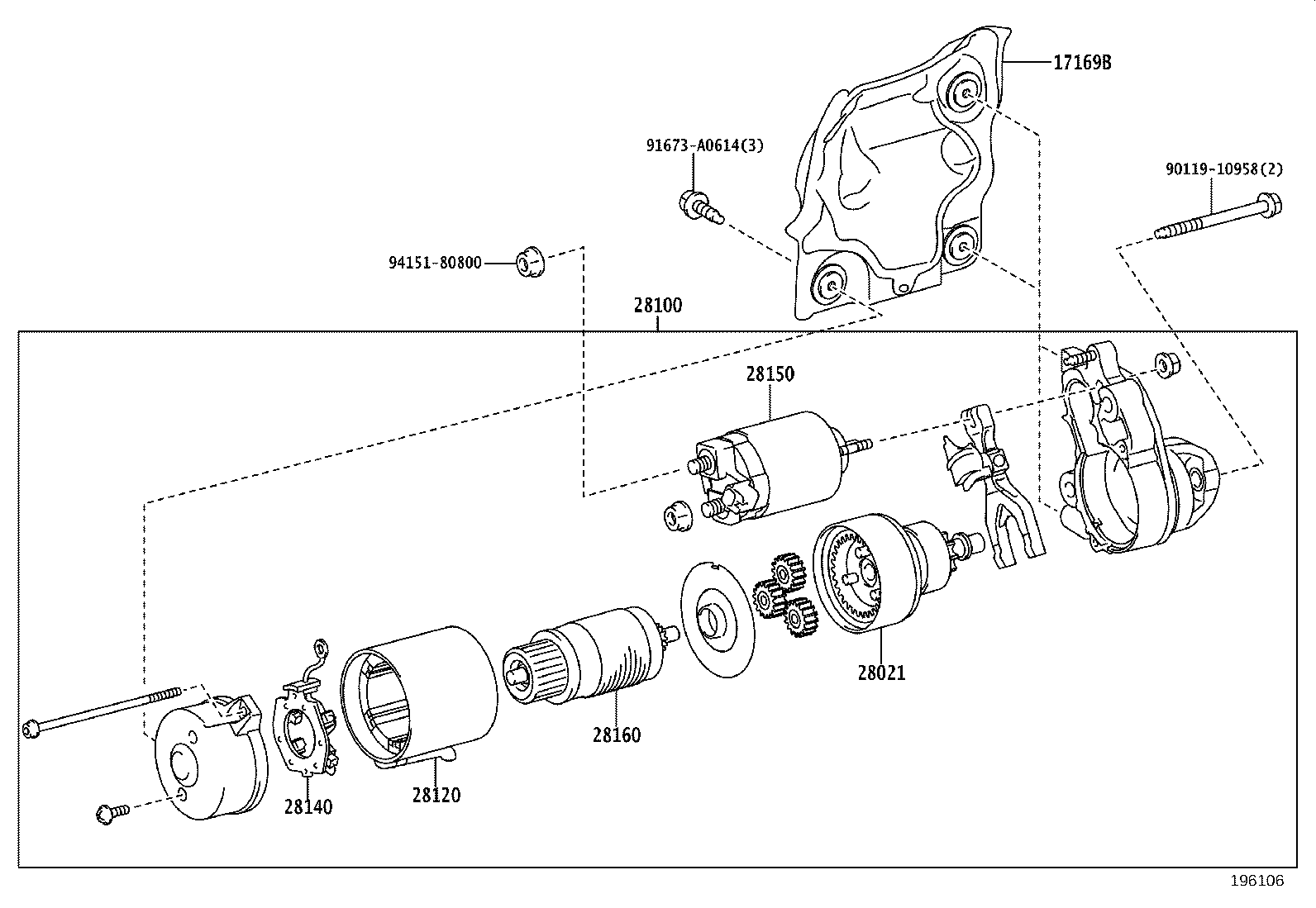

Figure 194151D 194151D 2013-04 → 2017-10 Figure 195005B 195005B 2017-10 → — Figure 194658C 194658C 2015-08 → — Figure 196106 196106 2021-11 → —

Part groups

PNCDescription
17169B Insulator, Exhaust Manifold Heat, NO.3
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28192 Cover, Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
