Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 3 illustrations

Illustrations

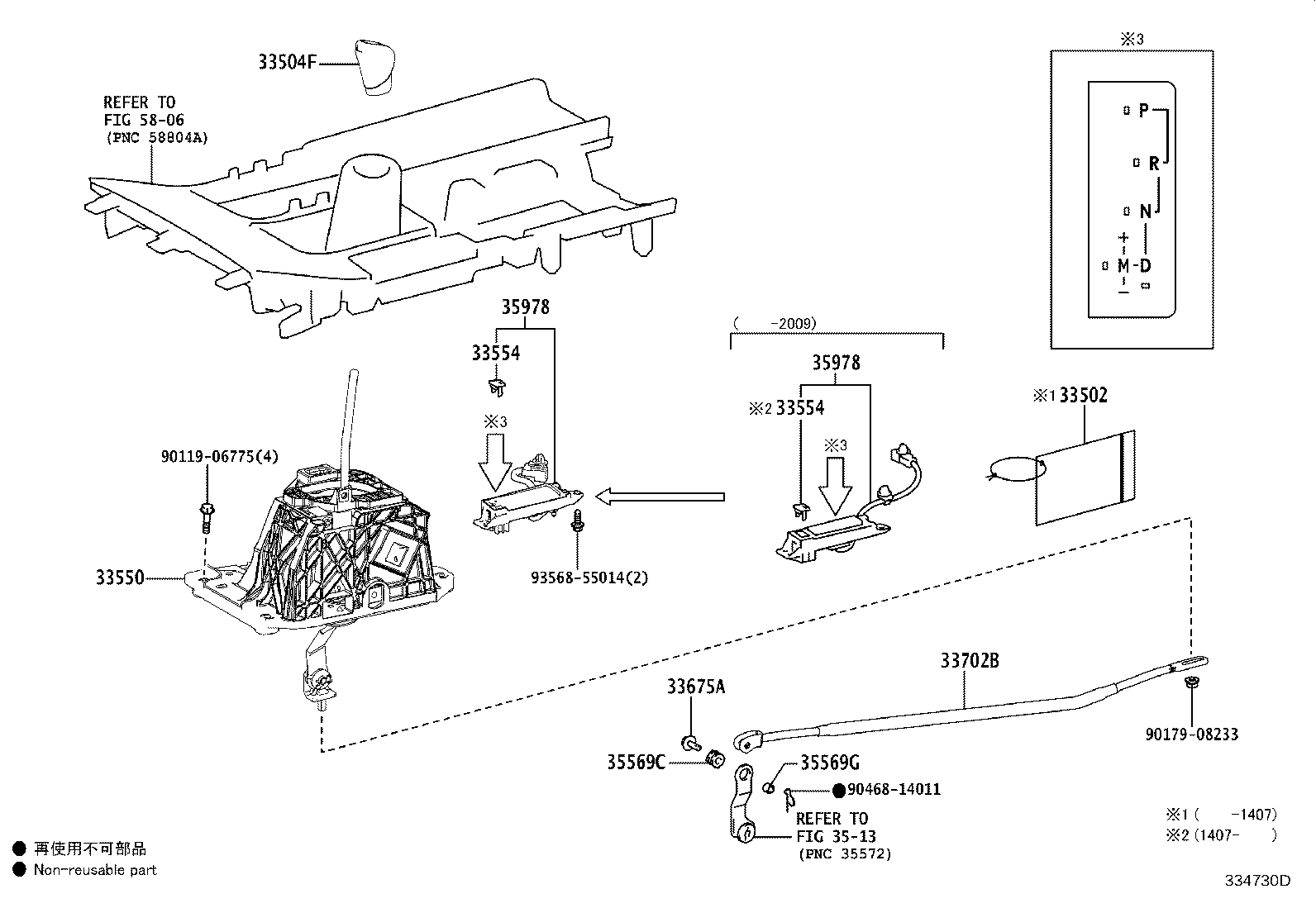

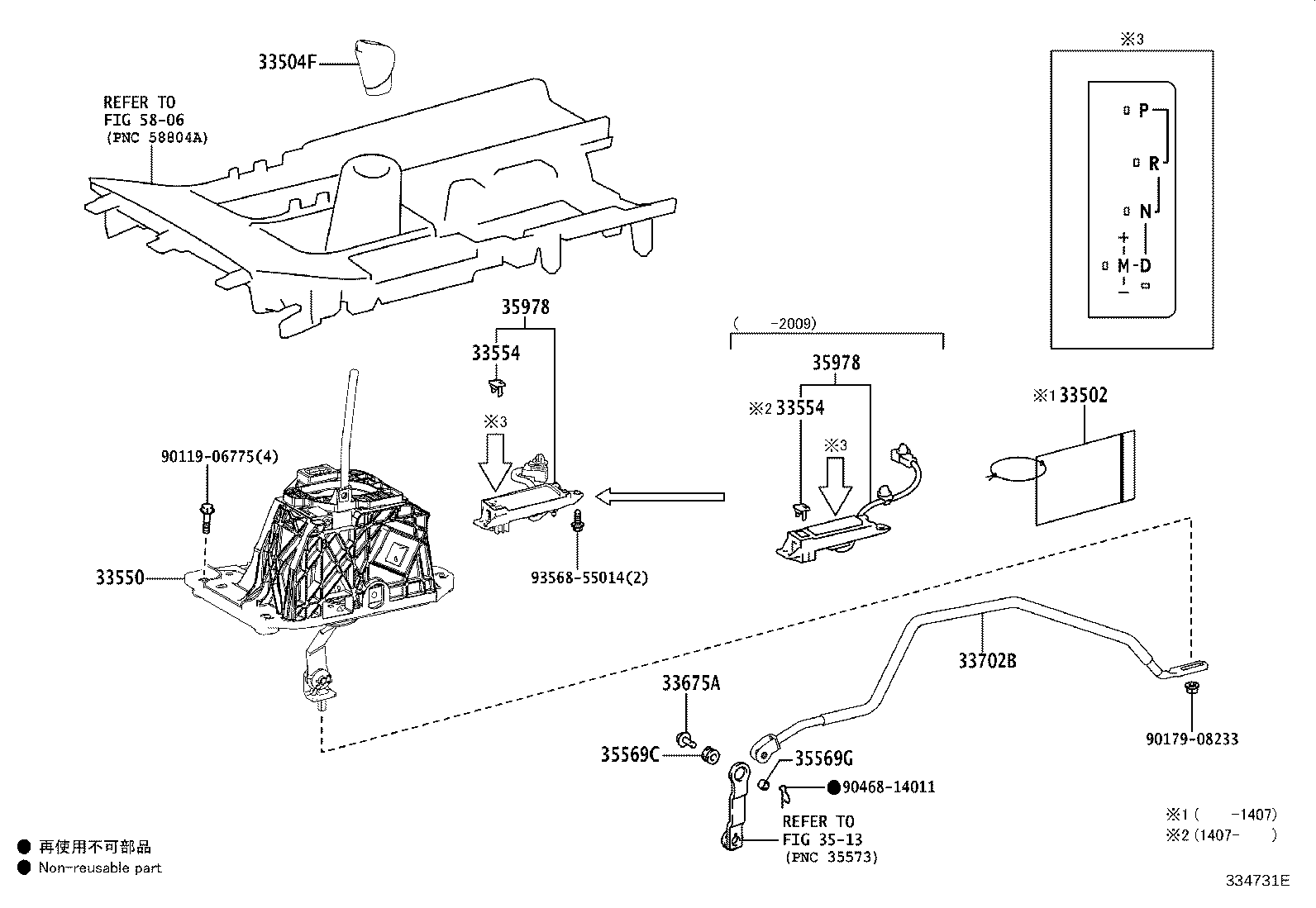

Figure 334729C 334729C 2013-04 → 2015-08 Figure 334730D 334730D 2013-04 → — Figure 334731E 334731E 2013-04 → —

Part groups

PNCDescription
33502 Plate Sub-assy, Shift Lever
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33554 Cap, Shift Lever
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
