Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

9 part groups · 4 illustrations

Illustrations

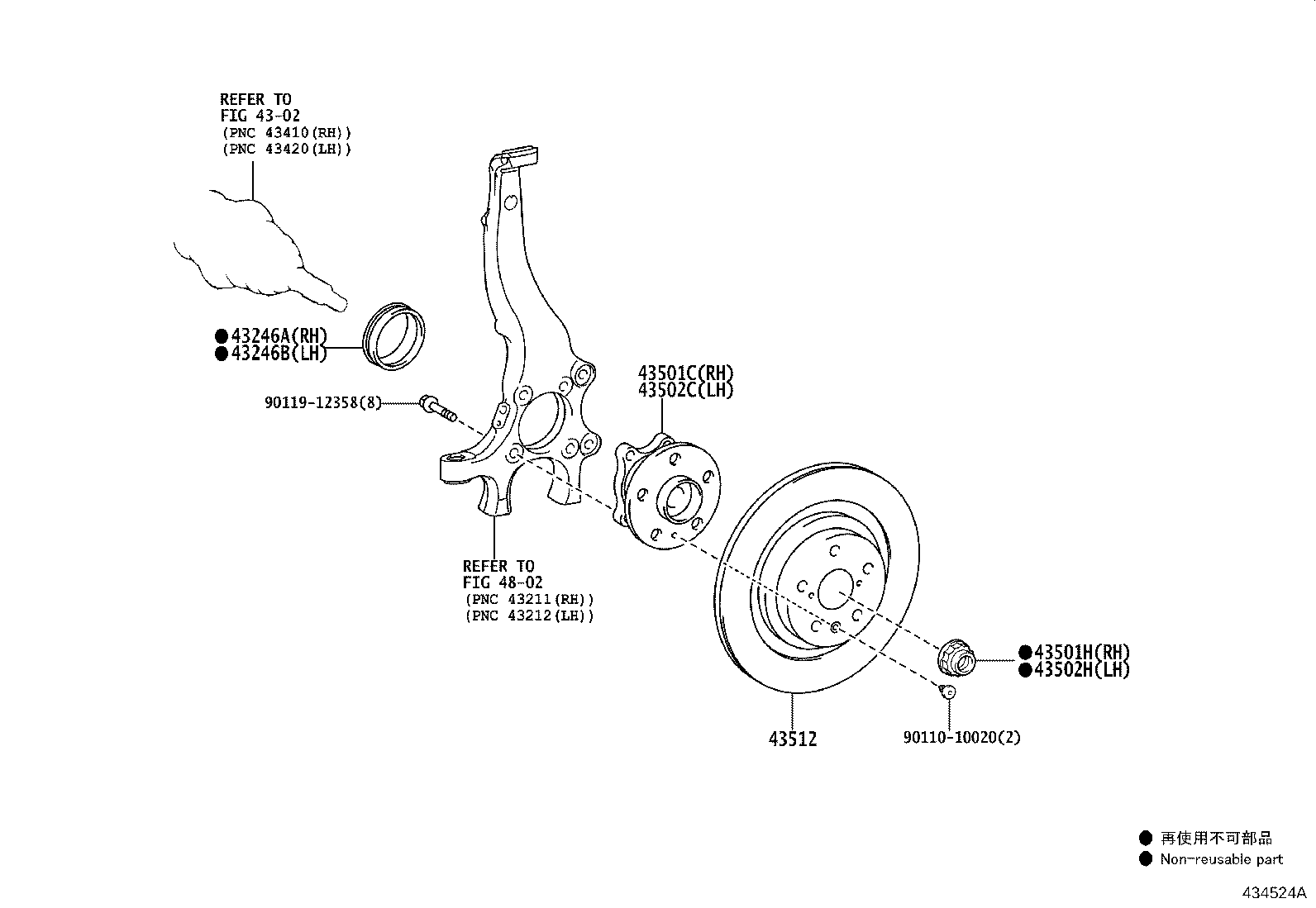

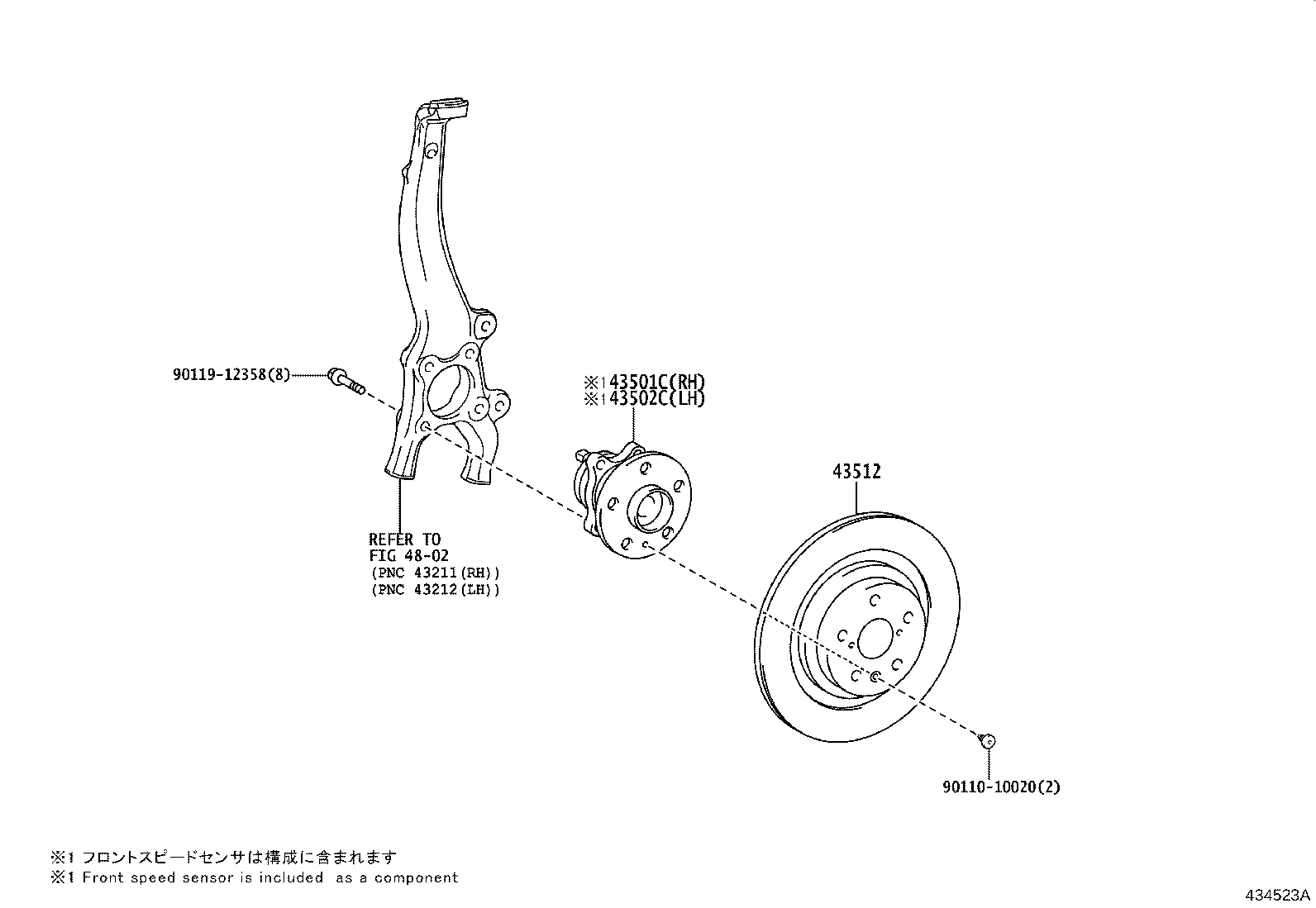

Figure 434563A 434563A 2013-04 → 2020-09 Figure 434523A 434523A 2020-09 → — Figure 432994A 432994A 2013-04 → 2020-09 Figure 434524A 434524A 2020-09 → —

Part groups

PNCDescription
43246A Deflector, Front Wheel Bearing Dust, NO.1 RH
43246B Deflector, Front Wheel Bearing Dust, NO.1 LH
43501C Hub Sub-assy, Front Axle, RH
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501H Nut (FOR FRONT AXLE SHAFT RH)
43502C Hub Sub-assy, Front Axle, LH
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502H Nut (FOR FRONT AXLE SHAFT LH)
43512 Disc, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
