Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

12 part groups · 3 illustrations

Illustrations

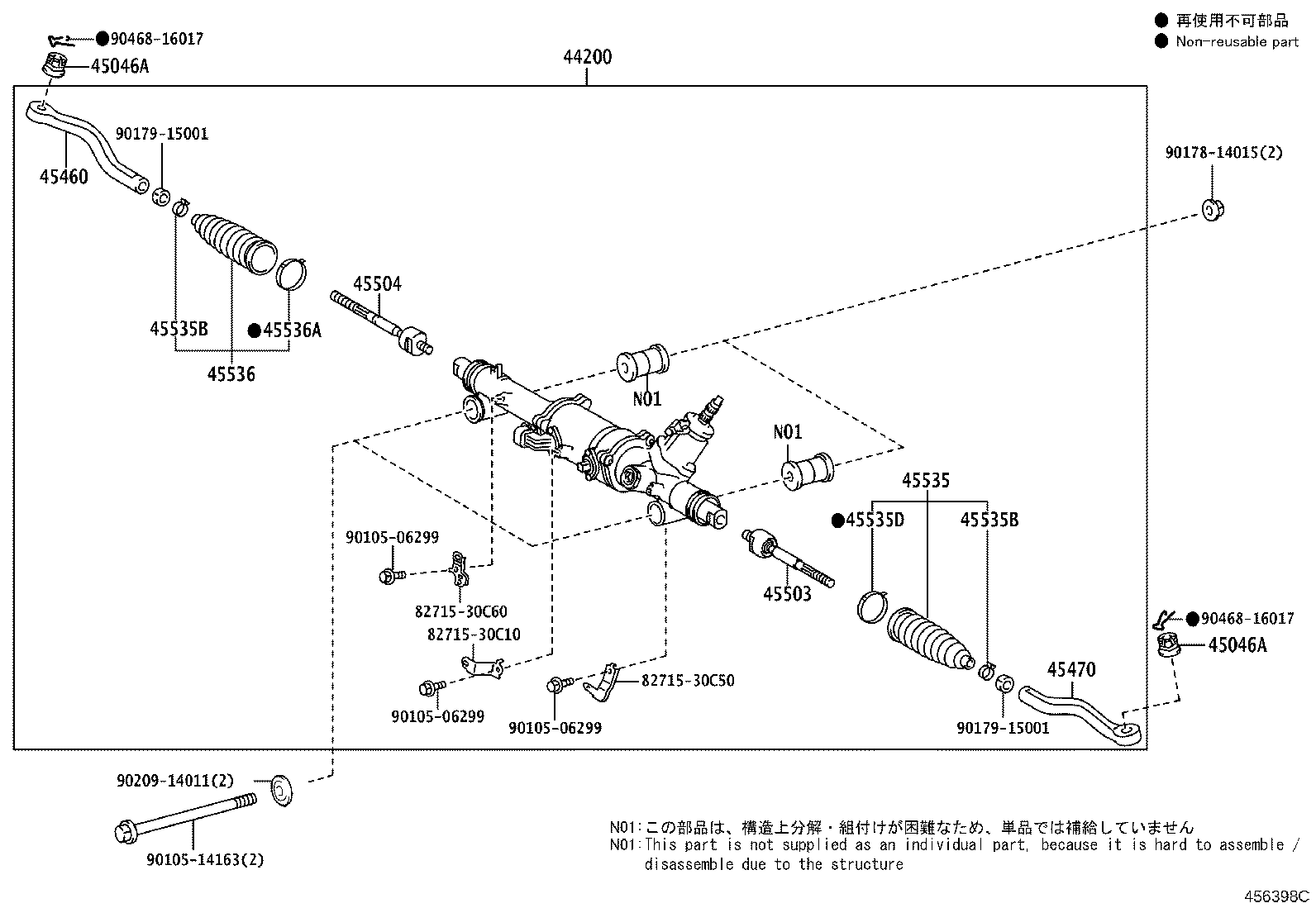

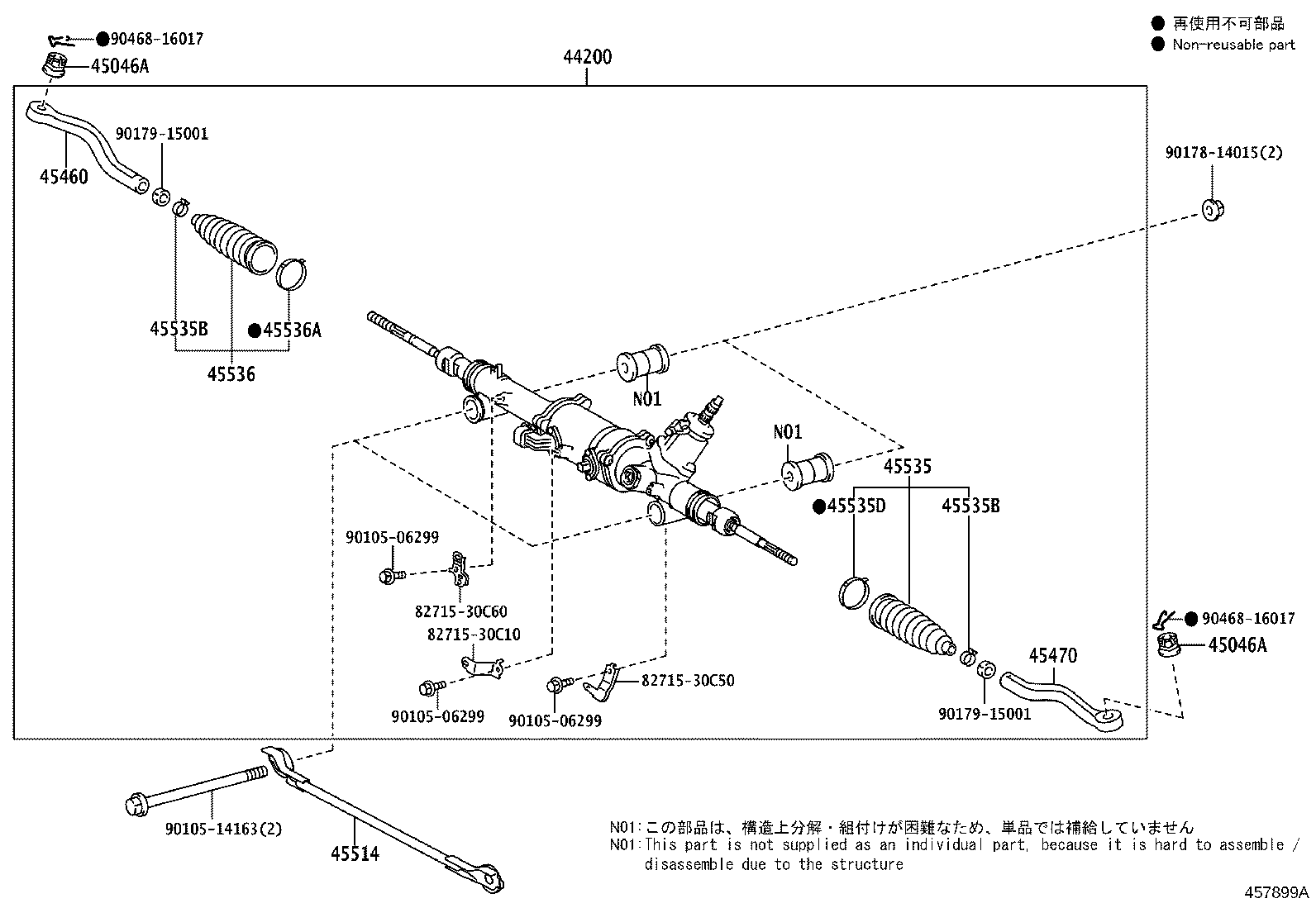

Figure 456397C 456397C 2013-04 → — Figure 456398C 456398C 2013-04 → — Figure 457899A 457899A 2020-09 → —

Part groups

PNCDescription
44200 Link Assy, Power Steering
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45504 End Sub-assy, Steering Rack, NO.2
45514 Bracket, Steering Rack Housing, NO.1
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
