Front Bumper & Bumper Stay

62 part groups · 19 illustrations

Illustrations

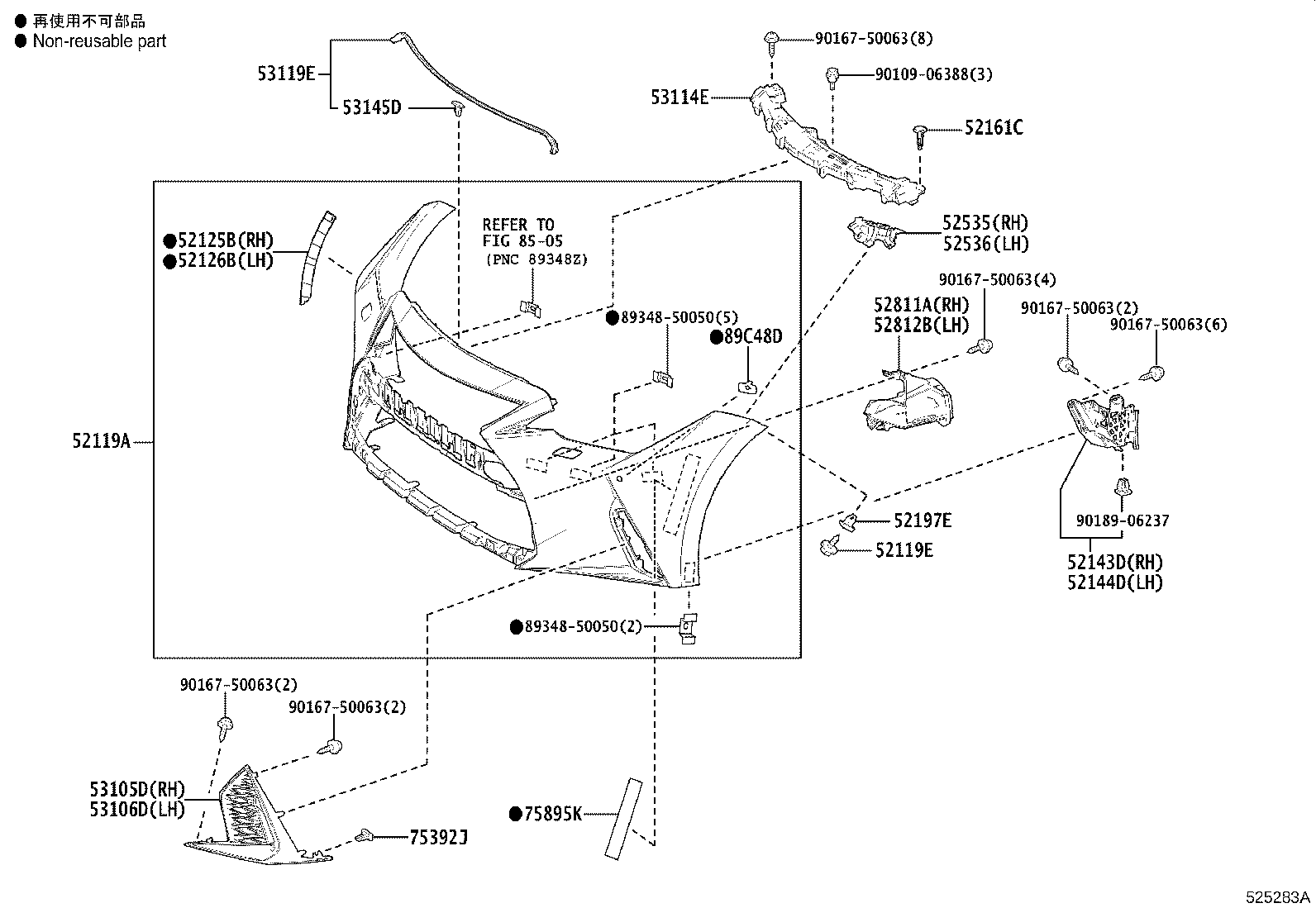

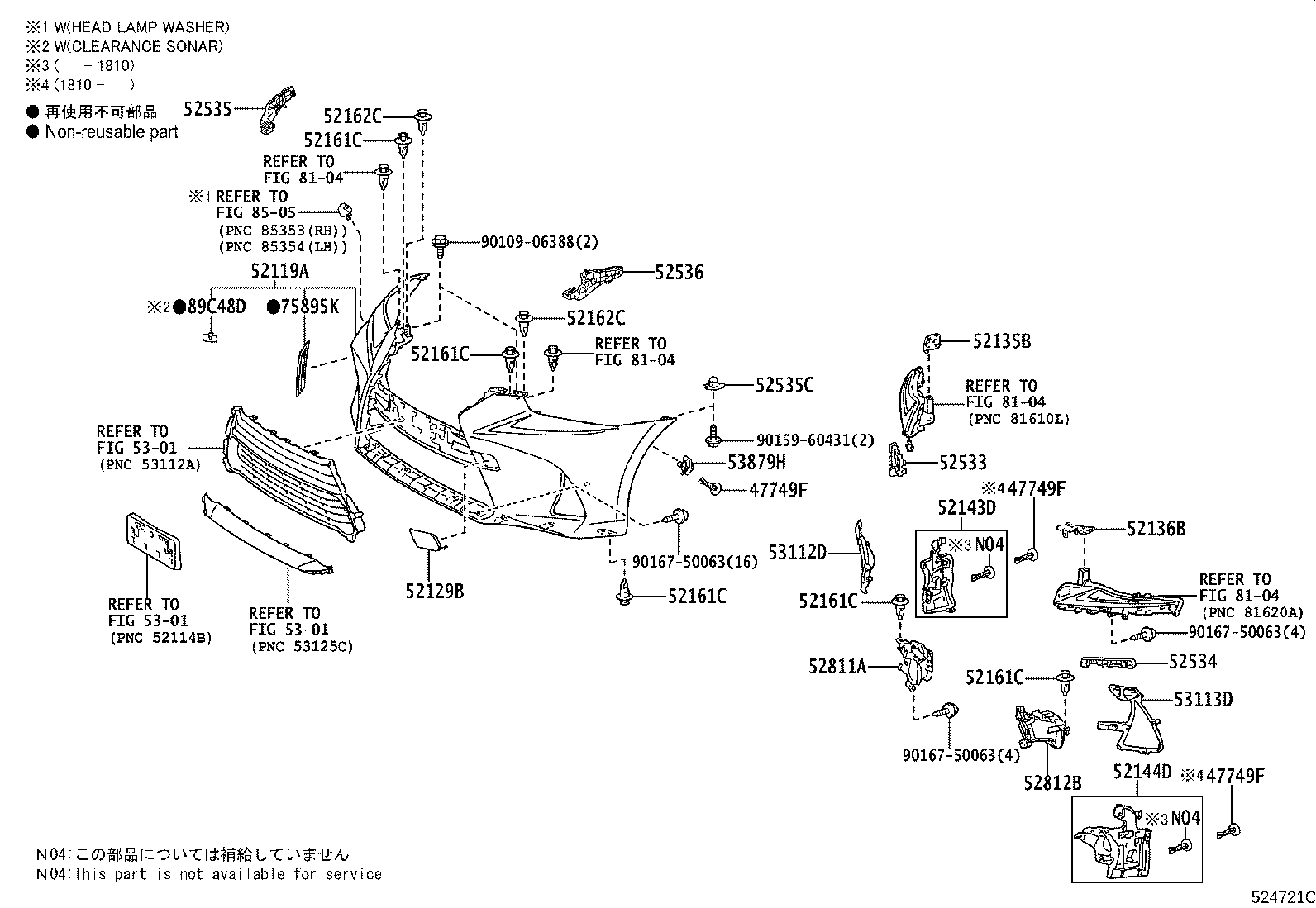

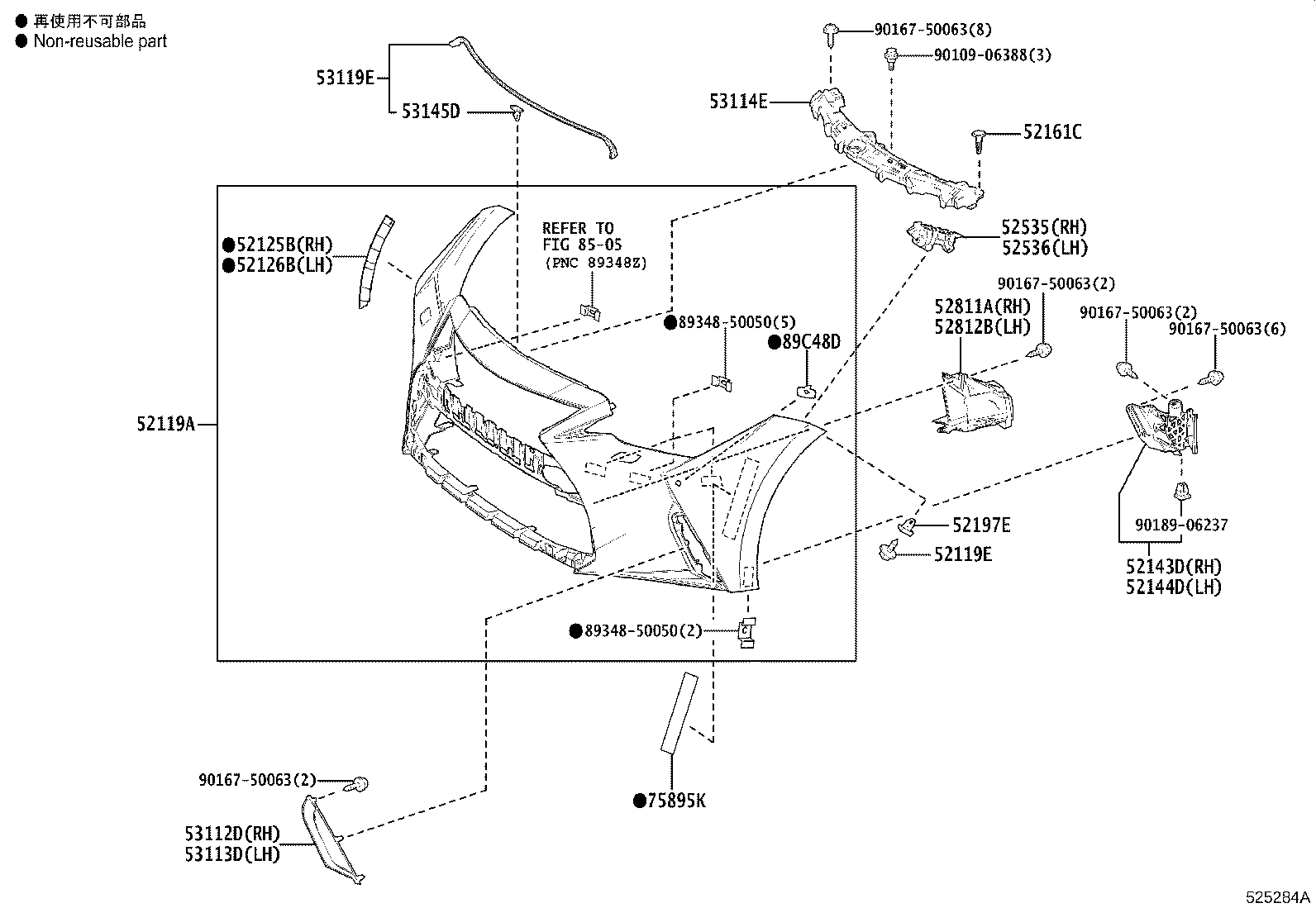

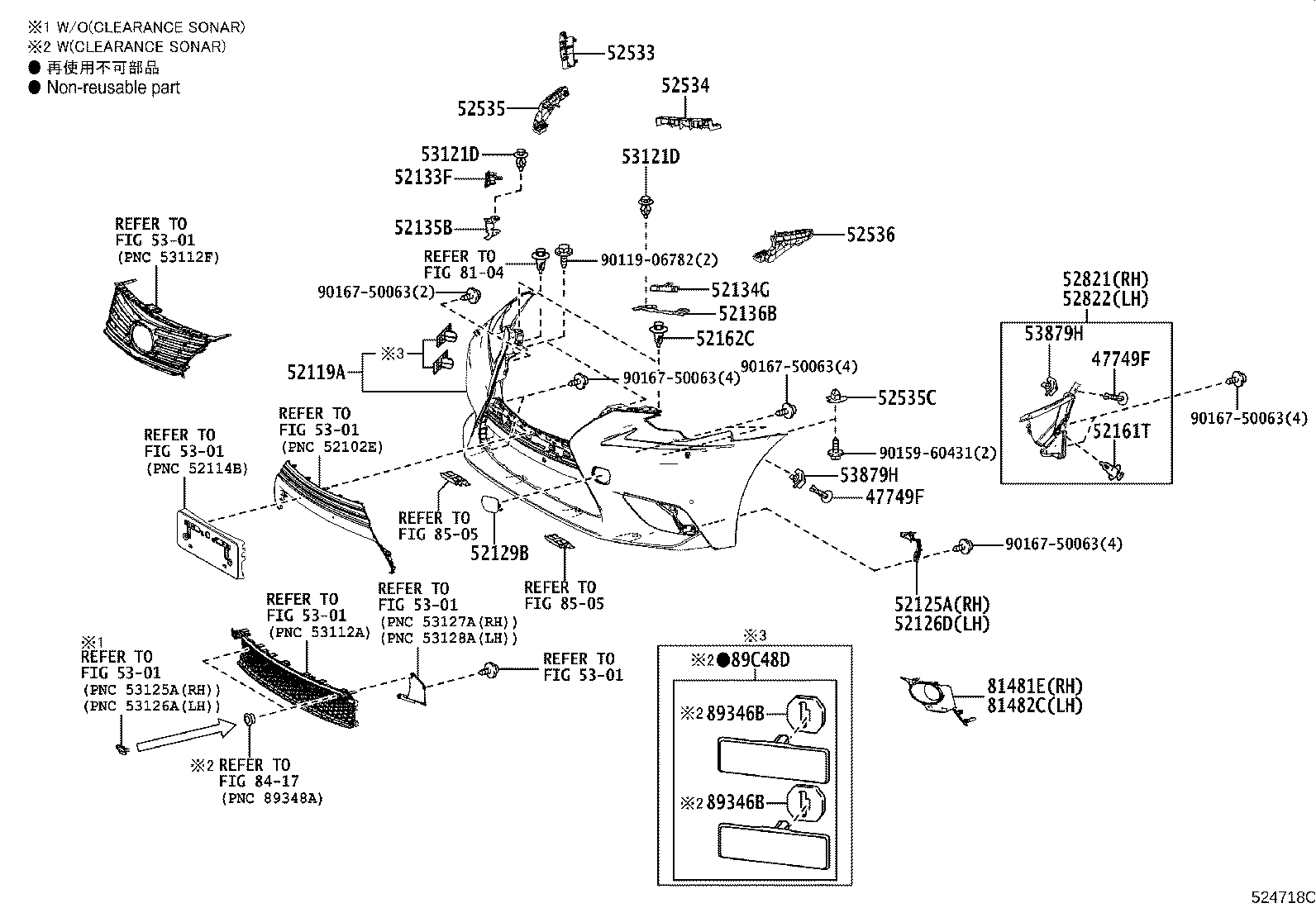

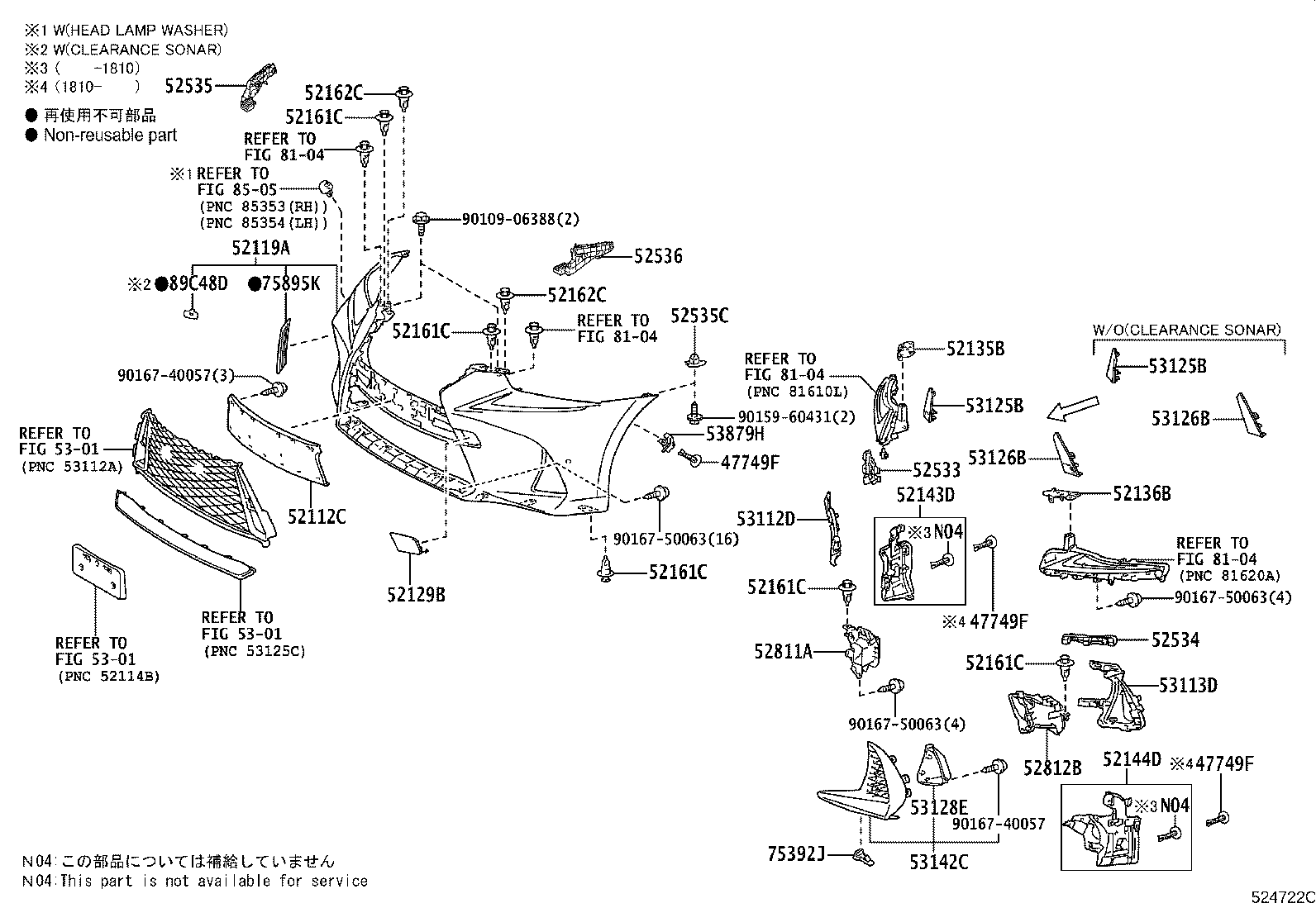

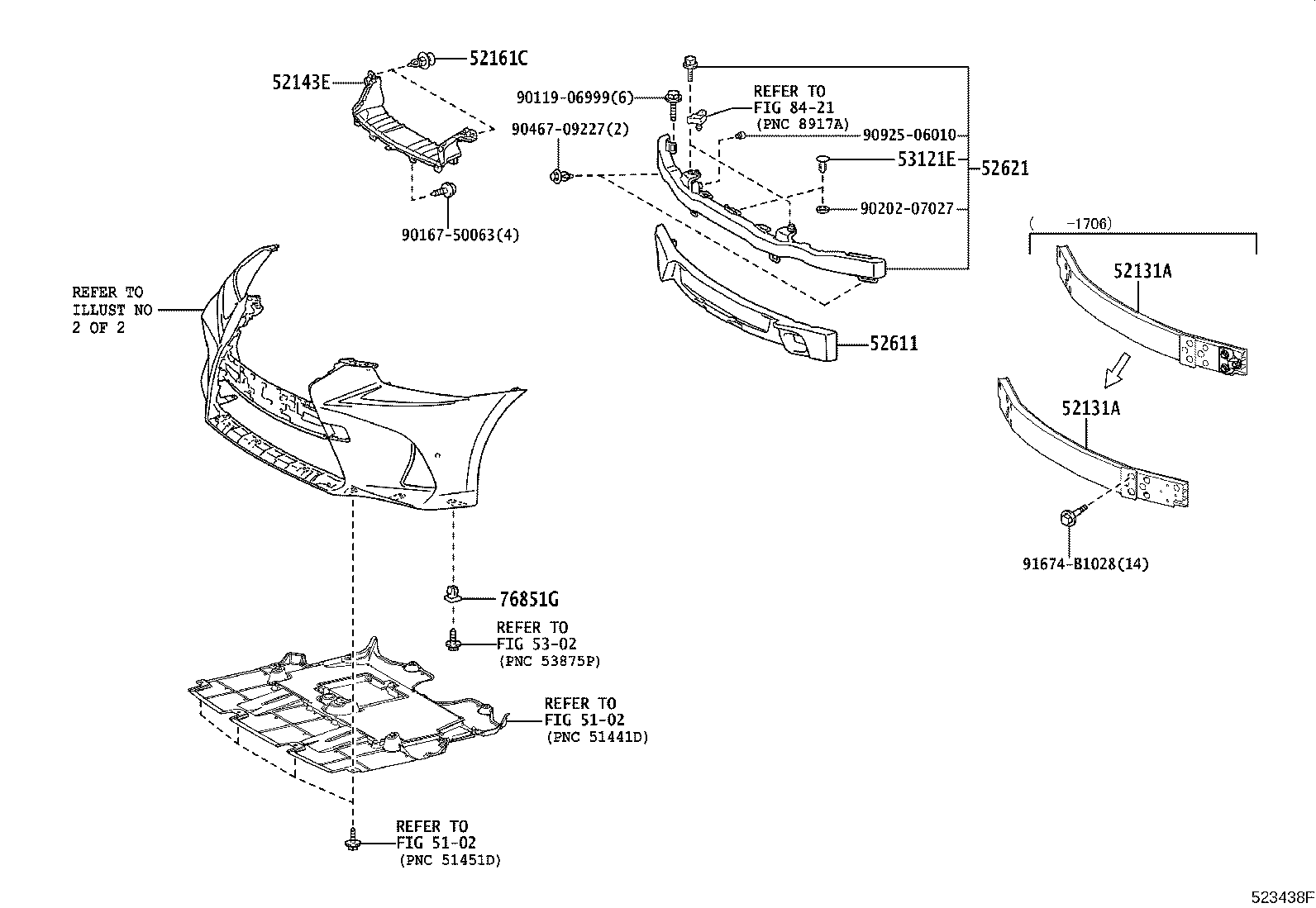

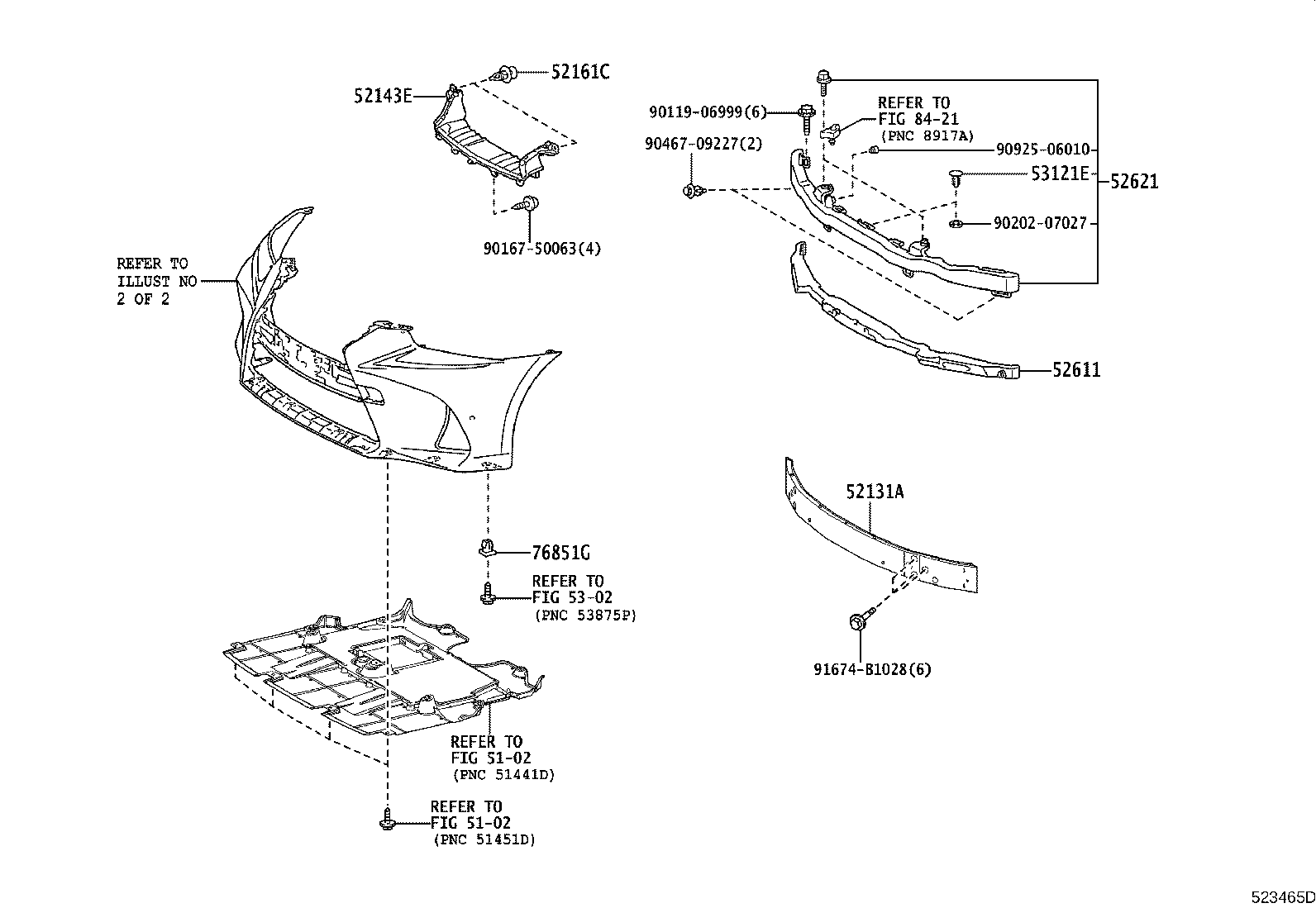

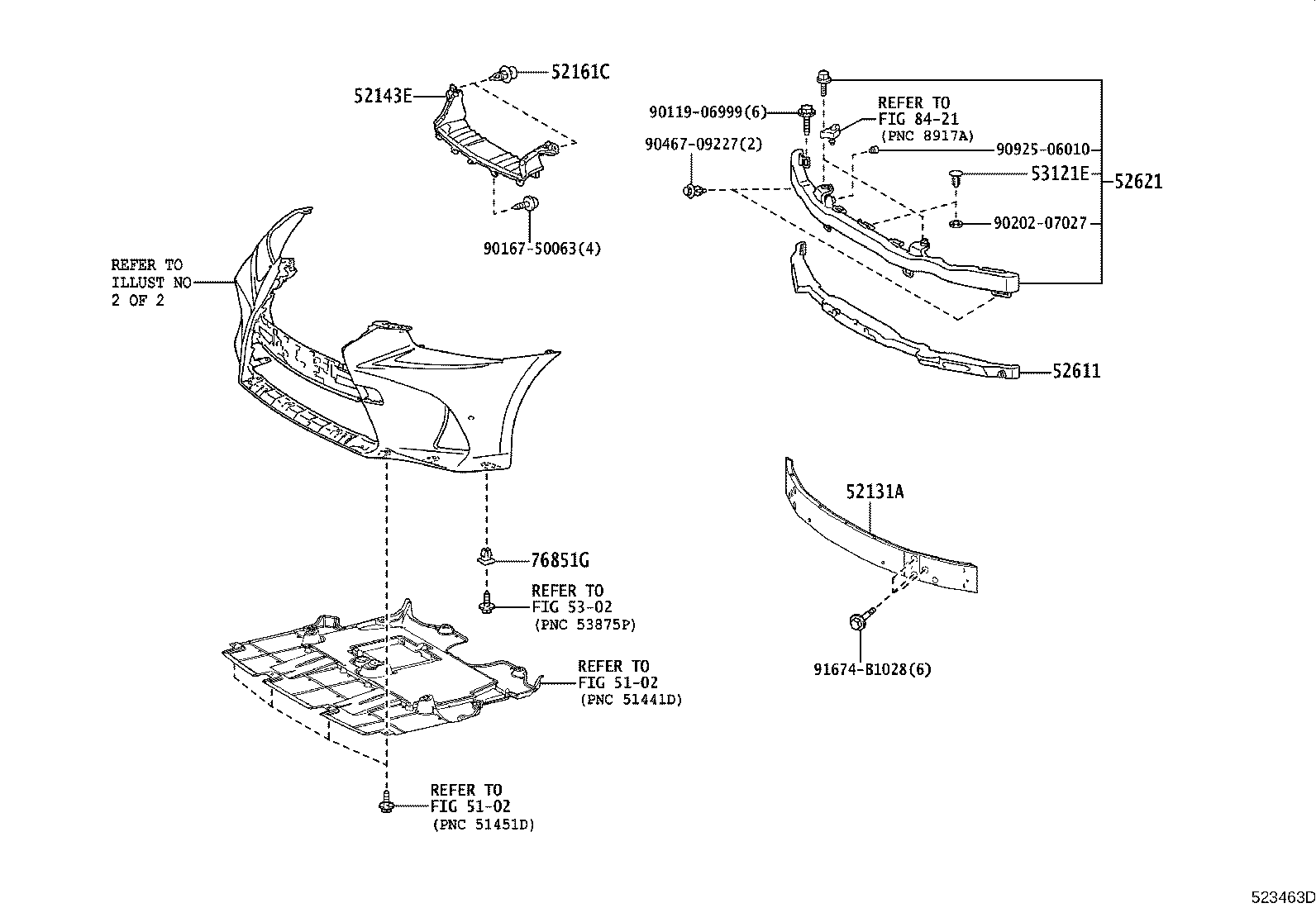

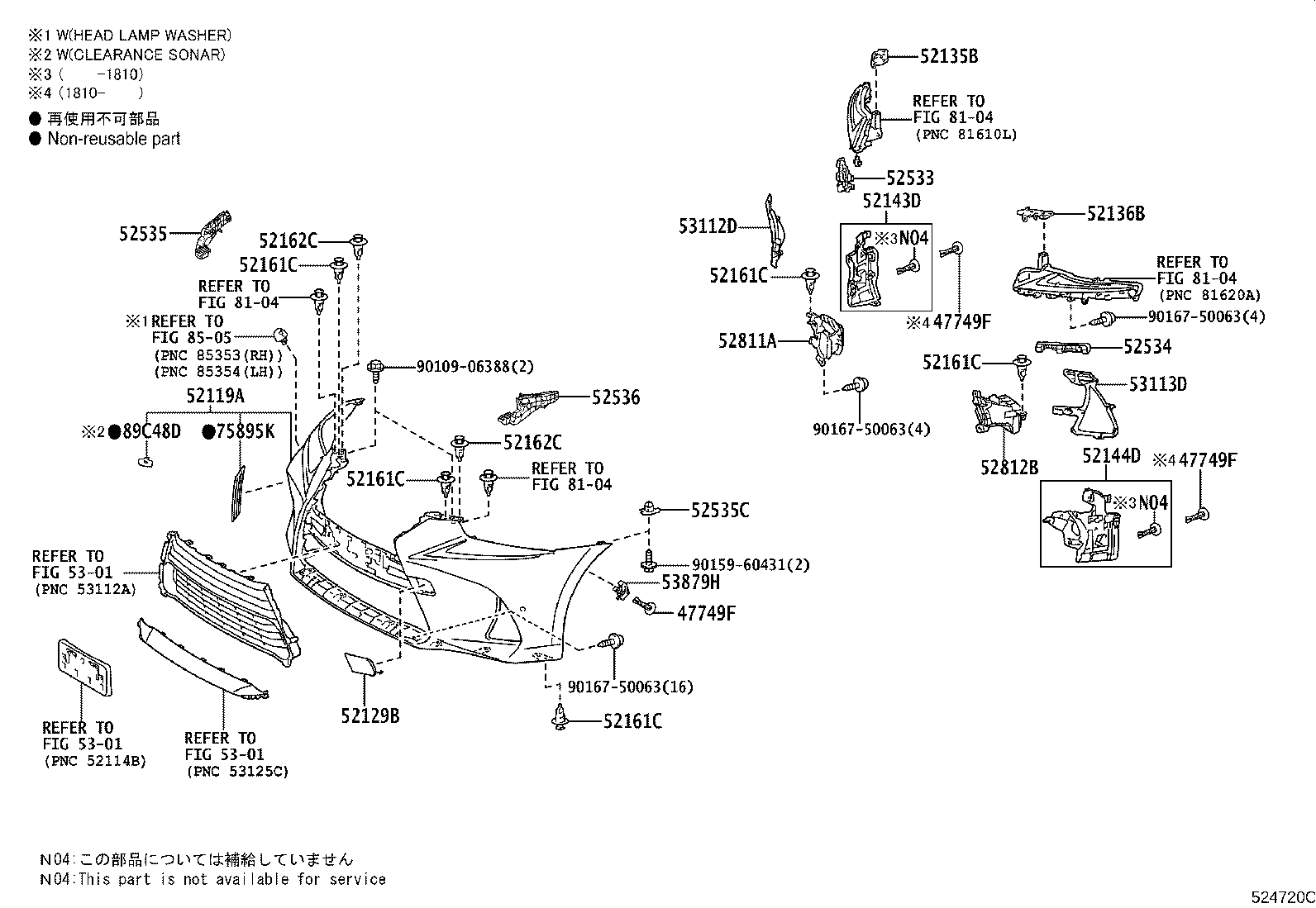

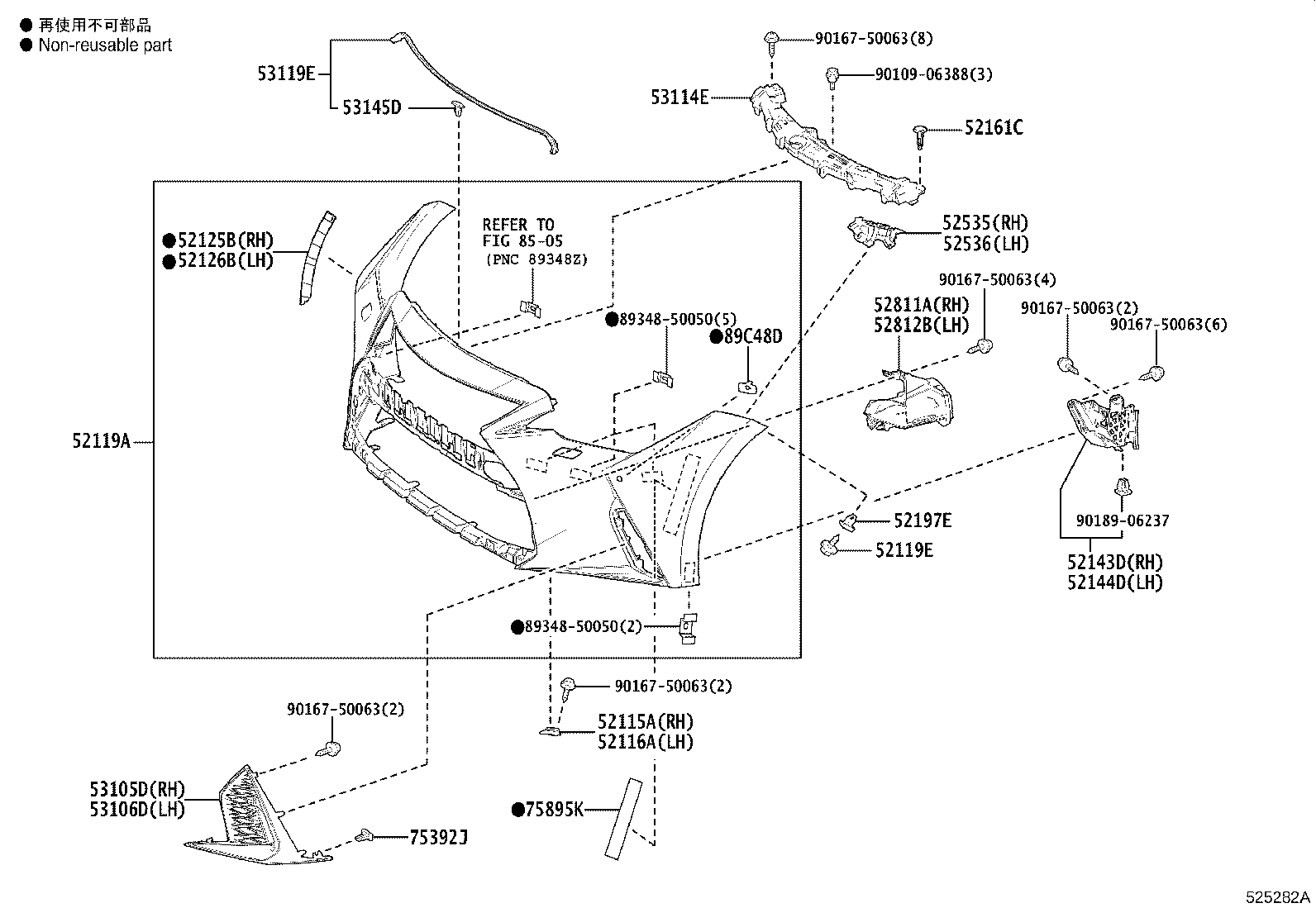

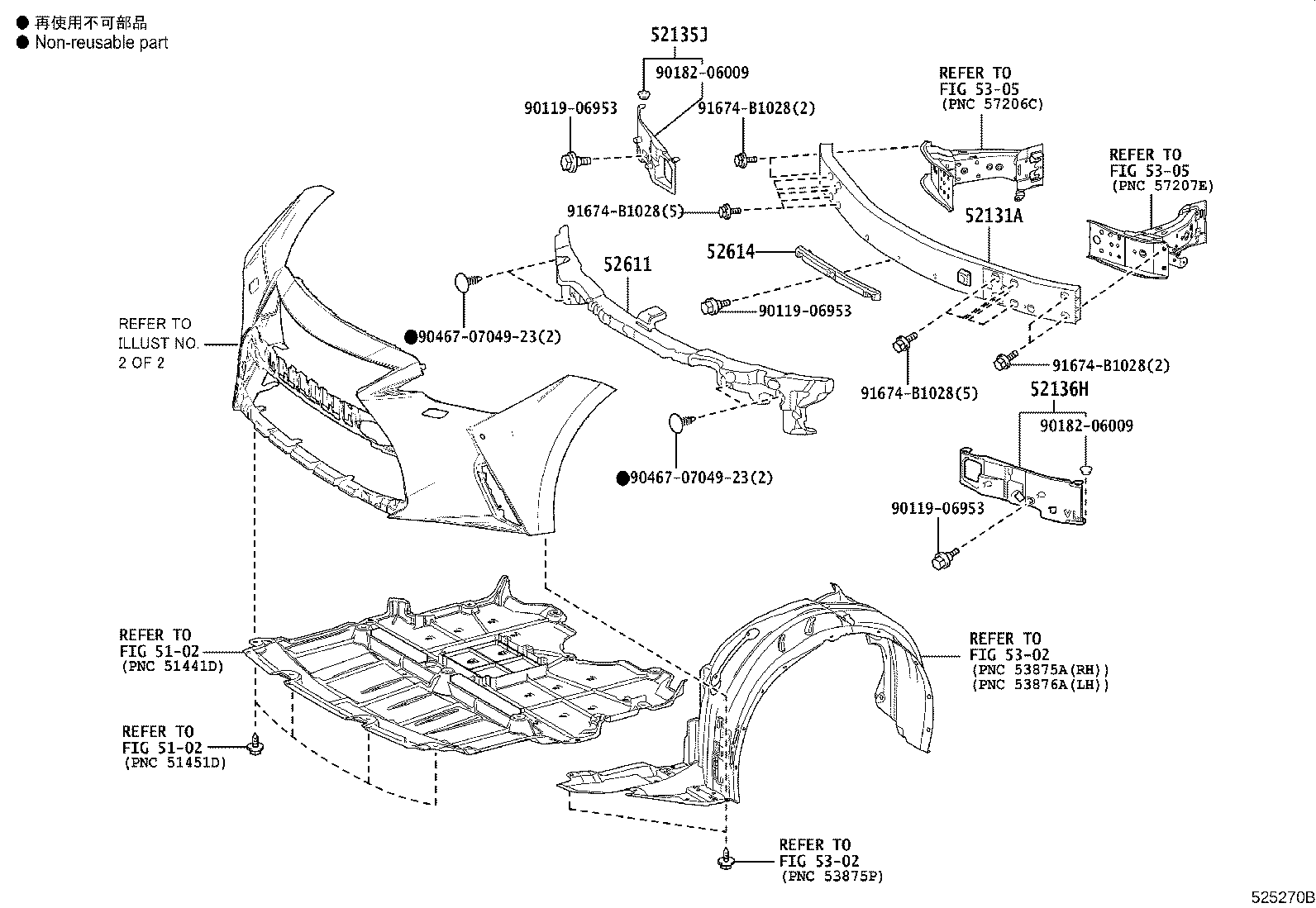

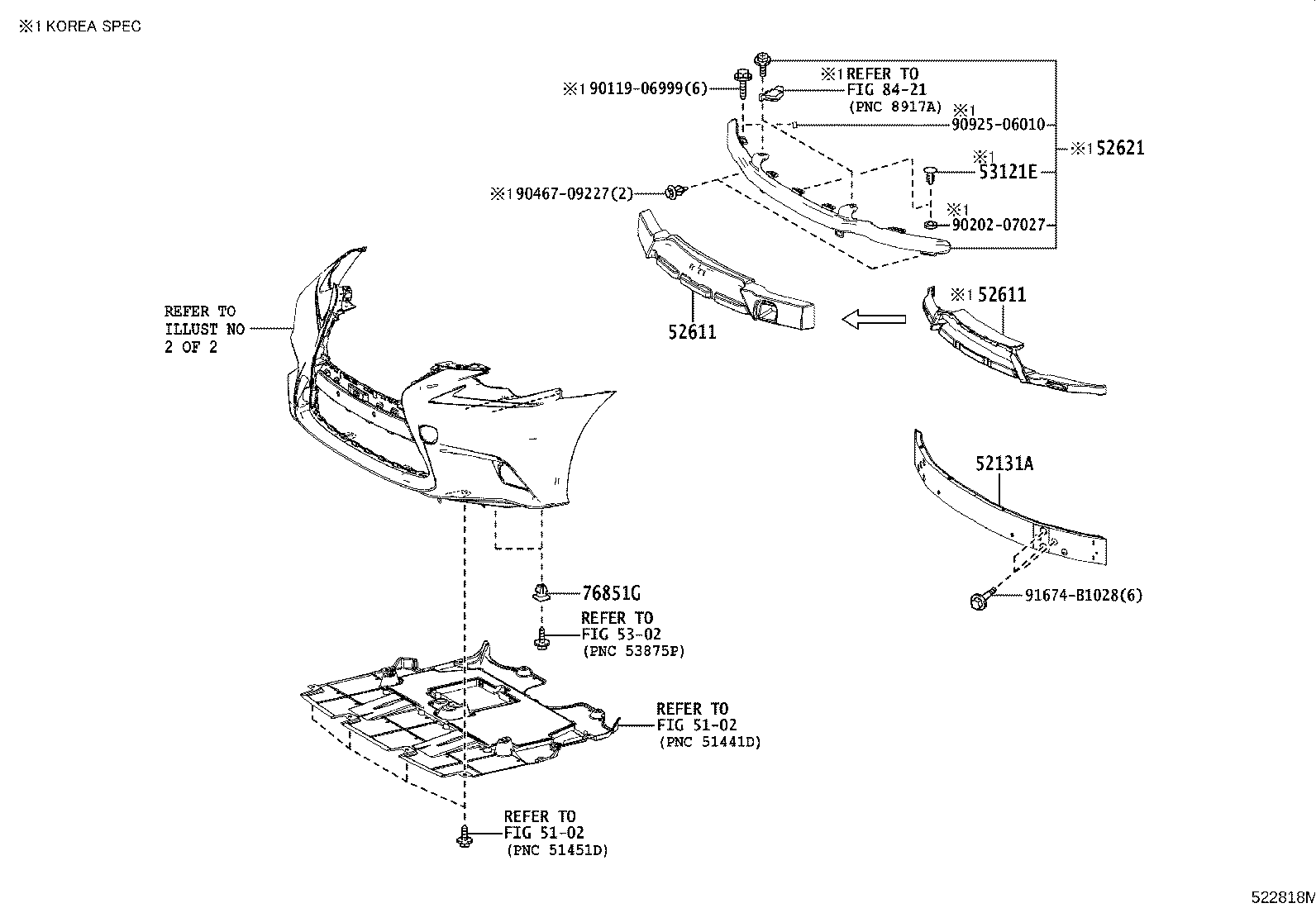

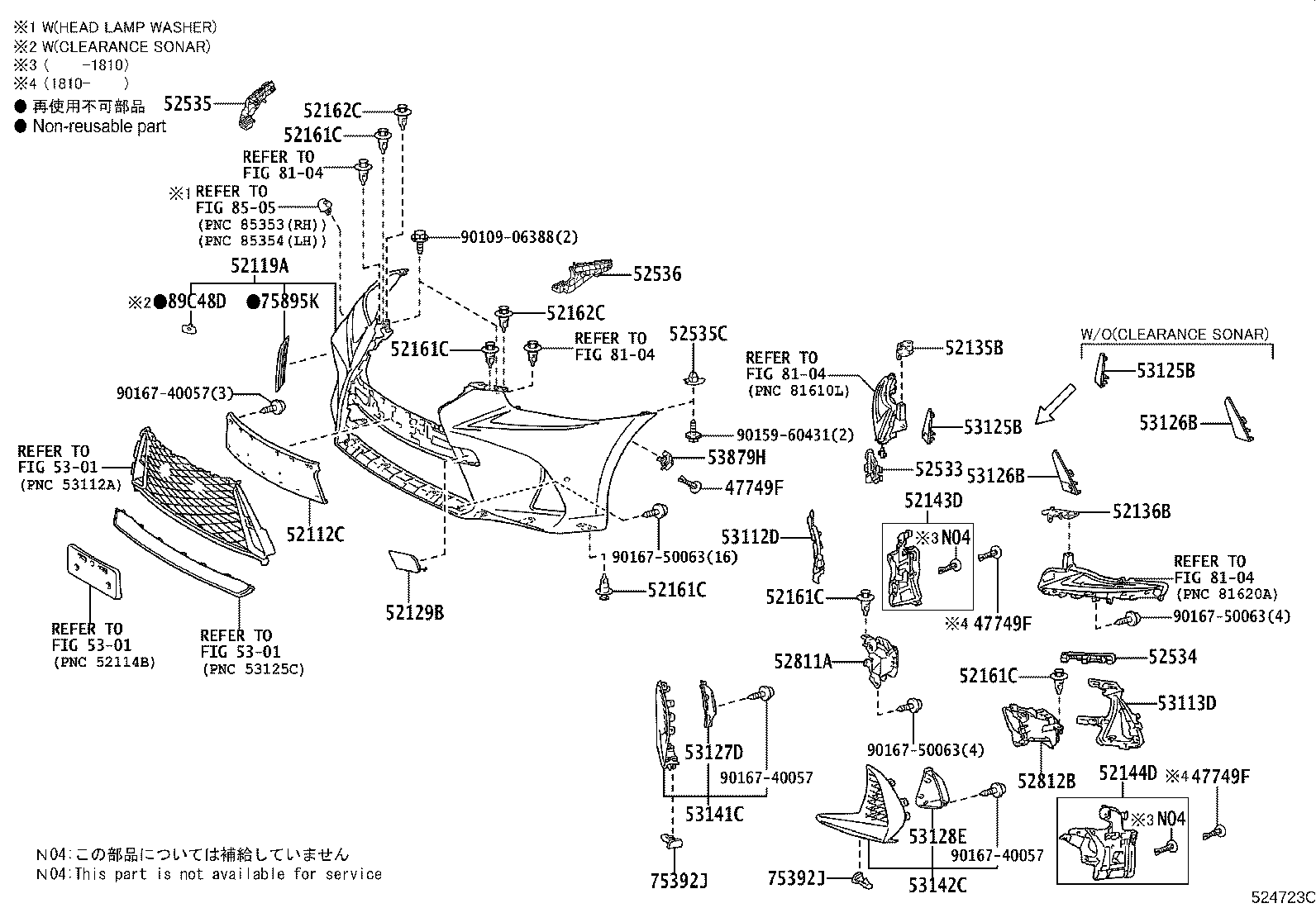

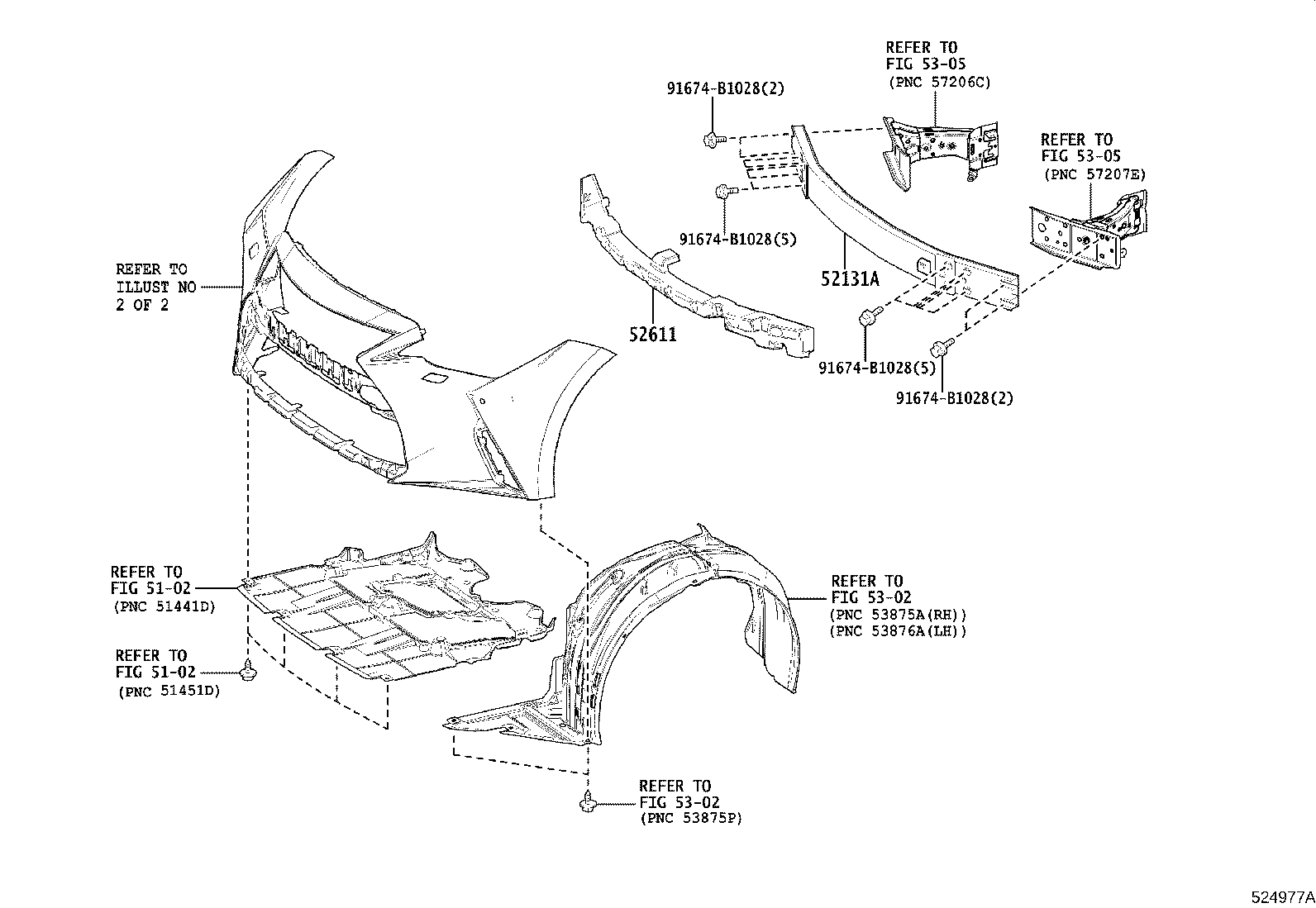

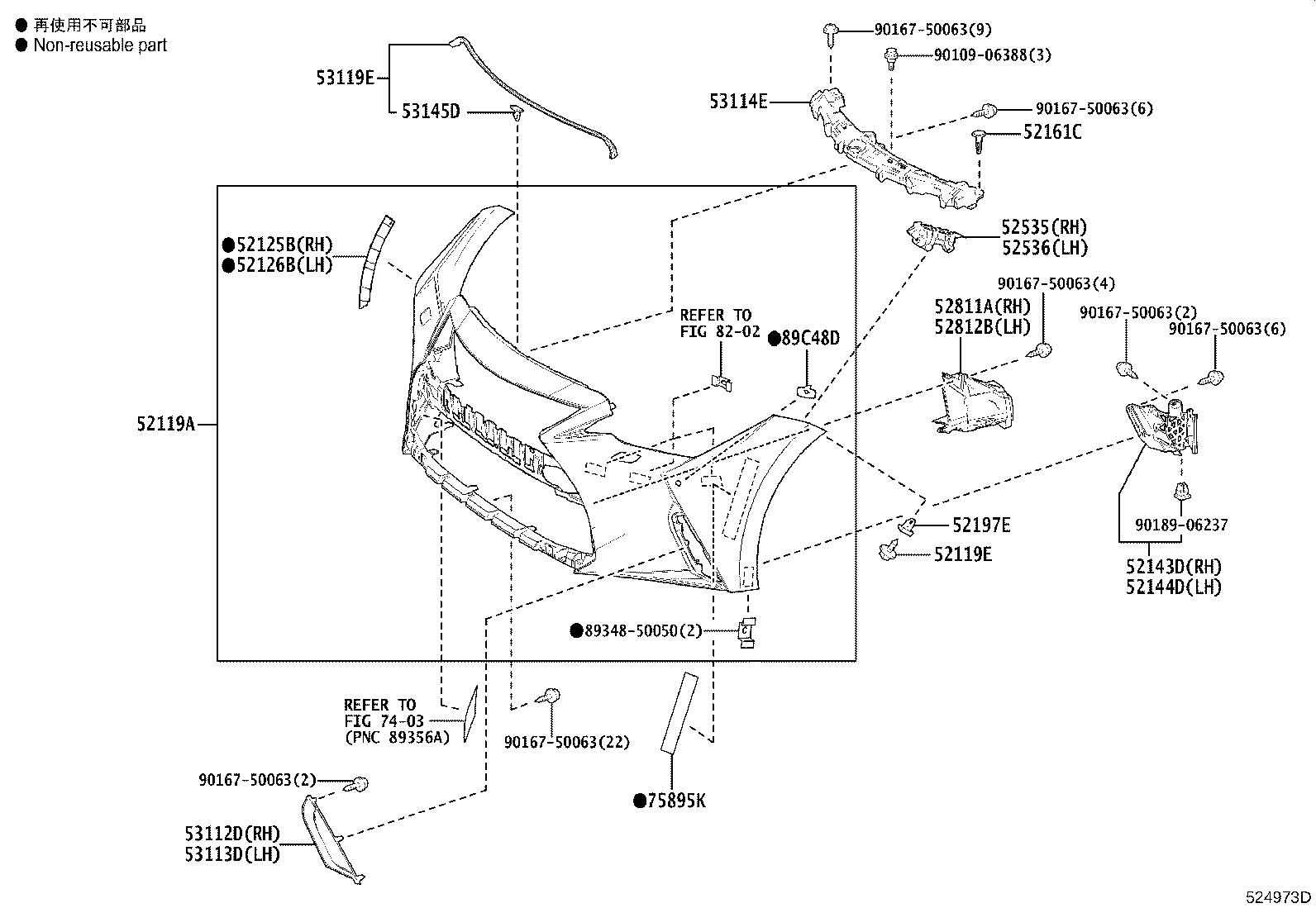

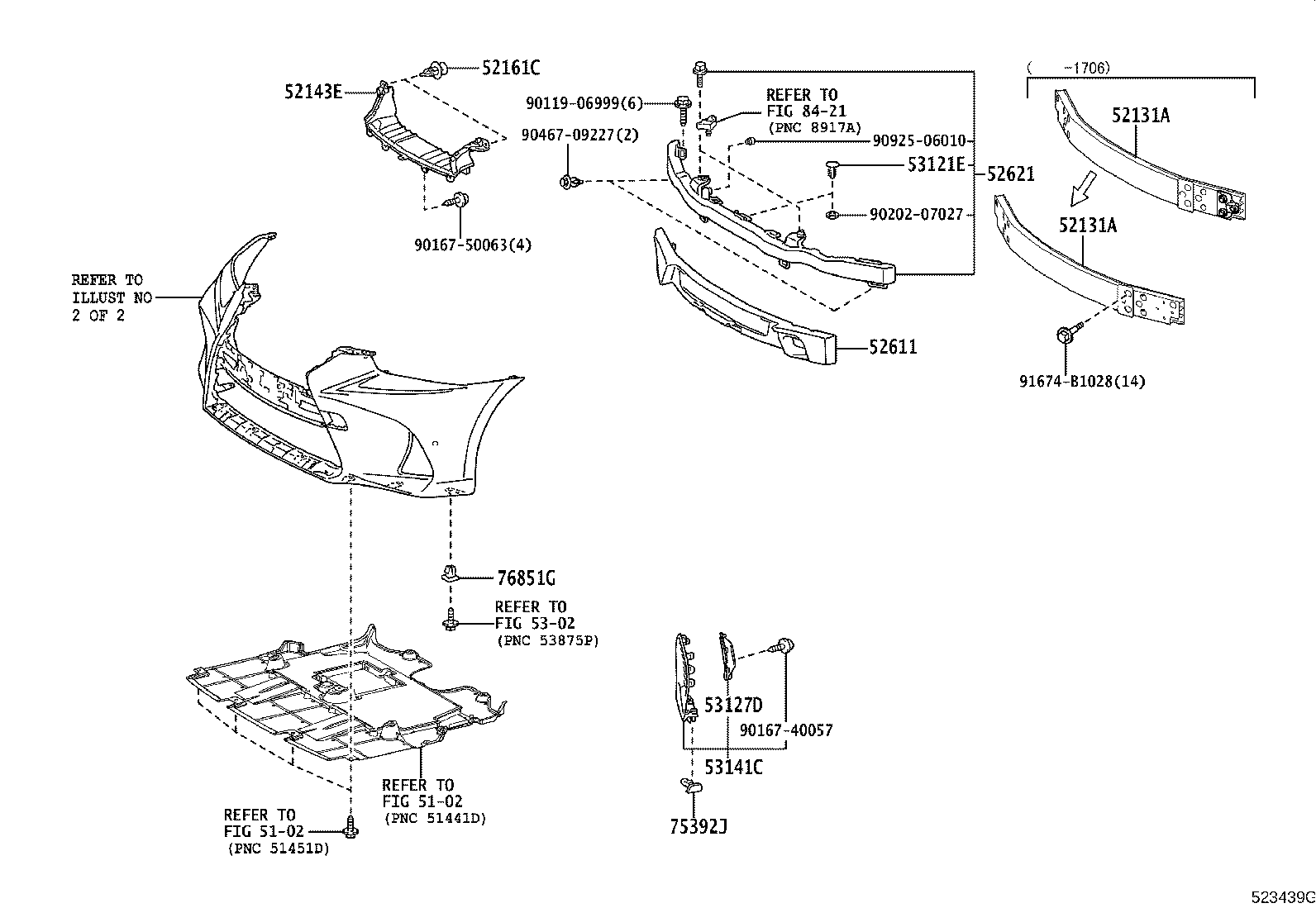

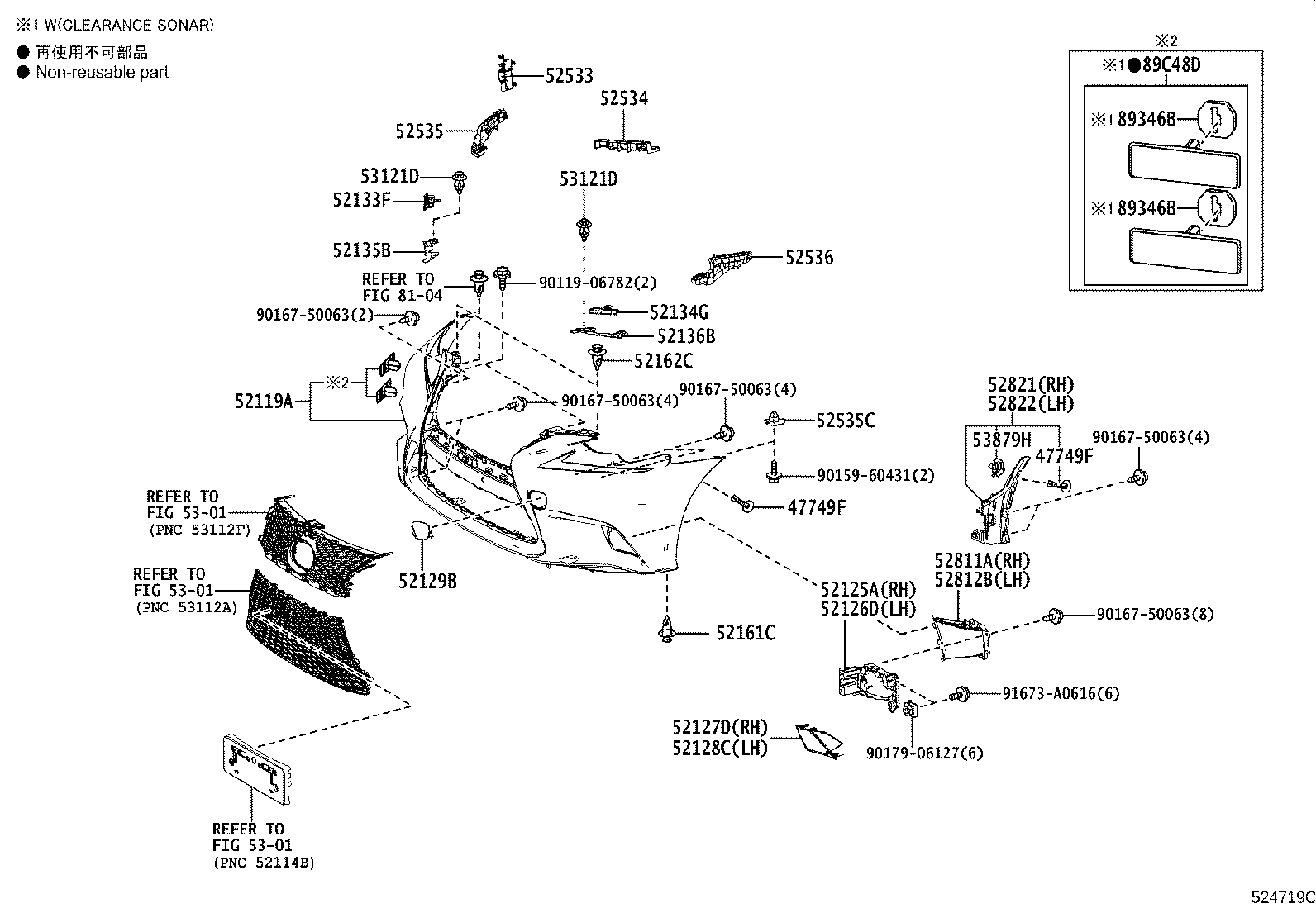

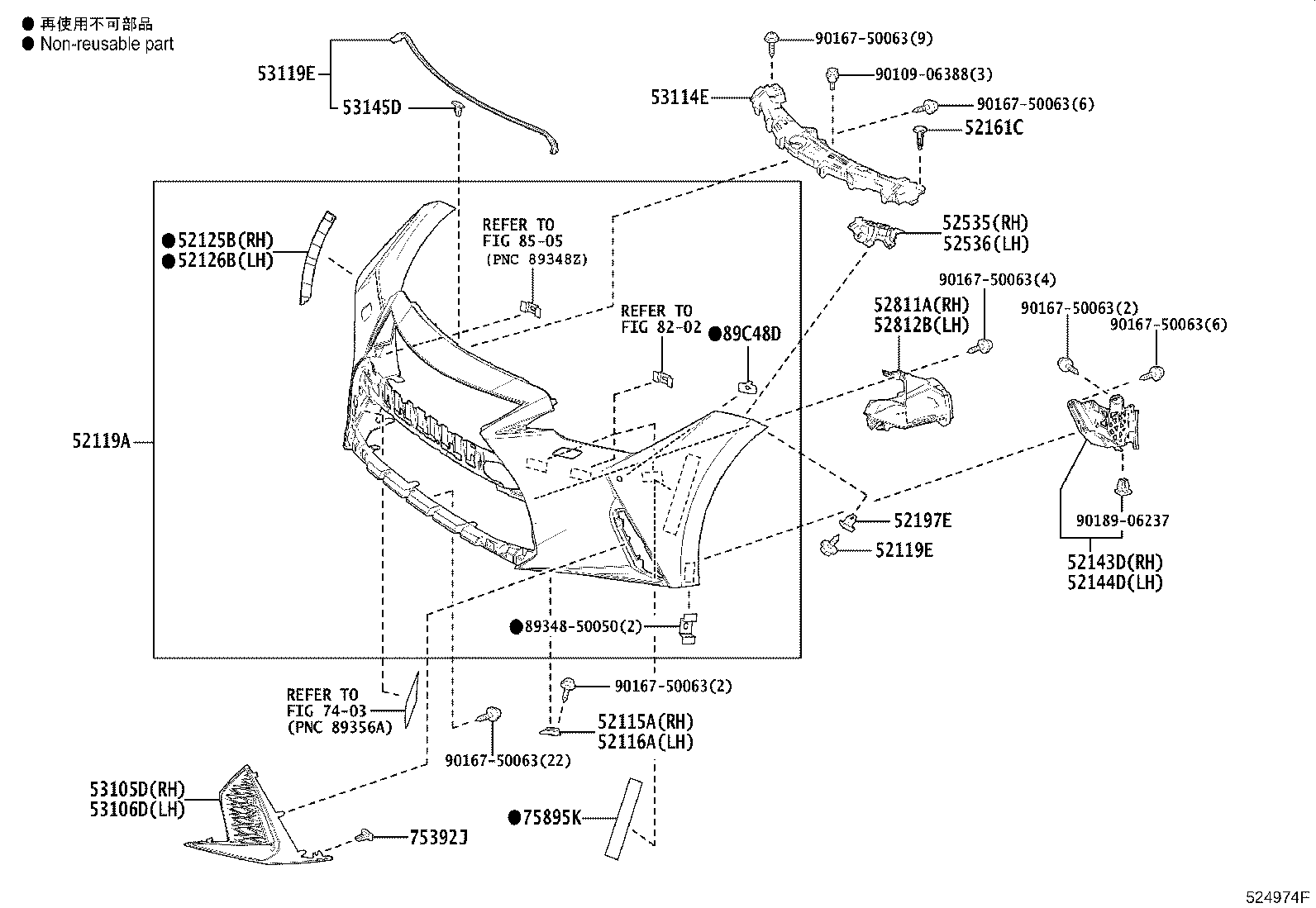

Figure 522816P 522816P 2013-04 → 2016-10 Figure 524718C 524718C 2013-04 → 2016-10 Figure 522818M 522818M 2013-04 → 2016-10 Figure 524719C 524719C 2013-04 → 2016-10 Figure 523438F 523438F 2016-10 → 2020-09 Figure 524720C 524720C 2016-10 → 2020-09 Figure 523463D 523463D 2016-10 → 2020-09 Figure 524721C 524721C 2016-10 → 2020-09 Figure 523439G 523439G 2016-10 → 2020-09 Figure 524722C 524722C 2016-10 → 2020-09 Figure 523465D 523465D 2016-10 → 2020-09 Figure 524723C 524723C 2016-10 → 2020-09 Figure 524977A 524977A 2020-09 → — Figure 524973F 524973F 2020-09 → 2021-10 Figure 525284A 525284A 2021-11 → — Figure 524974F 524974F 2020-09 → 2021-10 Figure 525282A 525282A 2021-11 → — Figure 525270B 525270B 2021-11 → — Figure 525283A 525283A 2021-11 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119E Screw, NO.2
52125A Bracket, Fog Lamp Mounting, RH
52125B Extension, Front Bumper Reinforcement, RH
52126B Extension, Front Bumper Reinforcement, LH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52135B Bracket, Front Bumper, NO.1 RH
52135J Reinforcement, Front Energy Absorber Mounting, RH
52136B Bracket, Front Bumper, NO.1 LH
52136H Reinforcement, Front Energy Absorber Mounting, LH
52143D Bracket, Front Bumper Side, RH
52143E Plate, Front Energy Absorber Mounting
52144D Bracket, Front Bumper Side, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52162C Piece, Front Bumper
52197E Bracket, Front Bumper Seal
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52614 Absorber, Front Bumper Energy, NO.2
52621 Chamber, Pop UP Hood
52811A Duct, Cool Air Intake, NO.1
52812B Duct, Cool Air Intake, NO.2
52821 Duct, Air Intake, RH
52822 Duct, Air Intake, LH
53105D Garnish Sub-assy, Radiator Grille, RH
53106D Garnish Sub-assy, Radiator Grille, LH
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
53114E Grille, Radiator, Upper
53119E Protector, Radiator Grille
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
53125B Moulding, Radiator Grille, Center RH
53126B Moulding, Radiator Grille, Center LH
53127D Grille, Radiator, Lower Side RH
53128E Grille, Radiator, Lower Side LH
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53145D Clip, Radiator Grille
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89346B Adjuster, Ultrasonic Sensor
89C48D Retainer, Ultrasonic Sensor, Front Corner
