Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

21 part groups · 6 illustrations

Illustrations

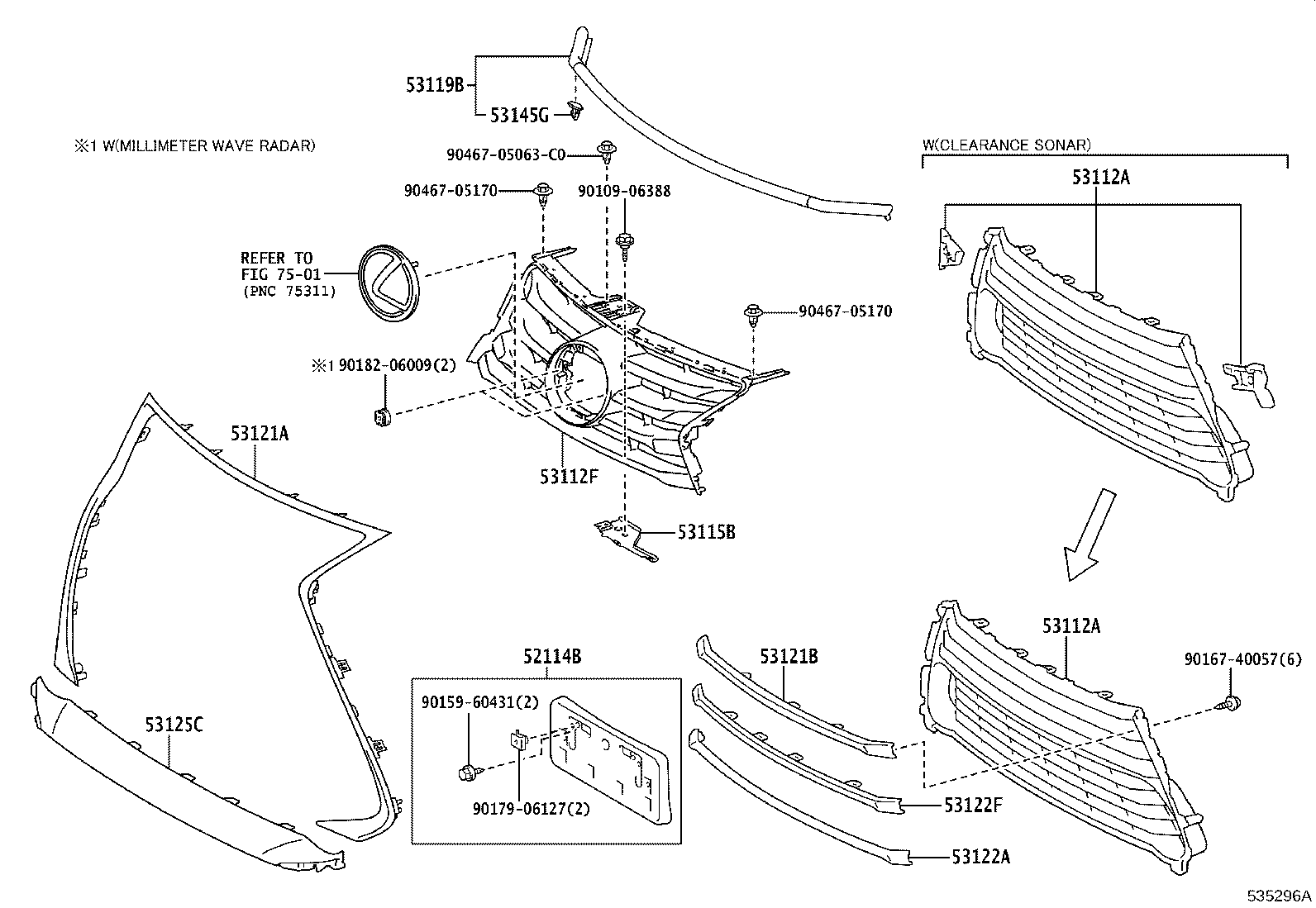

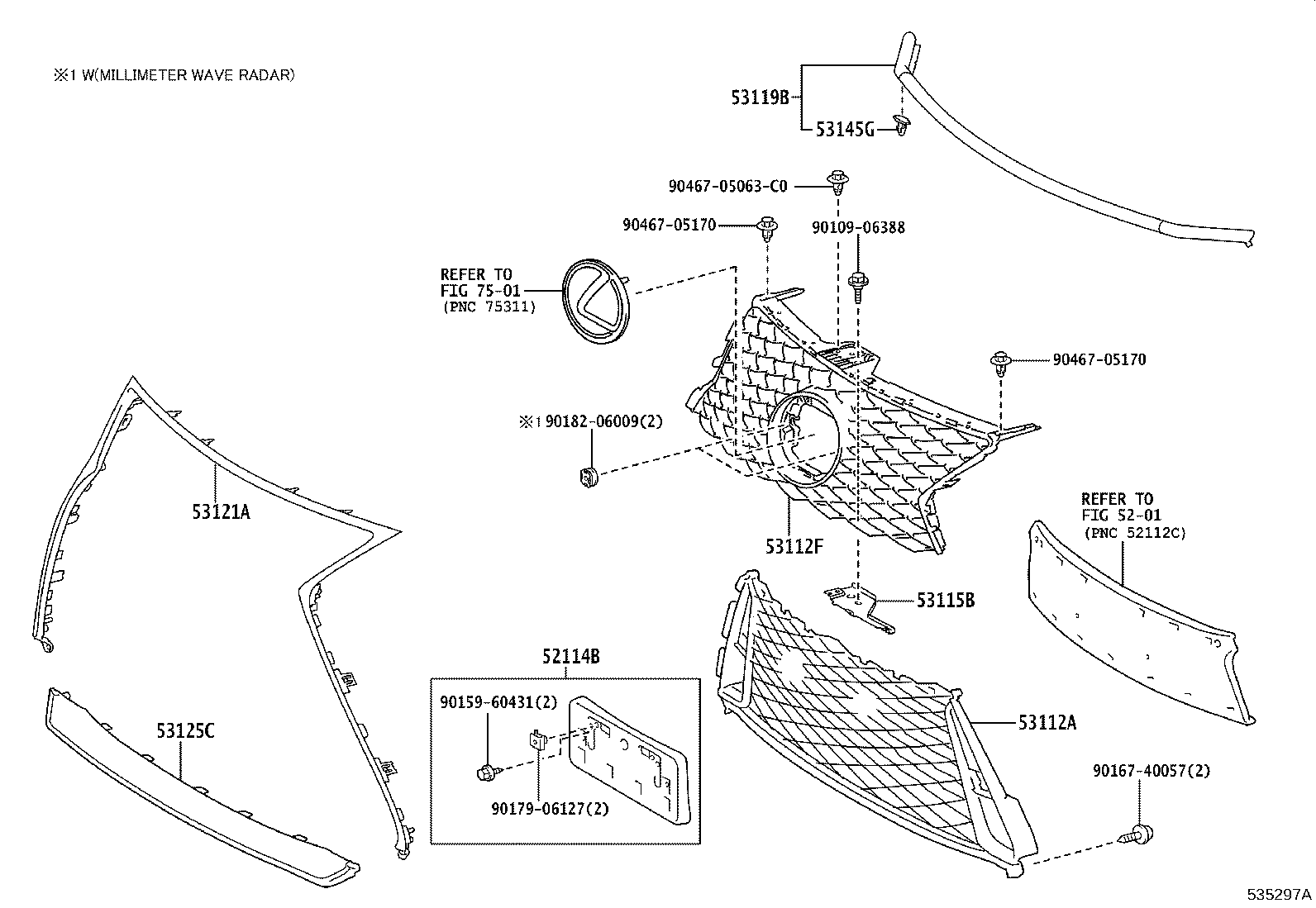

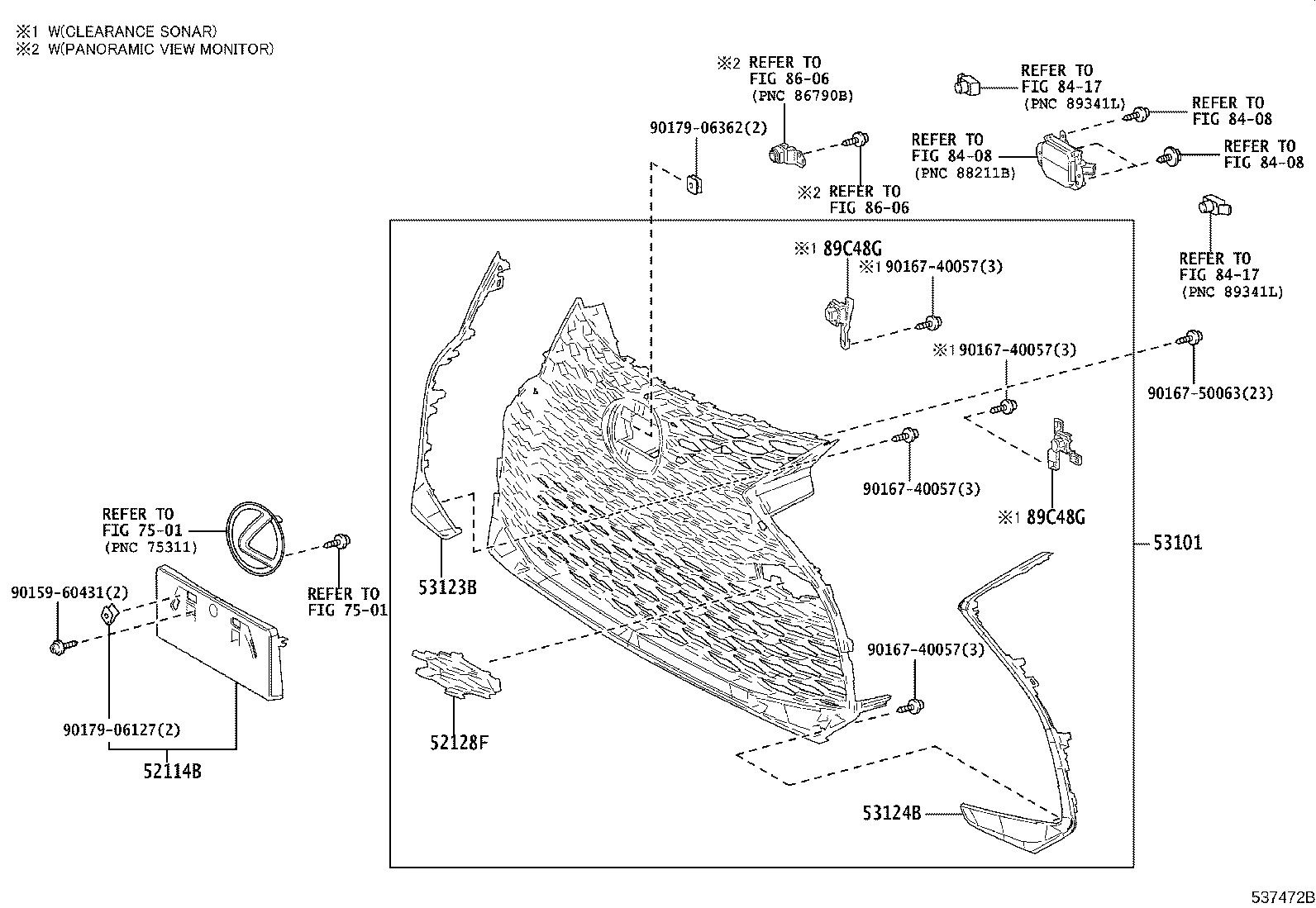

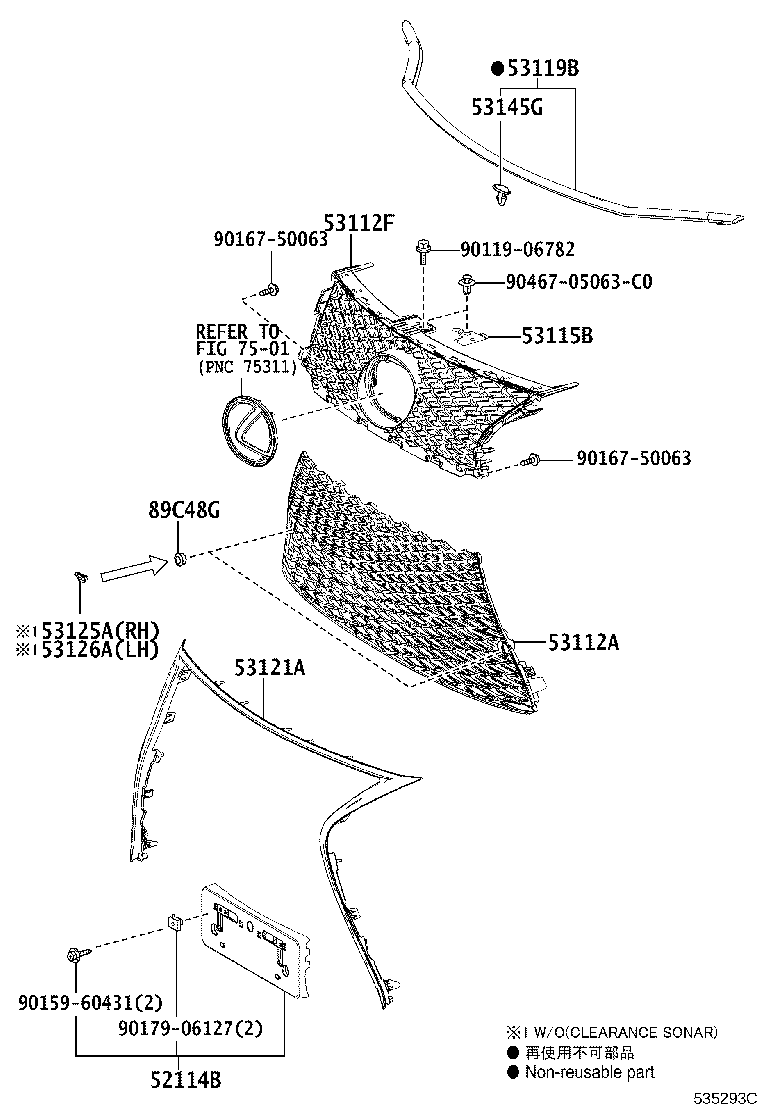

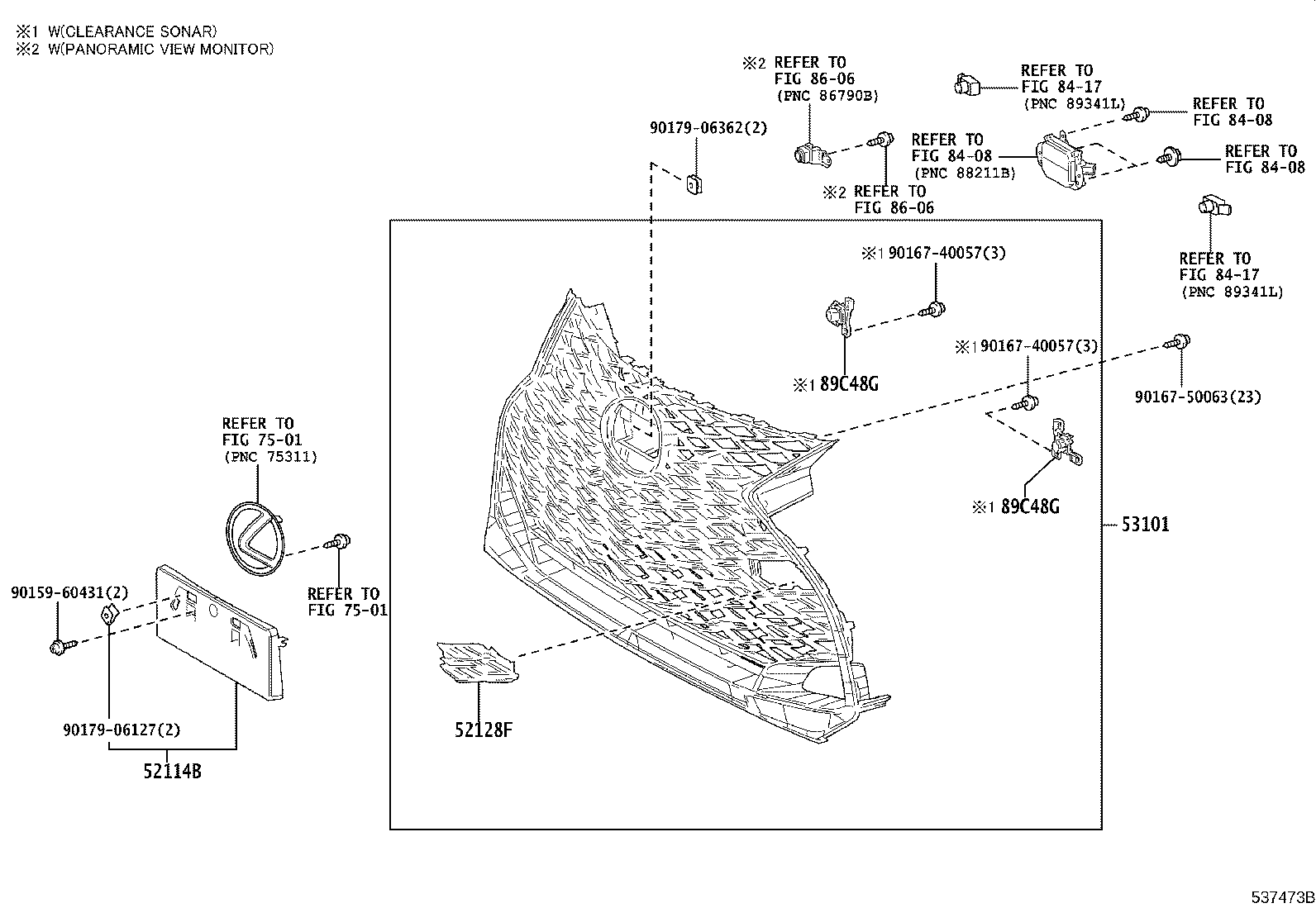

Figure 535292C 535292C 2013-04 → 2016-10 Figure 535293C 535293C 2013-04 → 2016-10 Figure 535296A 535296A 2016-10 → 2020-09 Figure 535297A 535297A 2016-10 → 2020-09 Figure 537472B 537472B 2020-09 → — Figure 537473B 537473B 2020-09 → —

Part groups

PNCDescription
52102E Extension Sub-assy, Front Bumper
52114B Bracket, Front Bumper Extension Mounting
52128F Cover, Front Bumper Hole, LH
53101 Grille Sub-assy, Radiator
53112A Grille, Radiator, Lower
53112F Grille, Radiator, Inside
53115B Bracket, Radiator Grille
53119B Protector, Radiator Grille
53121A Moulding, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53122A Moulding, Radiator Grille, Lower
53122F Moulding, Radiator Grille, NO.2
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53125A Moulding, Radiator Grille, Center RH
53125C Moulding, Radiator Grille, NO.5
53126A Moulding, Radiator Grille, Center LH
53127A Grille, Radiator, Lower RH
53128A Grille, Radiator, Lower LH
53145G Clip, Radiator Grille
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
