Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

23 part groups · 3 illustrations

Illustrations

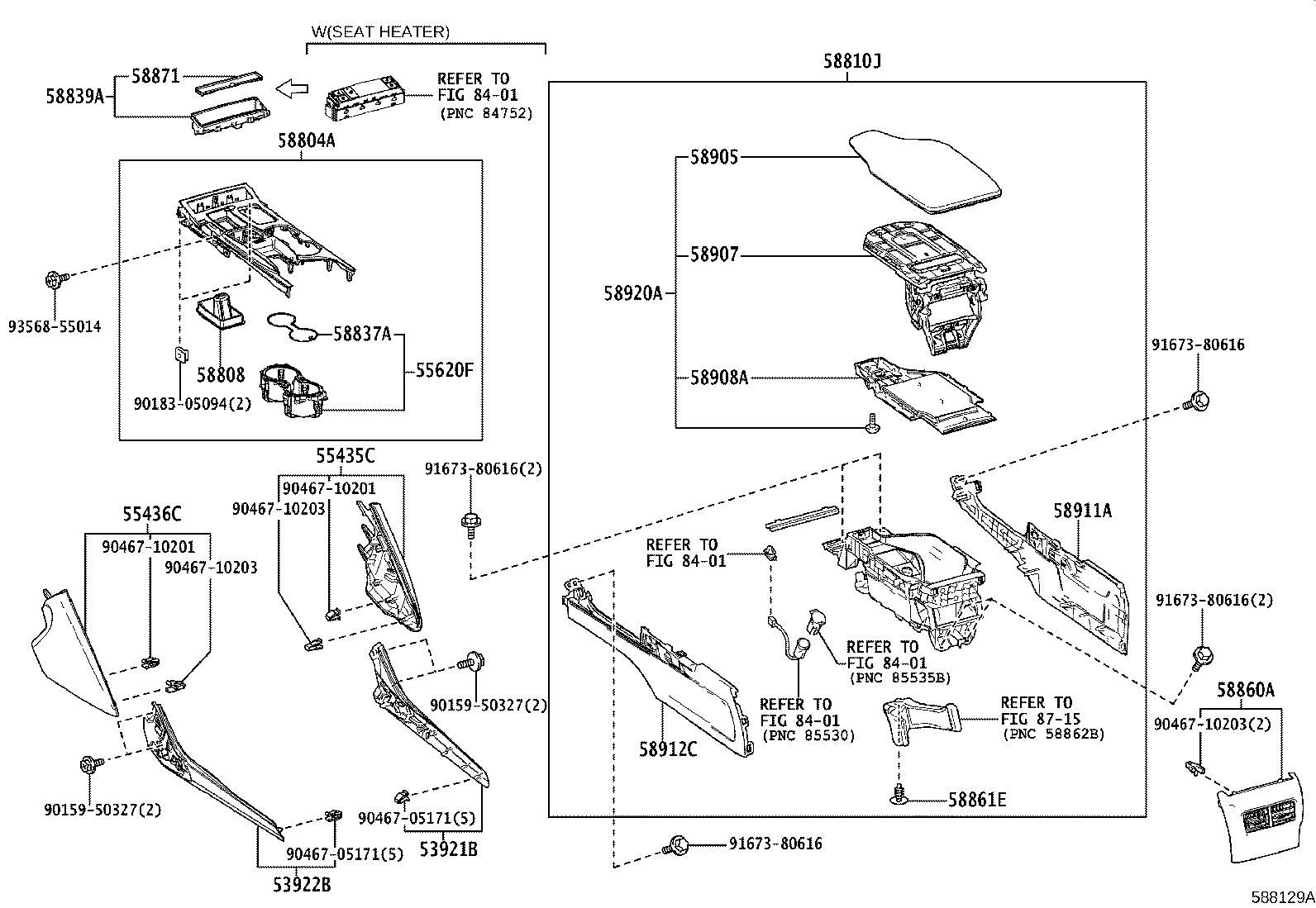

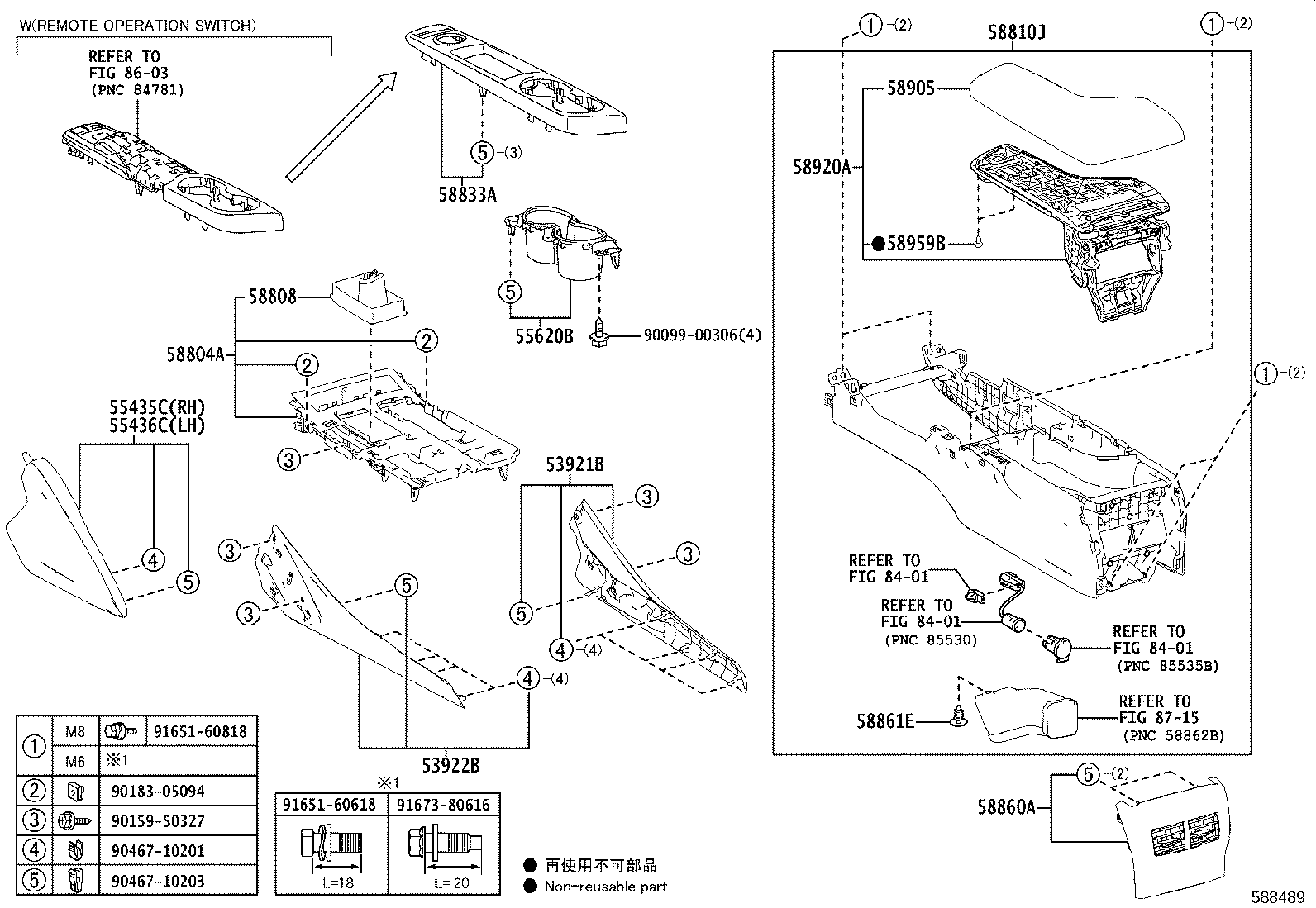

Figure 584864E 584864E 2013-04 → 2016-10 Figure 588489 588489 2016-10 → 2020-09 Figure 588129A 588129A 2020-09 → —

Part groups

PNCDescription
53921B Garnish, Front Panel, RH
53922B Garnish, Front Panel, LH
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55620B Holder, Instrument Panel Cup
55620F Holder Assy, Console Box Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58833A Cover, Console, Upper
58837A Pad, Console Box Silencer, NO.2
58839A Cover, Console Box Hole
58856A Holder, Console Box
58860A Register Assy, Console Box
58861E Clip, Console Box Duct
58871 Cushion, Console Box
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58920A Armrest Assy, Rear Console
58959B Cushion, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
