Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

15 part groups · 2 illustrations

Illustrations

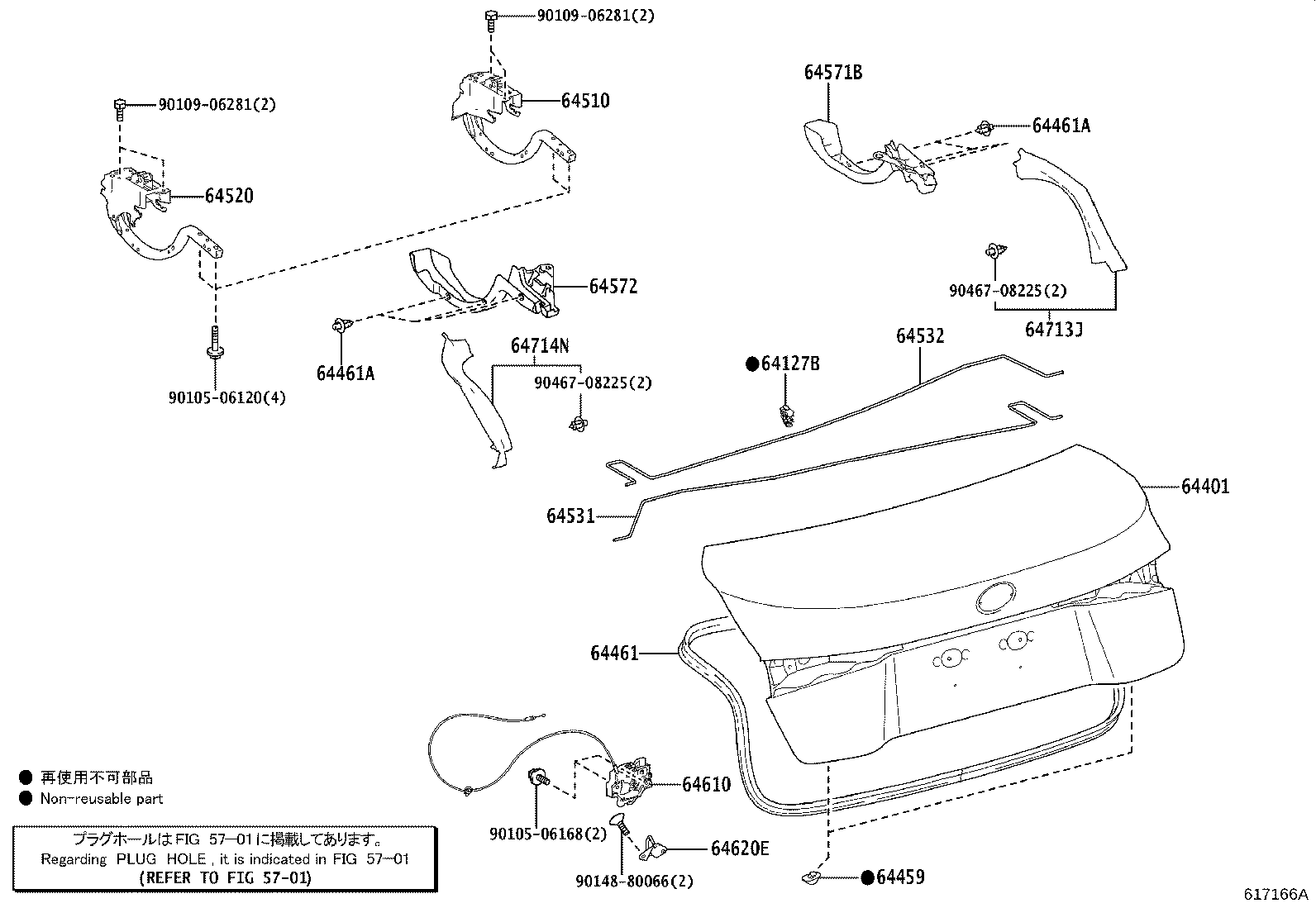

Figure 614652F 614652F 2013-04 → 2020-09 Figure 617166A 617166A 2020-09 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64461A Clip(FOR DECK TRIM COVER)
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64571B Cover, Luggage Compartment Door Hinge, RH
64572 Cover, Luggage Compartment Door Hinge, LH
64610 Lock Assy, Luggage Compartment Door
64620E Striker Assy, Luggage Compartment Door
64713J Cover, Luggage Compartment Upper, NO.1 RH
64714N Cover, Luggage Compartment Upper, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
