Toyota Lexus IS Series
2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States
Supported model
Data version 2021-09

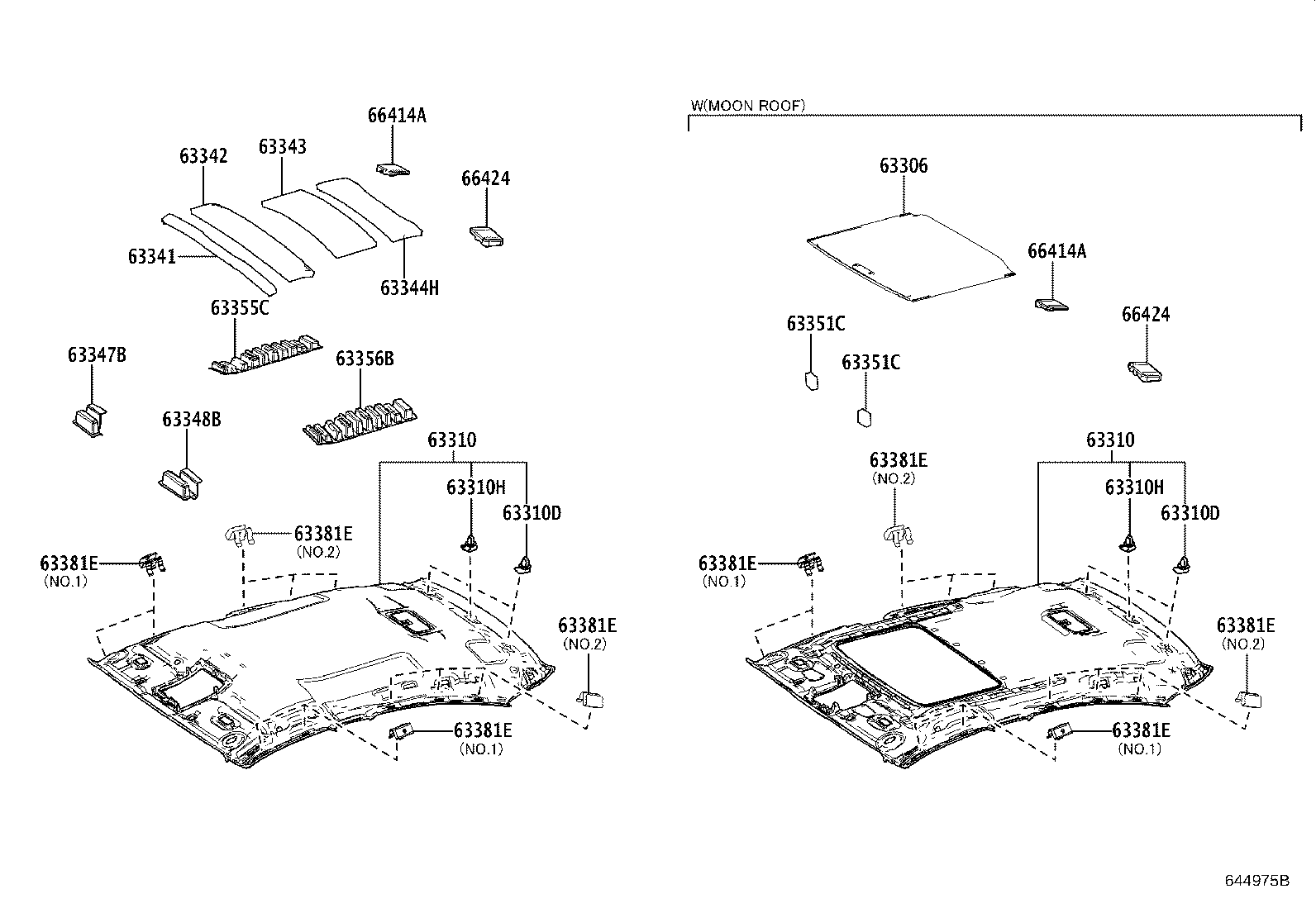

Roof Headlining & Silencer Pad
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63347B | Pad, Roof Side Rail Silencer, RH |
| 63348B | Pad, Roof Side Rail Silencer, LH |
| 63351C | Pad, Roof Headlining |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63398 | Plate, Roof Headlining Support |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
