Toyota Lexus IS Series
2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States
Supported model
Data version 2021-09

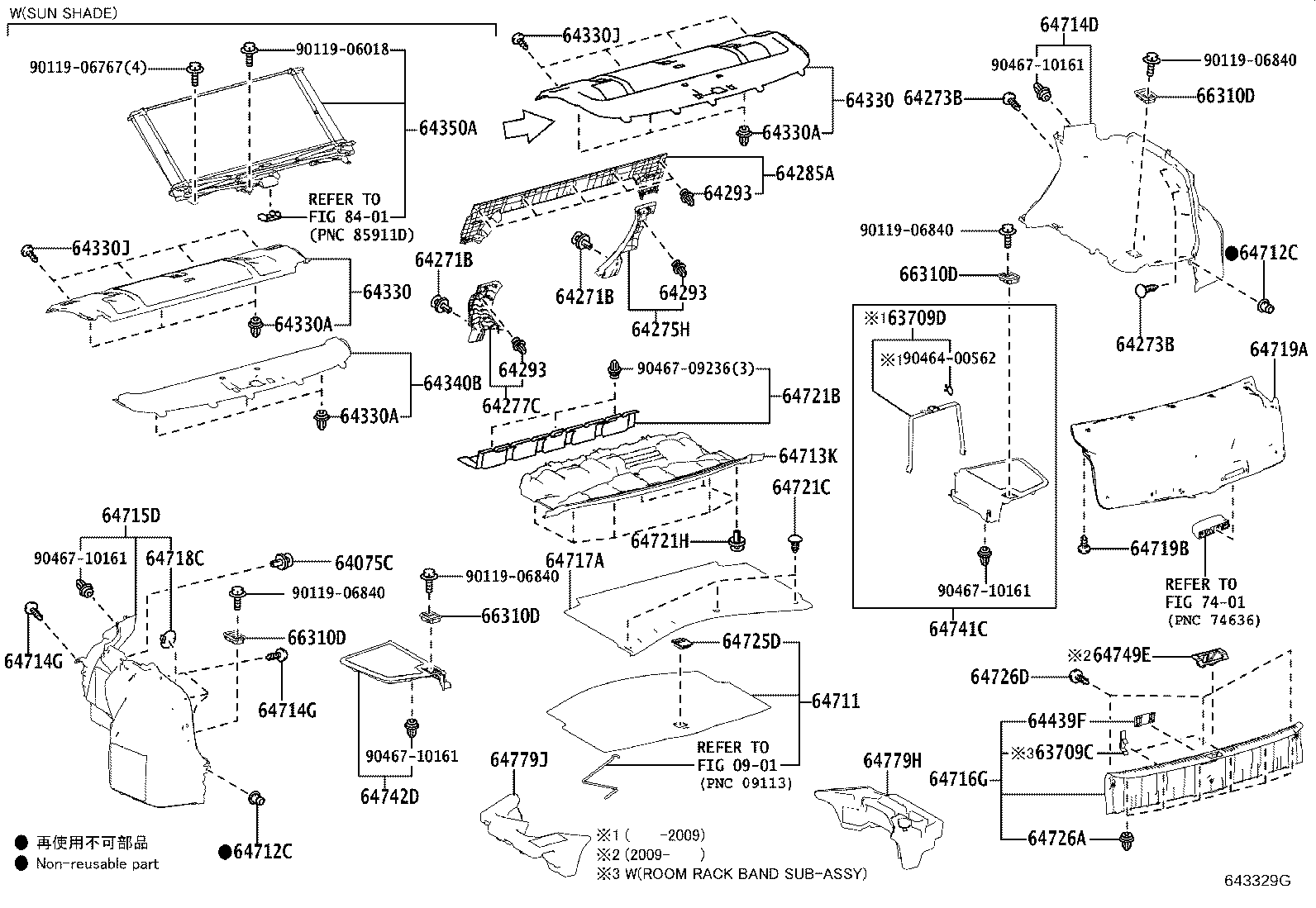

Package Tray Panel & Luggage Compartment Mat
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63709C | Band Sub-assy, Room Rack |
| 63709D | Band Sub-assy, Room Rack |
| 64075C | Clip, Luggage Compartment Trim Cover |
| 64206E | Panel Sub-assy, Room Partition |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64273B | Clip |
| 64275H | Cover, Room Partition, NO.1 |
| 64277C | Cover, Room Partition, NO.2 |
| 64285A | Cover, Room Partition, NO.3 |
| 64293 | Retainer, Room Partition |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64439F | Cover, Luggage Room, Rear |
| 64711 | Mat, Luggage Compartment Floor |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64713K | Cover, Luggage Compartment Trim, Front Upper |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64714G | Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726A | Clip, Luggage Trim, Rear |
| 64726D | Clip, Luggage Trim, Rear |
| 64741C | Box, Deck Side Trim, RH |
| 64742D | Box, Deck Side Trim, LH |
| 64749E | Cover, Luggage Compartment Door Striker |
| 64779H | Tray, Spare Wheel Cover, RH |
| 64779J | Tray, Spare Wheel Cover, LH |
| 66310D | Hook Assy, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
