Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

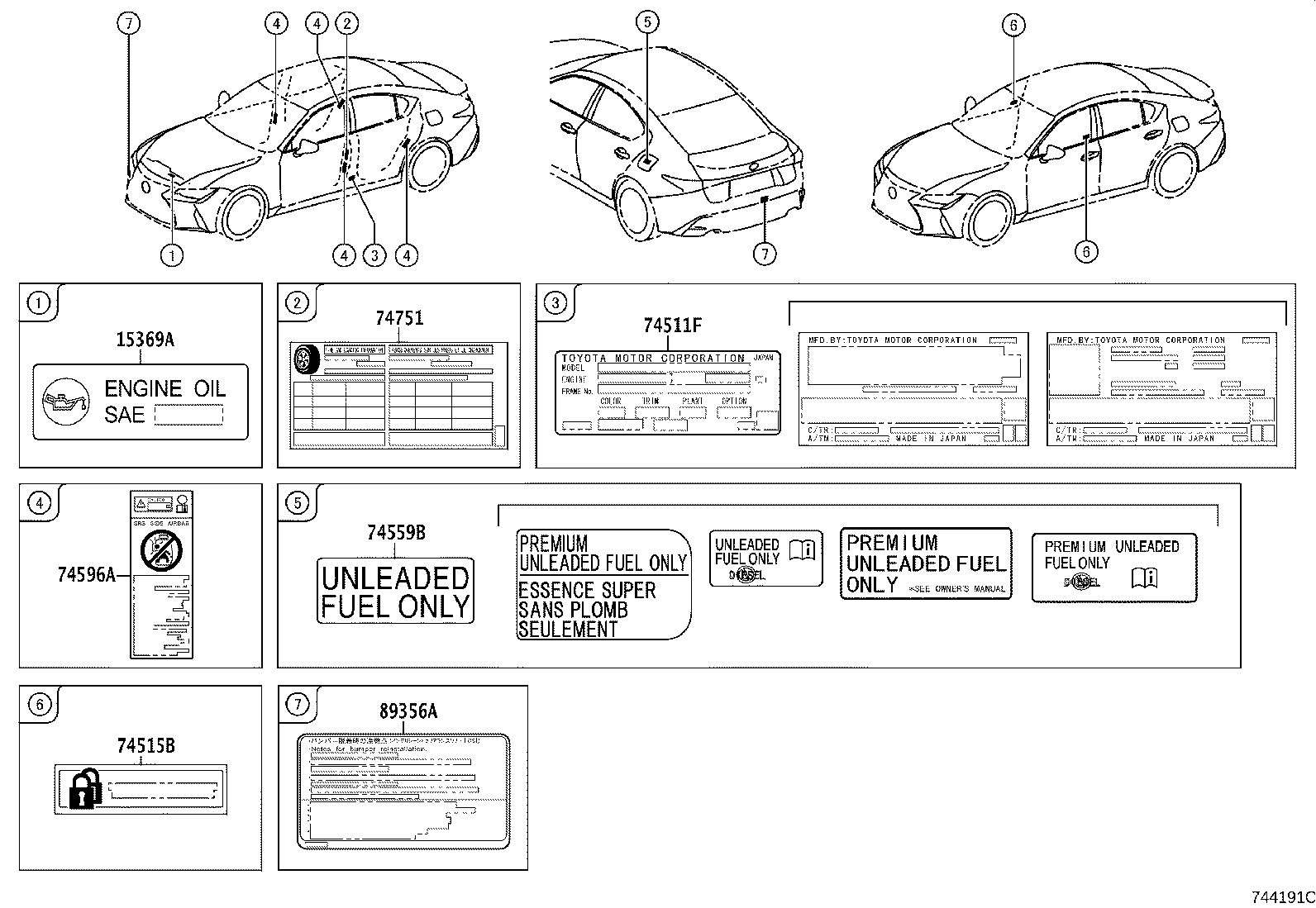

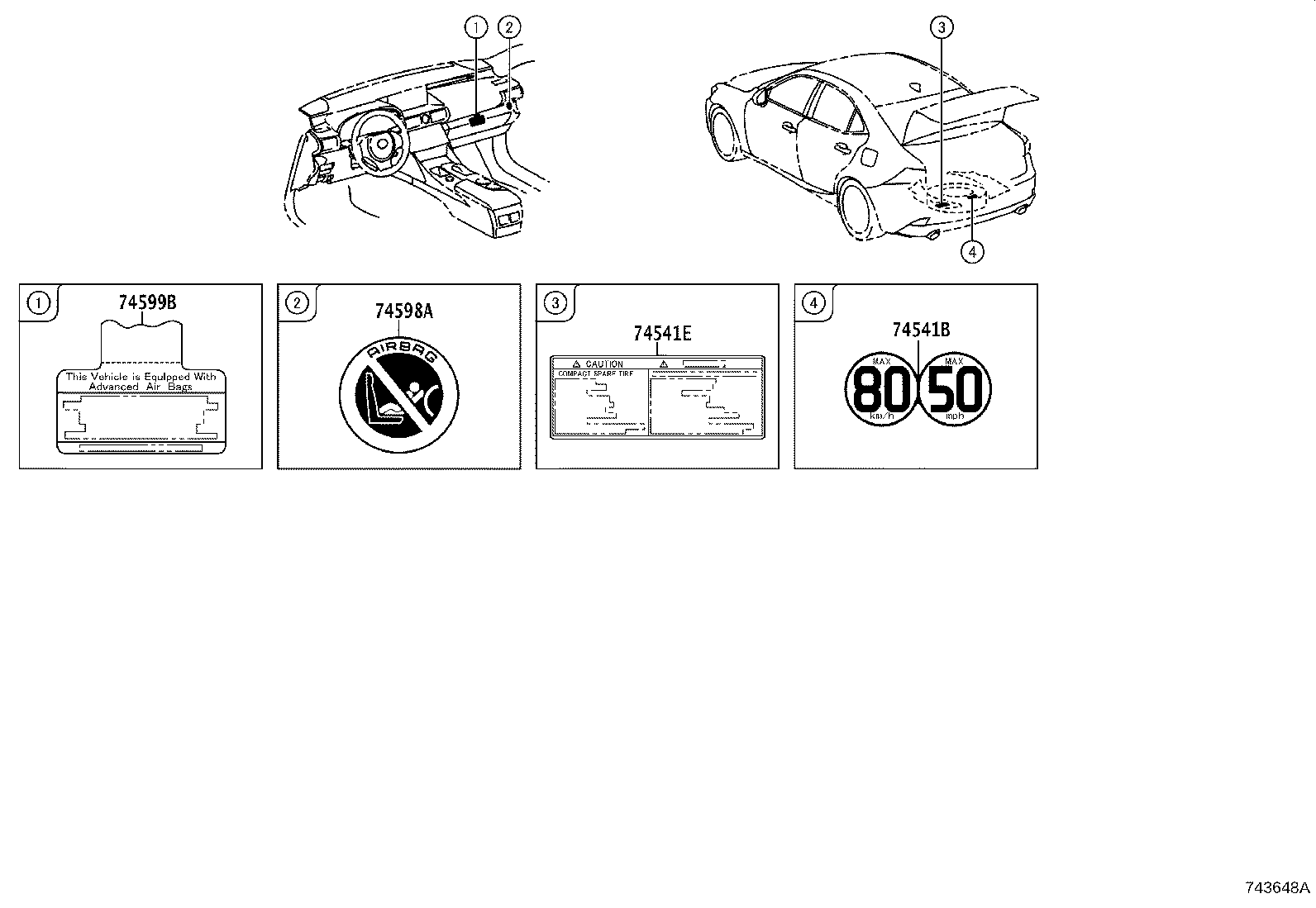

Figure 743647H 743647H 2013-04 → — Figure 744191C 744191C 2013-04 → — Figure 743648A 743648A 2013-04 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11296C Label, Engine Service Information
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
16793E Label, Cooling Fan Caution
45248A Label, Steering Actuator Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74532A Plate, Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
