Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

107 part groups · 16 illustrations

Illustrations

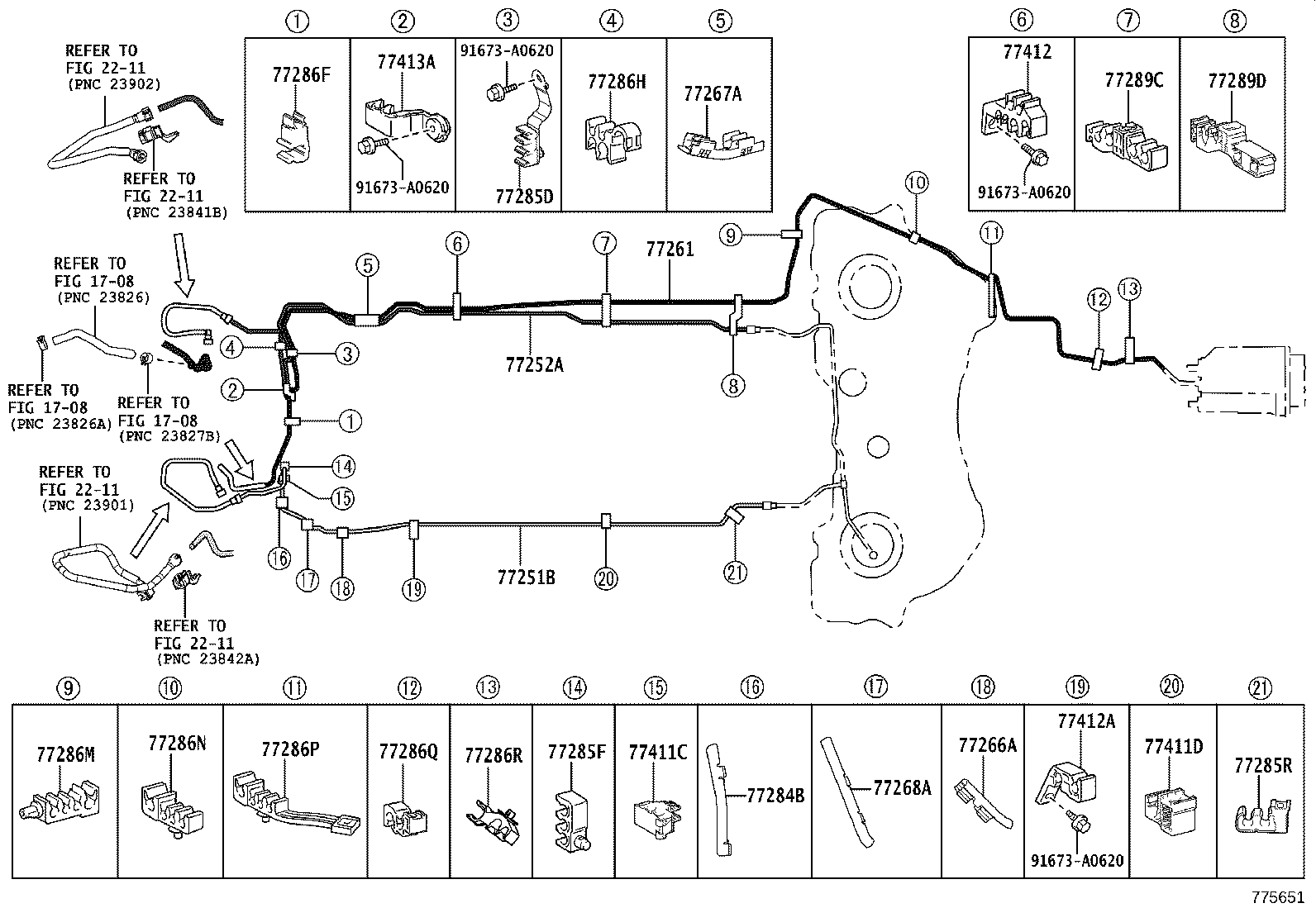

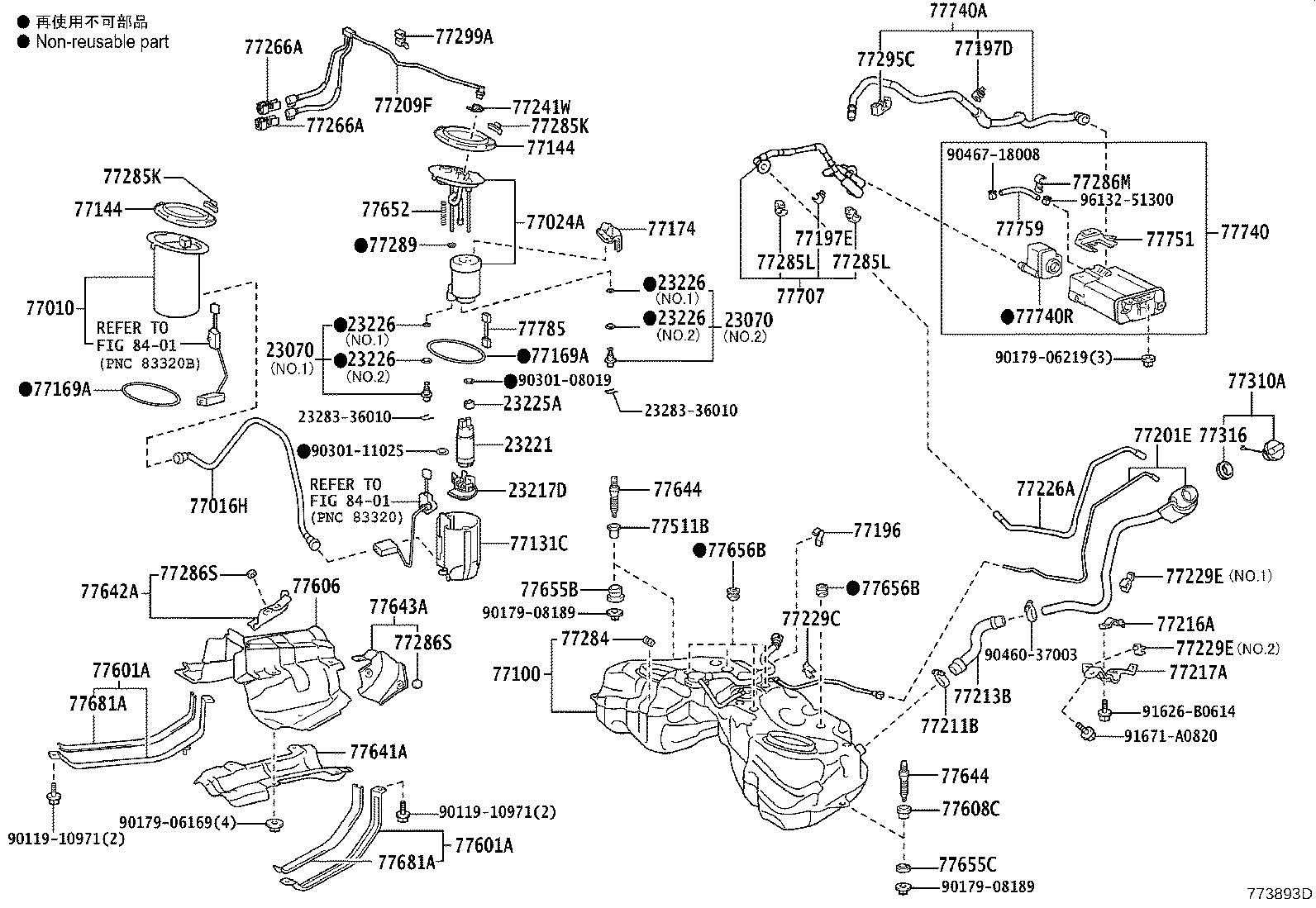

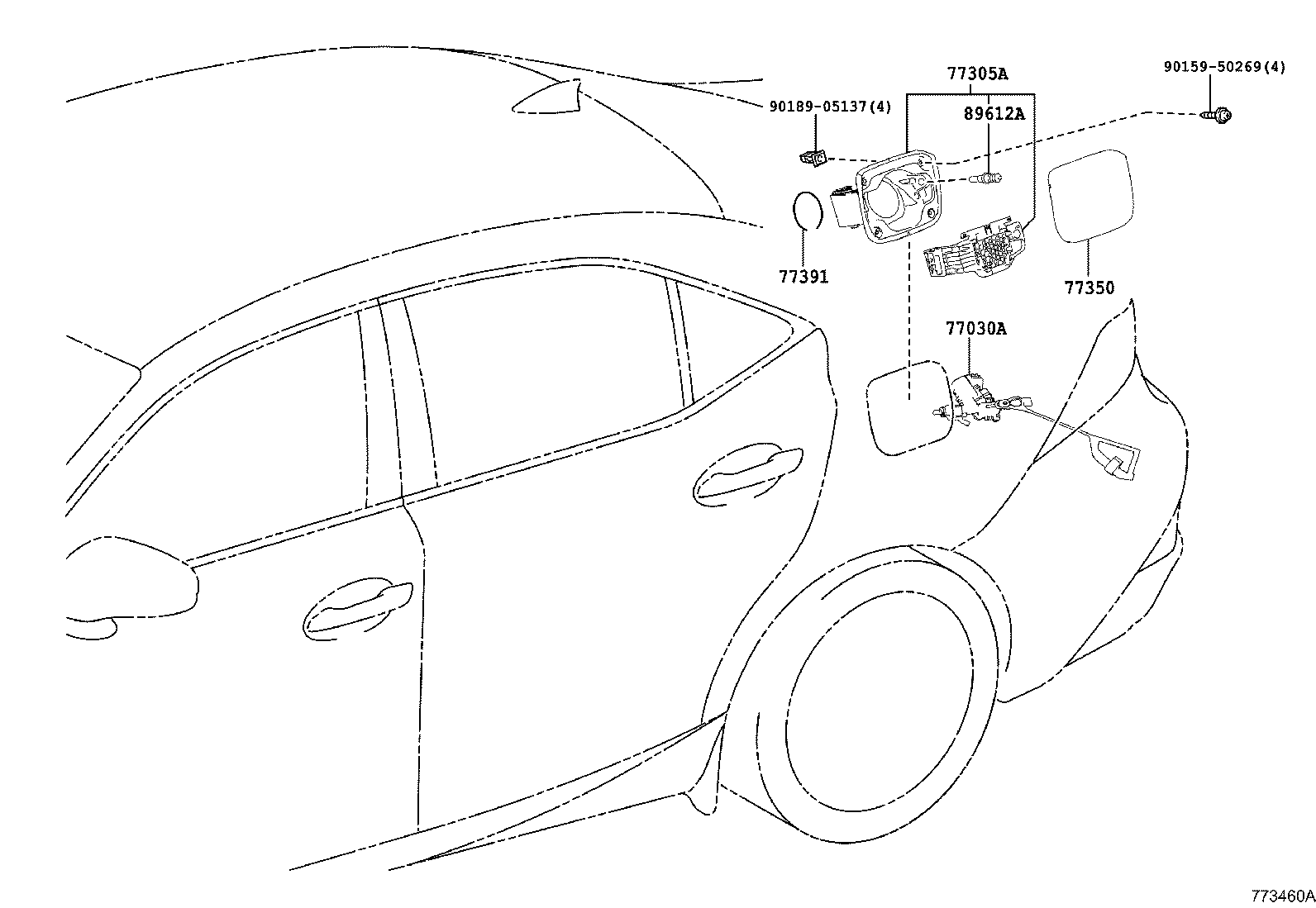

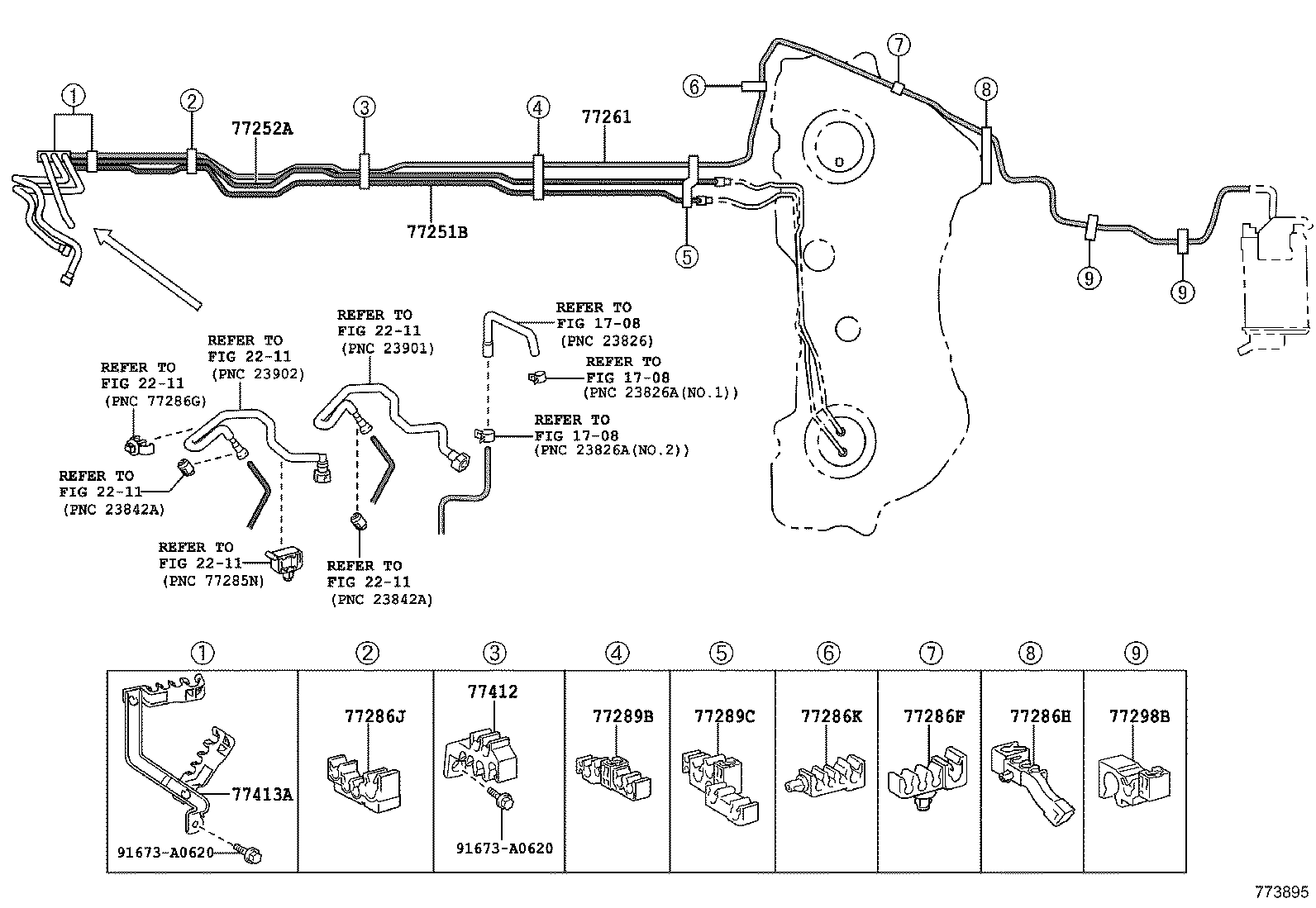

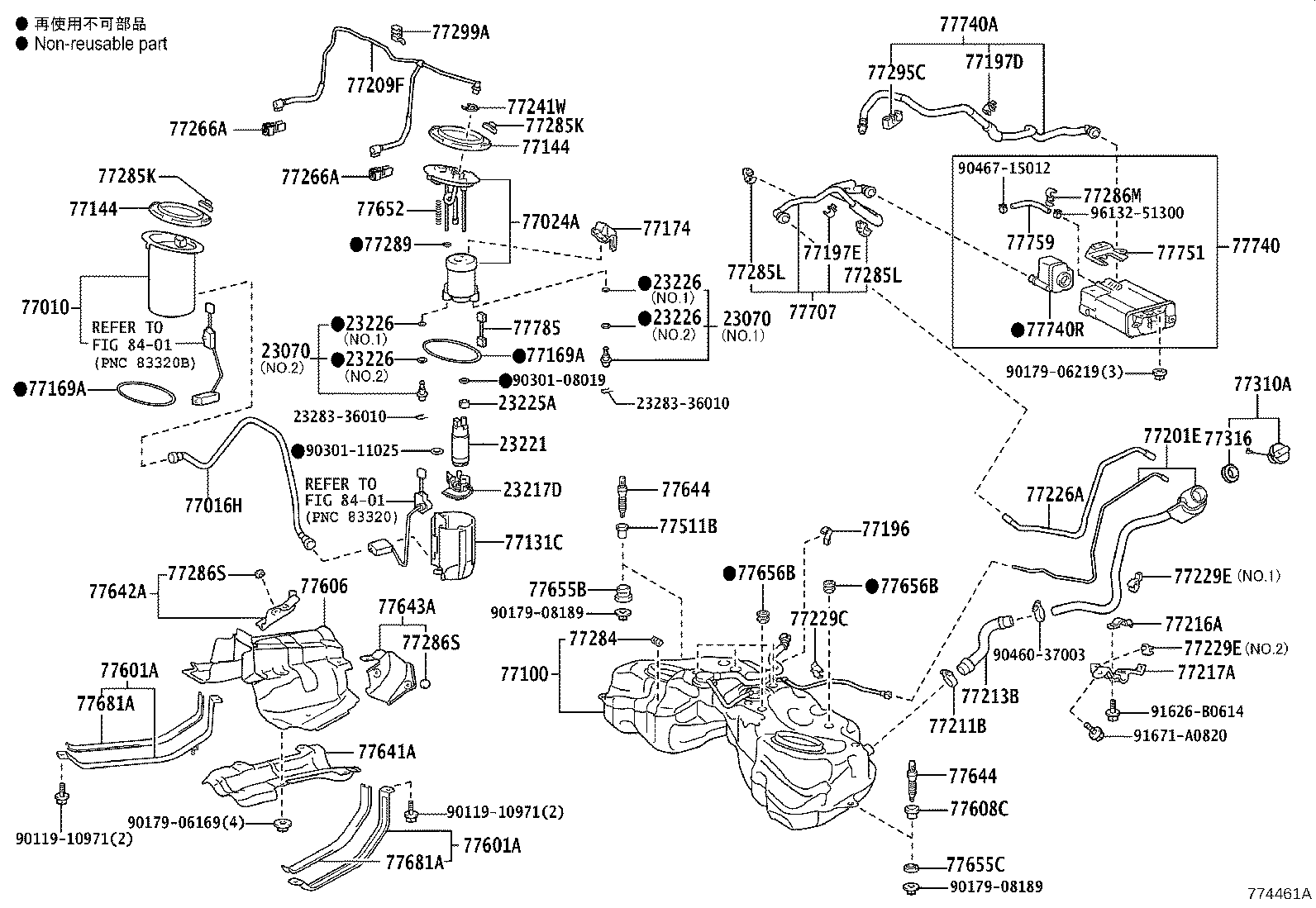

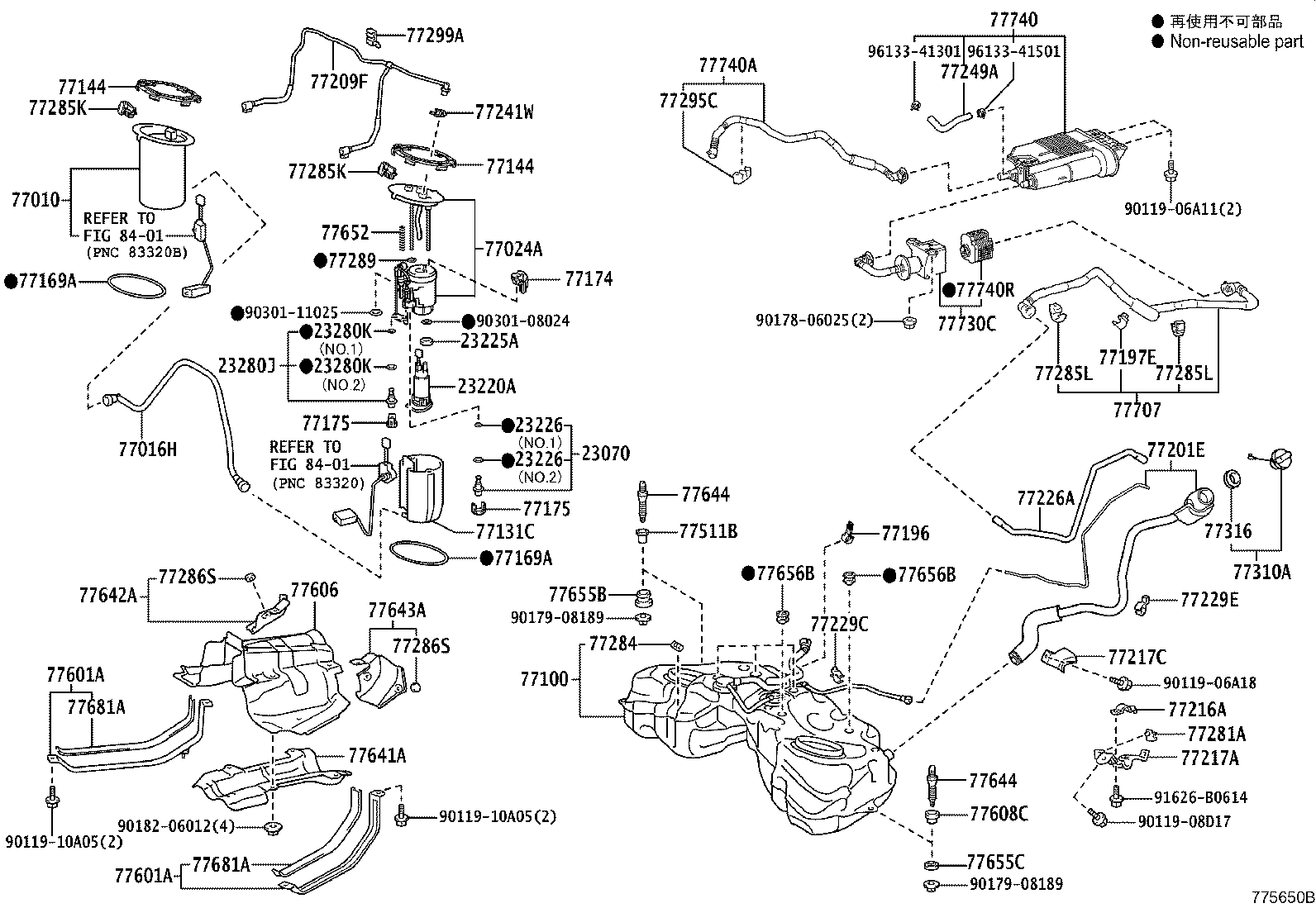

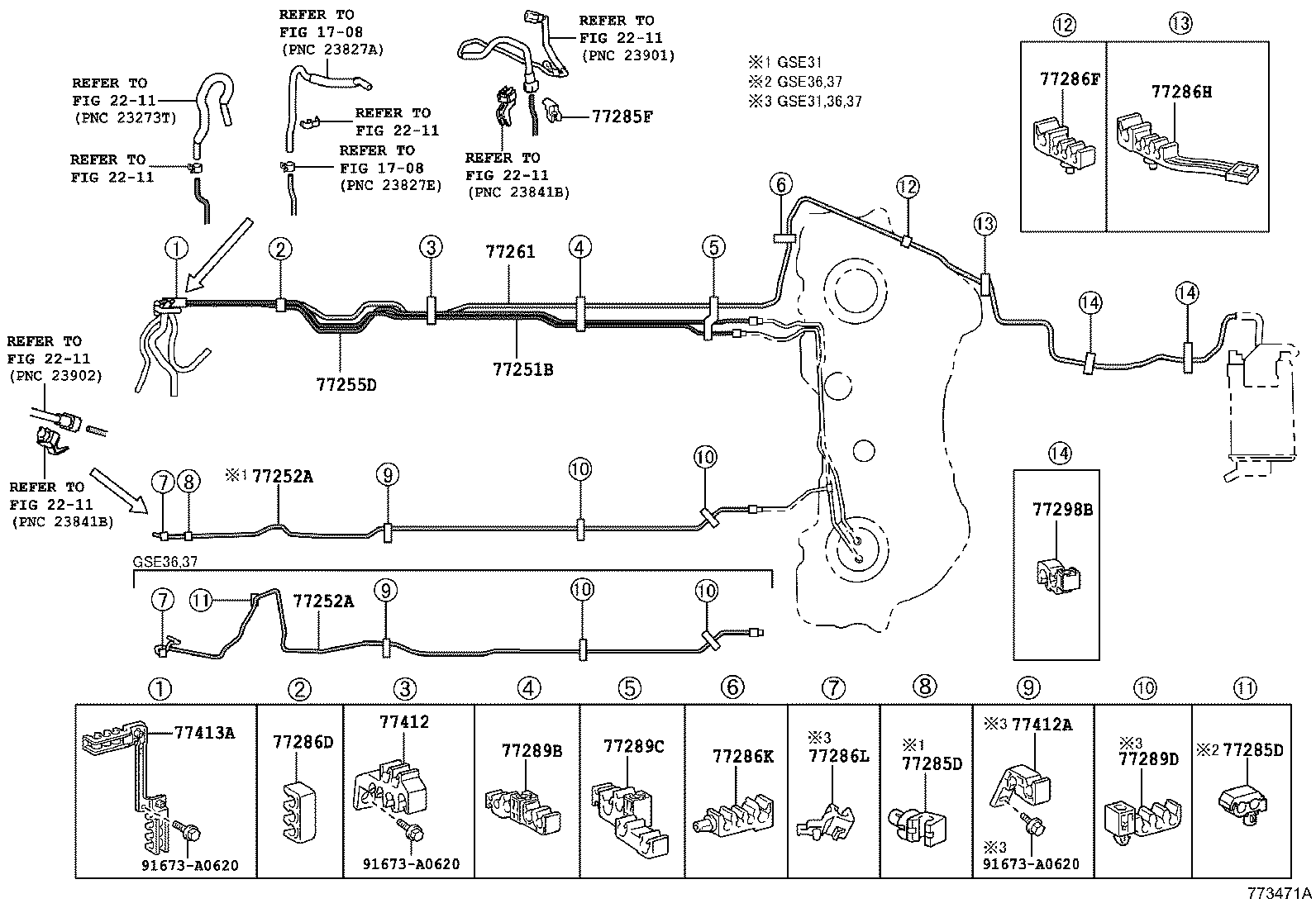

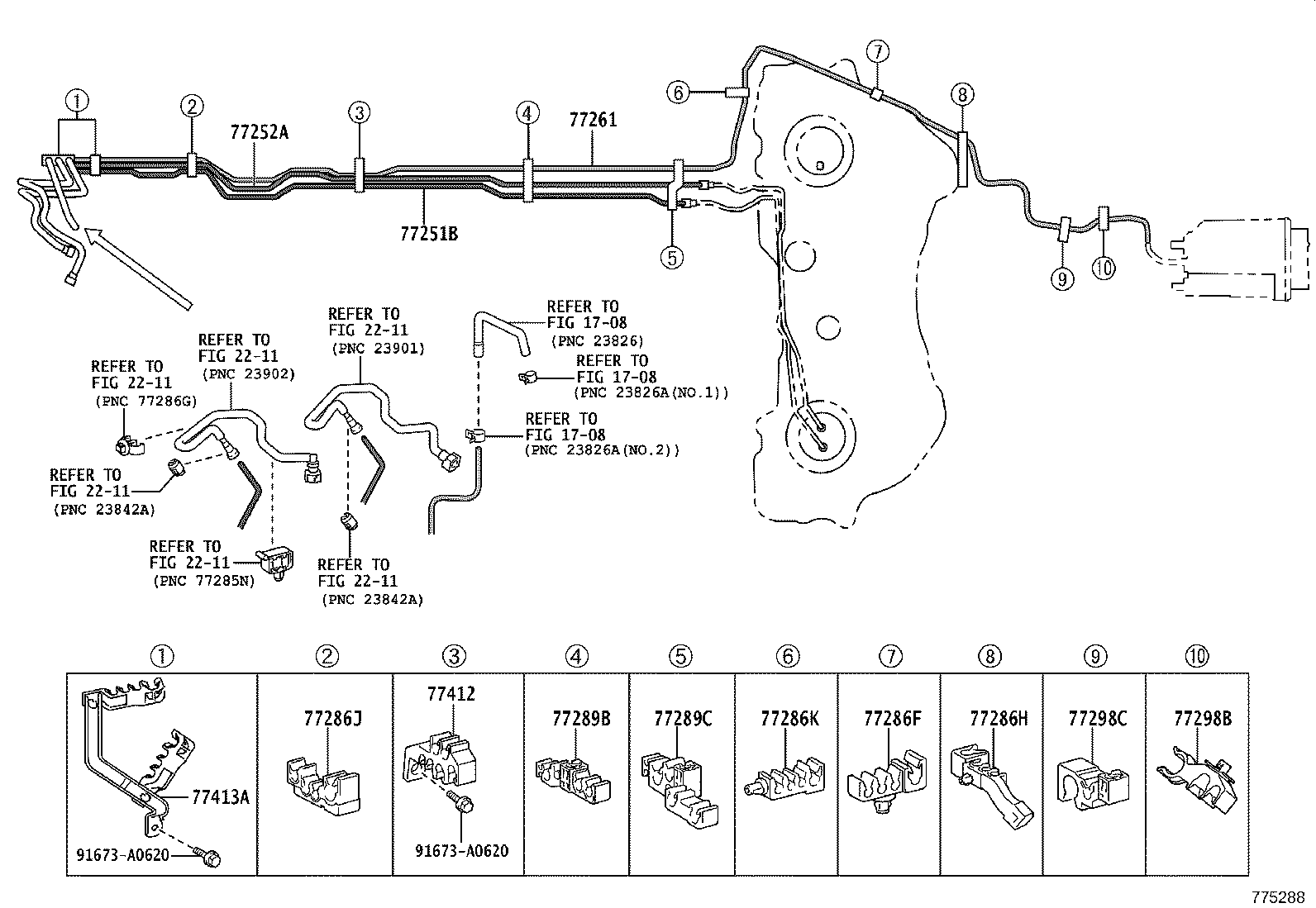

Figure 773469B 773469B 2013-04 → 2015-08 Figure 773470C 773470C 2013-04 → 2017-10 Figure 774461A 774461A 2017-10 → 2020-09 Figure 775285D 775285D 2020-09 → — Figure 773893D 773893D 2015-08 → 2020-09 Figure 775286D 775286D 2020-09 → — Figure 775650B 775650B 2021-11 → 2022-09 Figure 776166 776166 2022-09 → — Figure 773471A 773471A 2013-04 → 2017-10 Figure 774464 774464 2017-10 → 2020-09 Figure 775287A 775287A 2020-09 → — Figure 773895 773895 2015-08 → 2020-09 Figure 775288 775288 2020-09 → — Figure 775651 775651 2021-11 → — Figure 773460A 773460A 2013-04 → — Figure 775284 775284 2020-09 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23226 Ring, O(FOR FUEL PUMP)
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
77010 Tube Assy, Fuel Tank Vent
77016H Tube Sub-assy, Fuel Return Vent
77024A Plate Sub-assy, Fuel Suction
77030A Lock Assy, Fuel Lid W/Motor

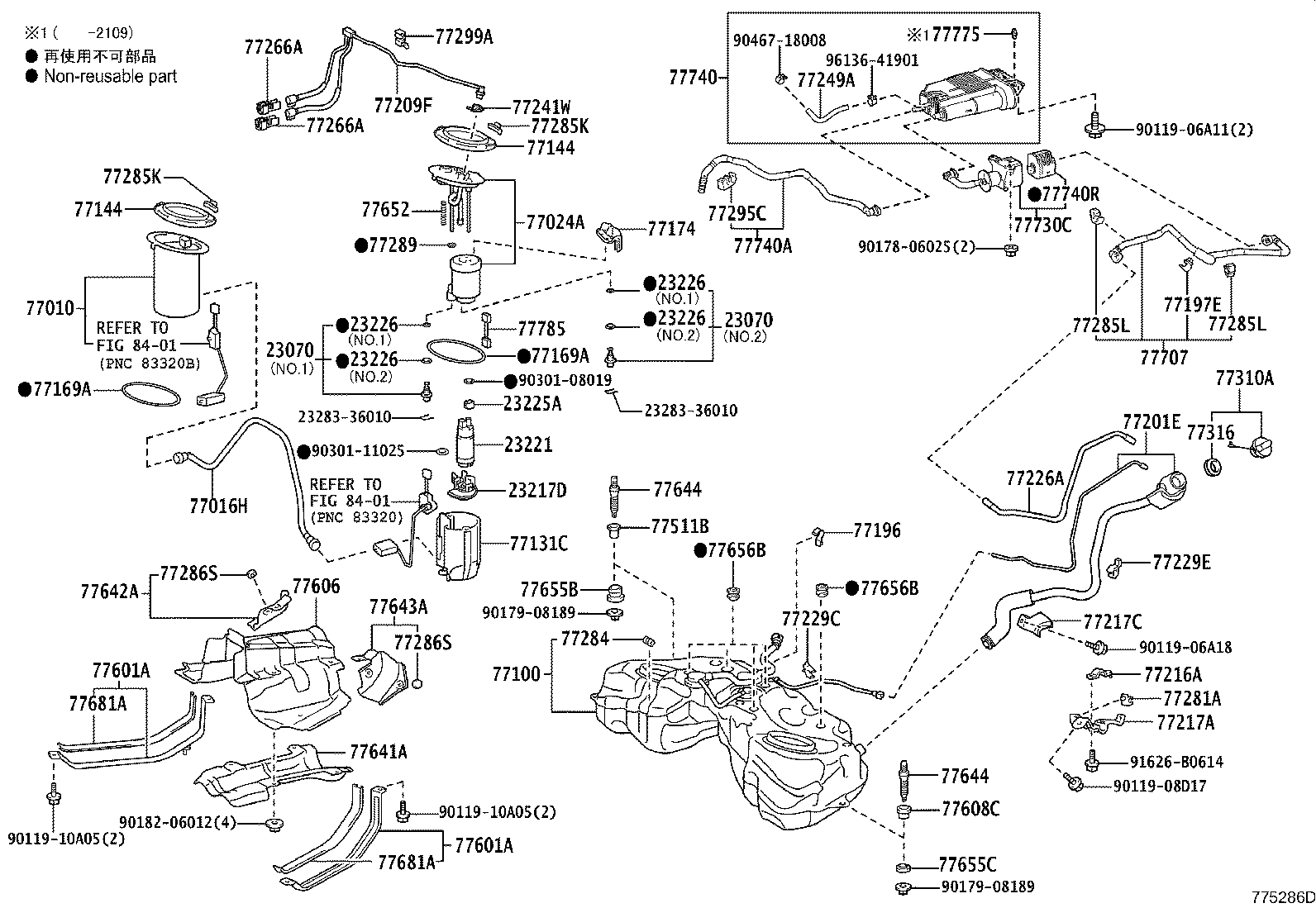

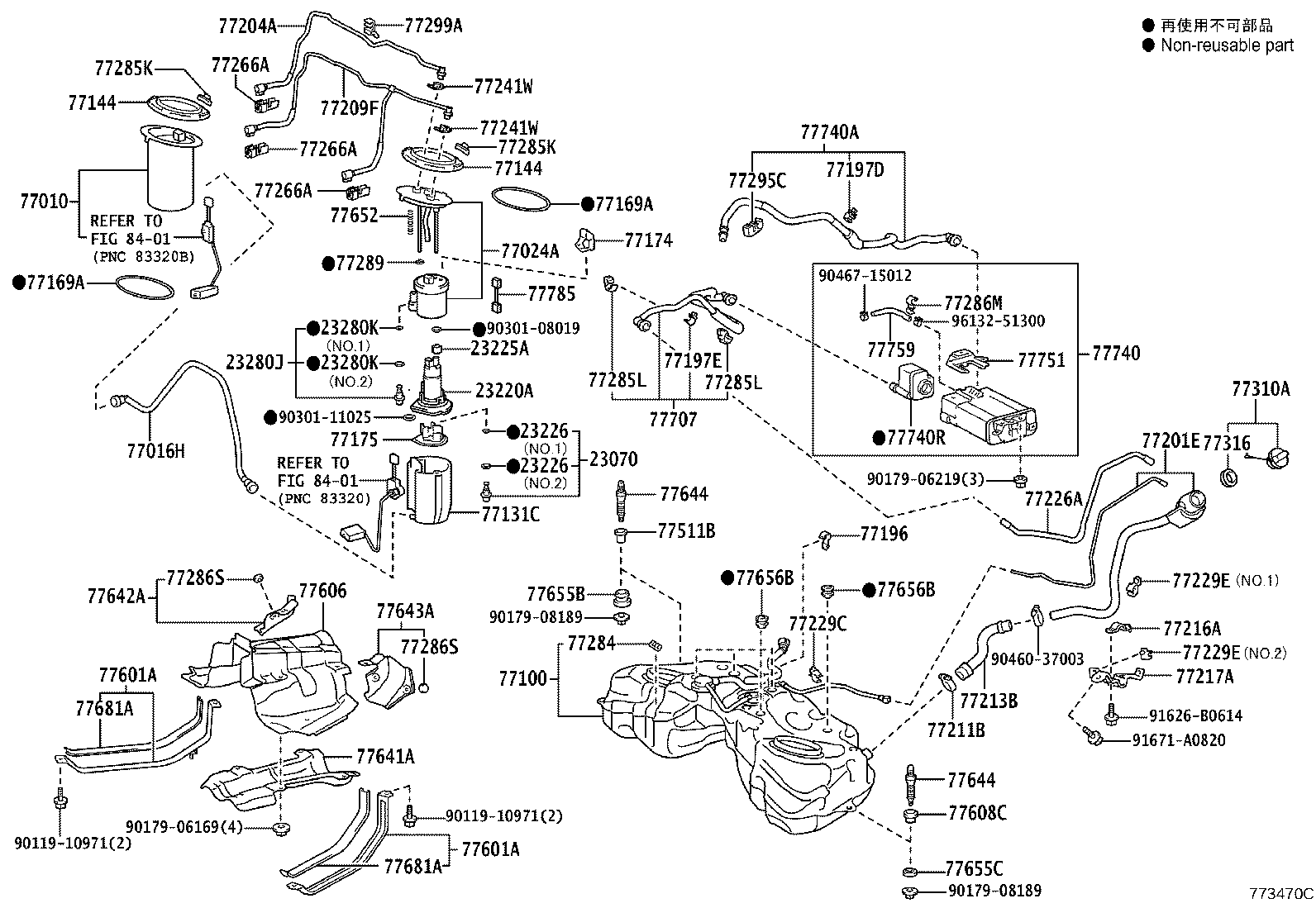

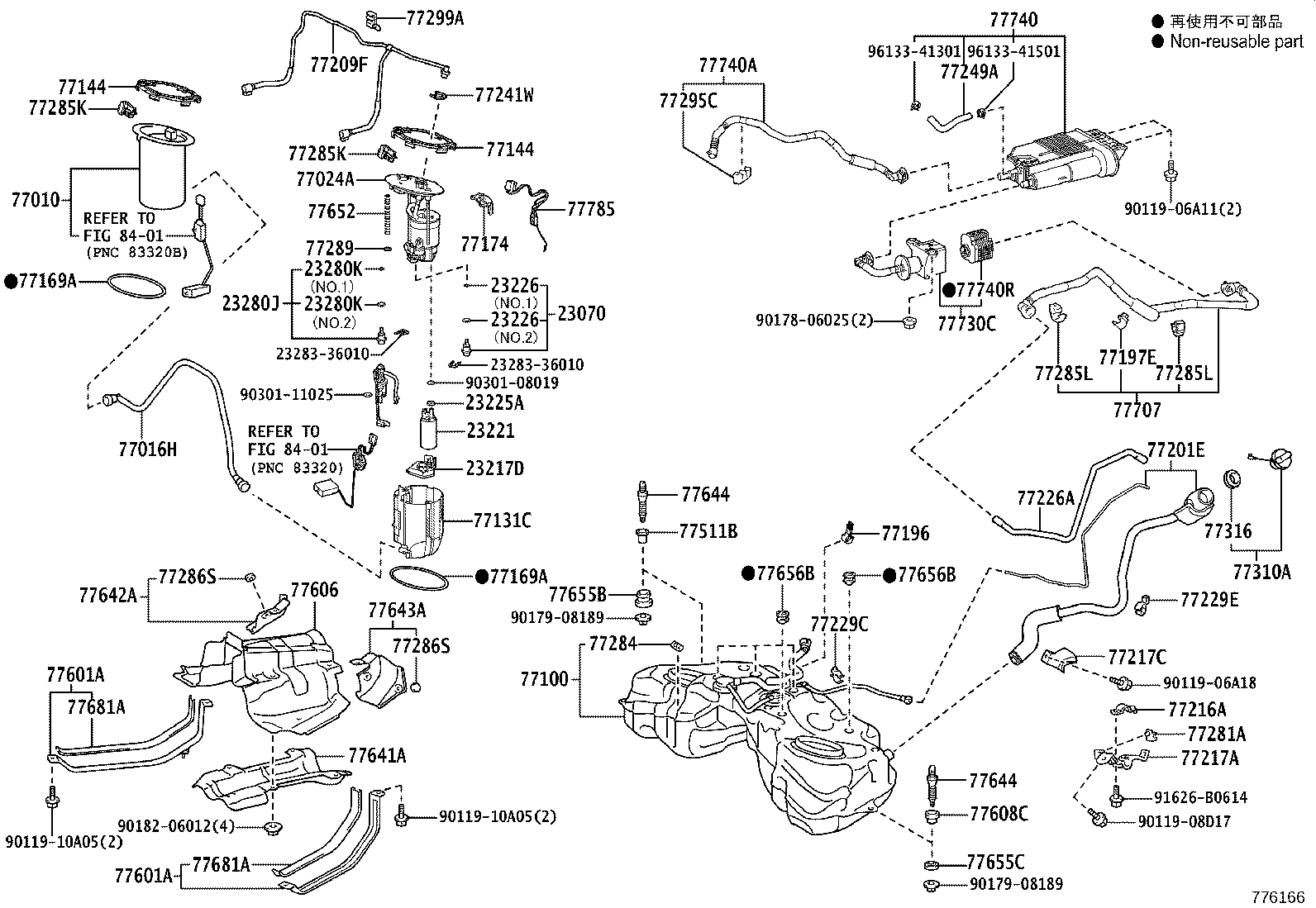

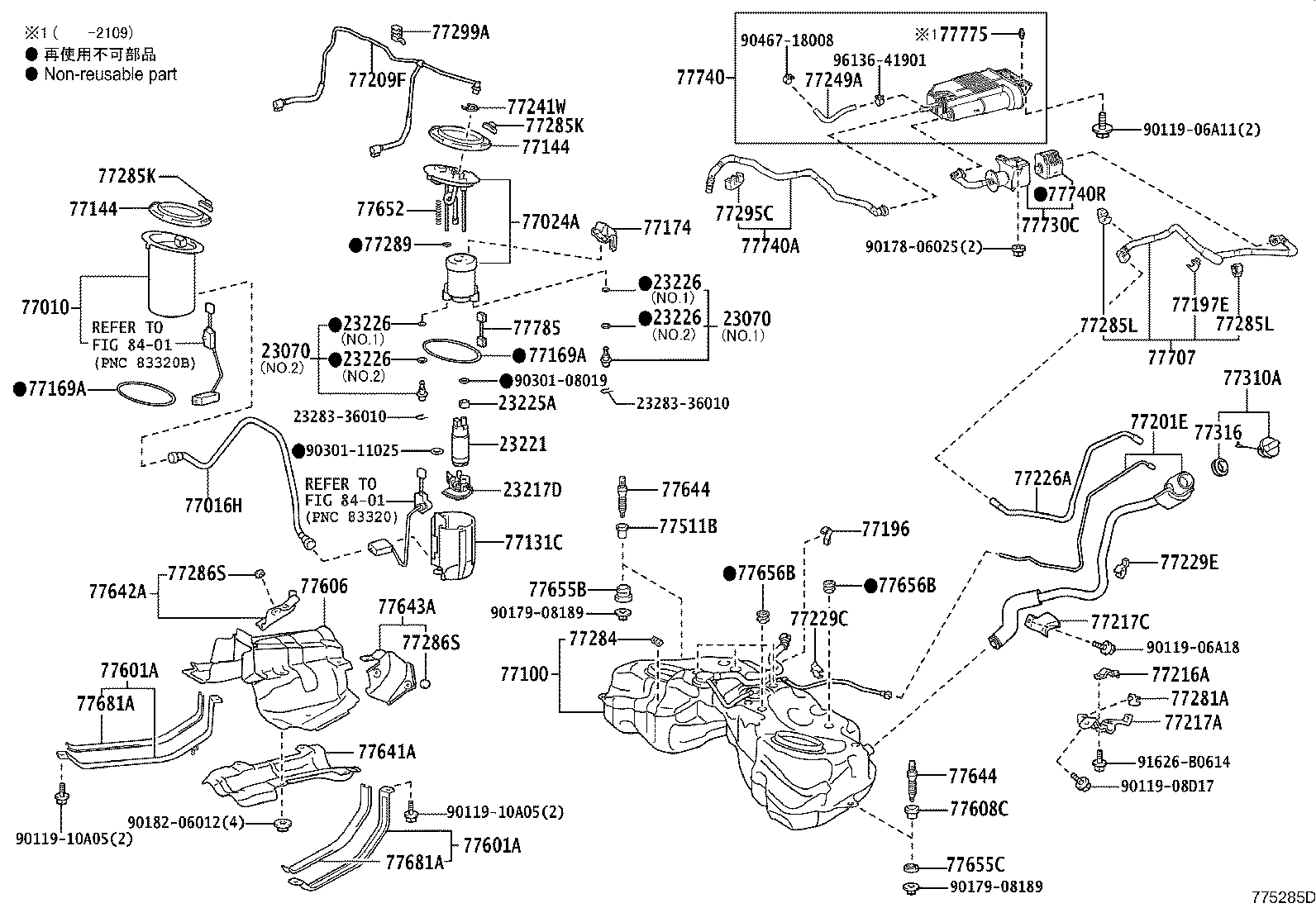

77100 Tank Assy, Fuel
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77175 Support, Fuel Suction, NO.2
77196 Clamp, Evaporation Vent Tube, NO.1
77197D Clamp, Evaporation Vent Tube, NO.2
77197E Clamp, Evaporation Vent Tube, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77204A Tube, Fuel Tank Return
77209F Tube Sub-assy, Fuel Tank Main
77211B Clamp (FOR FUEL FILLER PIPE)
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77217C Support, Fuel Tank Filler Pipe, NO.2
77226A Tube, Fuel Tank Breather, NO.6
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77241W Clip, Tube Joint
77249A Hose, Fuel Emission

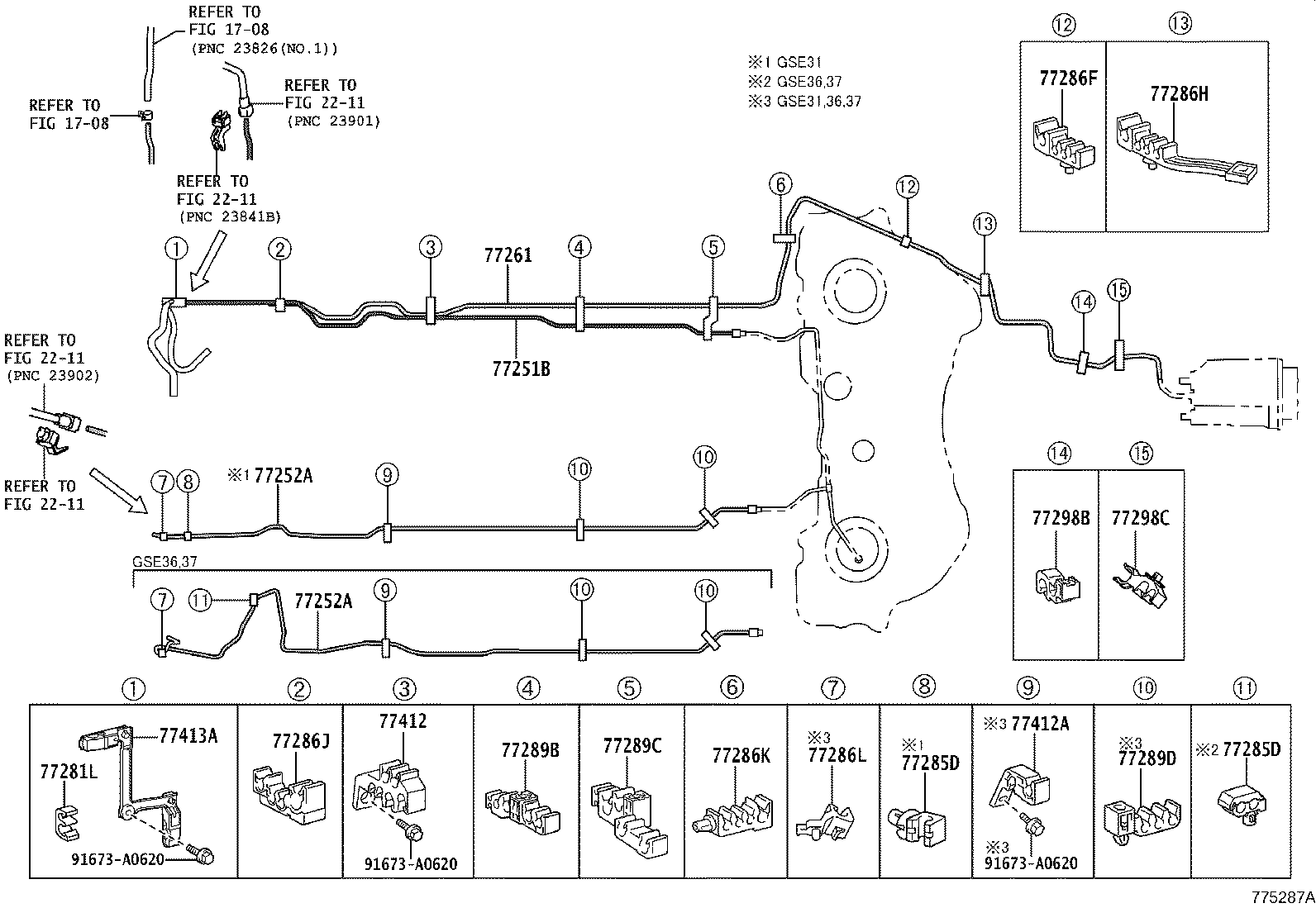

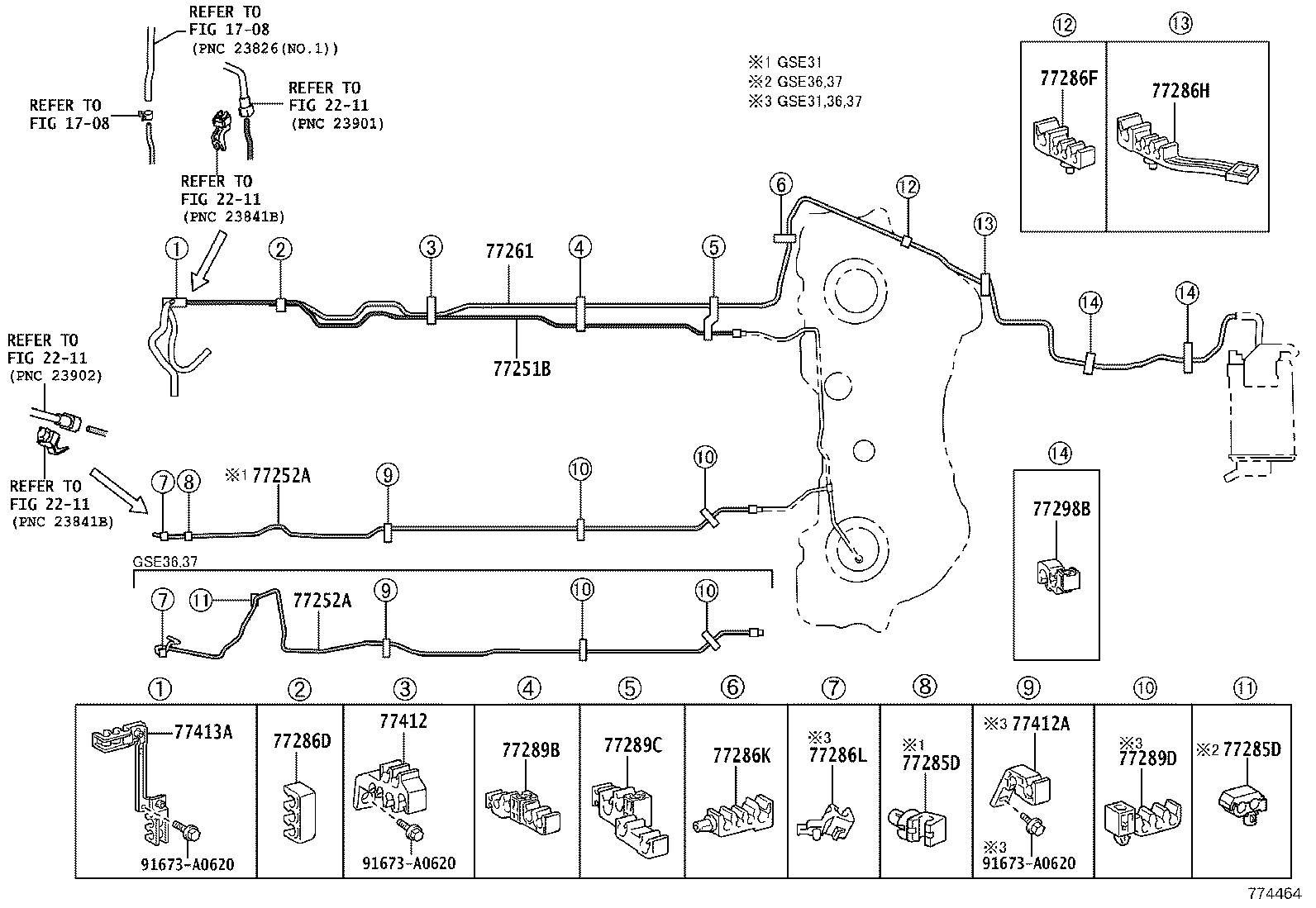

77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77255D Tube, Fuel Return
77261 Tube Sub-assy, Fuel Emission
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77268A Protector, Fuel Tube, NO.3
77281A Clamp, Fuel Filler Pipe
77281L Clamp, Fuel Hose
77284 Clamp, Fuel Tube
77284B Protector, Fuel Tube, NO.3
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77285R Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286R Clamp, Fuel Tube, NO.10
77286S Cushion, Fuel Tank Protector
77289 Holder, Fuel Tank Pipe Setting
77289B Clamp, Fuel Tube, NO.3
77289C Clamp, Fuel Tube, NO.4
77289D Clamp, Fuel Tube, NO.5
77290 Shield Assy, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77298B Clamp, Fuel Tube, NO.4
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5

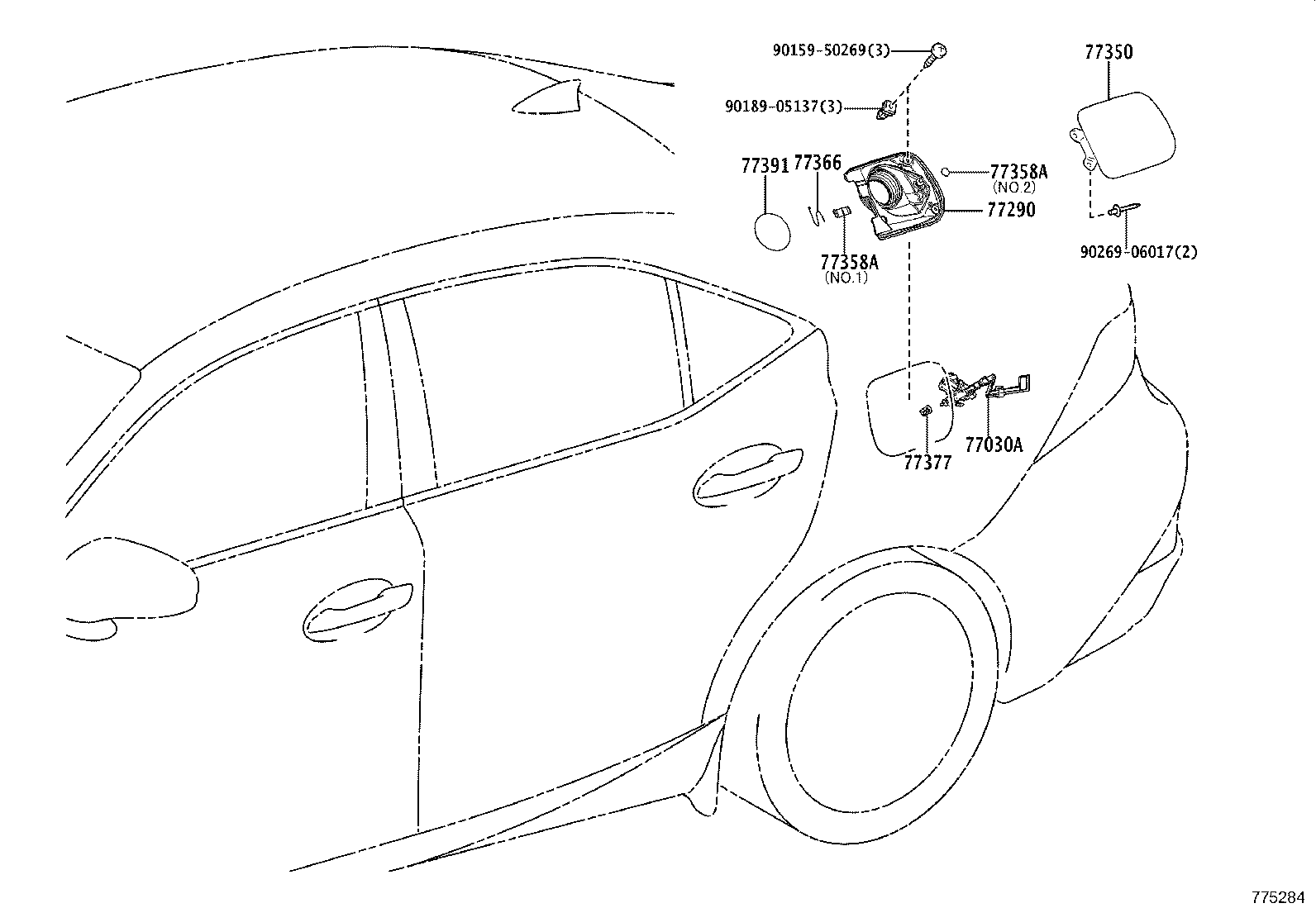

77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77358A Stopper, Fuel Filler Opening Lid
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77411C Support, Fuel Tube Grommet, NO.1
77411D Support, Fuel Tube Grommet, NO.2
77412 Support, Fuel Tube Grommet, NO.2
77412A Support, Fuel Tube Grommet, NO.2
77413A Support, Fuel Tube Grommet, NO.3
77511B Bracket, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77606 Protector Sub-assy, Fuel Tank, NO.1
77608C Cushion Set, Fuel Tank
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77643A Protector, Fuel Tank, NO.3
77644 Bolt, Fuel Tank
77652 Cushion, Fuel Tank, NO.1
77655B Cushion, Fuel Tank
77655C Cushion, Fuel Tank
77656B Cushion, Fuel Tank, NO.6
77681A Seat, Fuel Tank Band
77707 Tube Sub-assy, Charcoal Canister Outlet
77730C Canister Assy, Charcoal, NO.2
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740R Pump Sub-assy, Leak Detection
77751 Bracket, Charcoal Canister Base
77759 Hose, Charcoal Canister
77775 Guide, Charcoal Canister Outlet
77785 Harness, Fuel Pump
89612A Lifter, Push
