Rear Combination Lamp

28 part groups · 3 illustrations

Illustrations

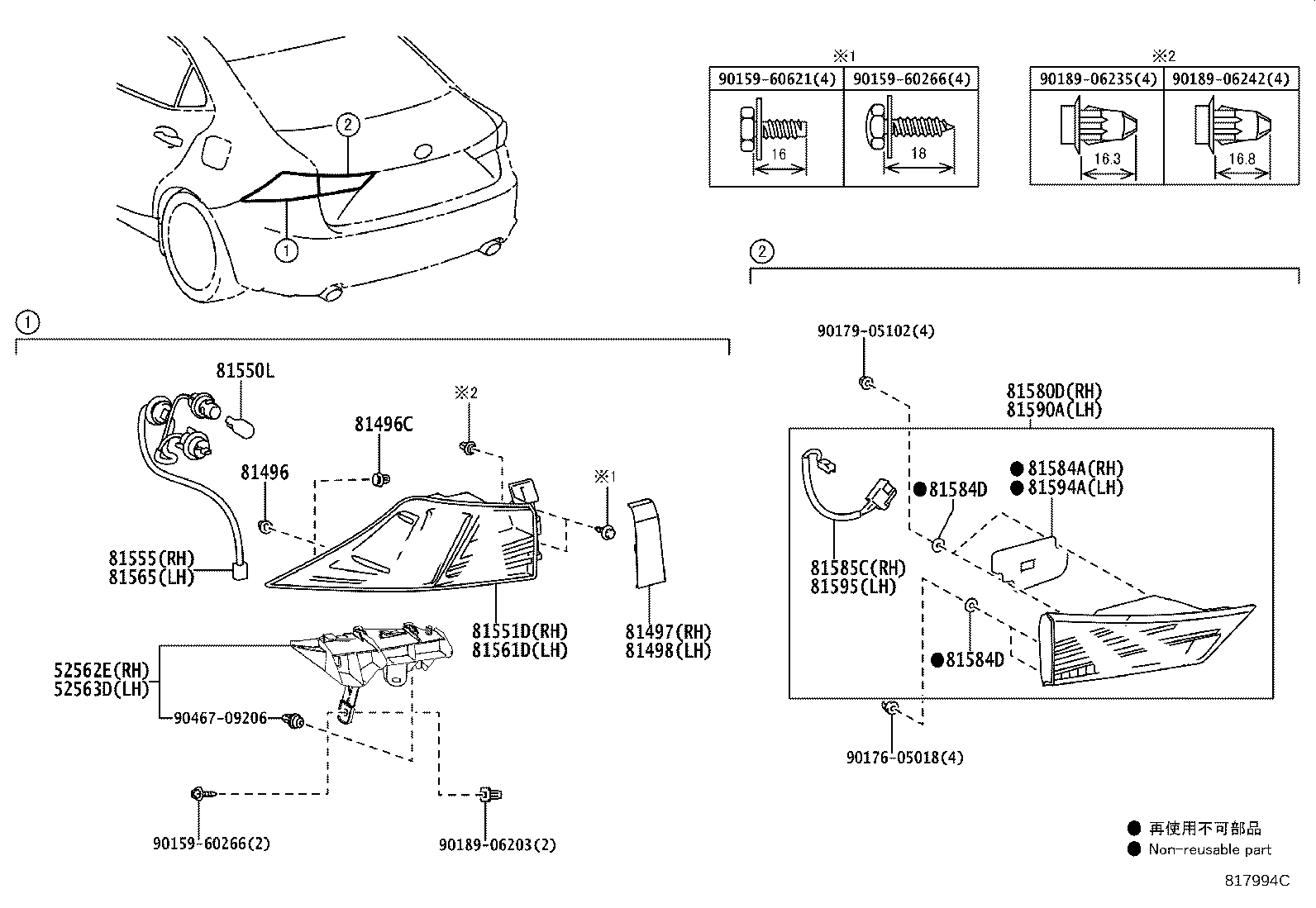

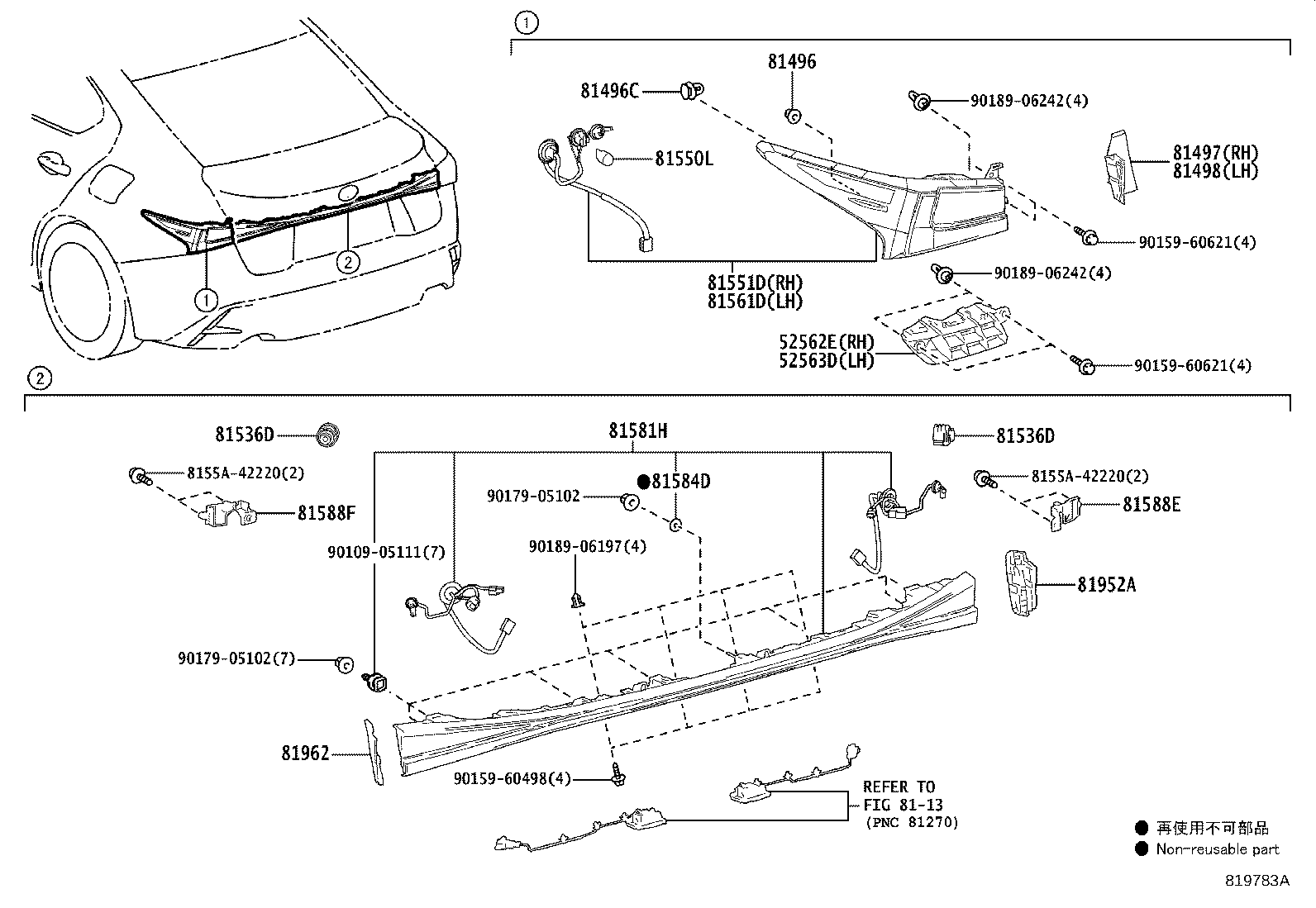

Figure 816576D 816576D 2013-04 → 2016-10 Figure 817994C 817994C 2016-10 → 2020-09 Figure 819783A 819783A 2020-09 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81536D Led, Taillamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81581H Lens & Body, Rear Lamp
81584A Gasket, Rear Lamp RH
81584D Gasket, Rear Lamp
81585C Socket & Wire, Rear Lamp, RH
81588E Bracket, Rear Lamp, RH
81588F Bracket, Rear Lamp, LH
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
81952A Cover, Rear Lamp, RH
81952E Cover, Rear Lamp
81962 Cover, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
