Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

2 part groups · 2 illustrations

Illustrations

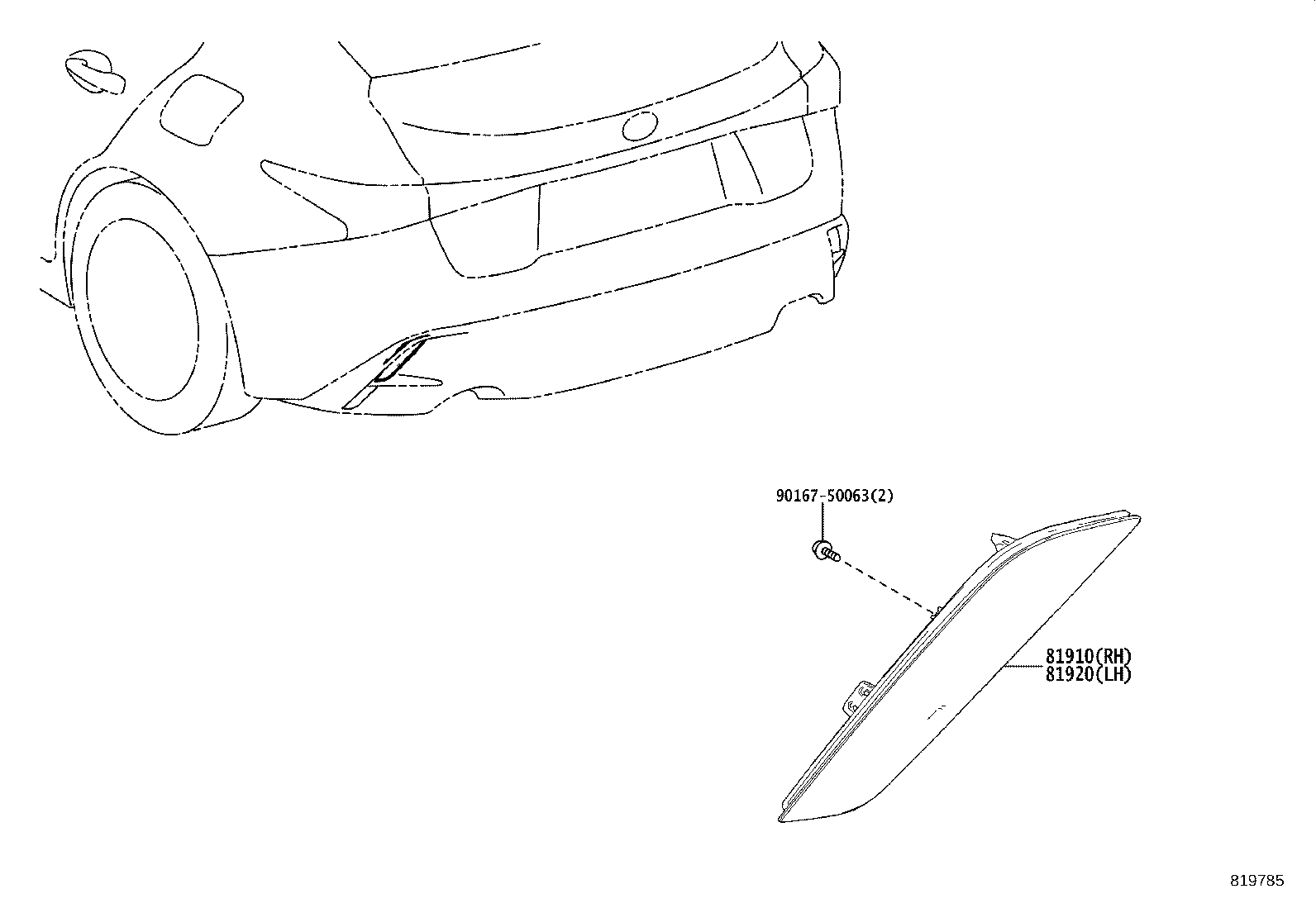

Figure 816558B 816558B 2013-04 → 2020-09 Figure 819785 819785 2020-09 → —

Part groups

PNCDescription
81910 Reflector Assy, Reflex, RH
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
